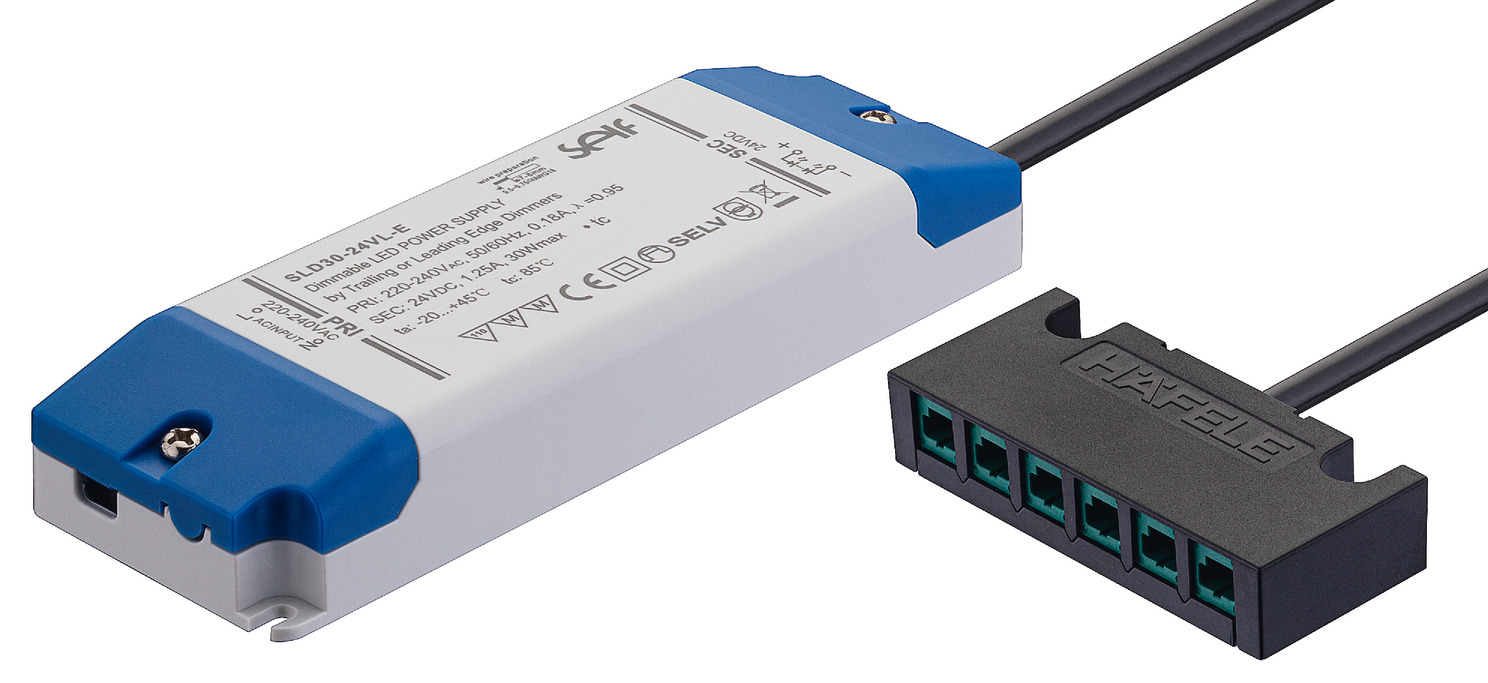

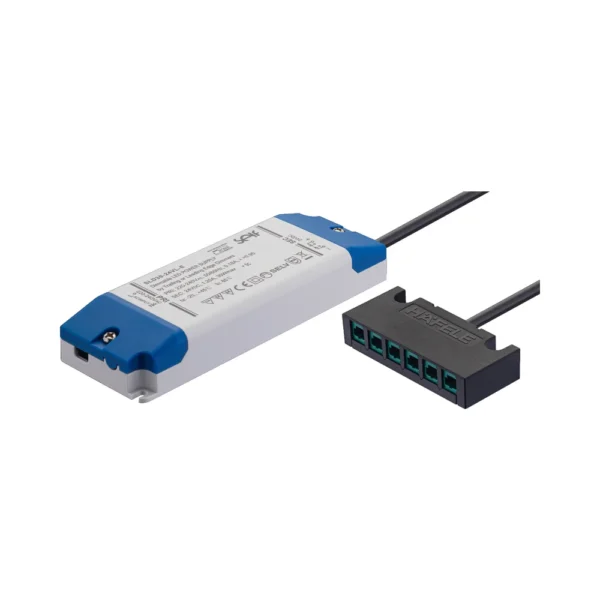

Hafele 83377976 Loox5 Dimmable LED Driver 24V 30W
Efficient and Versatile LED Driver for Loox5 Systems
The Hafele 83377976 Loox5 Dimmable LED Driver is designed for seamless integration into your home lighting setup. This driver is capable of handling dimmable LED lights with a rated output power of up to 30W, making it a reliable and versatile choice for a wide range of lighting applications.
Key Features
- Dimmable Functionality: This driver allows for direct dimming at the input, supporting both leading-edge and trailing-edge phase dimmers. It ensures smooth control over your lighting’s brightness.
- Robust Power Handling: Capable of powering LED lights with an output of 4.8-30W when using a dimmer, and 0-30W without a dimmer. This flexibility makes it suitable for various LED setups.
- Integrated 6-Way Distributor: Prewired with a Loox5 compatible 6-way distributor, making it easy to connect multiple LED lights in one setup.
- High Efficiency: With an efficiency rate of 0.83 at full load, this driver is designed to minimize energy consumption while delivering reliable power to your lights.
- Built-in Protections: Equipped with overload, short circuit, temperature, and overvoltage protection, ensuring the safety and longevity of your LED lights.
- Compact and Lightweight: The driver is compact (145 x 50 x 22 mm) and lightweight (215 g), making it easy to install in tight spaces.
Specifications
- Input Voltage: 220-240 V, 50-60Hz
- Output Voltage: 24V DC
- Rated Output Power: 30W
- Material: White plastic construction
- Protection Rating: IP20
- Ambient Temperature Range: -20°C to 45°C
- Max Lead Length: 10 m from the driver to the device
- Efficiency: 0.83 at 230 V full load
- Installation: Screw fixing (mains plug not included; must be fitted by a qualified electrician)
- Dimensions: 145 x 50 x 22 mm
- Weight: 215 g
- Application: Suitable for dimmable LED lights (not for use with distributors with switching functions, Connect Mesh, charging stations, or sound systems)
- Warranty: Häfele Lifetime Guarantee of 7 years
