Description

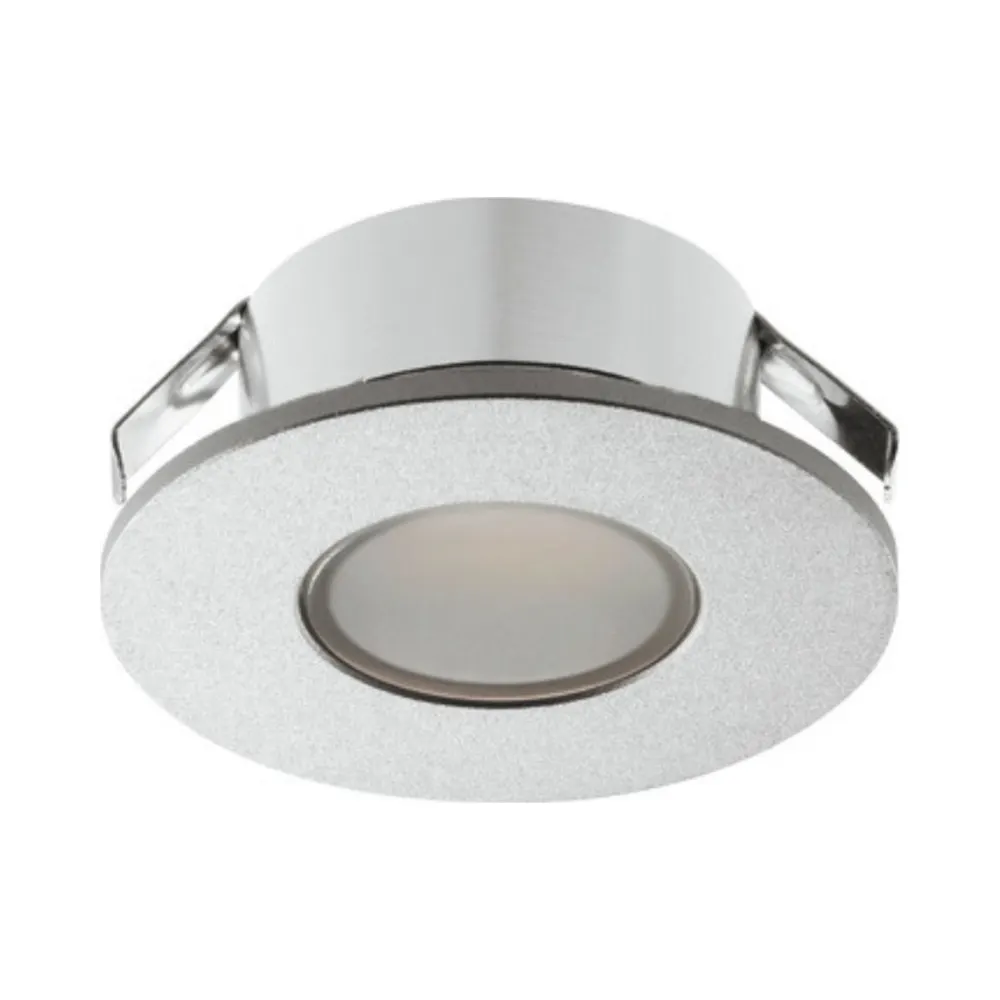

Loox5 LED 2022 12V Mini Furniture Downlight – 35mm
Hafele 833.72.088 Loox5 LED 2022 12V Spot Light 5000K
The Hafele 833.72.088 loox5 led 2022 12v spot light 5000k is a 1.5W mini downlight designed for furniture, cabinetry and damp-area applications. Its silver coloured anodised aluminium housing provides a clean, modern appearance, while the bright daylight 5000K output delivers high-clarity illumination. When recess mounted, the fitting achieves an IP44 rating suitable for wet rooms and bathroom zone installations. Supplied with a 2000 mm Loox5 12V connector lead for simple plug-in installation.
Applications – Hafele 833.72.088 Loox5 LED 2022 12V Spot Light 5000K
- Wet rooms, bathroom furniture and splash zones (IP44 recessed)
- Display cabinets, wall units and shelving
- Mini hinge drill-hole installations (26 mm)
- Accent lighting in kitchens and wardrobes
- Loox5 12V system upgrades or new installations
Key Features – Hafele 833.72.088 Loox5 LED 2022 12V Spot Light 5000K
- 1.5W Loox5 LED 2022 12V mini downlight
- Daylight 5000K colour temperature
- IP44 when recess mounted, IP20 surface mounted
- Silver coloured anodised aluminium housing

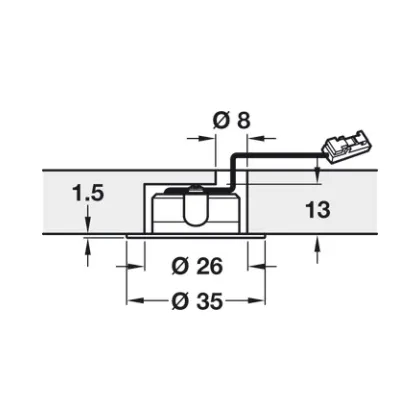

- Ø35 mm visible diameter with 26 mm drill hole
- 1.5 mm rim and minimum 13 mm installation depth
- 90° refraction angle for wide, even light distribution
- Dimmable with compatible Loox5 12V drivers and switches
- Press-fit or screw fixing installation
- Supplied with 2000 mm Loox5 12V cable and fixings
Technical Specifications – Hafele 833.72.088 Loox5 LED 2022 12V Spot Light 5000K
| Model | LED 2022 |
| Article number | 833.72.088 |
| Nominal voltage | 12V DC (Loox5) |
| Wattage | 1.5W |
| Light colour | Daylight 5000K |
| Refraction angle | 90° |
| Degree of protection | IP44 recessed / IP20 surface |
| Visible diameter | 35mm |
| Drill hole Ø | 26mm |
| Minimum installation depth | 13mm |
| Housing material | Aluminium, silver coloured anodised |
| Cable length | 2000mm Loox5 12V connector |
| Dimmable | Yes |
| Installation | Press-fit or screw fixing |
| Installation note | Suitable for mini hinge drill hole Ø26 mm |
| Energy efficiency class | G |
| Additional information | IP44 reduces to IP20 when surface mounted or when using through-hole mounting |
| Guarantee | Hafele Lifetime Guarantee |
Electrical4Less Guarantee – Hafele 833.72.088 Loox5 LED 2022 12V Spot Light 5000K
Electrical4Less is an authorised Hafele distributor, offering trade pricing, fast delivery and expert support for professional installers.
If you require any Hafele Loox5 components – including LED 2022 modules, bezels, drivers or switches – we can source any SKU quickly on request. For full technical details, visit the Hafele UK website.
