Loox5 LED 2022 12V Mini Furniture Downlight – 35mm

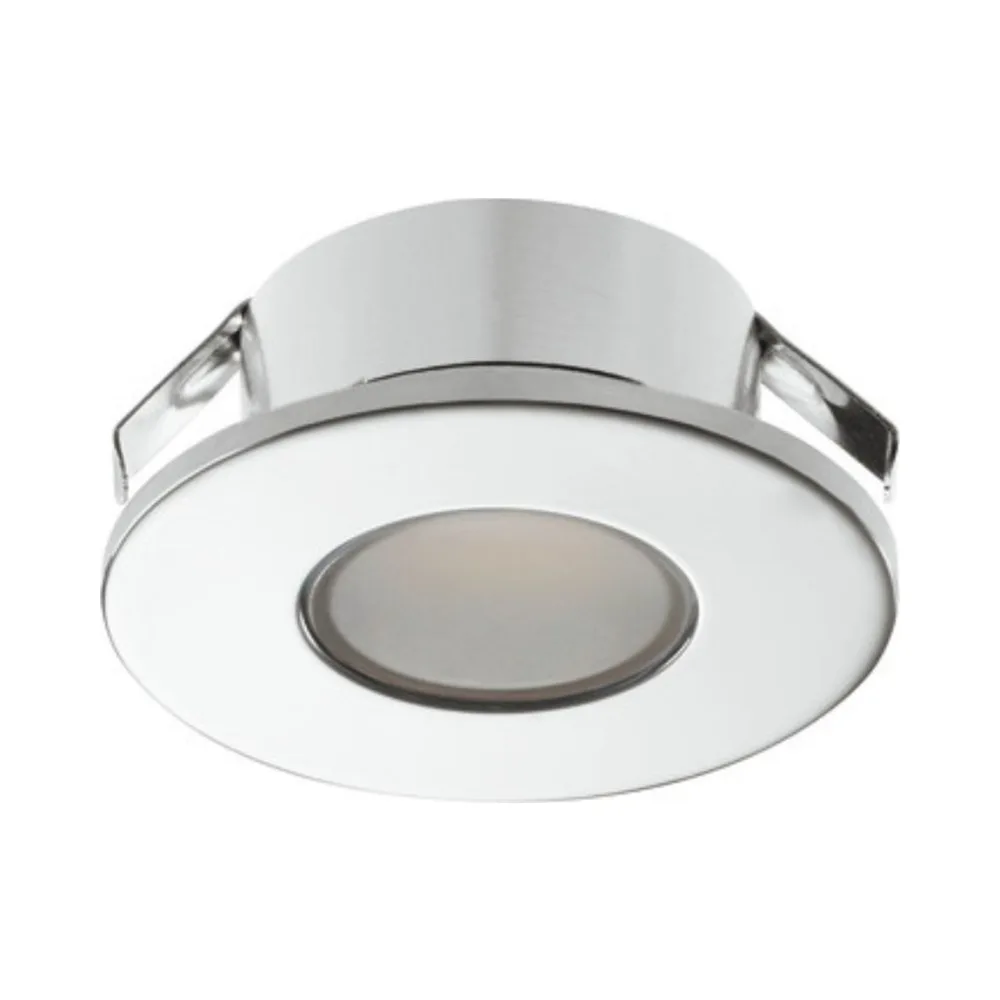

Hafele 833.72.087 Loox5 LED 2022 12V Spot Light 4000K
The Hafele 833.72.087 Loox5 LED 2022 12V spot light 4000K is a compact 1.5W mini downlight designed for furniture, cabinetry and damp-area environments.
Its chrome plated polished aluminium housing and cool white 4000K output provide bright, neutral illumination, and when recess mounted it achieves an IP44 rating suitable for wet rooms and bathroom zone installations. Supplied with a 2000 mm Loox5 12V connector lead for simple plug-in installation.
Applications – Hafele 833.72.087 Loox5 LED 2022 12V Spot Light 4000K
- Shelving units, display cabinets and retail showcases
- Bathroom furniture and wet room splash areas (IP44 recessed)
- Mini hinge drill-hole lighting (26 mm)
- Accent lighting in kitchens, wardrobes and furniture
- Loox5 12V system upgrades or new installations
Key Features – Hafele 833.72.087 Loox5 LED 2022 12V Spot Light 4000K
- 1.5W Loox5 LED 2022 12V mini downlight
- Cool white 4000K colour temperature
- IP44 when recess mounted, IP20 when surface mounted
- Chrome plated polished aluminium housing

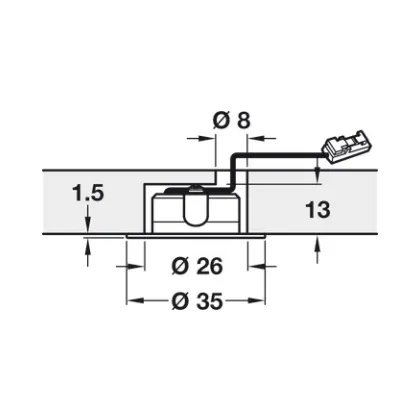

- Ø35 mm visible diameter with 26 mm drill hole
- 1.5 mm rim and minimum 13 mm installation depth
- 90° refraction angle for wide, even illumination
- Dimmable with compatible Loox5 12V drivers and switches
- Press-fit or screw-fix installation
- Supplied with 2000 mm Loox5 12V cable and fixings
Technical Specifications – Hafele 833.72.087 Loox5 LED 2022 12V Spot Light 4000K
| Model | LED 2022 |
| Article number | 833.72.087 |
| Nominal voltage | 12V DC (Loox5) |
| Wattage | 1.5W |
| Light colour | Cool white 4000K |
| Refraction angle | 90° |
| Degree of protection | IP44 recessed / IP20 surface |
| Housing material | Aluminium, chrome plated polished |
| Visible diameter | 35mm |
| Drill hole Ø | 26mm |
| Minimum installation depth | 13mm |
| Cable length | 2000mm Loox5 12V connector |
| Energy efficiency class | G |
| Dimmable | Yes |
| Installation | Press-fit or screw fixing |
| Installation note | Suitable for mini hinge Ø26 mm |
| Additional information | IP44 is reduced to IP20 when surface mounted or recess mounted with through-hole |
| Guarantee | Hafele Lifetime Guarantee |
Electrical4Less Guarantee – Hafele 833.72.087 Loox5 LED 2022 12V Spot Light 4000K
Electrical4Less is an authorised Hafele distributor, offering trade pricing, fast delivery and expert support for all Loox5 installations.
If you need any Hafele Loox5 components – including LED 2022 modules, bezels, switches or drivers – we can source any SKU quickly on request. For full technical details visit the Hafele UK website.
