Description

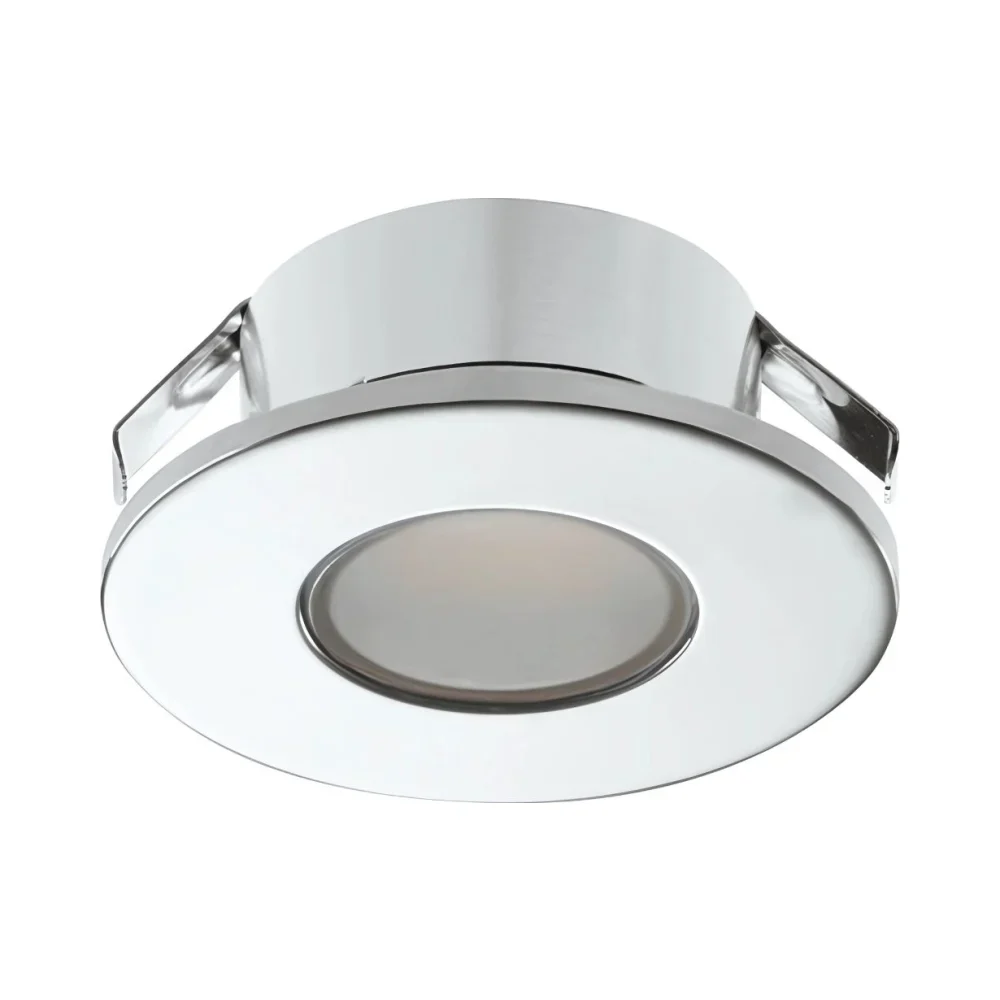

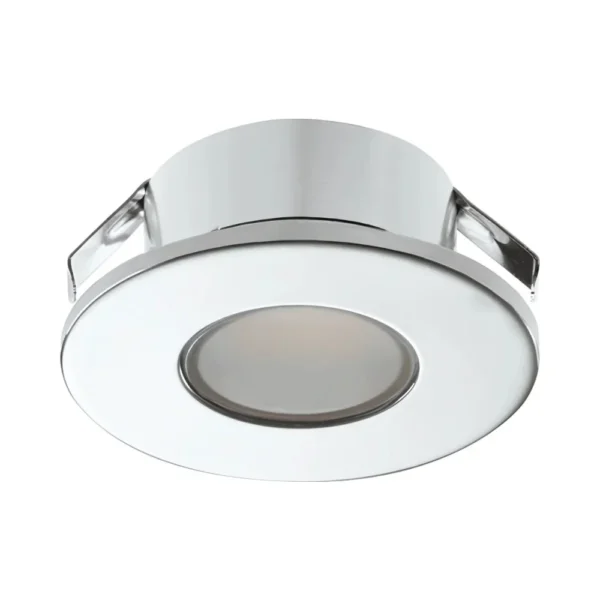

Loox5 LED Spot Light
Hafele 83372085
Enjoy the warm, ambient glow of the Hafele 83372085 Loox5 LED Spot Light – now in a sleek Ø35mm chrome finish. Designed for both style and functionality, this 12V spotlight blends seamlessly into bathrooms, cabinetry, and shelving. Its polished chrome housing delivers a modern, reflective look while offering splash-proof safety for use in wet zones.
With a wide 90° light spread and dimmable functionality, this compact light is ideal for creating luxurious, glare-free illumination in contemporary interiors.
Key Features – Hafele 83372085 Loox5 LED Spot Light (Chrome – 3000K – Ø35mm)
- ✅ Stylish Chrome Finish – Polished housing complements modern interiors
- ✅ Splash-Proof IP44 Rating – Safe for bathrooms and wet areas when recessed
- ✅ 3000K Warm White – Creates a relaxing, elegant glow
- ✅ Dimmable – Compatible with dimmable 12V LED drivers
- ✅ 90° Beam Angle – Smooth, wide light distribution

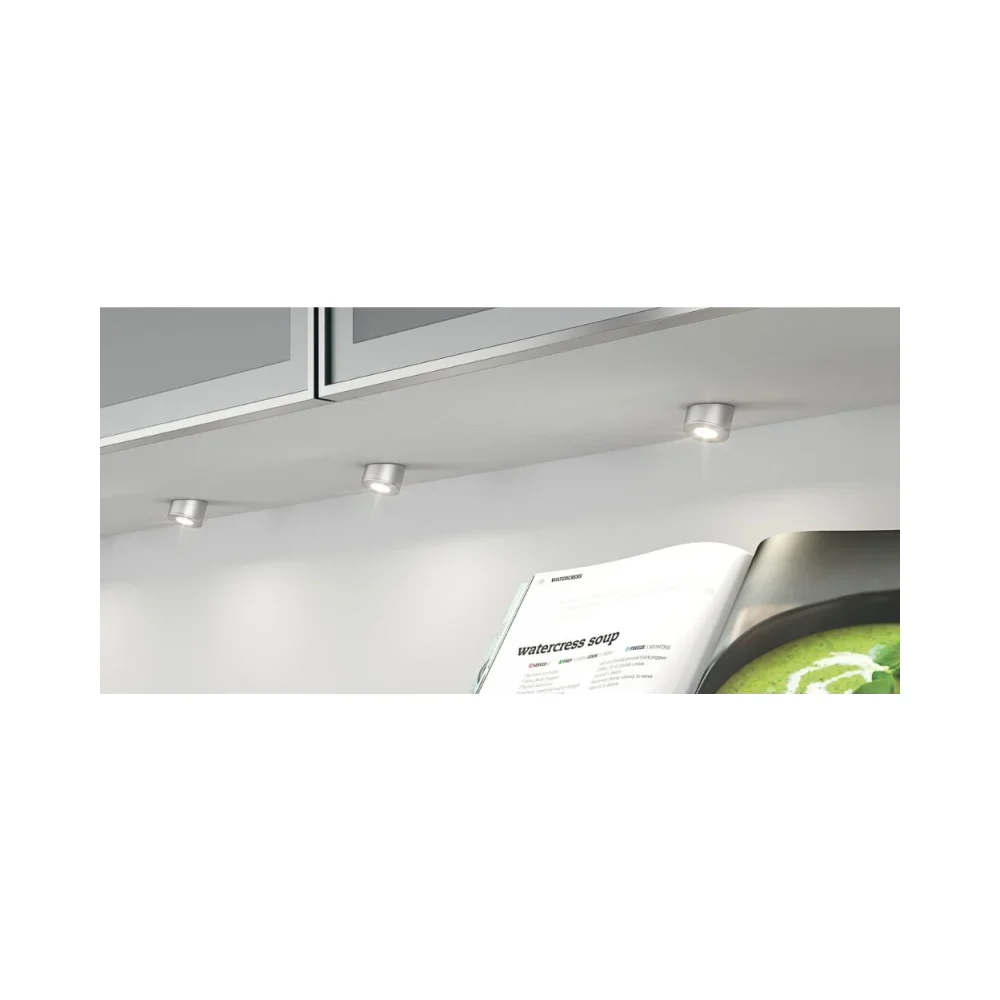

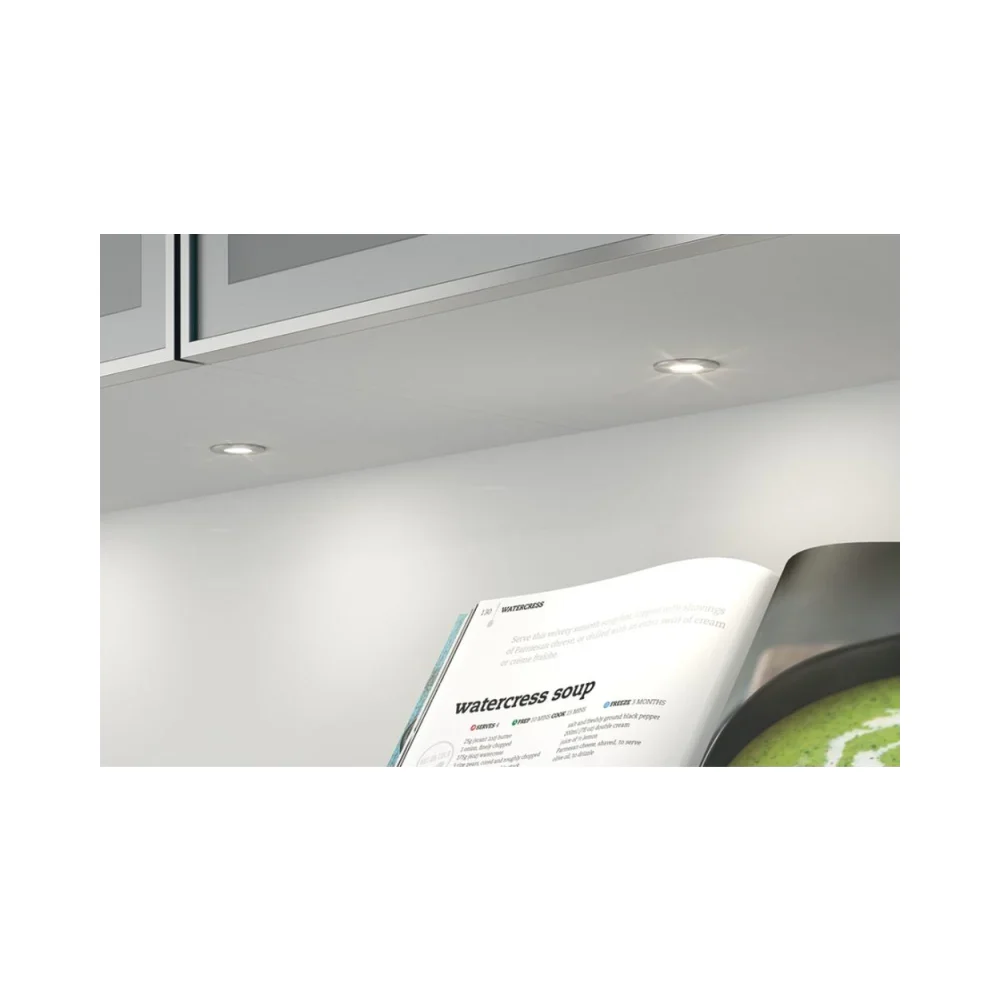

- ✅ Flexible Mounting – Recessed press-fit or surface-mounted with bezels
- ✅ Fits Ø26mm Drill Hole – Quick install in furniture or ceilings
⚙️ Technical Specifications – Loox5 LED 2022 (Chrome, 12V)
Electrical & Optical
- Voltage: 12V DC
- Wattage: 1.5W
- Colour Temperature: 3000K Warm White
- Beam Angle: 90°
- Dimmable: Yes
- IP Rating: IP44 (recessed), IP20 (surface-mounted)
- Energy Class: G

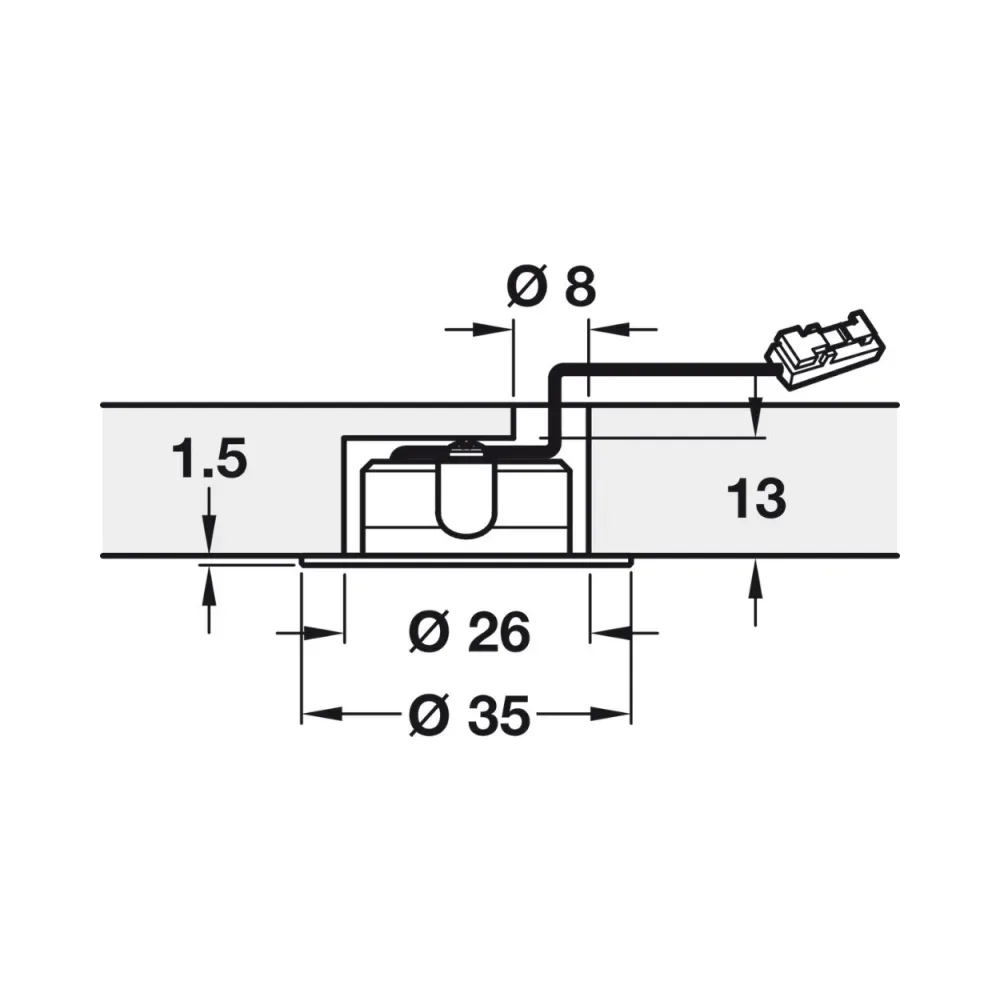

Physical
- Diameter: Ø35mm
- Rim: 1.5mm (slim profile)
- Drill Hole: Ø26mm
- Minimum Depth: 13mm
- Housing Material: Aluminium
- Housing Finish: Chrome plated, polished
- Application Areas: Bathrooms, furniture, shelving, kitchens
- Model: LED 2022
- Installation: Press-fit or screw fix (mini hinge compatible)
Installation Advice
To achieve IP44 splash protection, recess the spotlight into a pre-drilled 26mm hole using the press-fit method. For surface installation, use round or wedge bezels. Pair with a suitable 12V LED driver to enable dimming and maintain consistent brightness.
Driver Selection Guidance
Tip: Multiply the number of lights by 1.5W and add 20% to select your 12V driver.
Example:
- 4 lights → 6W + 20% = ~7.2W driver
- 10 lights → 15W + 20% = ~18W driver
Why Choose the Loox5 LED 2022 Spot Light?
- ✅ Elegant chrome finish for premium design schemes
- ✅ IP44 safety makes it perfect for wet rooms and bathrooms
- ✅ Flexible mounting with slim profile
- ✅ Energy-efficient and long-lasting
- ✅ Backed by the trusted performance of Loox5
