Description
Hafele 833.87.206 Loox5 LED 3084 Flex Strip Light
The Hafele 833.87.206 Loox5 LED 3084 Flex Strip Light is a 24V flexible lighting solution designed for MODU³ shelving and furniture lighting systems. Delivering cool white 4000K illumination with 320 LEDs per metre, the strip produces smooth, uniform light without visible LED points.

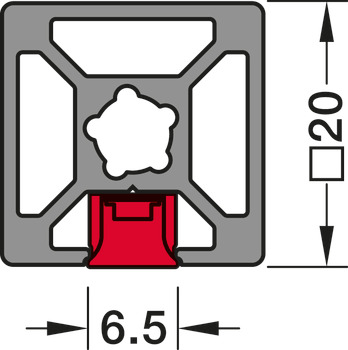

The flexible strip bends easily around tight angles and corners while maintaining consistent brightness. Its slim 6.5 mm profile slides neatly into the groove of MODU³ profiles and the silicone sleeve provides IP44 protection, making it suitable for integrated shelf and cabinet lighting.
Features
- Loox5 LED 3084 flexible strip lighting
- Cool white 4000K monochrome illumination
- 320 LEDs per metre for uniform light output
- No visible LED points
- Flexible strip with bending radius up to 30 mm
- IP44 silicone sleeve protection
- Designed for MODU³ lighting profiles
Technical Specifications
- Article Number: 833.87.206
- Voltage: 24V
- Strip Length: 0.55 m
- LED Density: 320 LEDs/m
- Power Consumption: 9.6 W/m
- Luminous Flux: 730 lm/m
- Colour Temperature: 4000K
- CRI: Ra 90

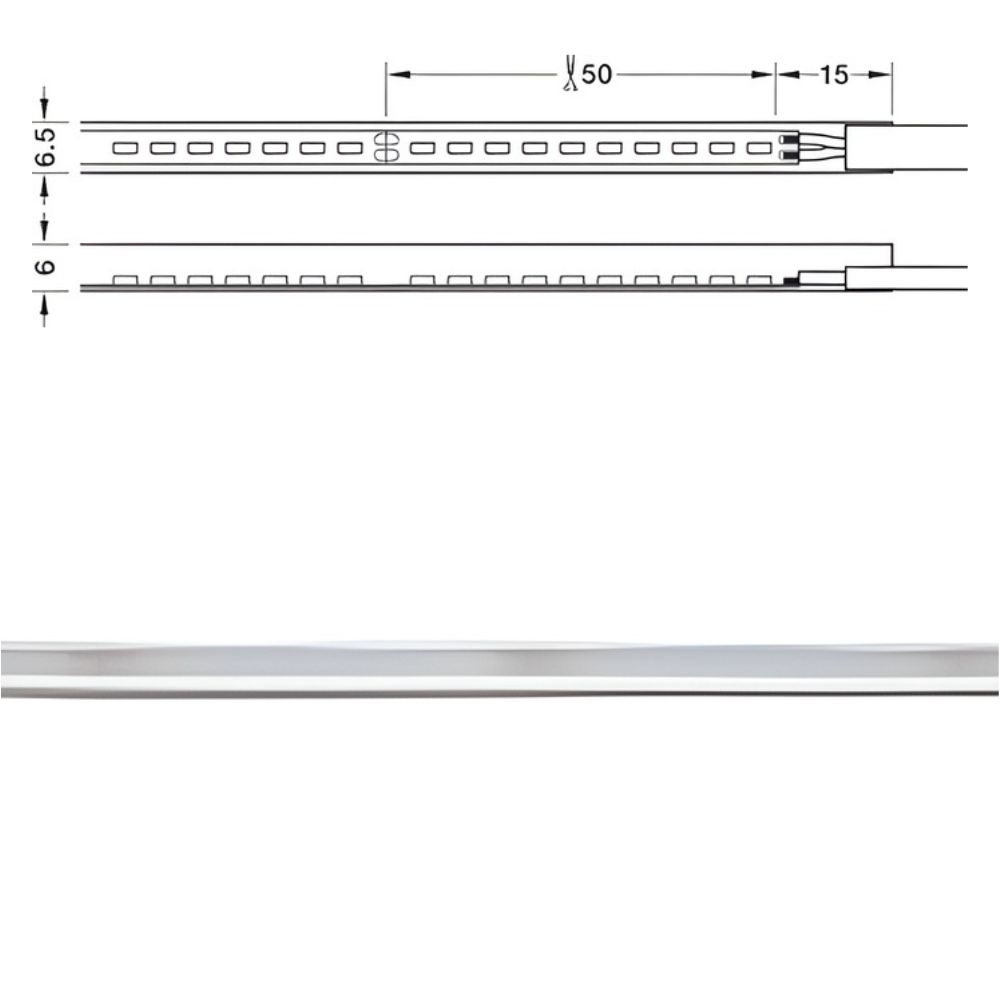

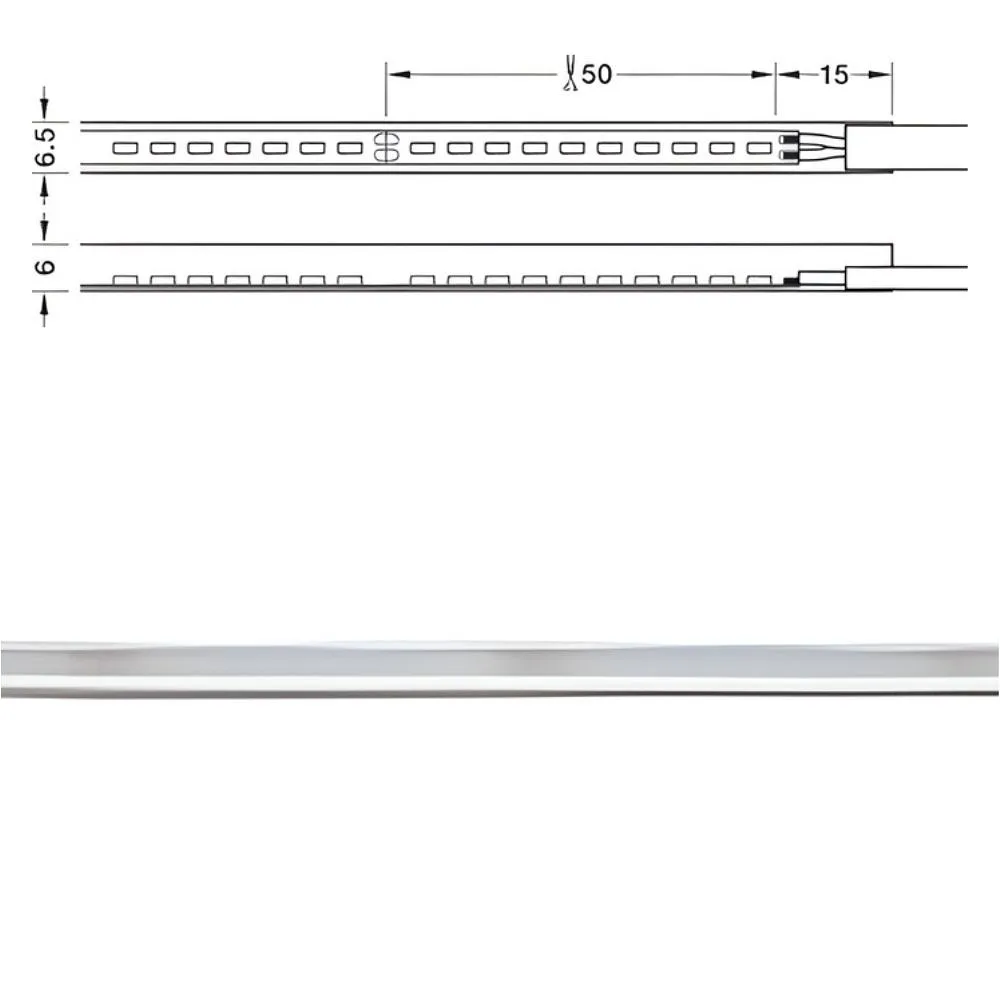

- Strip Width: 6.5 mm
- Strip Height: 6 mm
- Protection Rating: IP44

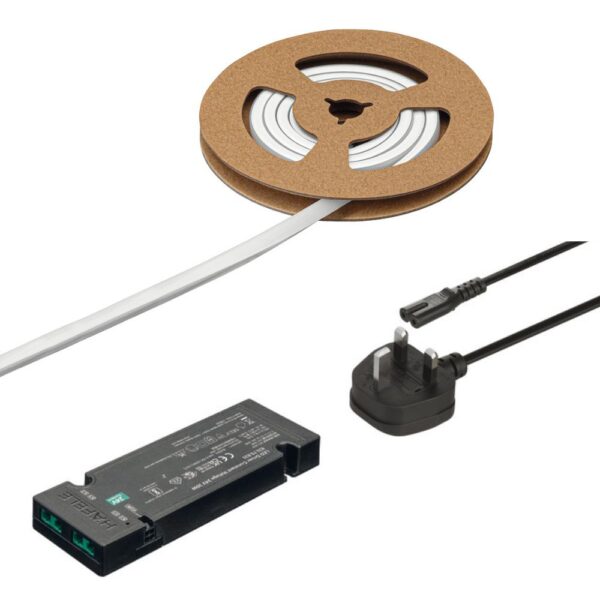

Supplied With
- Loox5 LED 3084 24V strip light with 2 m connecting cable
- Loox5 24V Eco driver (0–20 W)
- Loox LED mains lead with UK moulded plug
Additional Information
- When ordering LED strip lights for MODU³ profiles ensure the correct strip length is selected.
- Shelf width 600 mm requires a strip length of 0.55 m.
- Shelf width 900 mm requires a strip length of 0.85 m.
- Maximum visual strip length refers to the section where luminous flux drop remains visually imperceptible (max. 30%).
- If a new power supply follows immediately after another strip section the brightness difference may be noticeable.
- Maximum strip length depends on the wattage capacity of the driver.
