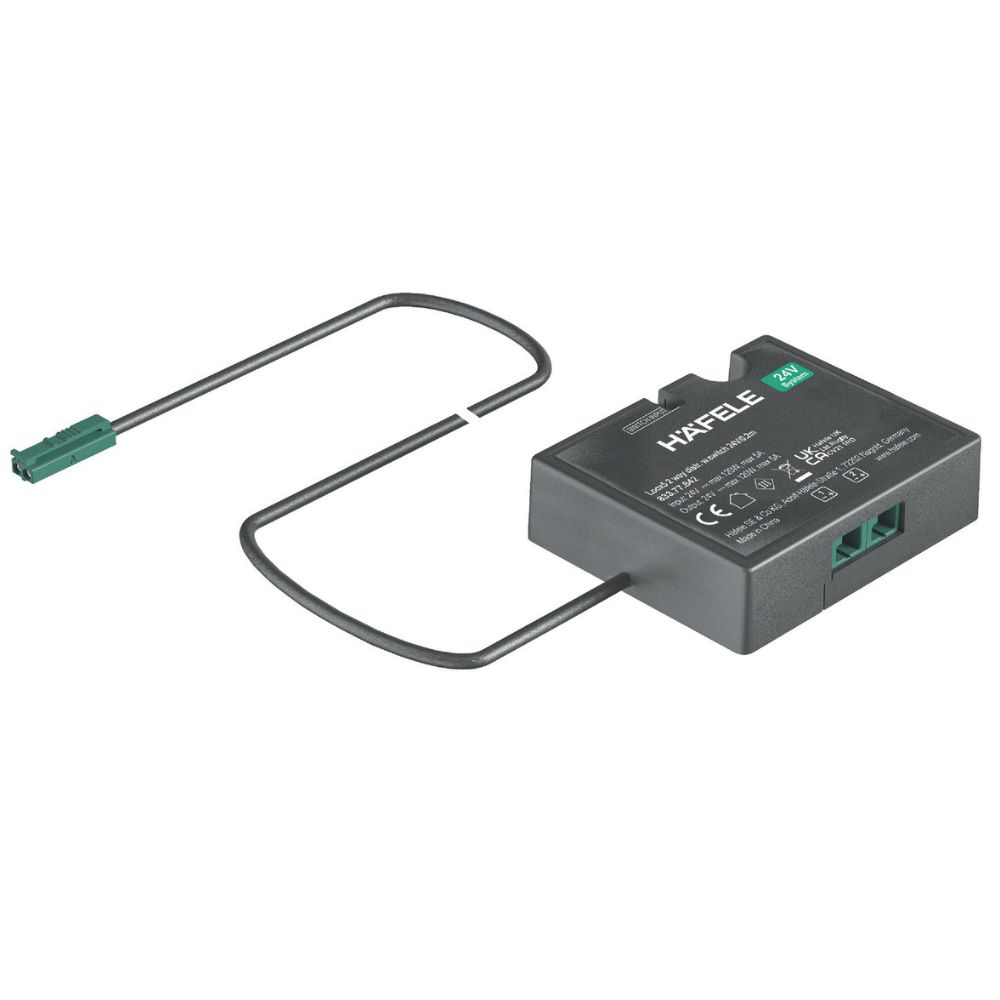

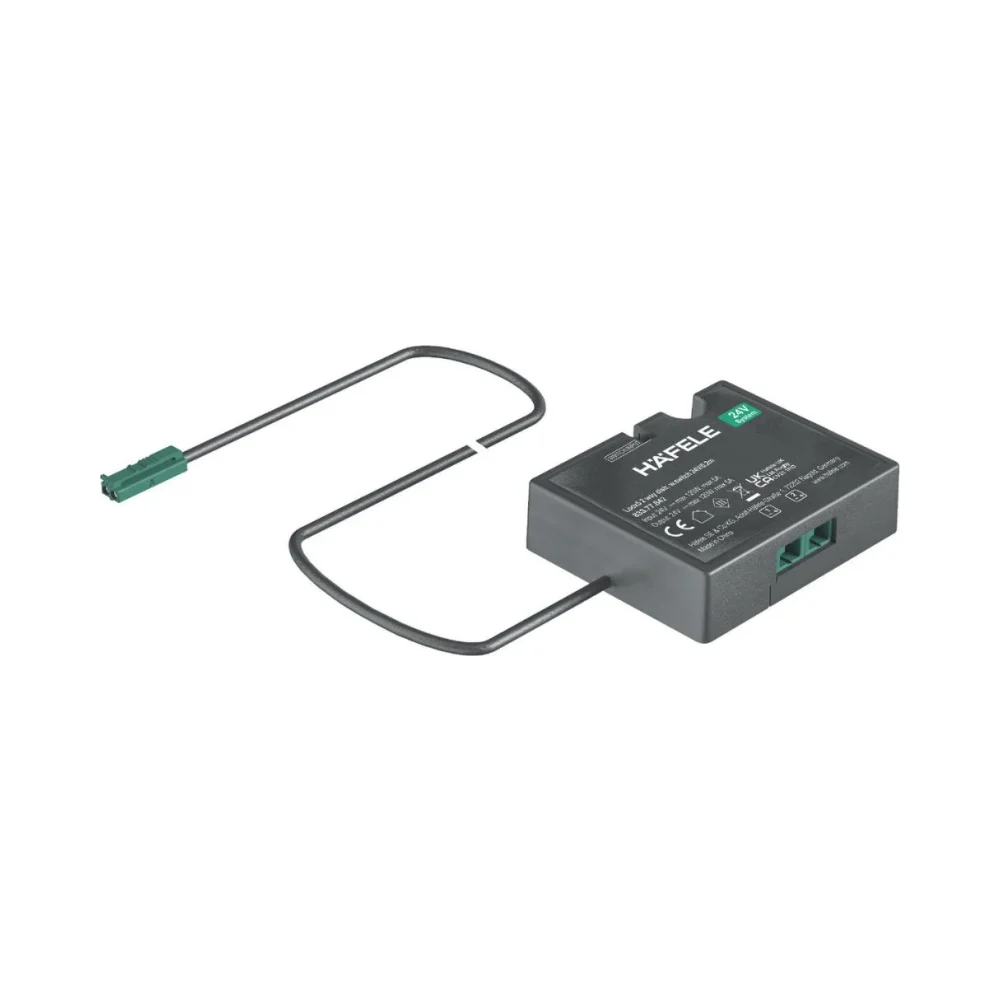

Häfele 833.77.842 Loox5 24V 2-Way Distributor with Switching Function – Max 120W

SKU: 833.77.842
Delivery usually within 1-3 working days*
Confirm Availability

2-way Loox5 24V distributor with switching function for 1 switch. Controls 2 output ports, max 120W load. Supplied with 200mm cable and connector. Monochrome. For use with Loox5 lighting systems.

£4.25 + VAT

(incl. VAT £5.10)

Category: Tag: HAFELE Brand:

Description

Compact, Smart Distribution for Loox5 LED Lighting Systems

2-Way Distributor with Switching Function – Max 120W – Häfele 833.77.842

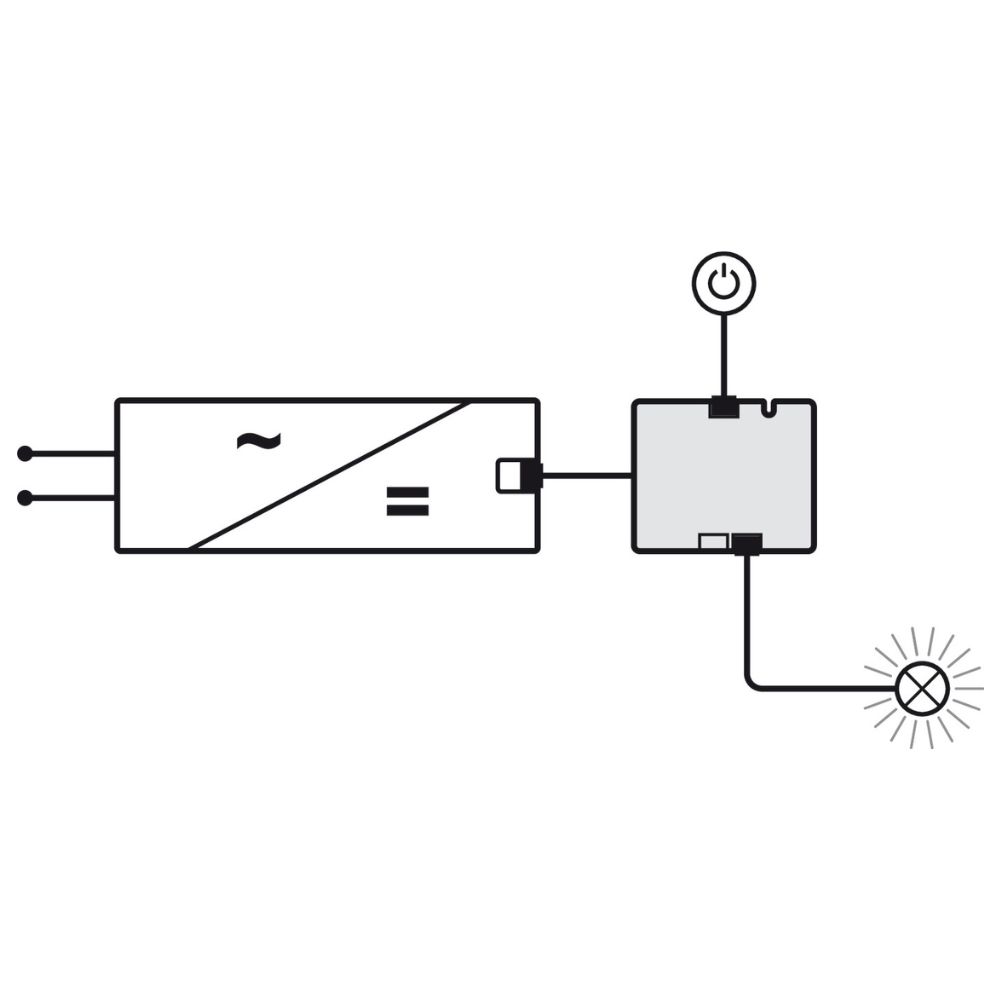

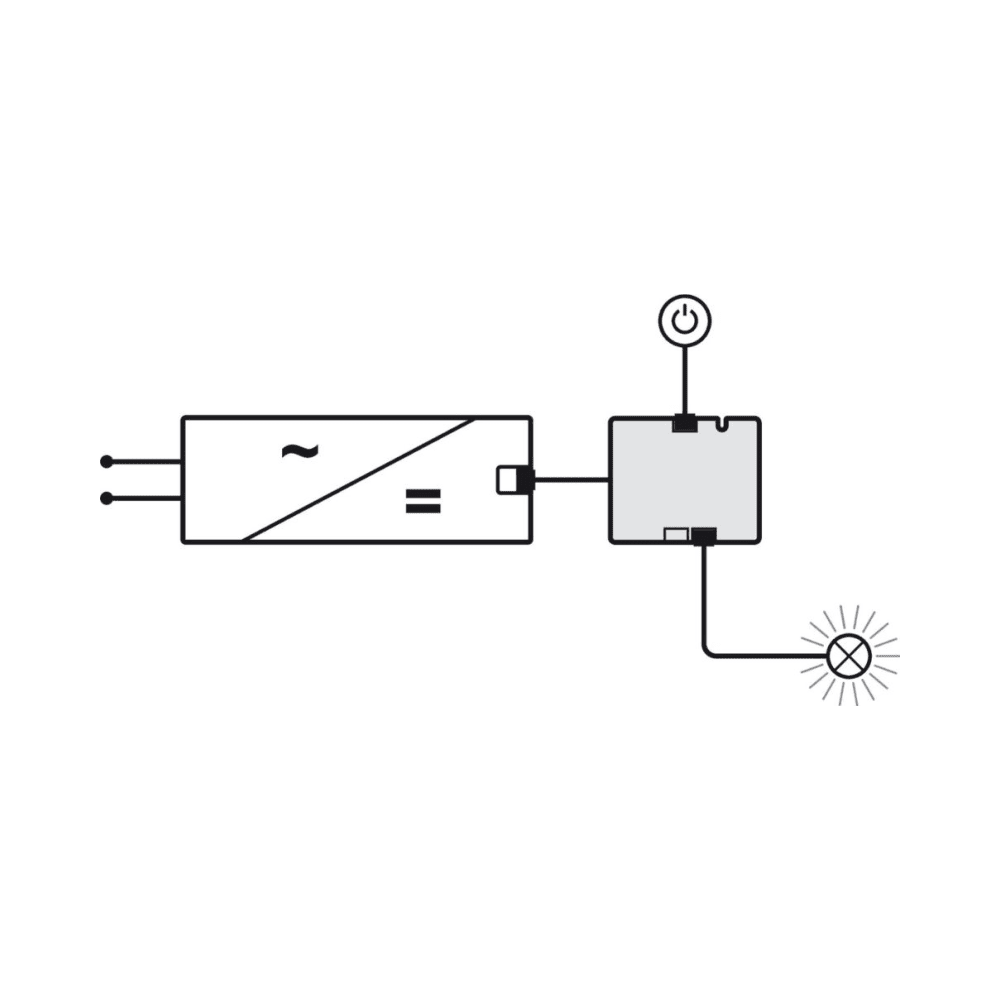

The Häfele 833.77.842 Loox5 2-Way Distributor is a compact and intelligent solution designed to streamline control across two LED lighting outputs in your Loox5 24V monochrome system. Ideal for integrated furniture lighting applications, this distributor enables one switch to control both connected outputs simultaneously—reducing cable clutter and simplifying your setup.

It supports up to 120W of total output, making it suitable for kitchens, wardrobes, display units, and other built-in lighting projects. The 200mm lead with a pre-fitted Loox5 connector ensures quick plug-and-play installation, while its low-profile black housing blends discreetly into cabinetry or behind panels.


Key Features of the Häfele 833.77.842 Loox5 2-Way Distributor

  • Supports 2 output ports (Loox5 2-pin, 24V)
  • 1 switch controls all connected outputs
  • Max. load capacity: 120W (total across both outputs)
  • Expandable: Connect multiple distributors in sequence
  • Input: 1 x Loox5 2-pin 24V plug
  • Output: 2 x Loox5 2-pin 24V sockets
  • Cable length: 200mm with factory-fitted connector
  • Switching function: Built-in, handles both outputs together
  • Voltage: 24V DC
  • Colour system: Monochrome
  • Material: Durable plastic housing
  • Finish: Black
  • Dimensions: 60mm (L) x 50mm (W) x 16mm (H)
  • Operating temperature: -20°C to +45°C

Application Notes

  • Ensure the total connected wattage does not exceed 120W
  • Use only with Loox5 24V compatible drivers and lights
  • Suitable for both domestic and commercial furniture lighting installations
  • Ideal for under-cabinet lighting, wardrobes, shelving, and displays

Summary of the Häfele 833.77.842 Loox5 2-Way Distributor

The Häfele 833.77.842 Loox5 2-Way Distributor offers a simple and reliable way to control two LED outputs using one switch. It connects directly into any Loox5 24V system and is ideal for lighting cabinets, wardrobes, and other furniture.

Because of its compact size and plug-and-play connection, it’s easy to install—even in tight spaces. Additionally, it comes with a 200mm pre-attached lead, making setup even faster. The Loox5 switching distributor supports up to 120W of total load, helping you power two lighting zones from one driver.

As a result, it reduces wiring, saves time, and improves layout flexibility. The slim black housing blends well with most installations, while the built-in switching function simplifies control. Backed by the Häfele Lifetime Guarantee, this Loox5 LED lighting splitter with dual output is a smart, long-term addition to any lighting setup.


Guarantee & Compliance

This product is covered by the Häfele Lifetime Guarantee for domestic use. All components are tested to meet stringent internal standards and relevant industry certifications.

For commercial use, a 12-month standard guarantee applies. For full details, visit Hafele Website.

Downloads

View Product Data Sheet Manual Instruction
