Description

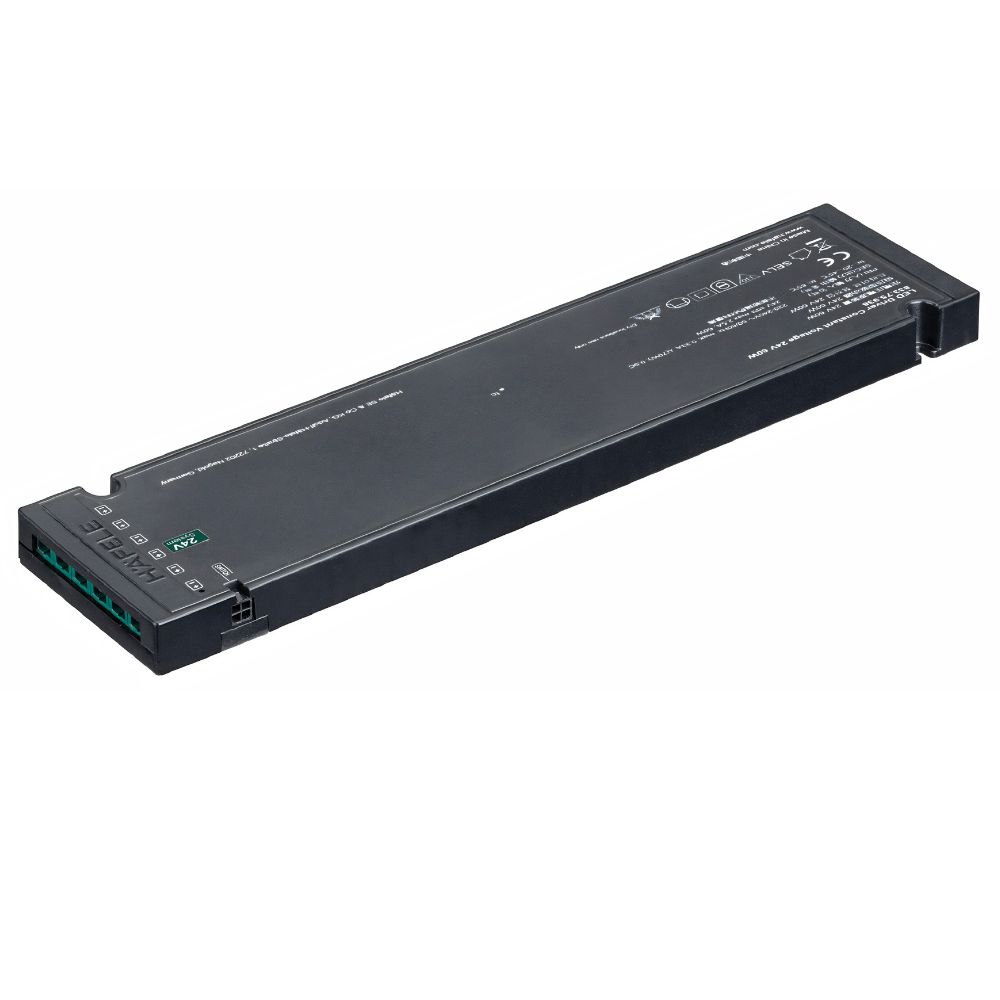

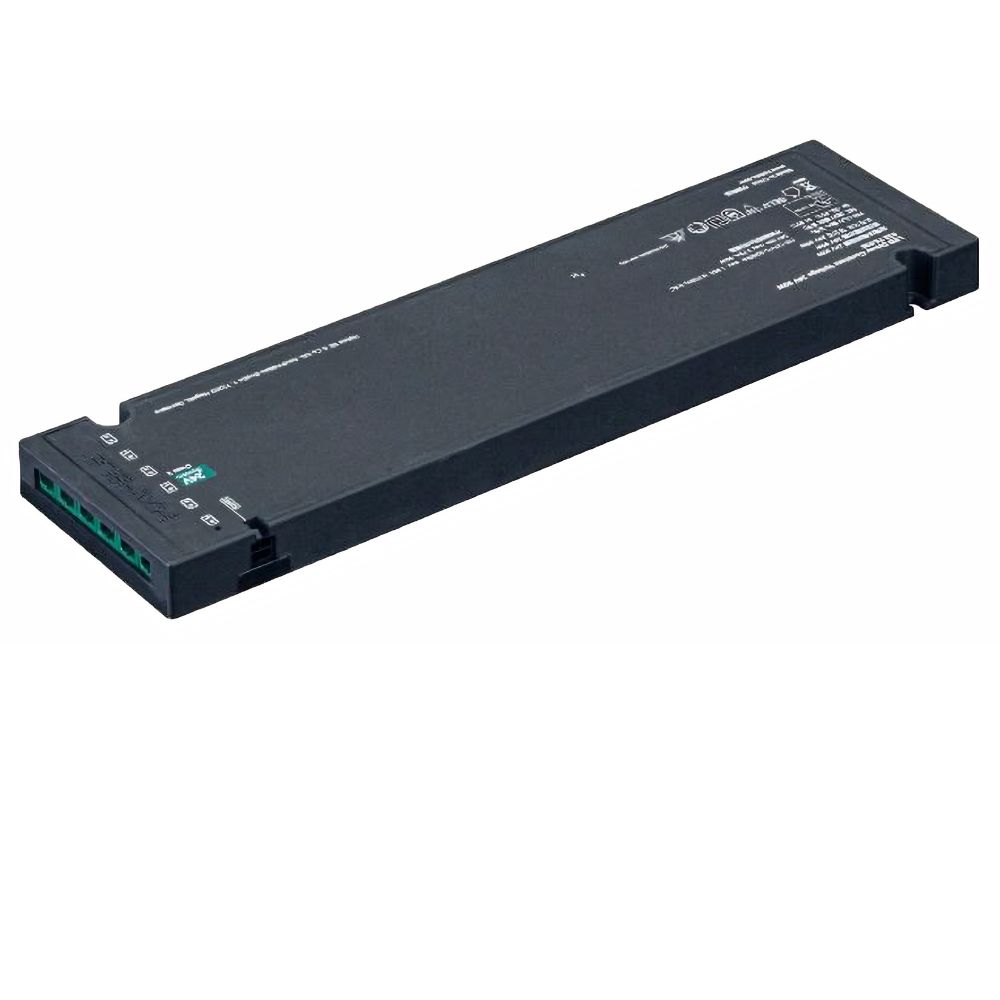

Hafele 833.75.938 Loox5 Eco LED Driver
Hafele 833.75.938 Loox5 Eco LED Driver is a slim constant voltage LED driver designed for Loox5 and Loox5 compatible 24V lighting systems. Featuring a maximum output power of 60W and integrated switching function, this compact driver is suitable for cabinet lighting, furniture lighting and integrated residential LED installations.
The driver features six Loox5 2-pin output sockets for convenient connection of compatible LED fittings and accessories. Designed with a slim 16 mm profile and IP20 protection rating, it is ideal for concealed installation within furniture carcasses, shelving units and display lighting systems. Mains lead sold separately.
Key Features – Hafele 833.75.938 Loox5 Eco LED Driver
- Loox5 Eco dimmable LED driver
- 24V DC constant voltage output
- Maximum output power: 60W
- Integrated switching function
- 6 x Loox5 2-pin 24V output sockets
- Slim low-profile 16 mm design
- IP20 rated for indoor installations
- Mains lead sold separately

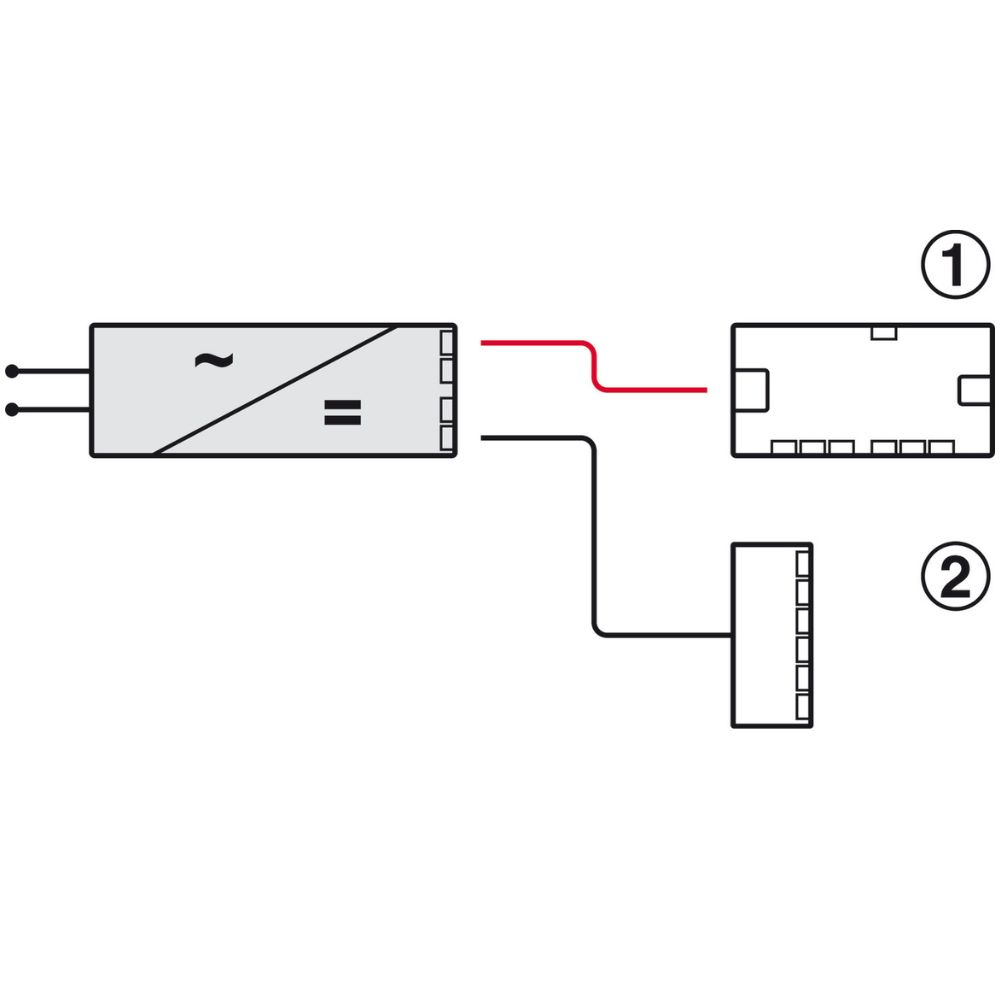

Loox5 Lighting System Integration
- Suitable for Loox5 and Loox5 compatible 24V lights
- 6 x Loox5 2-pin output connections
- 1 x Loox switch control input socket
- Compatible with Loox plug system
- Suitable for glue fixing or screw fixing installation
Applications – Hafele 833.75.938 Loox5 Eco LED Driver
- Kitchen cabinet lighting systems
- Wardrobe and furniture lighting
- Display cabinet illumination
- Retail shelving LED lighting
- Integrated residential lighting installations
Technical Specifications – Hafele 833.75.938 Loox5 Eco LED Driver
- Brand: Hafele
- Article Number: 833.75.938
- Mains Voltage: 220–240V
- Frequency: 50–60 Hz
- Output Voltage: 24V DC
- Output Power: 60W
- Protection Rating: IP20
- Outputs: 6 x Loox5 2-pin 24V sockets
- Control Input: 1 x Loox switch socket
- Dimensions: 222 x 70 x 16 mm
- Installation: Glue fixing or screw fixing
- Guarantee: Häfele Lifetime Guarantee (7 Years)
Important Installation Information
- Loox mains lead must be ordered separately
- Not suitable for installation with mains dimmable wall switches
- Maximum recommended lead length from driver to switch: 6000 mm
- Provide sufficient air circulation around the driver
- Recommended installation clearance: 10 mm
