Tilt RGBW Ground Light
Collingwood Lighting GLTXS119RGBW

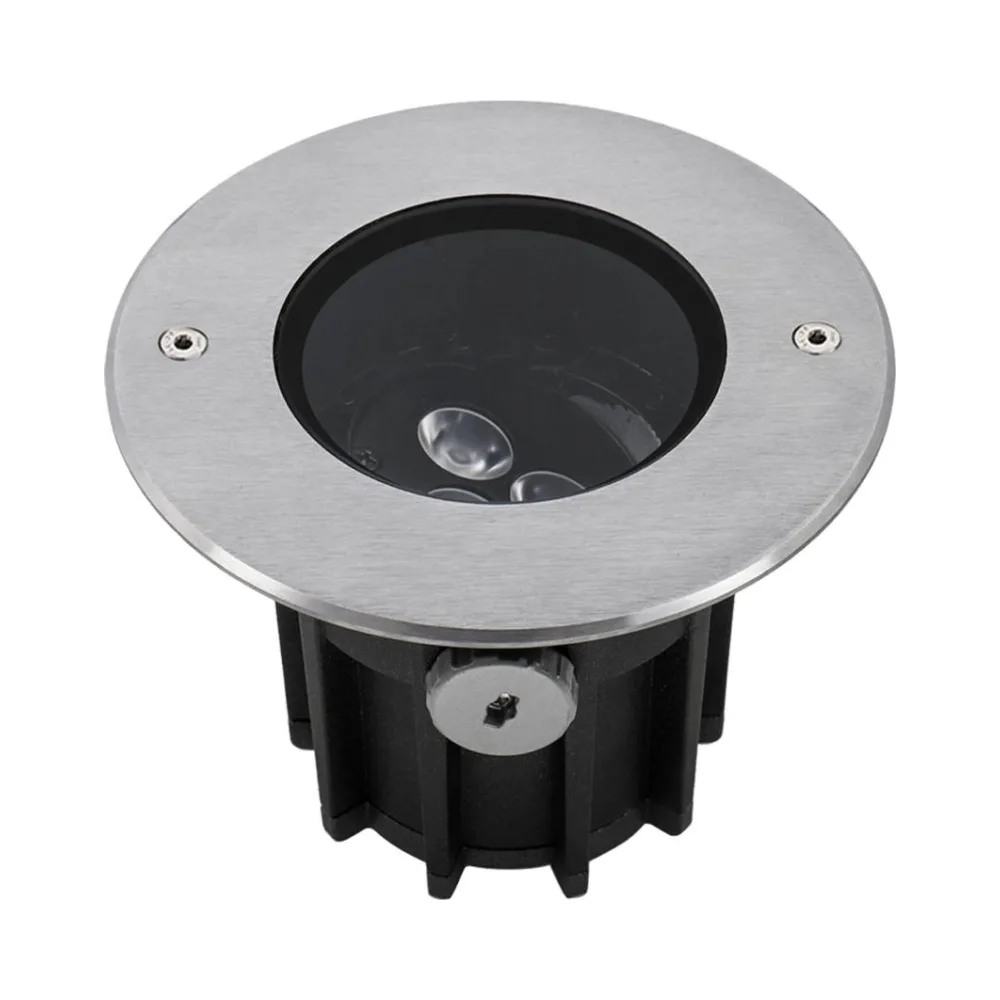

The GLTXS119RGBW tilt RGBW ground light 2W from Collingwood is a driverless, colour-change in-ground fitting designed for exterior applications where dynamic lighting effects are required. With a 119mm cut-out, 2W RGBW LED array and 40° beam, it delivers flexible accent lighting for paths, facades and landscaping, while maintaining IP67 and IK10 protection.
Key Features – GLTXS119RGBW tilt RGBW ground light 2W
- IP67 rating for protection against dust and water ingress
- IK10 mechanical impact resistance
- Driverless RGBW colour change light engine
- Tilt adjustment up to 25° via front-mounted knob
- Static loading capacity 2000 kg
- Drive-over rated up to 15 mph
- Stainless steel 316 bezel with anodised aluminium body
- L70 50,000-hour LED lifetime with CRI >80 and SDCM3 colour consistency
- Suitable for coastal applications
- Supplied with installation tube for correct installation depth and drainage
- Pre-wired 1.0 m H05RN-F 5×1.0mm² cable
Technical Specifications – GLTXS119RGBW tilt RGBW ground light 2W
- Power: 2W RGBW
- Beam angle: 40°
- Cut-out diameter: 119mm
- Luminous flux (white 3000K): 80 lm
- Efficacy (white 3000K): 28 lm/W
- IP rating: IP67
- IK rating: IK10
- LED lifetime: L70 50,000 hours
- Colour rendering index: CRI >80
- Colour consistency: SDCM3
- Construction: Anodised aluminium body with 316 stainless steel bezel
- Walk over / drive over: Drive over, 15 mph maximum, 2000 kg static load
- Input voltage: 220–240V AC
- Bathroom zone: Zone 2
- Electrical class: Class III
- Ambient temperature rating: -25°C to +40°C
Installation & Wiring – GLTXS119RGBW
- Pre-wired 1.0 m H05RN-F 5×1.0mm² flying lead
- Series wiring required
- Supplied with installation tube for burial and drainage
- Designed for recessed in-ground mounting
Compatible RGBW Drivers & Accessories
- CCDRV75DALI constant-current RGBW DALI driver (sold separately)
- CCDRV75DMX DMX driver (sold separately)
- CCDRV75RF RF driver (sold separately)
- JB3 or JB7 junction box (sold separately)
- CR575RGBW 5-core PVC cable (sold separately)
