Description
Tilt Adjustable DALI Ground Light
Collingwood Lighting GLTMS193D30

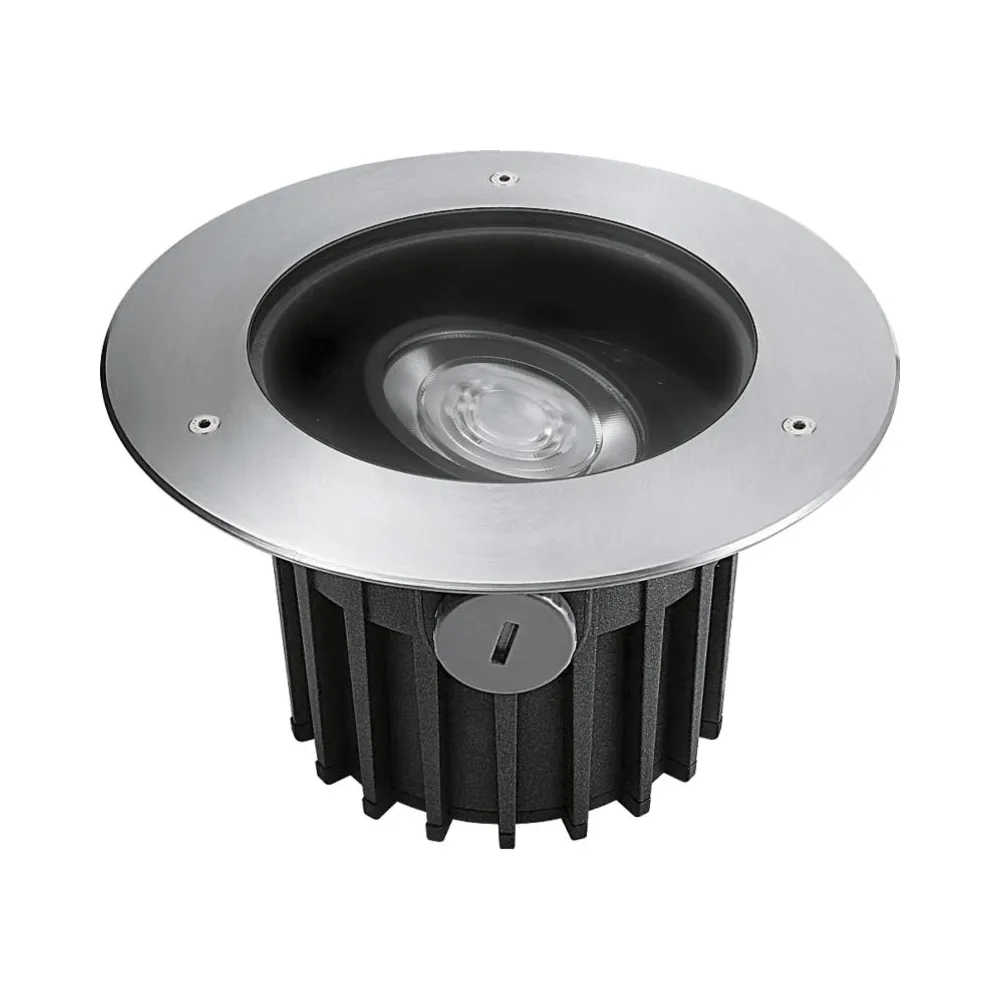

The GLTMS193D30 tilt DALI ground light 23W 3000K from Collingwood is a stainless steel IP67 in-ground fitting designed for demanding exterior and drive-over applications. With a 193mm cut-out, 23W single CCT 3000K LED and 34° spot beam, it provides robust, controlled illumination for paths, driveways and architectural features where DALI-2 control is required.
Key Features – GLTMS193D30 tilt DALI ground light 23W 3000K
- IP67 rated for complete protection against dust and water ingress
- IK10 impact rating for the GLTM_19 body size
- Tilt adjustment up to 25° via front-mounted knob
- Drive-over rated up to 15 mph with 2000 kg static load capacity
- Stainless steel 316 bezel with anodised aluminium body
- L70 50,000-hour LED lifetime with CRI >80 and SDCM3 colour consistency
- Suitable for coastal applications
- Supplied with installation tube for correct installation depth and drainage
- Pre-wired with 1.0 m cable to aid installation
- Straight to mains, DALI-2 dimmable
Technical Specifications – GLTMS193D30 tilt DALI ground light 23W 3000K
- Power: 23W
- Colour temperature: 3000K
- Luminous flux: 2300 lm
- Efficacy: 100 lm/W
- Beam angle: 34°
- IP rating: IP67
- IK rating: IK10
- LED lifetime: L70 50,000 hours
- Colour rendering index: CRI >80
- Colour consistency: SDCM3
- Cut-out diameter: 193mm
- Construction: Anodised aluminium body with 316 stainless steel bezel
- Walk over / drive over: Drive over, 15 mph maximum, 2000 kg static load
- Input voltage: 220–240V AC
- Bathroom zone: Zone 2
- Electrical class: Class I
- Earth leakage: 0.1 mA
- Ambient temperature rating: -25°C to +40°C
Installation & Wiring – GLTMS193D30
- Pre-wired 1.0 m cable
- Parallel wiring configuration for multiple fittings
- Supplied with installation tube for burial and drainage
- Designed for recessed in-ground mounting in suitable substrate
Applications – GLTMS193D30 tilt DALI ground light 23W 3000K
- Driveways and vehicle access routes (up to 15 mph)
- Pedestrian walkways and paths
- Accent lighting for walls, columns and landscaping
- Coastal and exposed exterior locations
Collingwood Lighting: Visit the manufacturer website at www.collingwoodlighting.com for full technical resources.
Electrical4Less Guarantee: Authorised Collingwood distributor offering genuine products, trade pricing and fast UK delivery. We can source any Collingwood ground light from this range on request.
