Description
25A 4-Pole IP66/67/69 Rotary Isolator Switch

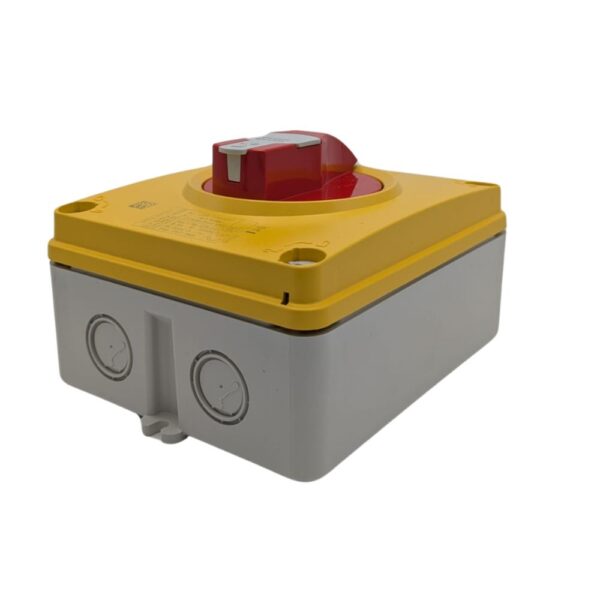

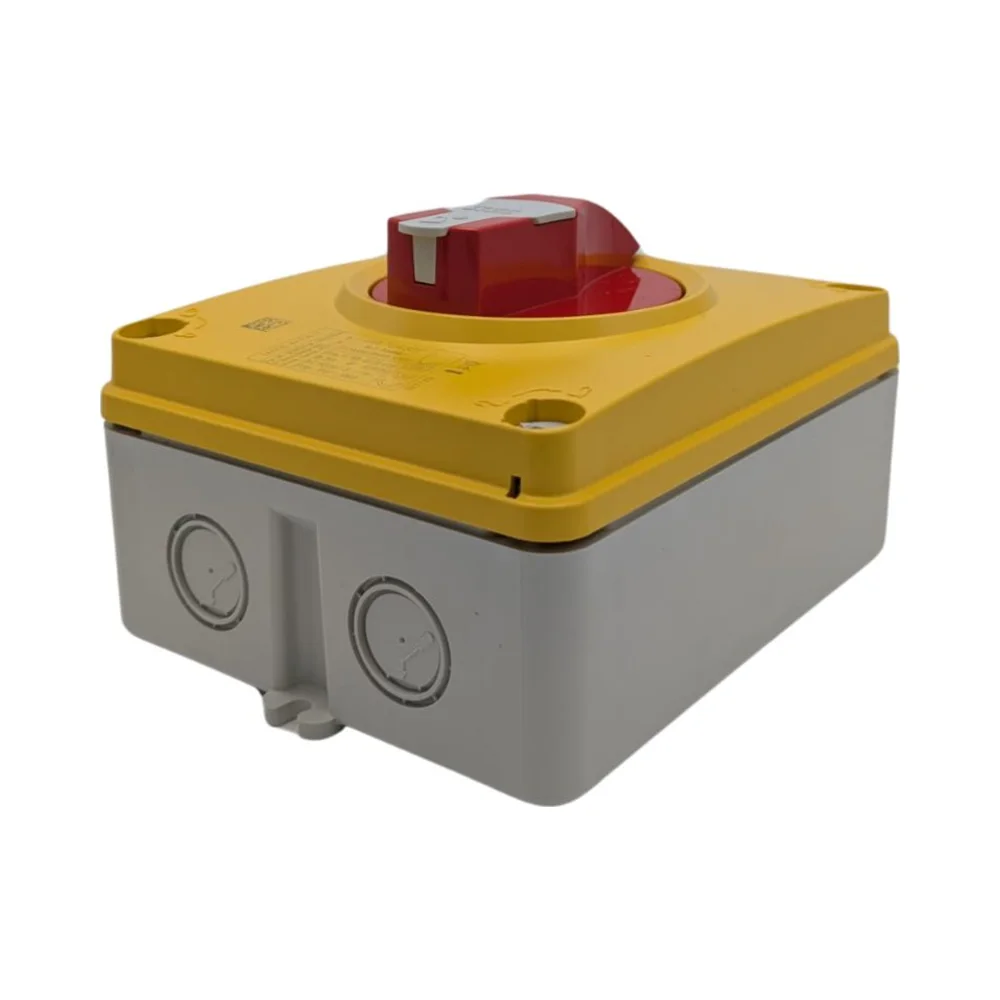

Gewiss GW70488P 25A Rotary Isolator Switch – Lockable Emergency Stop with Red Knob
The Gewiss GW70488P rotary isolator switch delivers powerful safety and reliability in even the toughest conditions. Designed for emergency stops and circuit isolation, this 25A 4-pole unit stands out with its rugged build and top-tier protection.
The unit is enclosed in durable insulating material, making it suitable for use in both indoor and outdoor environments. Its IP66, IP67, and IP69 ratings protect against dust, high-pressure water, and temporary immersion.

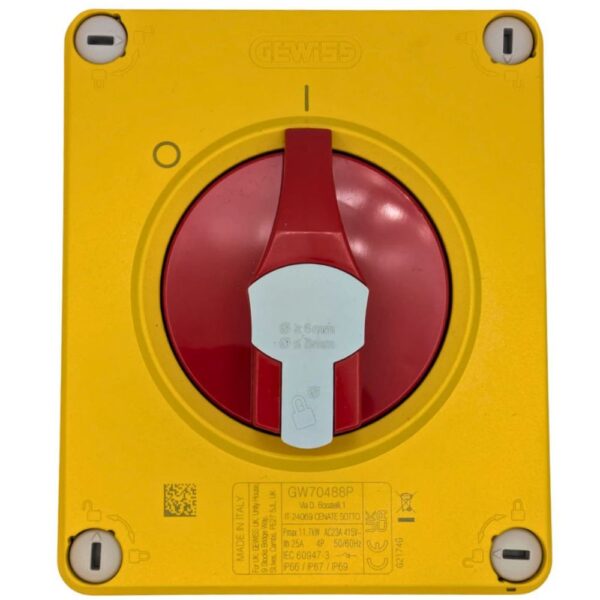

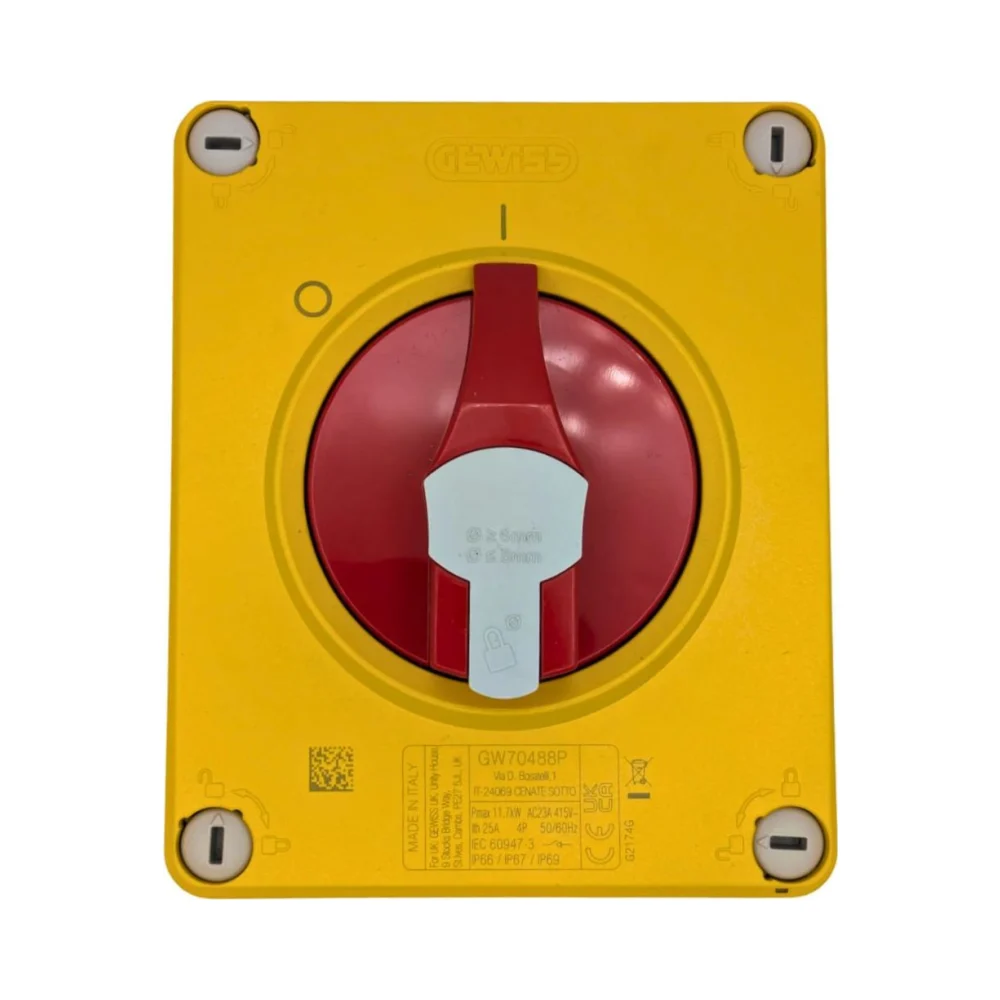

The bold red knob offers high visibility in emergencies. You can lock it in the OFF position using up to three padlocks with a maximum shackle diameter of 8 mm. This ensures that power remains safely off during maintenance.
⚙️ Key Features of the Gewiss GW70488P 25A Rotary Isolator Switch
- Amperage: 25A
- Poles: 4-pole configuration for comprehensive circuit isolation
- Protection Ratings: IP66/IP67/IP69 – safeguards against dust, powerful water jets, and temporary submersion
- Operation Type: Rotary isolator with a prominent red emergency stop knob
- Lockable Design: Accommodates up to 3 padlocks in the OFF position for enhanced safety during maintenance

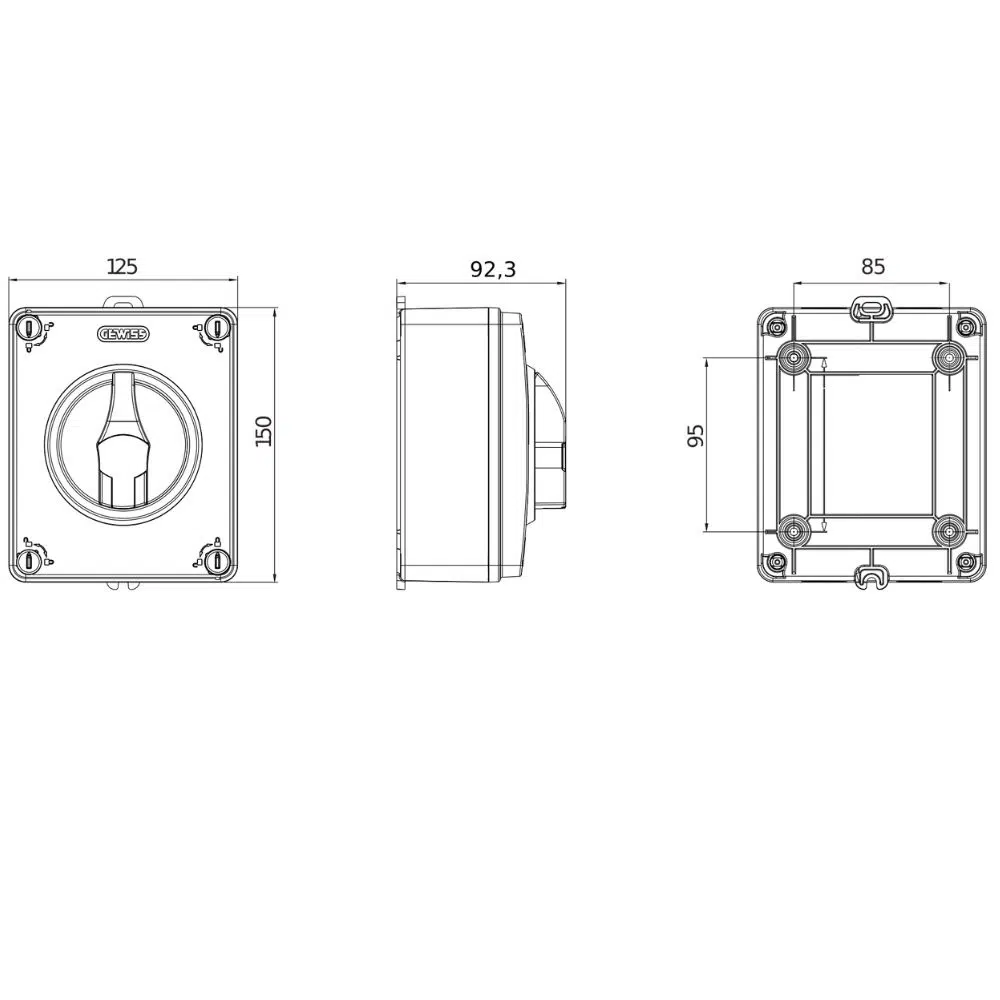

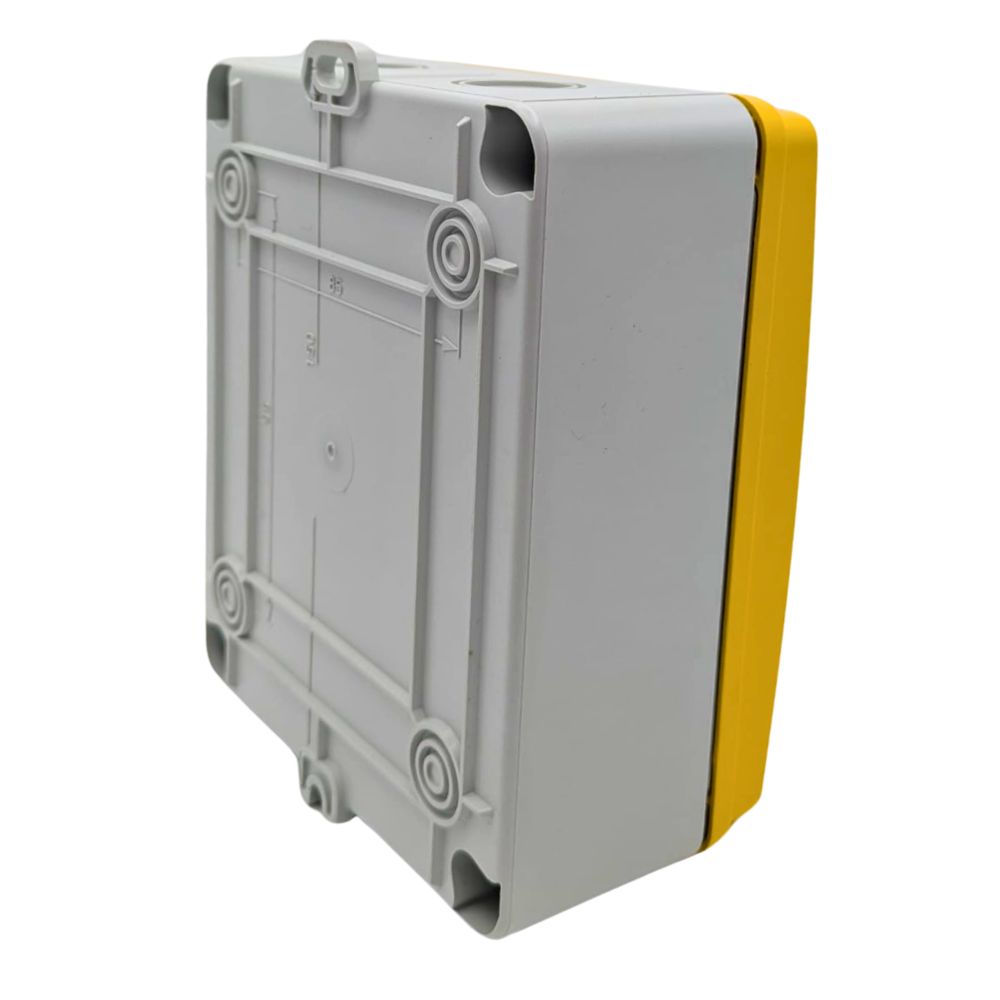

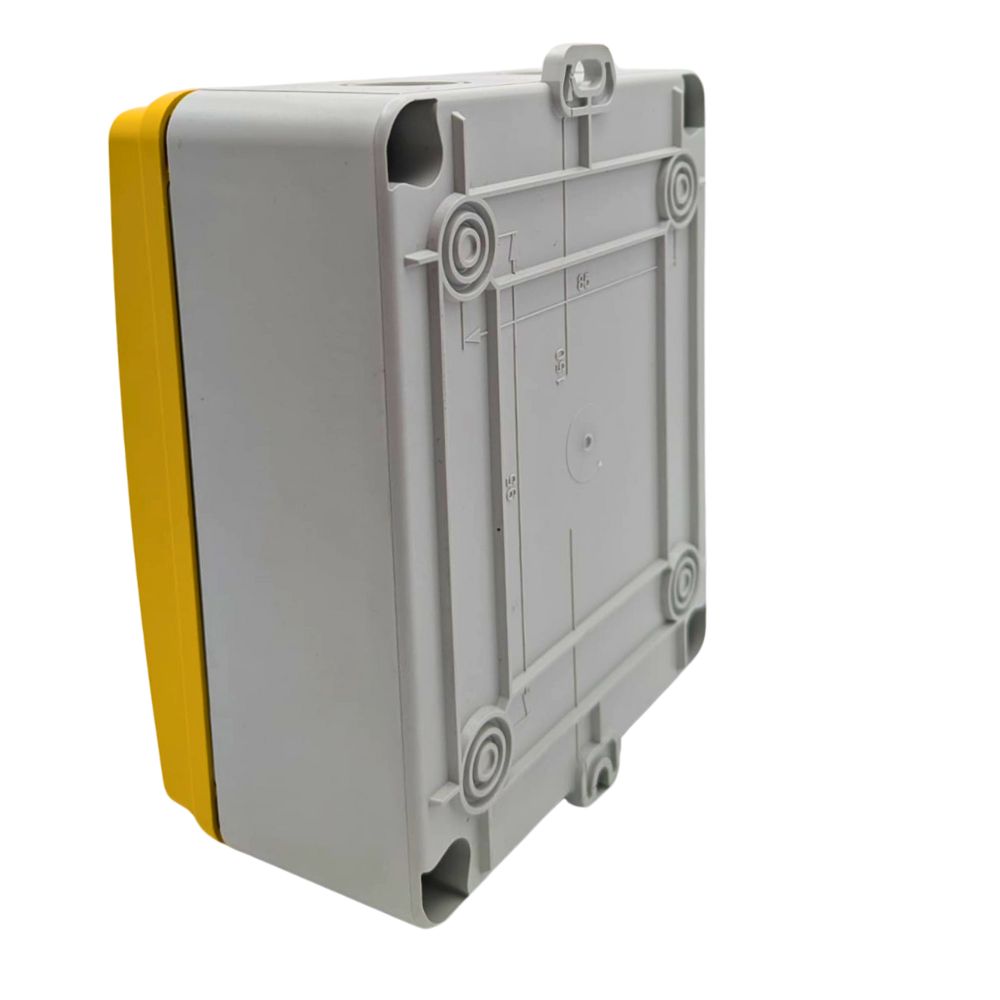

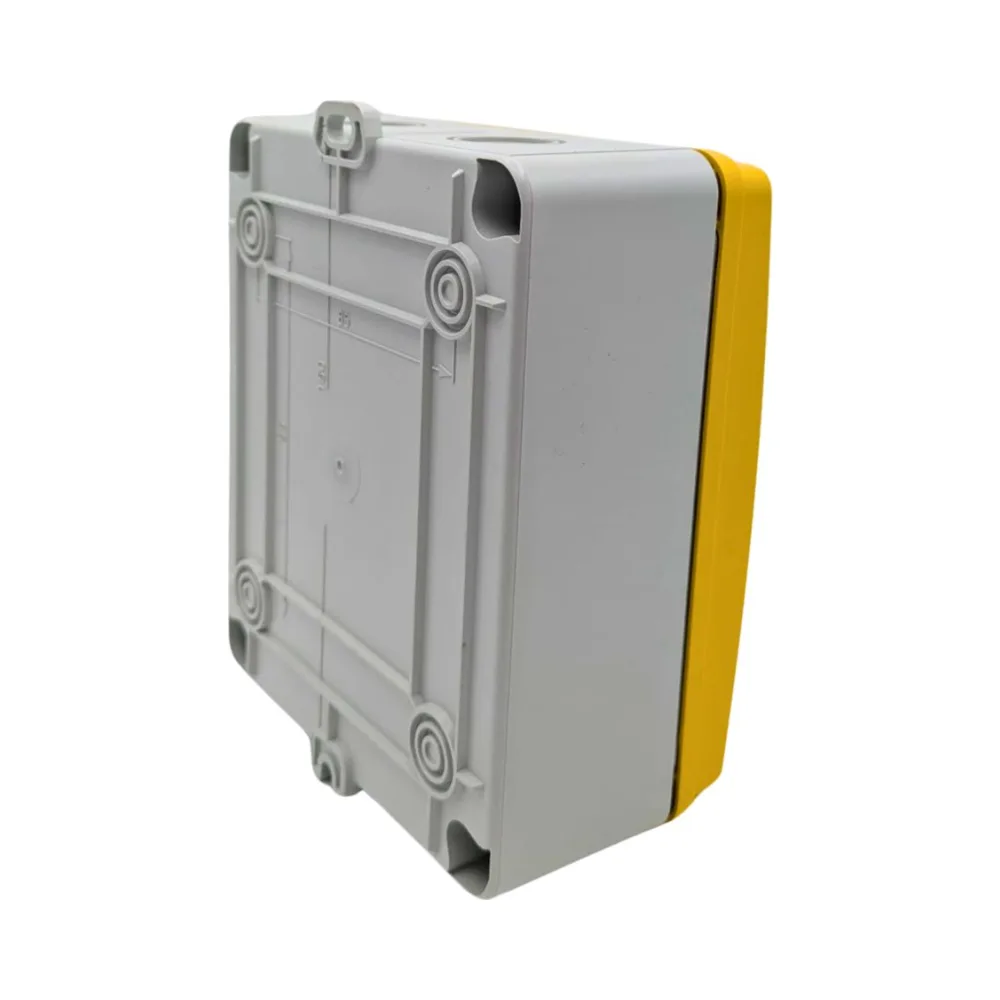

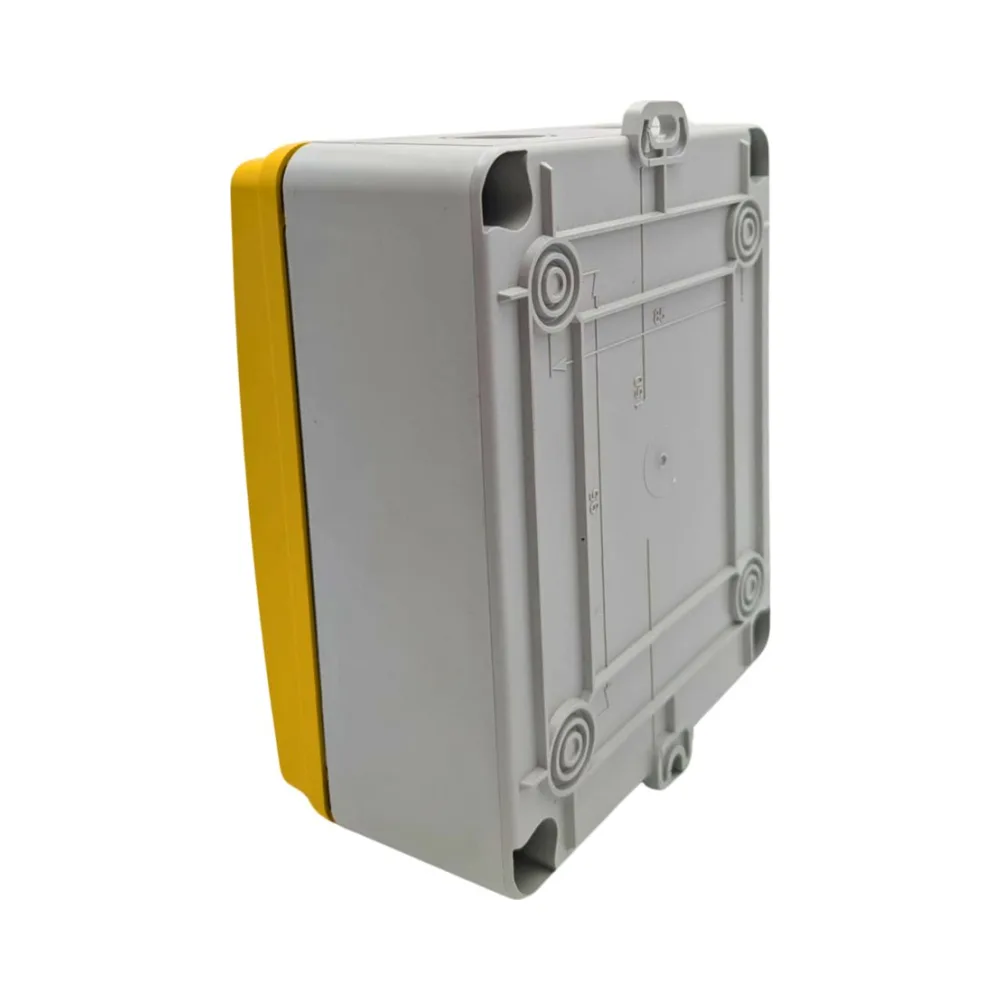

- Mounting: Supplied in a robust insulating material box with external fixing points for straightforward installation
- Environmental Tolerance: Operates reliably in temperatures ranging from -25°C to +60°C
- Mechanical Resistance: IK08 rating, indicating strong impact resistance
- Cable Entry Points: Equipped with 2 x M20/25 top entries and 2 x M20/25 bottom entries for versatile wiring options
- Cable Capacity: Supports cable sections from 1 mm² up to 10 mm²
- Standards Compliance: Meets IEC standards for isolation and emergency stop devices
- Accessory Compatibility: Supports the addition of up to 2 auxiliary contacts (one per side)
✅ Why Choose This Product?
- Uncompromised Safety: The lockable red knob allows for secure disconnection, ensuring safety during maintenance and emergencies.
- Superior Durability: With high IP and IK ratings, this switch is built to withstand harsh conditions, making it suitable for both indoor and outdoor installations.
- Versatile Application: Ideal for isolating electrical circuits in various settings, including industrial machinery, HVAC systems, and photovoltaic installations.
- Trusted Brand: Manufactured by Gewiss, a leader in electrical solutions known for quality and innovation.
🌐 Ideal Use Cases
- Industrial machinery and equipment
- Outdoor power isolation
- HVAC system control
- Photovoltaic (solar power) installations
- Electrical distribution panels
❓ Frequently Asked Questions (FAQs)
- Q: Is this switch suitable for outdoor use?
A: Yes, the IP66/IP67/IP69 ratings ensure it is protected against dust, high-pressure water jets, and immersion, making it ideal for outdoor environments. - Q: How many padlocks can be used to lock the switch in the OFF position?
A: The switch can be secured with up to three padlocks in the OFF position, each with a maximum shackle diameter of 8 mm. - Q: What is the operating temperature range for this isolator switch?
A: It operates effectively in temperatures between -25°C and +60°C. - Q: Can auxiliary contacts be added to this switch?
A: Yes, it supports up to two auxiliary contacts, one on each side. - Q: What cable sizes are compatible with this isolator switch?
A: It accommodates cable sections ranging from 1 mm² to 10 mm².
Summary of the Gewiss GW70488P 25A Rotary Isolator Switch
The Gewiss GW70488P is a premium-grade 25A 4-pole rotary isolator switch designed for durability and electrical safety in harsh environments. It features a red emergency stop knob that locks in the OFF position with up to three padlocks. With IP66/IP67/IP69 protection, it’s resistant to dust, water jets, and immersion. Its enclosure, made from insulating material, is ideal for outdoor, industrial, and commercial setups.
As part of Gewiss’ 70 RT HP range, it ensures fast installation, supports auxiliary contacts, and meets IEC standards. It’s a top choice for professionals who need safety, performance, and peace of mind in one reliable solution.
