Description

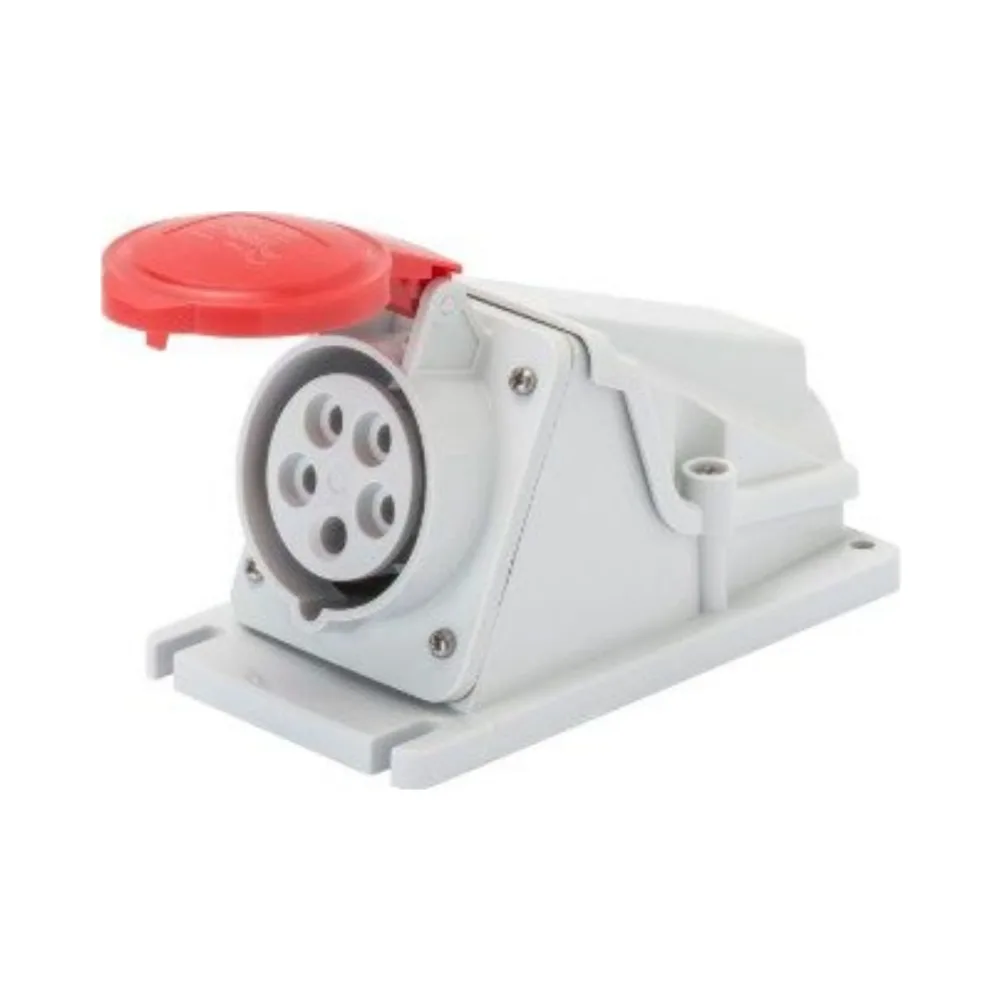

16A 3P+N+E 5 Pin Socket – 380–415V – 90° Angled Surface-Mounting
Gewiss GW62482 5 Pin Socket – IP44 – Screw Wiring – Red – IEC 309 HP Range
The Gewiss GW62482 is a 16A 5 pin socket (3P+N+E) designed for 380–415V three-phase power distribution. With a 90° angled surface-mounting design, it ensures efficient, safe, and accessible connections for industrial and commercial installations.
Part of the IEC 309 HP range, this socket offers IP44 splash resistance, IK08 mechanical durability, and is built from corrosion-resistant components. The screw wiring terminals support flexible and rigid cables, while the internal clamp and nickel-plated pins offer stable, long-term electrical performance.
⚙️ Key Features of the Gewiss GW62482 5 Pin Socket
- Rated Current: 16A
- Poles: 3P+N+E (5 pin socket)
- Rated Voltage: 380–415V
- Frequency: 50/60 Hz
- Mounting Type: 90° angled surface-mounting
- Ingress Protection: IP44
- Mechanical Resistance: IK08
- Color: Red
- Reference Hour Position: 6H
- Wiring Type: Screw terminal
- Cable Capacity:
- Flexible: 2.5–6 mm²
- Rigid: 2.5–10 mm²
- Operating Temperature: -25°C to +55°C
- Insulation Resistance: >10 MΩ
- Breaking Capacity @1.1 Un: 40A
- Overload Resistance: 42A
- Glow Wire Test: 850°C (active), 650°C (passive)
- Thermo-pressure: 125°C (active), 80°C (passive)
- Operations: > 2000 cycles
✅ Why Choose Gewiss GW62482 5 Pin Socket?
The Gewiss GW62482 provides a compact yet durable surface-mounted 5 pin socket for medium-power, three-phase applications. Its angled housing improves cable routing, while its IP44 rating and mechanical resistance make it ideal for tough industrial environments.
This socket is ideal for equipment where dependable performance, quick installation, and compliance with IEC standards are essential.
Ideal Use Cases
- Three-phase machinery
- Factory power systems
- Industrial wall-mounted outlets
- Semi-outdoor installations
- Workshop tools and stations
❓ Frequently Asked Questions (FAQs)
- Q: Is this a 5 pin socket?
A: Yes, it has a 3P+N+E configuration for balanced three-phase loads. - Q: What protection does it offer?
A: It’s rated IP44, suitable for protected or semi-outdoor environments. - Q: Is it surface-mounted?
A: Yes, with a 90° angle for easy plug access and installation. - Q: What types of cables are supported?
A: It supports flexible (2.5–6 mm²) and rigid (2.5–10 mm²) cables. - Q: How long will it last?
A: It’s rated for over 2000 operations and built for industrial use.
Summary of the Gewiss GW62482 5 Pin Socket
The Gewiss GW62482 is a 16A 3P+N+E surface-mounted socket with a compact 90° design, ideal for powering three-phase machinery and industrial panels. Rated IP44 for splash protection and IK08 for impact resistance, this 5 pin socket supports reliable operation with screw terminal wiring. Built from corrosion-resistant components and compliant with IEC 60309 standards, it ensures durability, safety, and performance in medium-load applications.
