Description

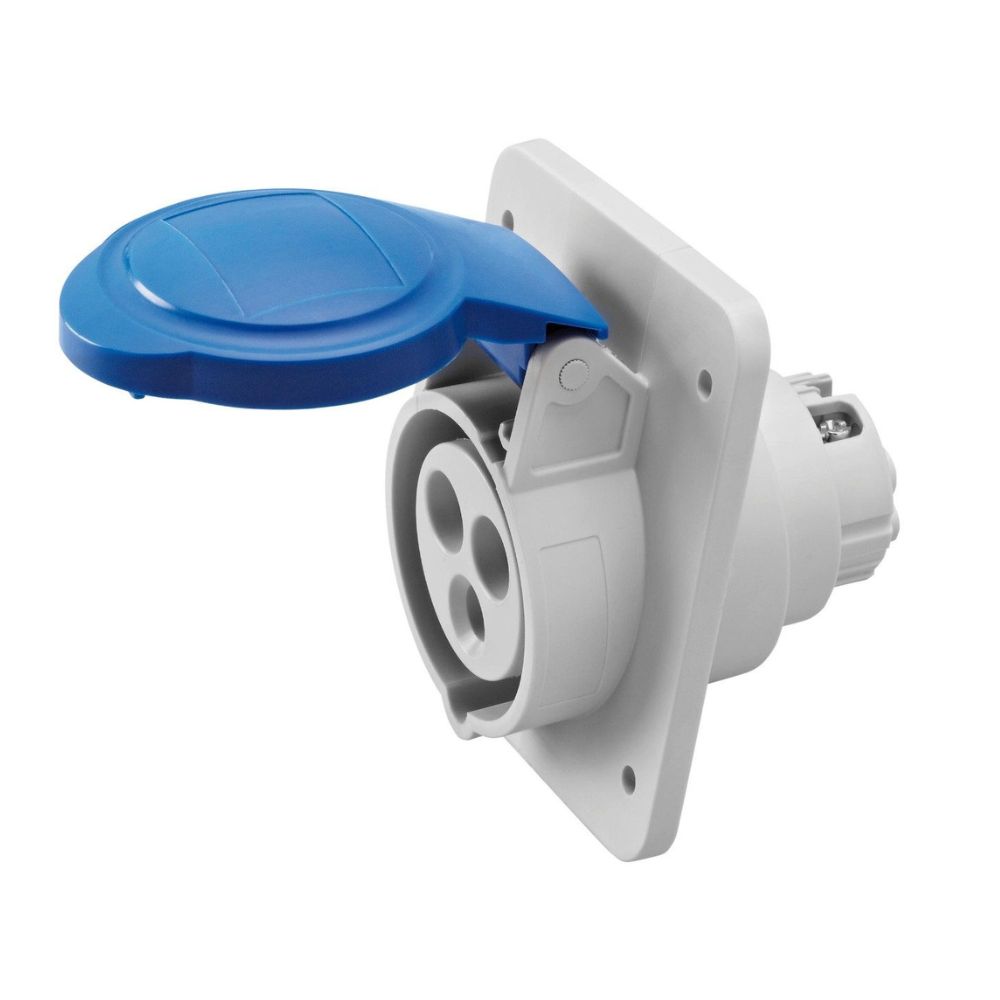

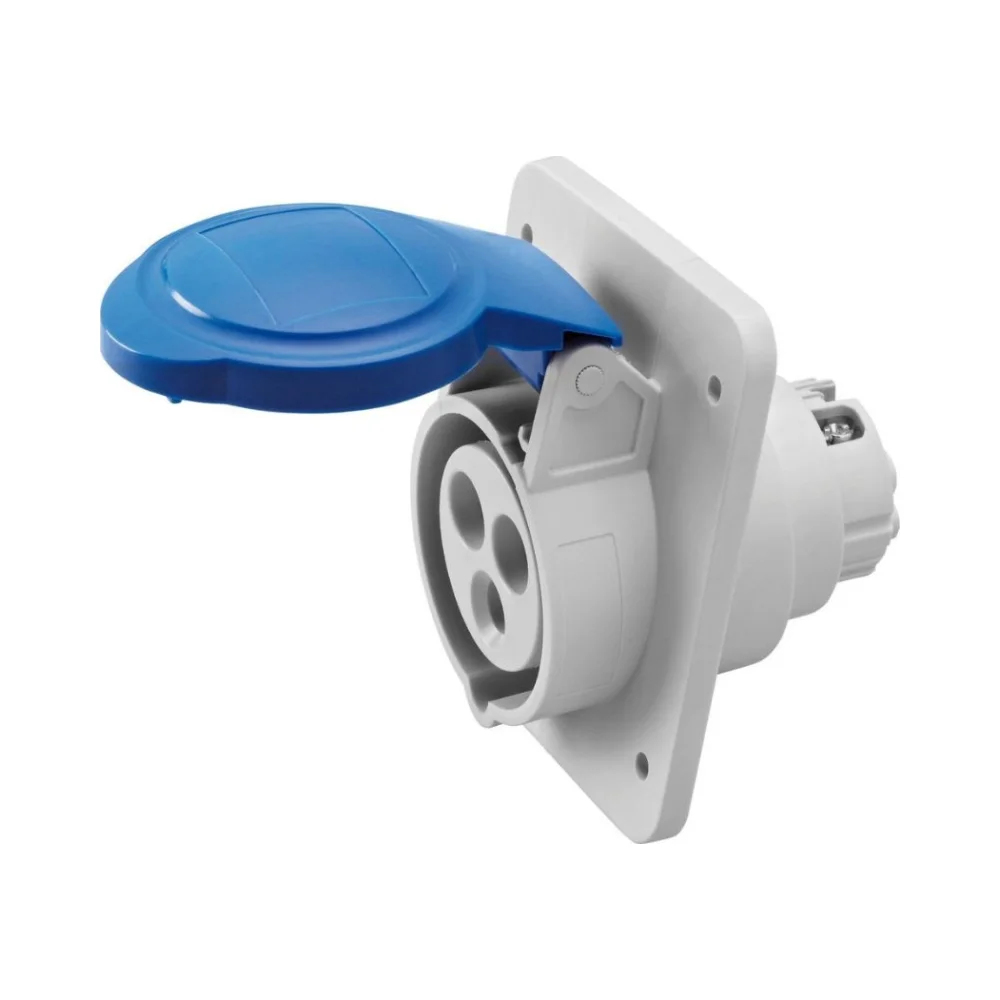

16A 3 Pin Socket (2P+E) 200-250V 10° Angled Flush-Mounting
GW62205H 3 Pin Flush Socket Outlet – IP44/IP54 – Screw Wiring – Blue – IEC 309 HP Range
The Gewiss GW62205H is a 16A 3 pin socket (2P+E) designed for reliable and ergonomic electrical connections in demanding environments. Its 10° angled flush-mounting design improves cable positioning and ease of access, making it a smart solution for both industrial and commercial setups.
This 2P+E socket belongs to the durable IEC 309 HP range and features IP44/IP54 protection, offering dependable resistance to dust and water. Built from halogen-free material in compliance with EN 60754-2, it’s ideal for environments where safety and performance matter. The screw-wired terminals support flexible and rigid cable types, ensuring secure and simple installation.
⚙️ Key Features of the Gewiss GW62205H 3 Pin Flush Socket Outlet
- Rated Current: 16A
- Poles: 2P+E (3 pin socket)
- Rated Voltage: 200–250V
- Frequency: 50/60 Hz
- Mounting Type: 10° angled flush-mounting
- Ingress Protection: IP44/IP54
- Mechanical Resistance: IK09
- Color: Blue
- Wiring Type: Screw wiring terminals
- Cable Capacity:
- Flexible: 1–2.5 mm²
- Rigid: 1.5–4 mm²
- Material: Halogen-free (EN 60754-2 compliant)
- Glow Wire Test: 850°C (active) / 650°C (passive)
- Thermo-pressure Resistance: 125°C (active) / 80°C (passive)
- Insulation Resistance: > 10 MΩ
- Breaking Capacity at 1.1 Un: 20A
- Permissible Overload: 22A
- Operating Temperature: -25°C to +55°C
- Operational Lifespan: Over 5000 operations
- Flange Size: 85 mm x 75 mm
- Hour Reference: 6H
✅ Why Choose Gewiss GW62205H 3 Pin Flush Socket Outlet?
If you’re looking for a 3 pin socket (2P+E) that delivers consistent performance in active environments, the Gewiss GW62205H is a dependable option. Its ergonomic flush-mounting design minimizes cable strain, while the rugged IP-rated housing shields against external elements.
With support for screw wiring and compliance with global safety standards, this 2P+E socket ensures both reliability and ease of use—perfect for any panel or equipment interface.
Ideal Use Cases
- Control panels
- Commercial machinery
- Semi-protected outdoor areas
- Industrial wall outlets
- Power modules requiring 3 pin socket connections
❓ Frequently Asked Questions (FAQs)
- Q: Is this socket a 3 pin configuration?
A: Yes, it’s a 2P+E 3 pin socket, ideal for standard single-phase power connections. - Q: What kind of cable wiring is supported?
A: It supports flexible (1–2.5 mm²) and rigid (1.5–4 mm²) cables via screw terminals. - Q: Can this be used outdoors?
A: Yes, the IP44/IP54 rating makes it suitable for sheltered or damp locations. - Q: Is the housing material safe?
A: Absolutely. It’s halogen-free and compliant with EN 60754-2. - Q: How durable is it for frequent use?
A: It’s rated for over 5000 operations, making it ideal for high-use settings.
Summary of the Gewiss GW62205H 3 Pin Flush Socket Outlet
The Gewiss GW62205H is a 16A 3 pin socket (2P+E) ideal for industrial and commercial power distribution. With a 10° angled flush-mount design and screw-wired terminals, it ensures fast, secure connections. The IP44/IP54-rated enclosure offers water and dust resistance, while halogen-free materials improve safety. Engineered to perform in harsh environments, it supports over 5000 operations, making it a trusted choice for professionals seeking reliable power delivery solutions.
