Description

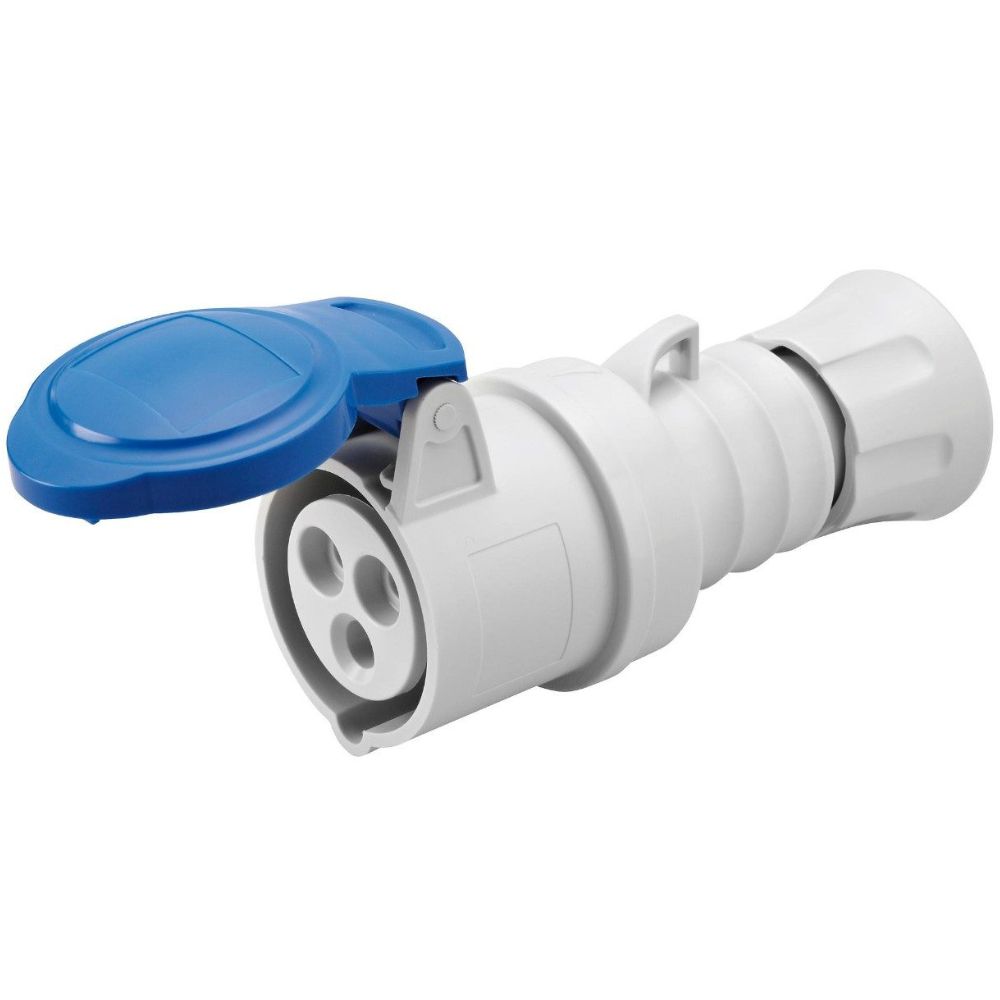

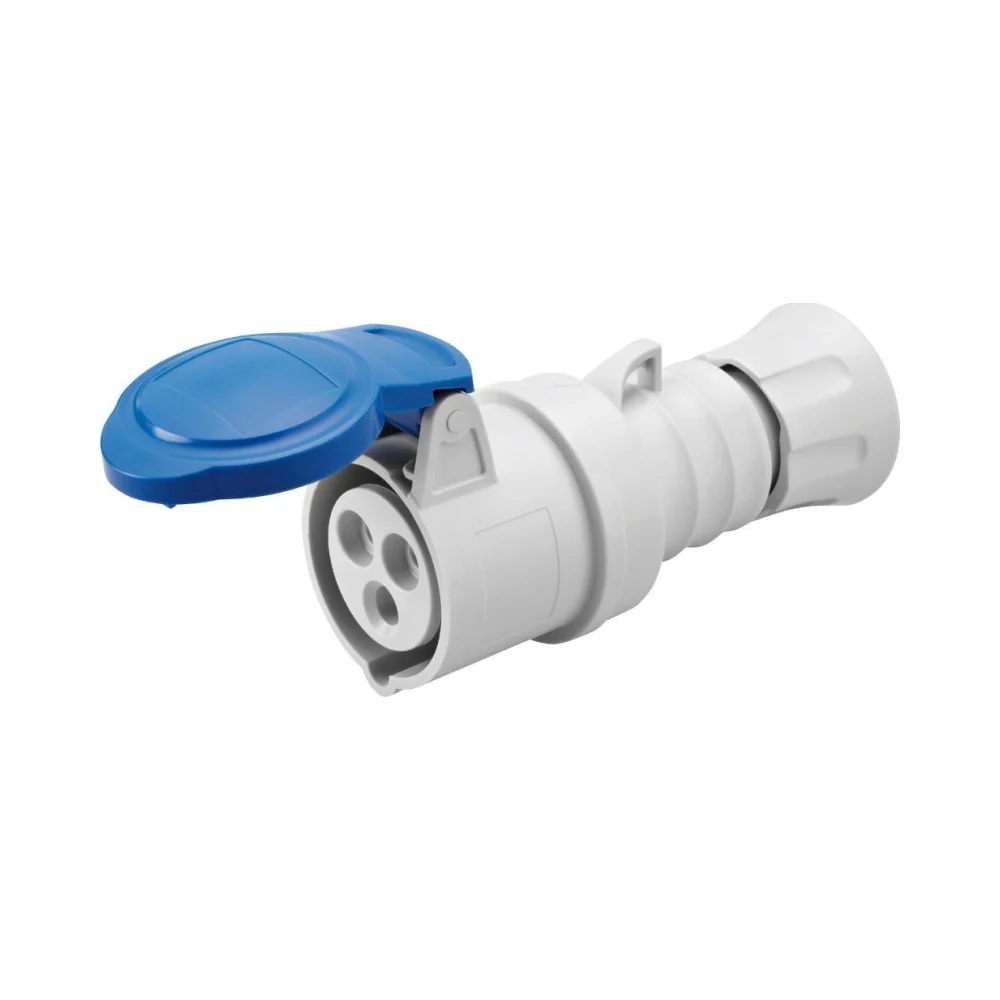

32A 2P+E 3 Pin Plug – 200–250V – Straight Connector
Gewiss GW62015H 32A 3 Pin Plug – IP44/IP54 – Screw Wiring – Blue – IEC 309 HP Range
The Gewiss GW62015H is a 32A straight industrial connector (3 pin plug, 2P+E) designed for single-phase power distribution in demanding industrial and commercial settings. Rated for 200–250V, this plug ensures safe, secure, and long-lasting electrical connections.
Constructed from halogen-free materials and compliant with IEC 60309 standards, it features IP44/IP54 ingress protection, IK09 impact resistance, and nickel-plated contacts for enhanced durability and corrosion resistance. It includes screw terminal wiring and a cable clamp (tightening range: 9.2–19.9 mm), offering easy installation and strong mechanical hold.
⚙️ Key Features of the Gewiss GW62015H 32A 3 Pin Plug
- Rated Current: 32A
- Poles: 2P+E (3 pin plug)
- Rated Voltage: 200–250V
- Frequency: 50/60 Hz
- Connector Type: Straight mobile plug
- Ingress Protection: IP44/IP54
- Mechanical Resistance: IK09
- Color: Blue
- Reference Hour Position: 6H
- Wiring Type: Screw terminals
- Cable Compatibility:
- Flexible: 2.5–6 mm²
- Rigid: 2.5–10 mm²
- Cable Clamp Range: 9.2–19.9 mm
- Material: Halogen-free (EN 60754-2 compliant)
- Glow Wire Test: 850°C (active), 650°C (passive)
- Thermo-pressure with Ball: 125°C (active), 80°C (passive)
- Operating Temperature: -25°C to +55°C
- Insulation Resistance: > 10 MΩ
- Permissible Overload: 42A
- Breaking Capacity at 1.1 Un: 40A
- Operational Lifespan: > 2000 operations
✅ Why Choose Gewiss GW62015H 32A 3 Pin Plug?
The Gewiss GW62015H 3 pin plug is engineered for performance, durability, and compliance. Its straight design makes it perfect for mobile applications, while the IP44/IP54 protection ensures safety in semi-outdoor and industrial environments. The screw wiring system and cable clamp offer fast, reliable installation, with secure retention even under vibration or movement.
Ideal Use Cases
- Portable single-phase machinery
- Industrial tool connections
- Temporary power supply lines
- Commercial site power setups
- Generator power extensions
❓ Frequently Asked Questions (FAQs)
- Q: Is this a 3 pin plug?
A: Yes, it’s a 2P+E configuration, also known as a 3 pin plug. - Q: Is it a straight connector for mobile use?
A: Yes, it’s a straight industrial connector designed for portable or on-the-go applications. - Q: What kind of protection does it offer?
A: It has IP44/IP54 ratings for dust and splash resistance, suitable for industrial settings. - Q: What cable sizes are supported?
A: It supports flexible cables (2.5–6 mm²) and rigid cables (2.5–10 mm²). - Q: What temperature range can it handle?
A: It operates between -25°C and +55°C.
Summary of the Gewiss GW62015H 32A 3 Pin Plug
The Gewiss GW62015H is a 32A 2P+E straight industrial plug engineered for single-phase 200–250V systems. With IP44/IP54 protection and a halogen-free body, it’s built to last in challenging environments. This 3 pin plug features nickel-plated contacts, screw terminals, and a secure cable clamp system. It’s ideal for industrial tools, portable power setups, and generator hook-ups where reliability and safety are critical.
