32A 3P+N+E 5 Pin Plug – 380–415V – Straight Industrial Plug

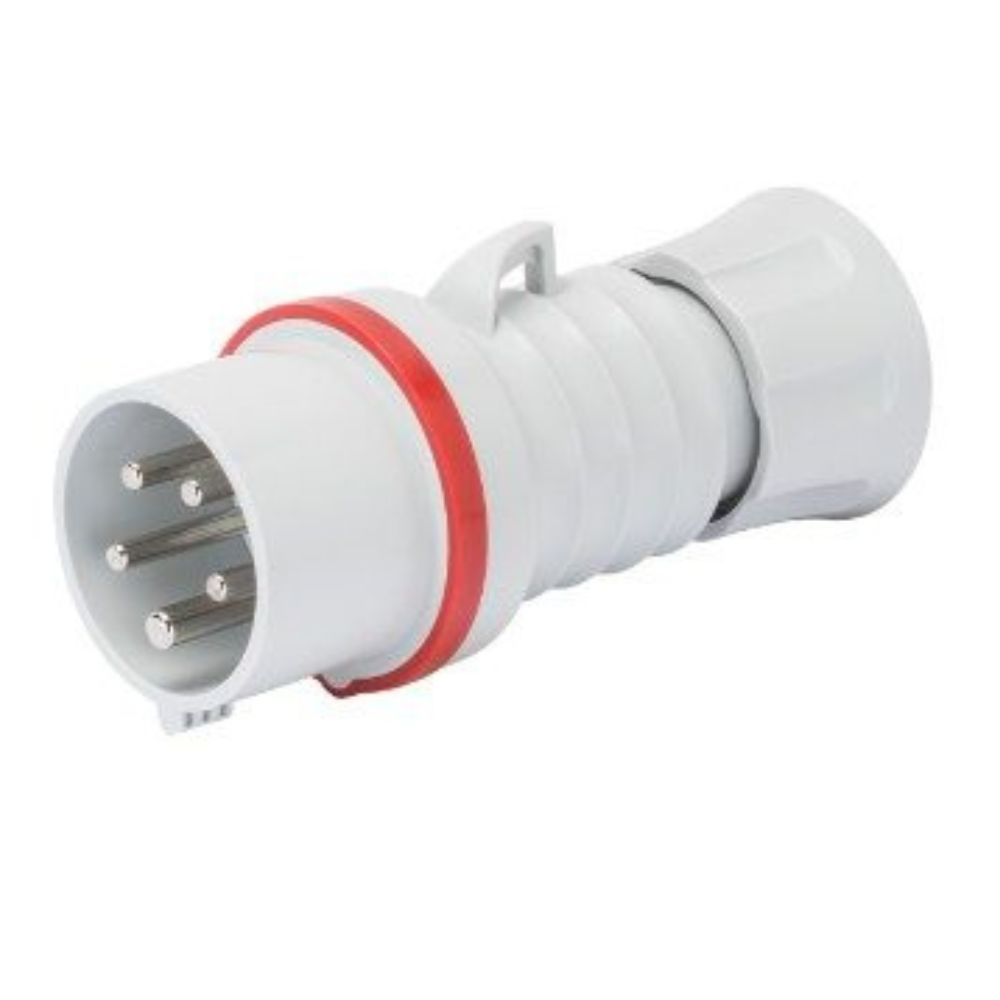

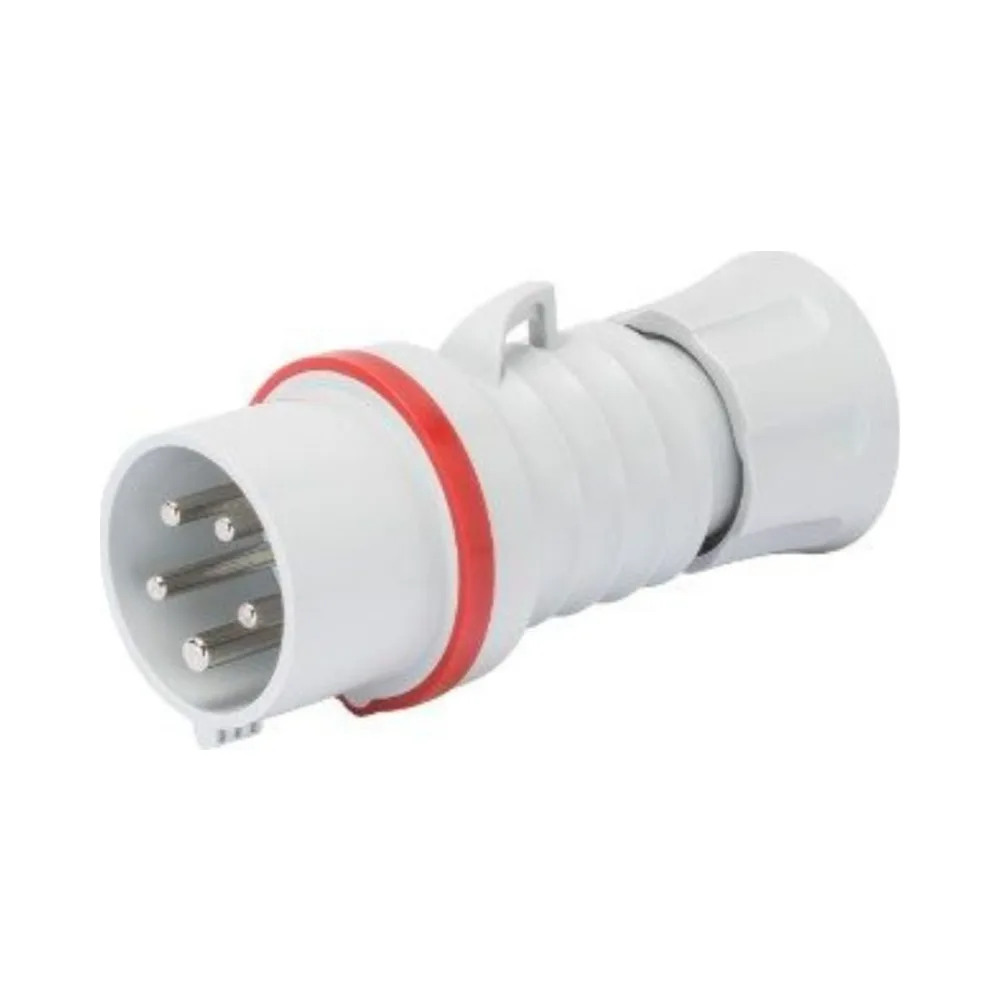

🔴 Gewiss GW60020H 32A 5 Pin 415V Plug – IP44/IP54 – Screw Wiring – Red – IEC 309 HP Range
The Gewiss GW60020H is a 32A 5 pin plug (3P+N+E) designed for secure and stable three-phase power connections. Built for 380–415V systems, it offers a reliable solution for industrial machinery, mobile equipment, and commercial installations.
This plug is part of the trusted IEC 309 HP range, which means it follows strict international safety standards. It features IP44/IP54 protection, making it resistant to dust and water splashes. Additionally, the IK09 impact rating ensures it can withstand mechanical stress in tough environments.
Thanks to its screw terminal system and adjustable cable clamp (9.2–19.9 mm), installation is quick and secure. The halogen-free body and nickel-plated contacts add to its safety, while also protecting against corrosion and wear.
⚙️ Key Features of the Gewiss GW60020H 32A 5 Pin 415V Plug
- Current Rating: 32A
- Poles: 3P+N+E (5 pin plug)
- Voltage: 380–415V
- Frequency: 50/60 Hz
- Plug Type: Straight industrial plug
- Ingress Protection: IP44/IP54
- Impact Resistance: IK09
- Color: Red
- Hour Reference: 6H
- Wiring Method: Screw terminals
- Cable Compatibility:
- Flexible: 2.5–6 mm²
- Rigid: 2.5–10 mm²
- Cable Clamp Range: 9.2–19.9 mm
- Material: Halogen-free (EN 60754-2 compliant)
- Glow Wire Test: 850°C (active), 650°C (passive)
- Thermo-pressure Resistance: 125°C (active), 80°C (passive)
- Operating Temp: -25°C to +55°C
- Insulation Resistance: > 10 MΩ
- Breaking Capacity @1.1 Un: 40A
- Permissible Overload: 42A
- Durability: Over 2000 operations
✅ Why Choose Gewiss GW60020H 32A 5 Pin 415V Plug?
When reliability and safety matter, the Gewiss GW60020H 5 pin plug is the ideal choice. Its rugged straight design, secure terminal system, and industry-standard compliance make it suitable for installations that require consistent, high-capacity power delivery.
Moreover, its corrosion-resistant internal components and robust housing ensure longevity even in tough environments.
🌐 Ideal Use Cases
- Industrial machinery
- Commercial three-phase systems
- Mobile generators
- Power tools and equipment panels
- Workshop or factory floor setups
❓ Frequently Asked Questions (FAQs)
- Q: Is this plug suitable for three-phase power?
A: Yes, it’s a 3P+N+E (5 pin) plug designed for balanced three-phase 380–415V power systems. - Q: Can I use this for portable equipment?
A: Absolutely. Its straight design is ideal for mobile power distribution. - Q: What types of cables does it support?
A: It supports both flexible (2.5–6 mm²) and rigid (2.5–10 mm²) cables. - Q: Is the housing impact-resistant?
A: Yes, the IK09 rating provides strong mechanical durability. - Q: Can it be installed outdoors?
A: It’s suited for protected or semi-outdoor areas thanks to its IP44/IP54 rating.
Summary of the Gewiss GW60020H 32A 5 Pin 415V Plug
The Gewiss GW60020H is a 32A 5 pin straight plug (3P+N+E) designed for 380–415V three-phase applications. With IP44/IP54 protection, a halogen-free body, and nickel-plated pins, this plug ensures safe, long-lasting connections in industrial environments. Its screw wiring system and cable clamp simplify setup, making it a dependable solution for workshops, generators, and commercial machinery.
