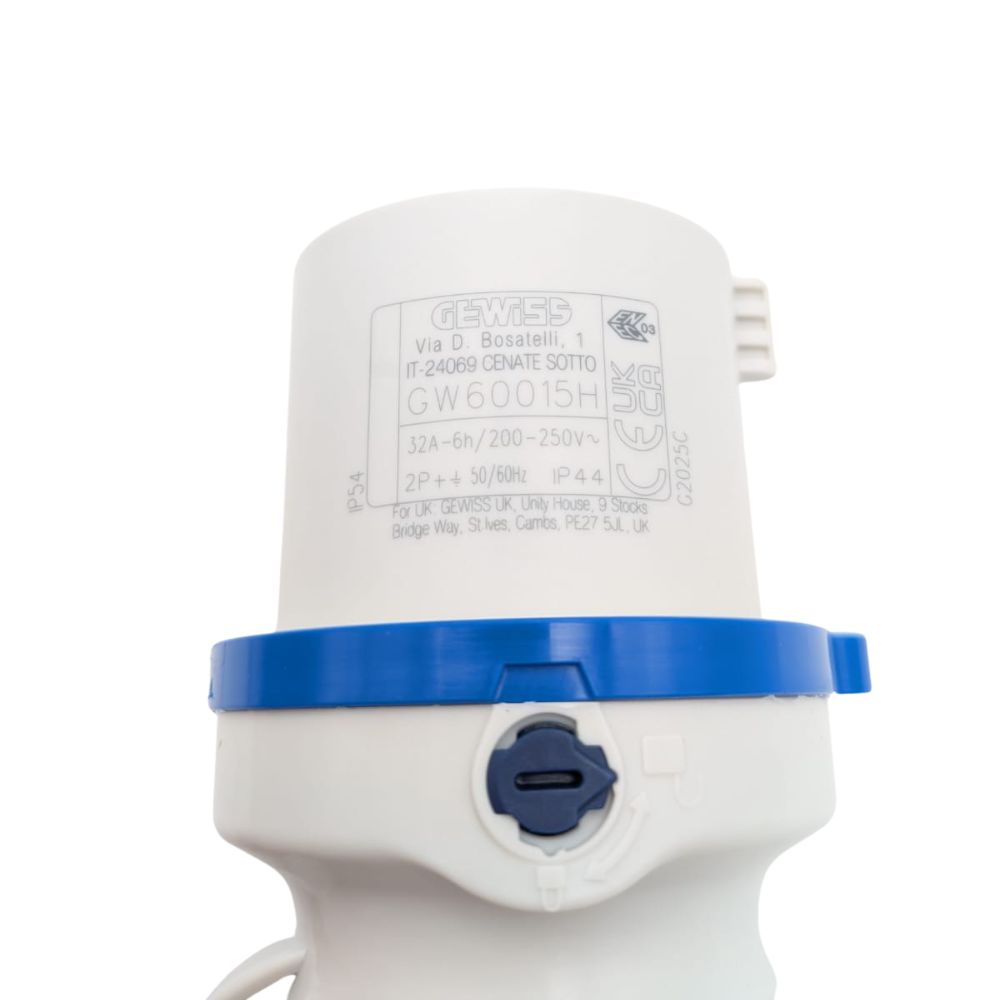

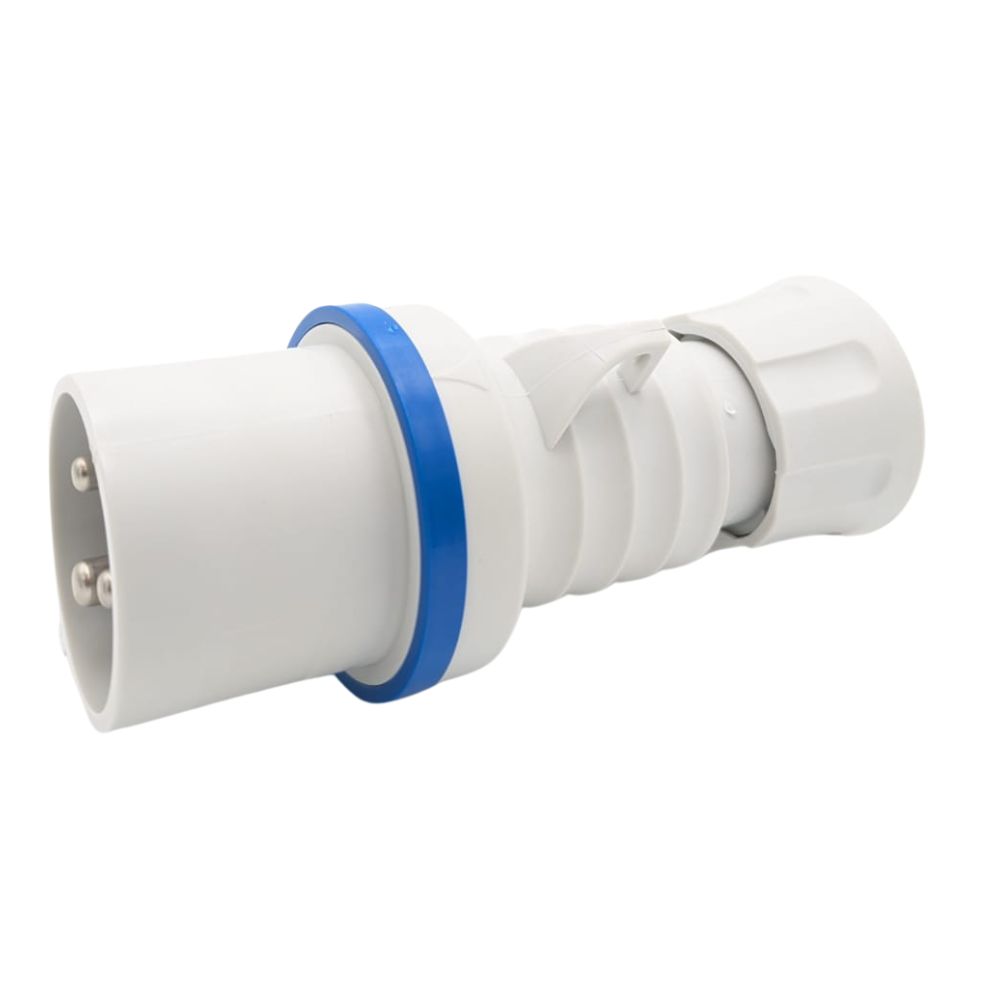

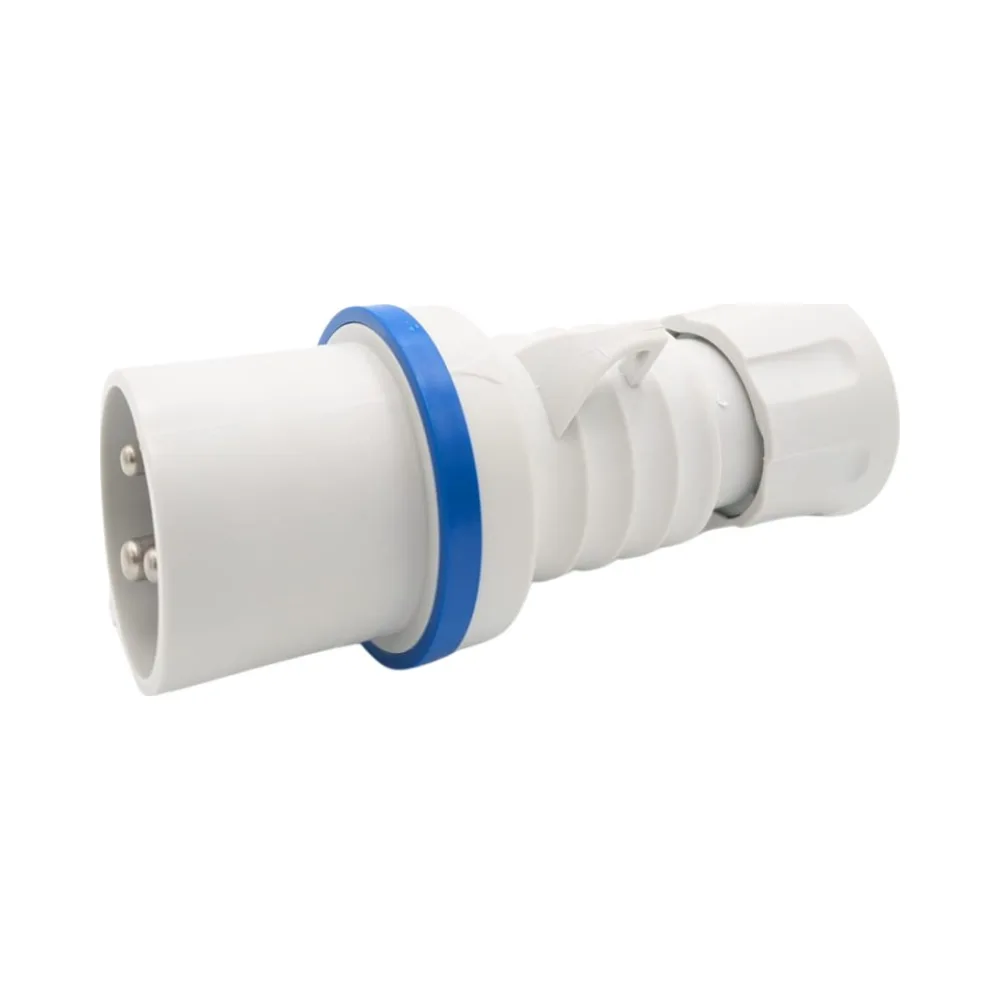

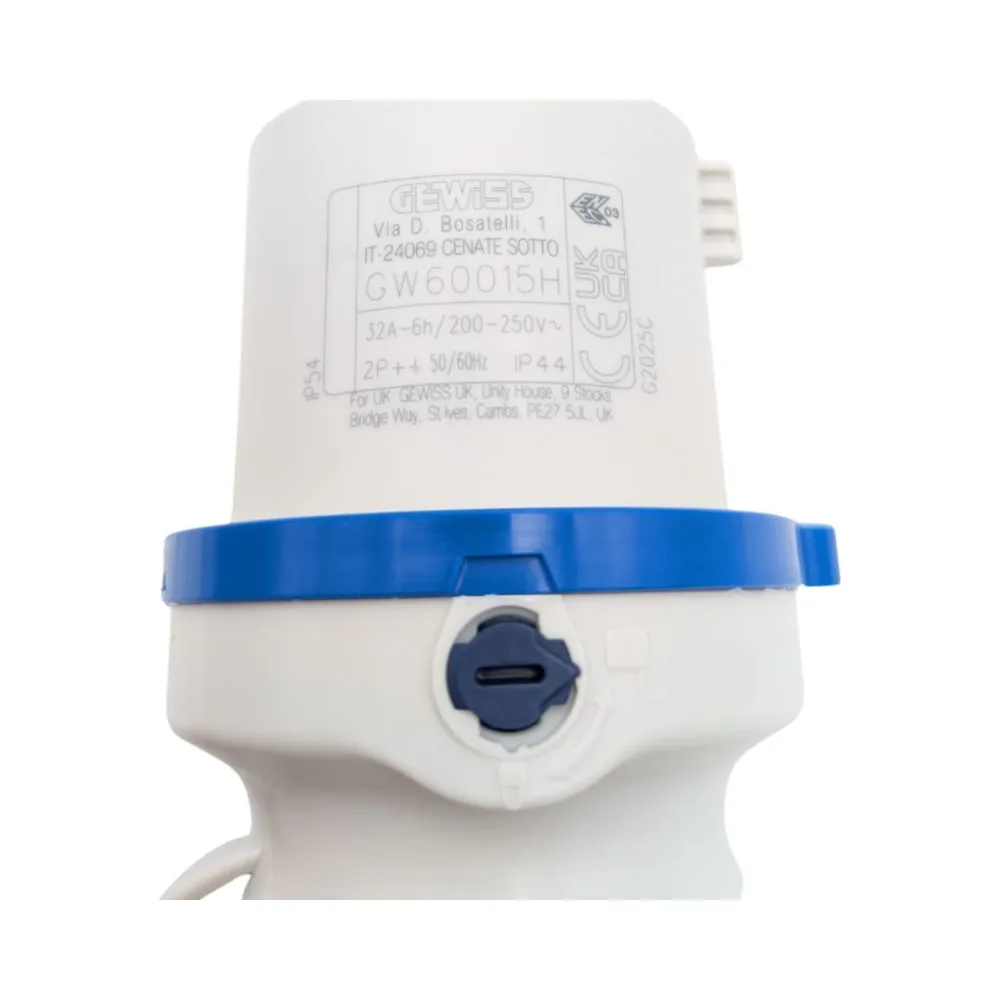

32A 2P+E 3 Pin Plug – 200–250V – Straight Industrial Plug

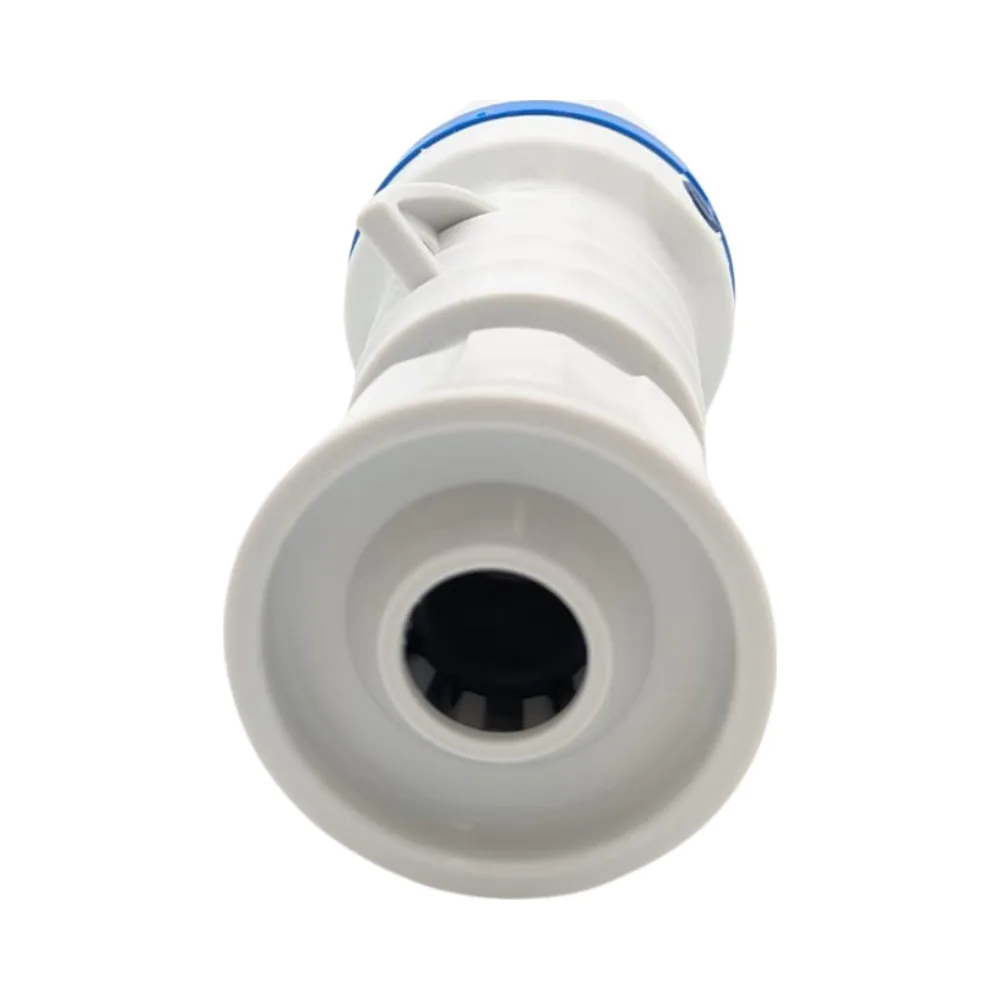

🔵 Gewiss GW60015H 32A 3 Pin Plug – IP44/IP54 – Screw Wiring – Blue – IEC 309 HP Range
The Gewiss GW60015H is a 32A 3 pin plug (2P+E) designed for single-phase 200–250V applications. Built to meet the demands of mobile, industrial, or commercial installations, this straight plug ensures stable and secure power connections every time.
Belonging to the IEC 309 HP range, it is compliant with IEC 60309 standards and offers IP44/IP54 protection along with IK09 impact resistance. Additionally, its halogen-free construction boosts fire safety and environmental protection. Inside, nickel-plated contacts safeguard against corrosion, ensuring long-term reliability.

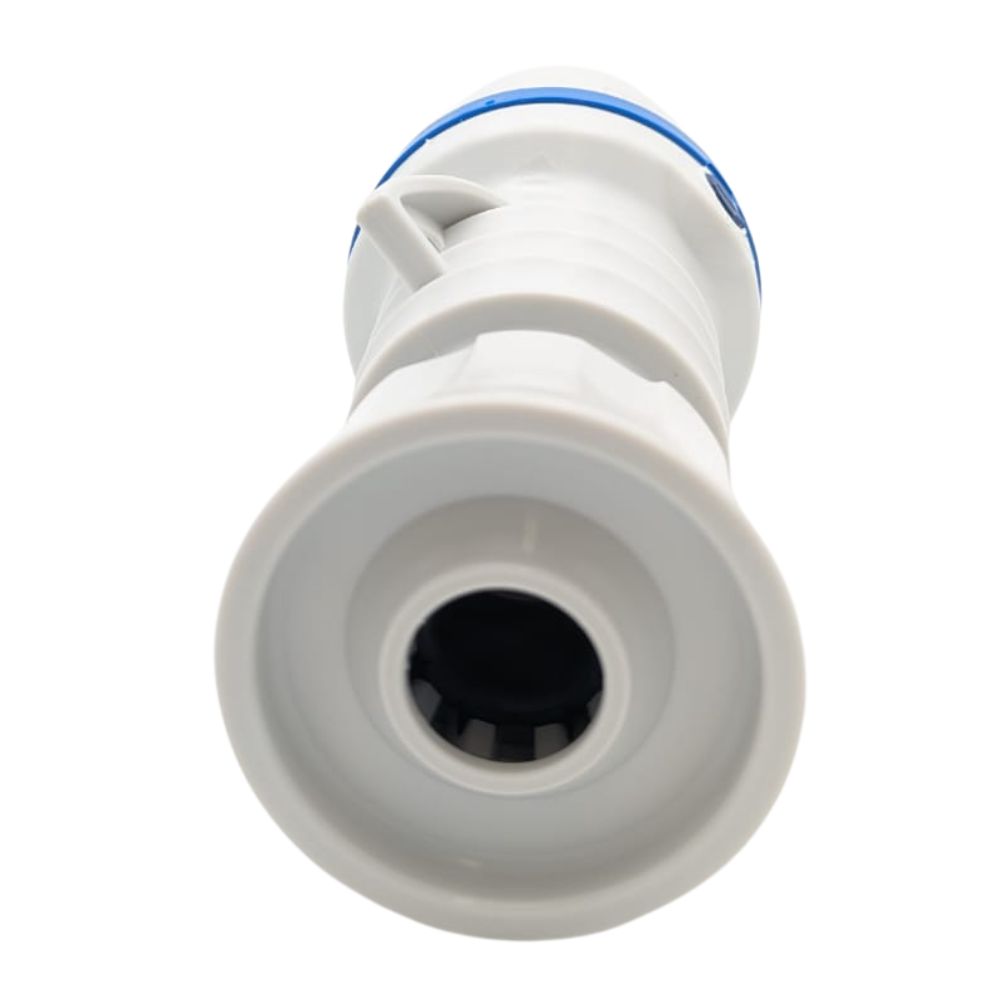

Installation is made easier with its screw terminal wiring and a strong cable clamp that supports cable diameters from 9.2 mm to 19.9 mm. Whether you’re powering portable equipment or setting up temporary power connections, this plug delivers dependable performance.
⚙️ Key Features of the Gewiss GW60015H 32A 3 Pin Plug
- Rated Current: 32A

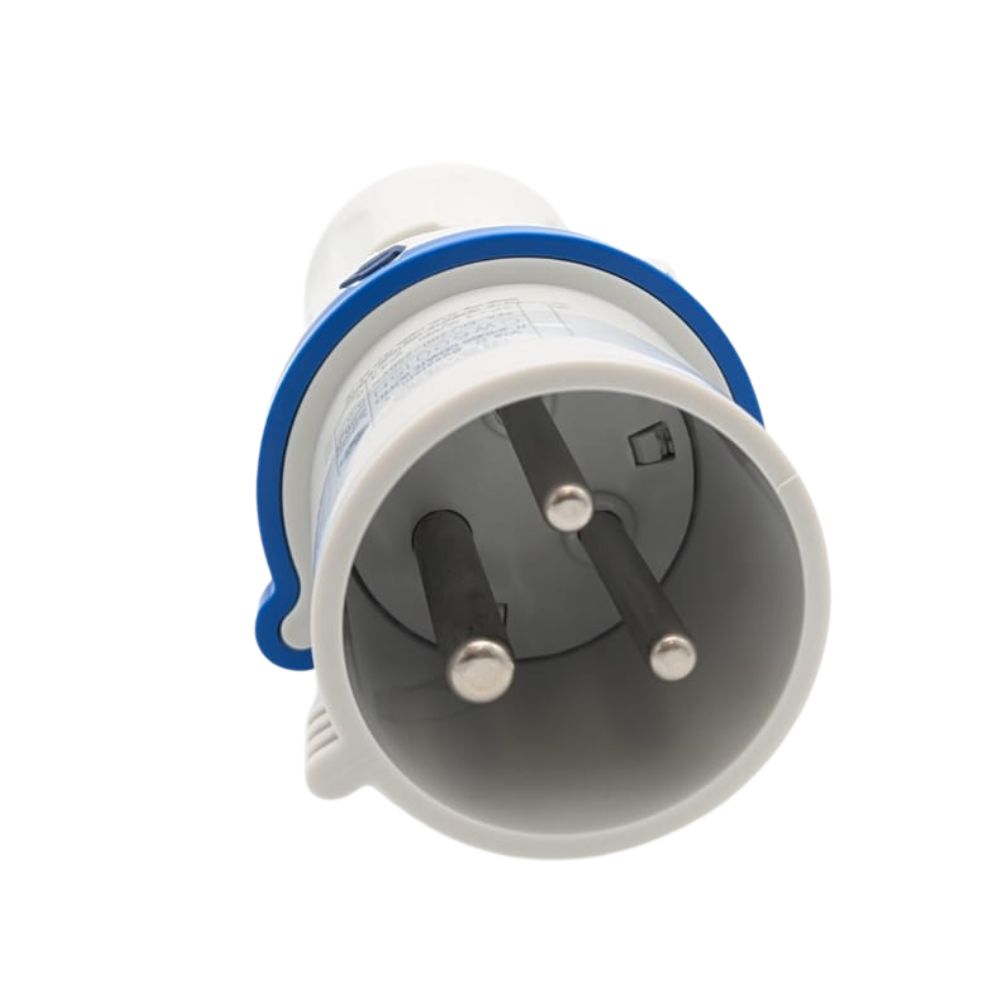

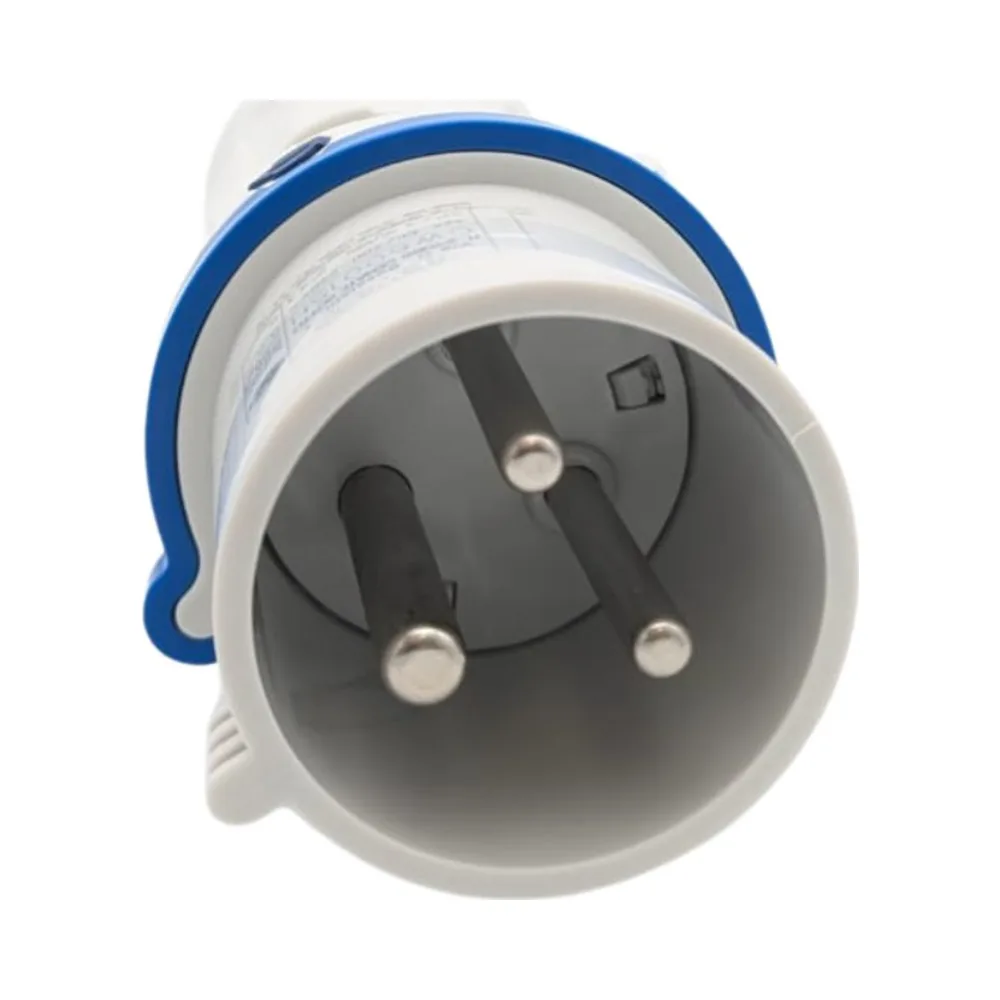

- Poles: 2P+E (3 pin plug)
- Rated Voltage: 200–250V
- Frequency: 50/60 Hz
- Plug Type: Straight connector
- Ingress Protection: IP44/IP54 – splash and dust resistant
- Mechanical Resistance: IK09
- Color: Blue
- Hour Reference: 6H
- Wiring Method: Screw terminals
- Cable Compatibility:
- Flexible: 2.5–6 mm²
- Rigid: 2.5–10 mm²
- Cable Clamp Range: 9.2–19.9 mm
- Material: Halogen-free (EN 60754-2 compliant)
- Thermal Ratings:
- Glow wire test: 850°C (active), 650°C (passive)
- Thermo-pressure: 125°C (active), 80°C (passive)
- Operating Temperature: -25°C to +55°C
- Insulation Resistance: > 10 MΩ
- Permissible Overload: 42A
- Breaking Capacity at 1.1 Un: 40A
- Durability: More than 2000 operations
✅ Why Choose This Product?
If you need a reliable power connector for single-phase, 3 pin setups, the Gewiss GW60015H delivers. Its robust materials, intuitive screw wiring, and IP-rated protection make it suitable for demanding environments. Moreover, its quick installation design reduces setup time without compromising safety.
🌐 Ideal Applications
- Mobile equipment and tools
- Site power distribution
- Workshop plug points
- Portable generators
- Light industrial machines
❓ Frequently Asked Questions (FAQs)
- Q: Is this plug designed for 3 pin configurations?
A: Yes, it uses a 2P+E setup, making it ideal for single-phase 3 pin power systems. - Q: Can it be used outdoors?
A: It can be used in sheltered outdoor locations, thanks to its IP44/IP54 protection rating. - Q: How do I wire the plug?
A: The screw terminals make wiring simple for both flexible and rigid cables. - Q: Is it resistant to impact and heat?
A: Yes, it features IK09 impact resistance and passes glow wire and thermo-pressure safety tests. - Q: What kind of cables can it accommodate?
A: It supports cable diameters from 9.2 mm to 19.9 mm and conductor sizes from 2.5 to 10 mm².
Summary of the Gewiss GW60015H 32A 3 Pin Plug
The Gewiss GW60015H is a 32A 2P+E straight plug engineered for 200–250V single-phase systems. With IP44/IP54 ingress protection, IK09 impact resistance, and nickel-plated contacts, this 3 pin plug offers secure, long-lasting power in mobile, temporary, or industrial setups. Its easy-to-wire screw terminals and cable clamp simplify installation, making it a reliable solution for professionals.
