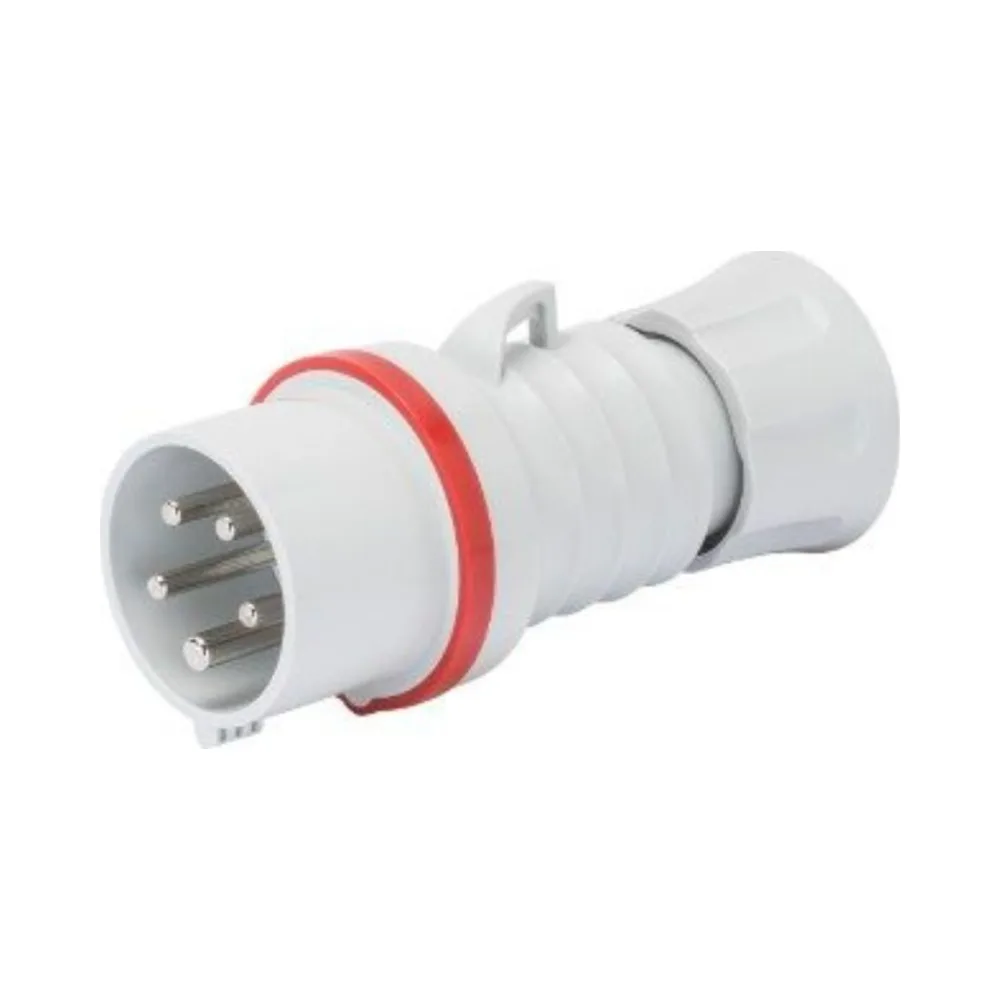

Gewiss GW60009H 16A 5 Pin 415V Straight Industrial Plug – IP44/IP54

Description

16A 3P+N+E 5 Pin Plug – 380–415V – Straight Industrial Plug

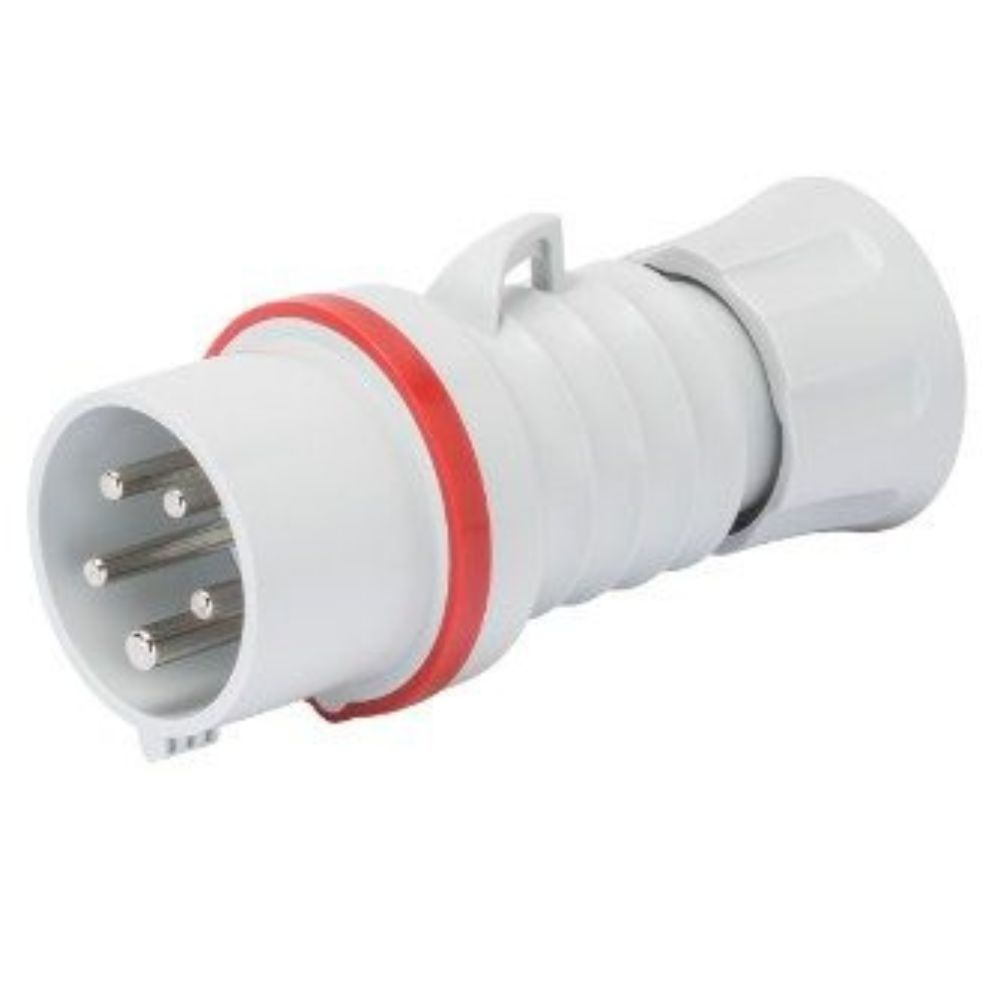

🔴 Gewiss GW60009H 16A 5 Pin Plug – IP44/IP54 – Screw Wiring – Red – IEC 309 HP Range

The Gewiss GW60009H is a 16A straight industrial plug (3P+N+E) designed for safe and consistent three-phase 380–415V power connections. Compact and robust, it’s ideal for workshops, mobile systems, and light industrial setups where a reliable plug is essential.

This product is part of the IEC 309 HP range and adheres to international standards IEC 60309-1 and 60309-2. With IP44/IP54 ingress protection, it resists dust and splashes, while its IK09 rating ensures strong resistance to mechanical impact. The halogen-free casing improves fire safety, and the nickel-plated contacts resist corrosion for long-term reliability.

Thanks to its screw terminal wiring and wide cable clamp range (9.2–19.9 mm), installation is both simple and secure.

⚙️ Key Features of the Gewiss GW60009H 16A 5 Pin Plug

• Rated Current: 16A
• Pin Configuration: 3P+N+E (5 pin plug)
• Rated Voltage: 380–415V
• Frequency: 50/60 Hz
• Plug Type: Straight industrial connector
• Ingress Protection: IP44/IP54
• Mechanical Resistance: IK09
• Color: Red
• Hour Reference: 6H
• Wiring Type: Screw terminals
• Cable Support:
• Flexible: 1–2.5 mm²
• Rigid: 1.5–4 mm²
• Cable Clamp Range: 9.2–19.9 mm
• Material: Halogen-free (EN 60754-2 compliant)
• Glow Wire Test: 850°C (active parts), 650°C (passive parts)
• Thermo-pressure Resistance: 125°C (active), 80°C (passive)
• Operating Temperature: -25°C to +55°C
• Insulation Resistance: > 10 MΩ
• Permissible Overload: 22A
• Breaking Capacity at 1.1 Un: 20A
• Operational Lifespan: Over 5000 cycles

✅ Why Choose Gewiss GW60009H 16A 5 Pin Plug?

Choose the Gewiss GW60009H for dependable performance in light to medium-duty three-phase setups. Its compact straight design, quick screw terminal wiring, and protective features make it an excellent option for portable or fixed industrial connections. Moreover, the red housing and 6H keying ensure safe and accurate compatibility with the right voltage level.

🌐 Ideal Applications

• Three-phase power tools
• Industrial maintenance stations
• Generator hookups
• Light-duty commercial equipment
• Mobile machinery setups

❓ Frequently Asked Questions (FAQs)

• Q: Is this a 5 pin plug?
  A: Yes, it’s a 3P+N+E (5 pin) configuration designed for three-phase systems.
• Q: Can I use this for outdoor applications?
  A: It offers IP44/IP54 protection, making it suitable for semi-outdoor or protected environments.
• Q: What kind of wiring does it support?
  A: It has screw terminals and supports both flexible and rigid cable types.
• Q: How resistant is it to impact and heat?
  A: It has IK09 mechanical resistance and meets glow wire and thermo-pressure safety standards.
• Q: What’s the installation process like?
  A: It’s fast and secure thanks to its simple screw wiring and adjustable cable clamp.

Summary of the Gewiss GW60009H 16A 5 Pin Plug

The Gewiss GW60009H is a 16A 5 pin straight plug (3P+N+E) for 380–415V three-phase systems. It’s part of the IEC 309 HP range, offering IP44/IP54 protection, halogen-free housing, nickel-plated contacts, and easy screw terminal wiring. Compact and durable, this plug is perfect for portable power systems and workshop use.
