16A 2P+E 3 Pin Plug – 200–250V – Straight Industrial Plug

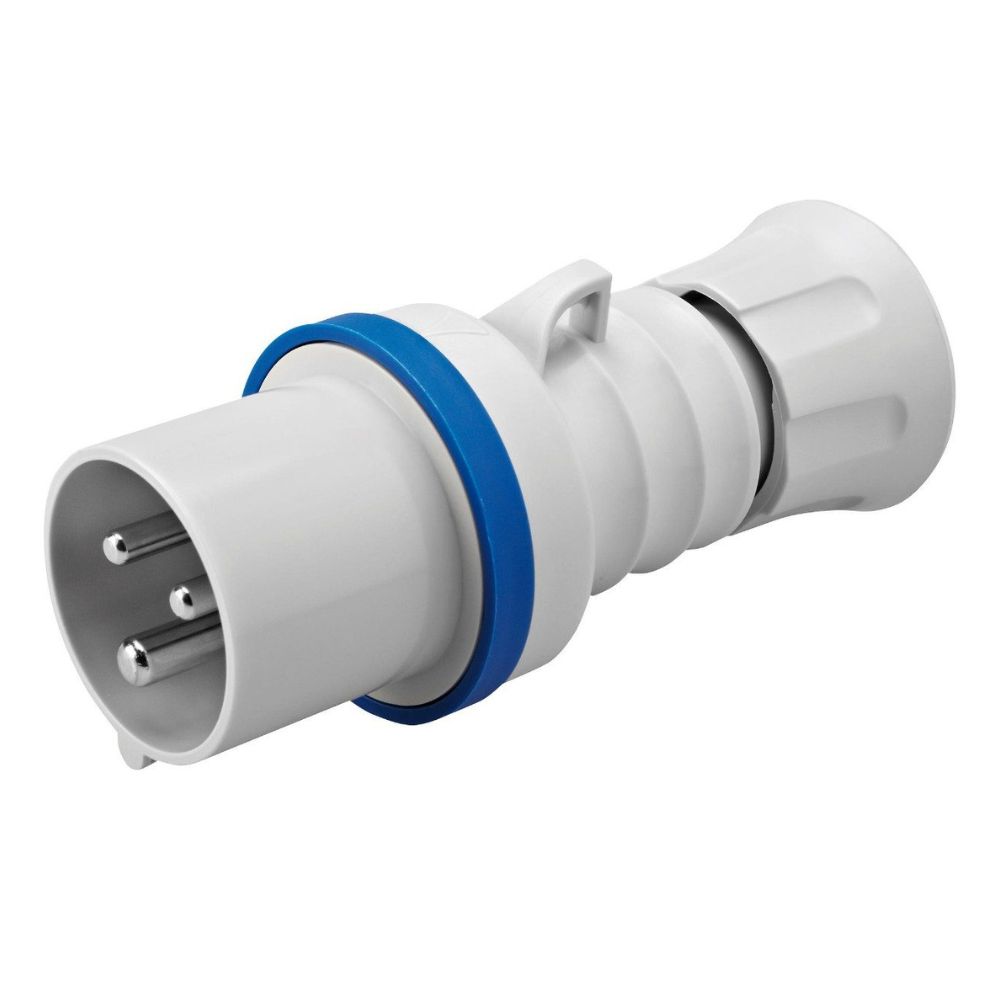

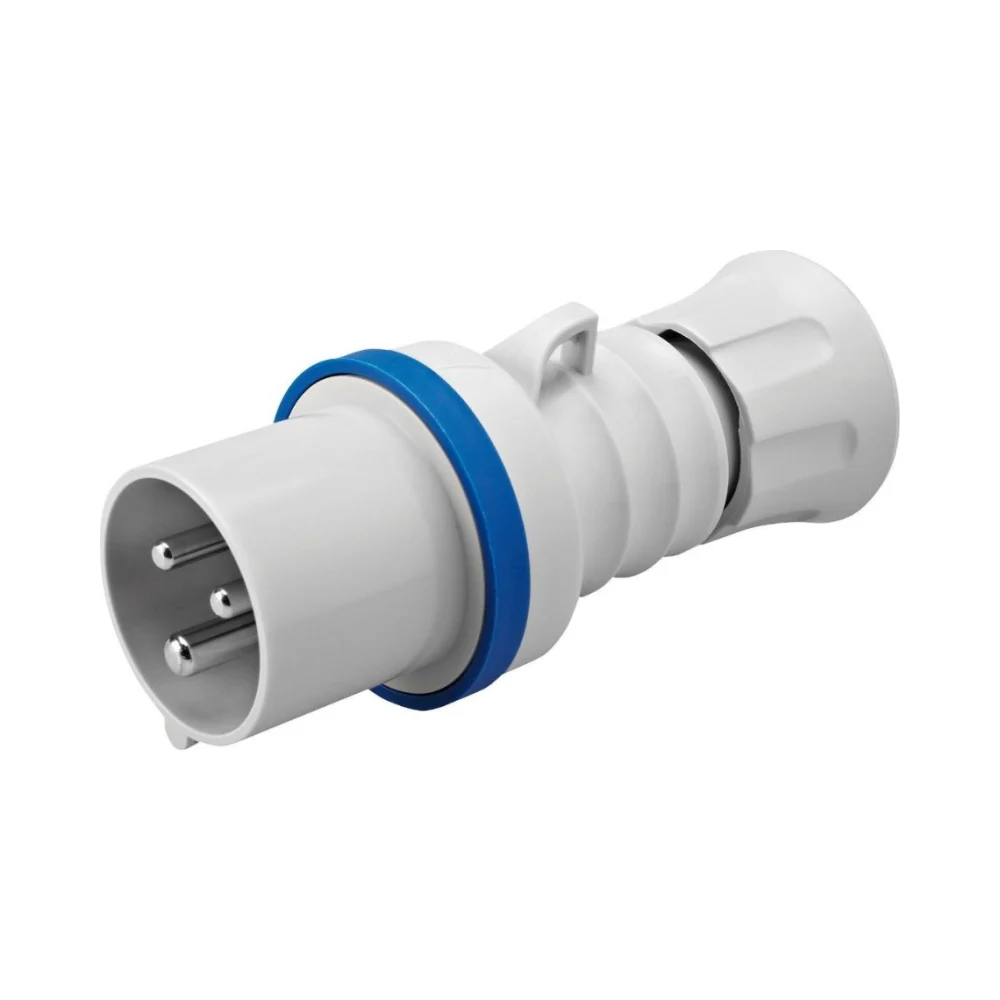

🔵 Gewiss GW60004H 16A 3 Pin 230V Plug – IP44/IP54 – Screw Wiring – Blue – IEC 309 HP Range
The Gewiss GW60004H is a 16A 3 pin straight plug (2P+E) purpose-built for 200–250V single-phase power distribution. Designed for demanding environments, it ensures safe, durable, and efficient electrical connections in temporary, portable, and industrial applications.
Part of the IEC 309 HP range, this plug complies with IEC 60309-1 and -2 standards. It offers IP44/IP54 ingress protection, making it resistant to dust and water splashes. The IK09 impact rating ensures robust mechanical performance. Made from halogen-free material, it supports modern safety and environmental standards.
In addition, the nickel-plated pins resist corrosion, while the screw terminal wiring and secure cable clamp (7.5–13.8 mm) make installation straightforward and reliable.
⚙️ Key Features of the Gewiss GW60004H 16A 3 Pin 230V Plug
- Rated Current: 16A
- Poles: 2P+E (3 pin configuration)
- Voltage Rating: 200–250V
- Frequency: 50/60 Hz
- Plug Type: Straight industrial plug
- Ingress Protection: IP44/IP54
- Impact Resistance: IK09
- Colour: Blue
- Hour Reference: 6H
- Wiring Method: Screw terminals
- Cable Compatibility:
- Flexible: 1–2.5 mm²
- Rigid: 1.5–4 mm²
- Clamp Range: 7.5–13.8 mm
- Material: Halogen-free, EN 60754-2 compliant
- Glow Wire Test: 850°C (active parts), 650°C (passive parts)
- Thermo-pressure Resistance: 125°C (active), 80°C (passive)
- Operating Temperature: -25°C to +55°C
- Insulation Resistance: > 10 MΩ
- Permissible Overload: 22A
- Breaking Capacity at 1.1 Un: 20A
- Operational Lifespan: Over 5000 insertions
✅ Why Choose Gewiss GW60004H 16A 3 Pin 230V Plug?
Opt for the Gewiss GW60004H if you need a compact and reliable 3 pin industrial plug for single-phase power. Its durable construction, corrosion-resistant contacts, and compliance with European safety standards make it a top choice for workshops, site setups, or portable equipment connections.
🌐 Suitable Applications
- Portable tools and site equipment
- Temporary electrical panels
- Industrial test benches
- Commercial maintenance units
- Single-phase machinery
❓ Frequently Asked Questions (FAQs)
- Q: Is this a standard 3 pin plug?
A: Yes, it features a 2P+E configuration for single-phase electrical systems. - Q: Can I use this in outdoor settings?
A: Yes, it’s suitable for protected outdoor or semi-exposed locations thanks to IP44/IP54 protection. - Q: Is it easy to wire?
A: Absolutely. The screw terminals make installation quick and secure. - Q: What type of cable does it support?
A: It accommodates both flexible (1–2.5 mm²) and rigid (1.5–4 mm²) cables. - Q: Is it heat- and impact-resistant?
A: Yes, it meets both glow wire and IK09 impact resistance standards.
Summary of the Gewiss GW60004H 16A 3 Pin 230V Plug
The Gewiss GW60004H is a 16A 2P+E industrial plug for 200–250V single-phase use. Built to IEC 309 HP standards, it offers IP44/IP54 protection, a halogen-free body, and corrosion-resistant pins. With secure screw wiring and a compact straight design, this 3 pin plug is ideal for portable tools, site installations, and commercial electrical setups across the UK and Europe.
