Industrial 63A 400V IP67 Three Phase Socket with Built-In RCD
Heavy-Duty Three Phase Socket with RCD and IP67 Protection

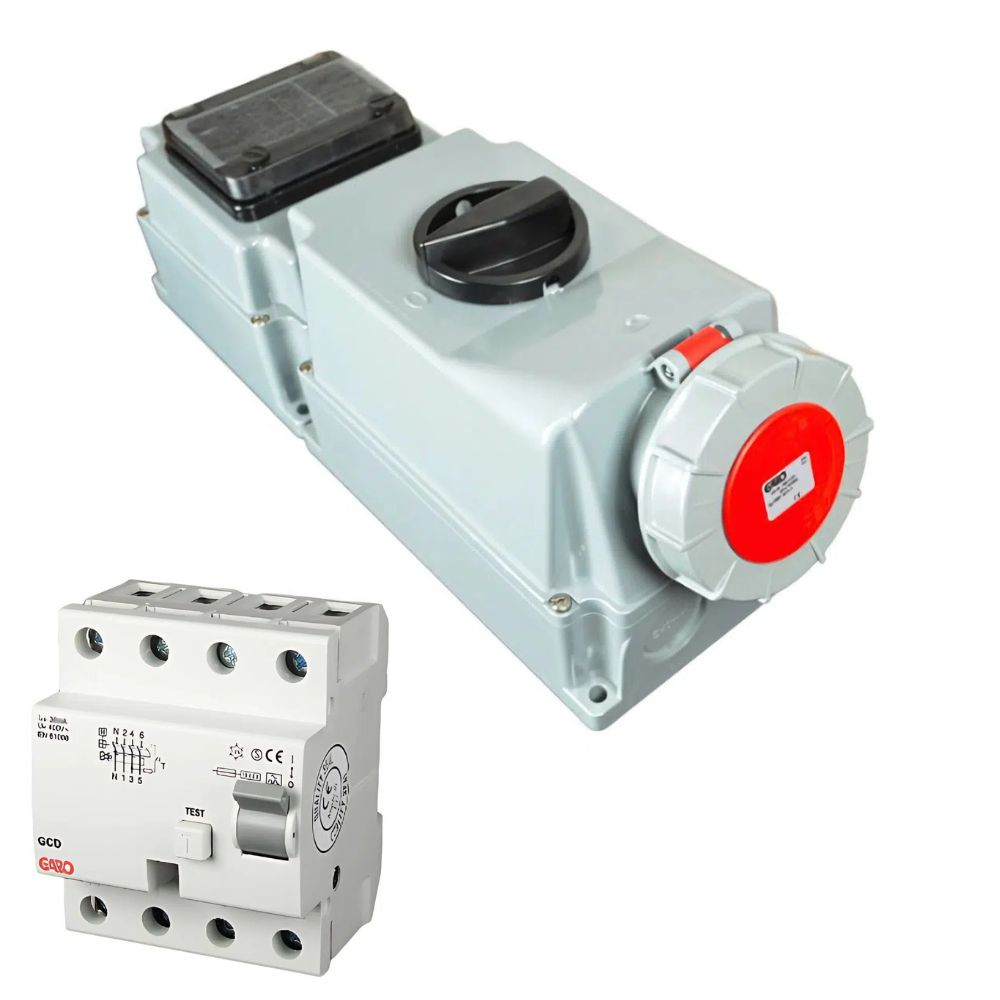

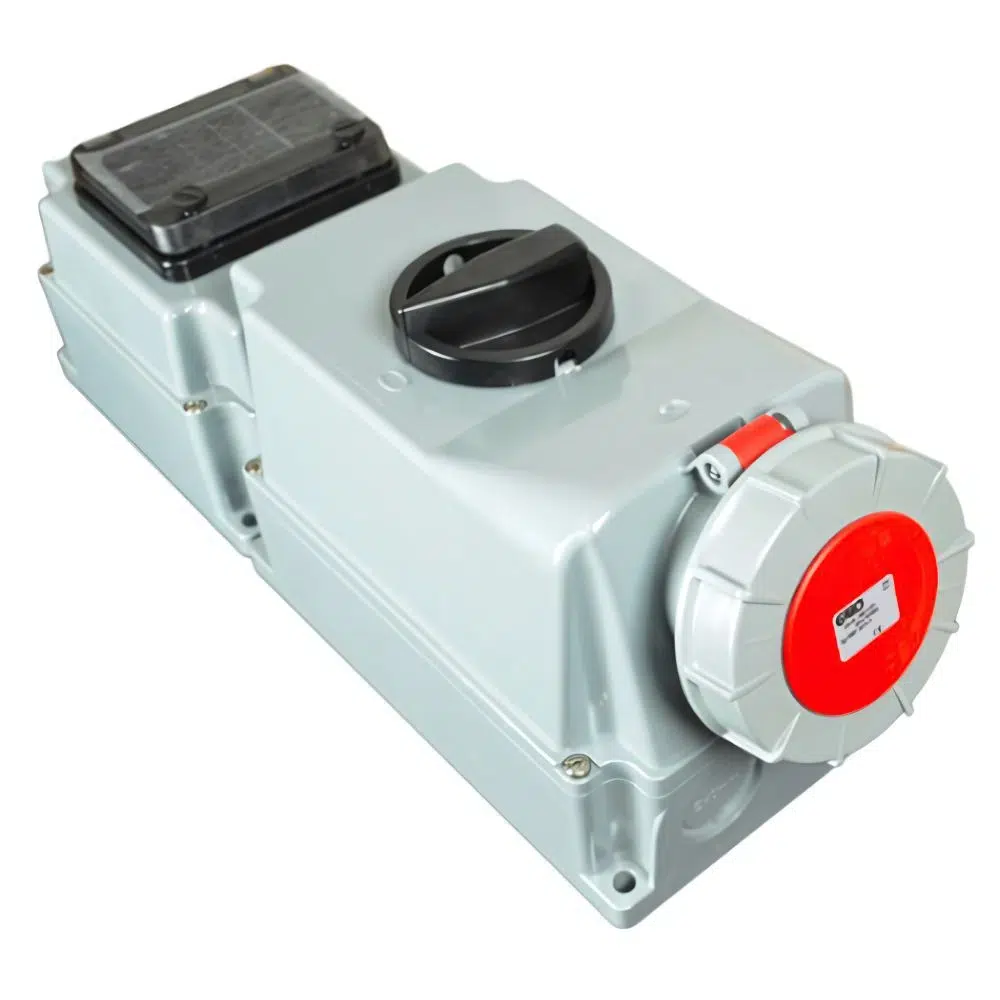

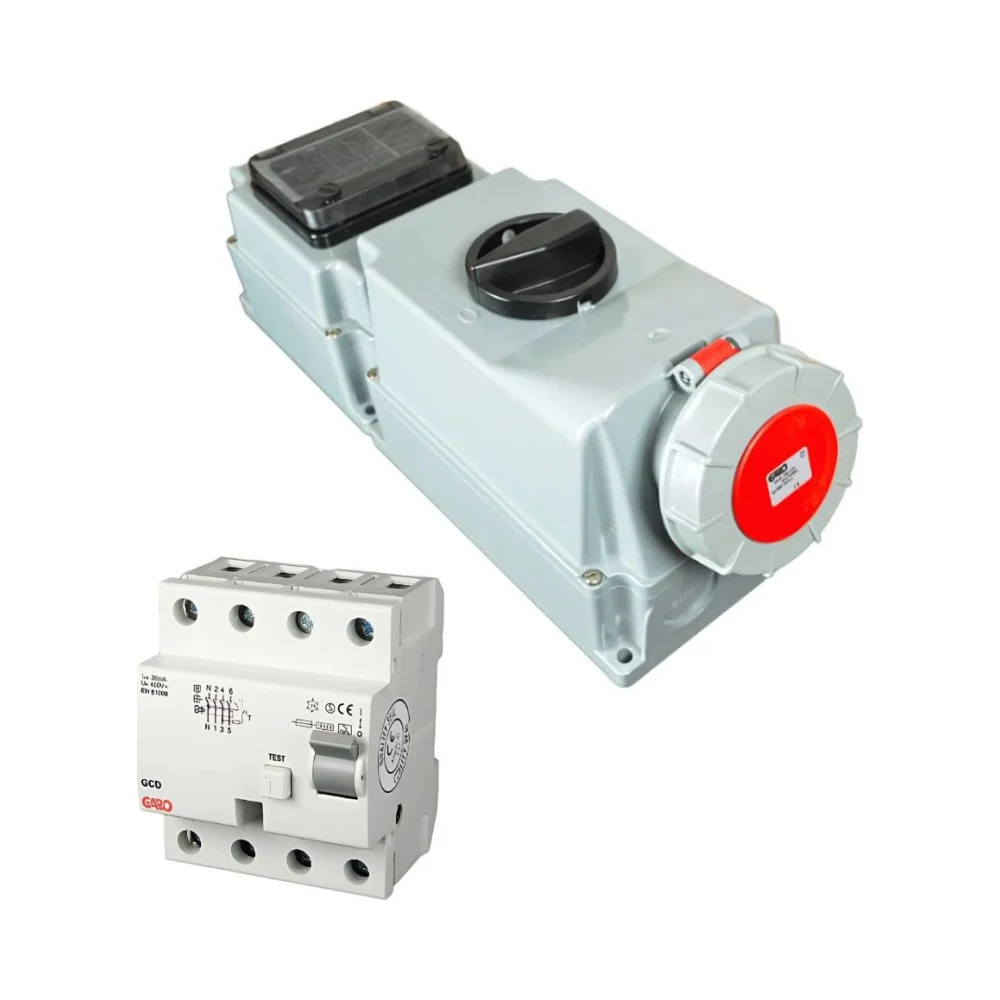

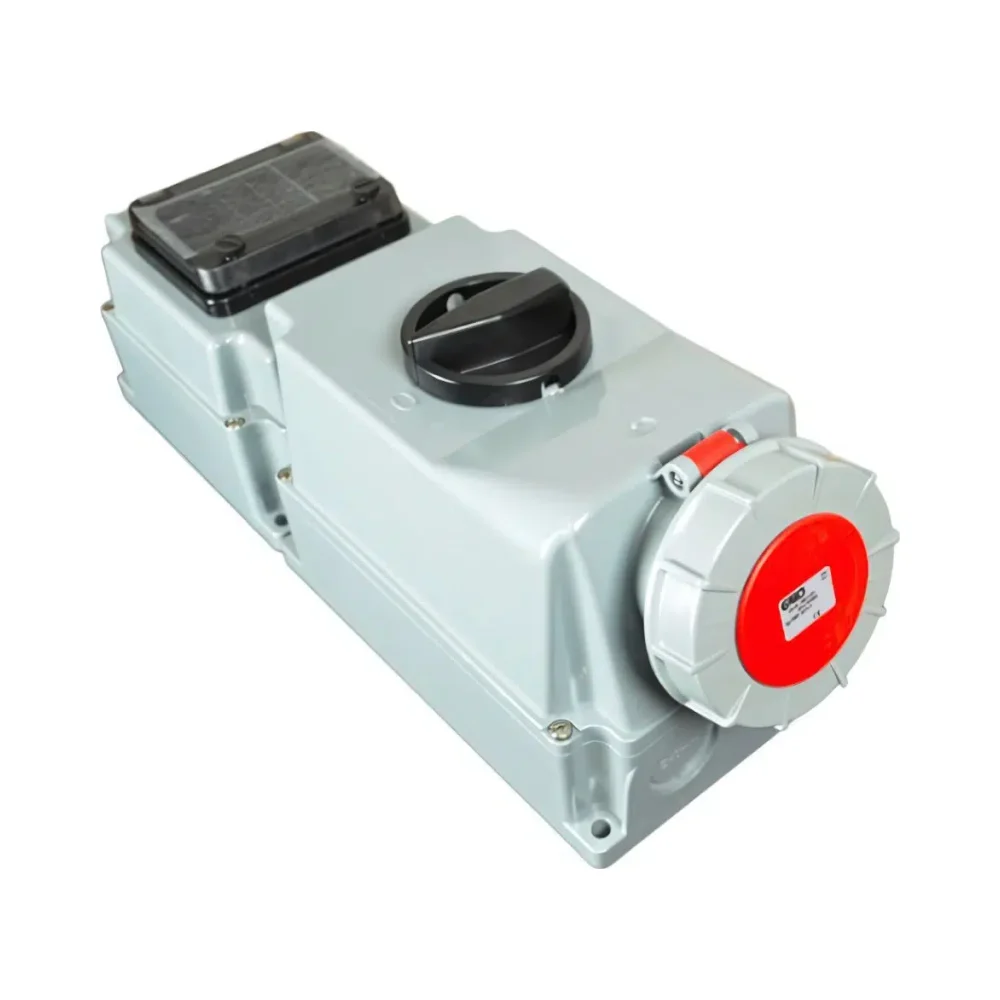

The GARO URBBV 63A is a rugged industrial three phase socket with built-in RCD, made for high-power 400V installations. This 5-pin (3P+N+E) socket includes a 4-pole Type A RCCB that provides 30mA residual current protection. It’s ideal for outdoor or industrial use where safety and reliability are key.
The unit features an IP67 waterproof housing, a mechanical interlock, and space for 5 DIN rail modules. You can install cables from the top or bottom. It meets all relevant UK and EU safety standards.
Key Features
- 63A three phase socket – 5-pin (3P+N+E)
- Built-in 4-pole Type A RCCB (RCD) with 30mA protection
- IP67-rated – resists water and dust
- Mechanical interlock for extra safety

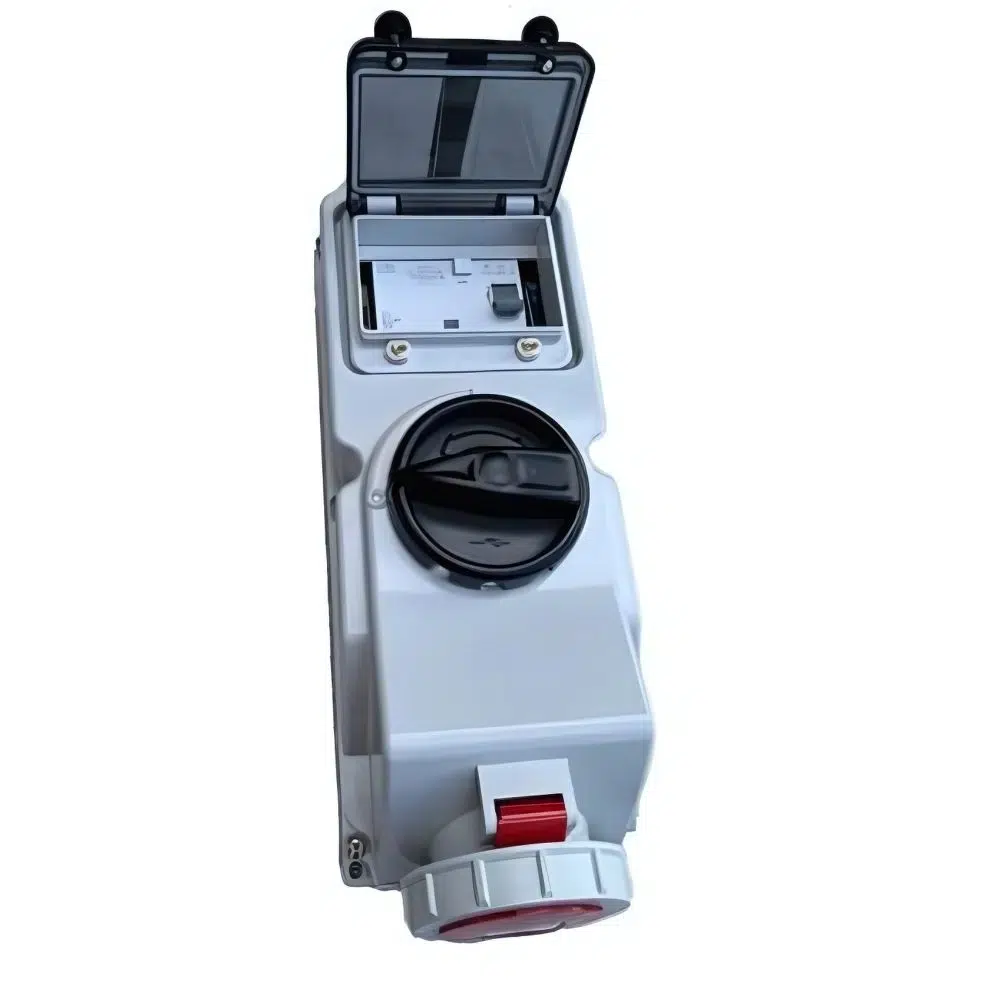

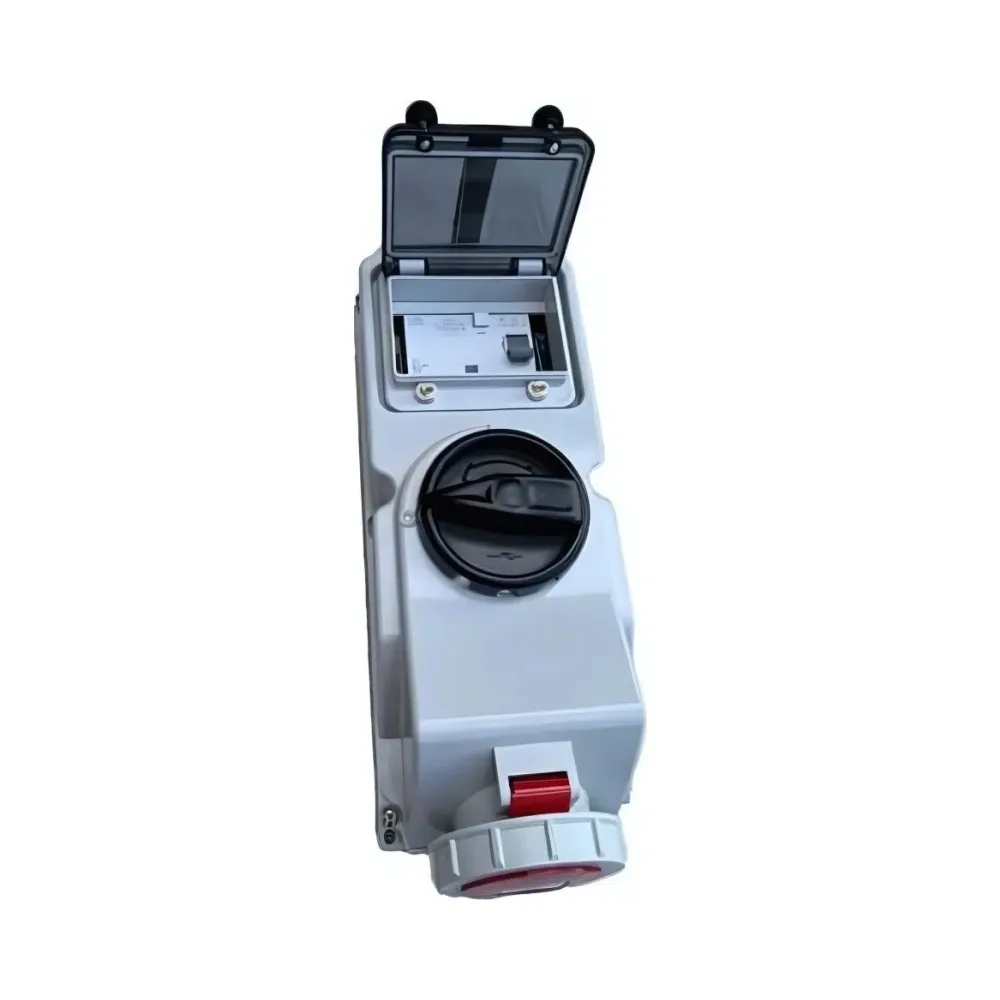

- Room for 5 DIN rail modules, accessed via a hinged window
- Top and bottom cable entry
- Colour-coded to IEC 60309-2 (6h) for 400V systems
Technical Overview
- Rated Voltage: 230/400V AC
- Rated Current: 63A
- RCD Type: 4-pole Type A RCCB
- Residual Current Sensitivity: 30mA
- Protection Rating: IP67
- Short-Circuit Capacity: 10kA
- Insulation Class: Class B (130°C)
- Standards: EN 61008, IEC 60309-1/2, RoHS, BS 4343, LVD
- Weight: Approx. 2.1kg

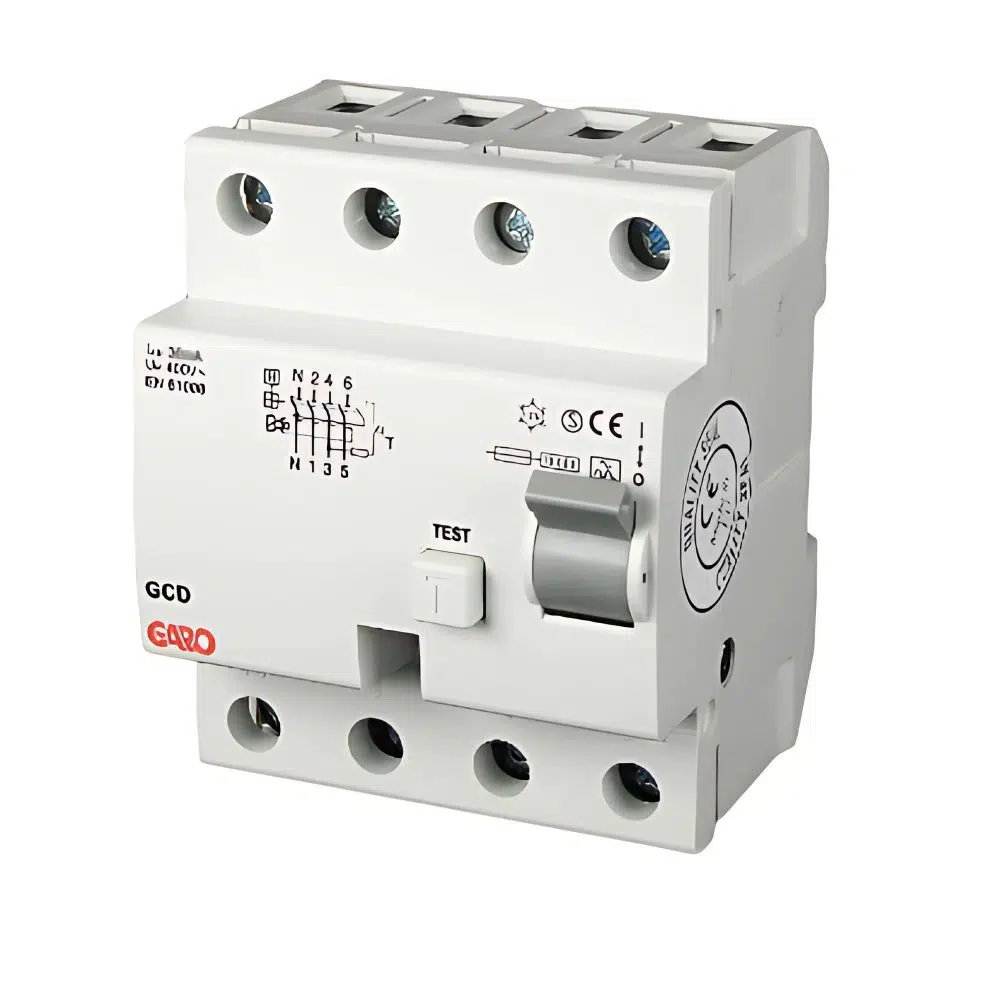

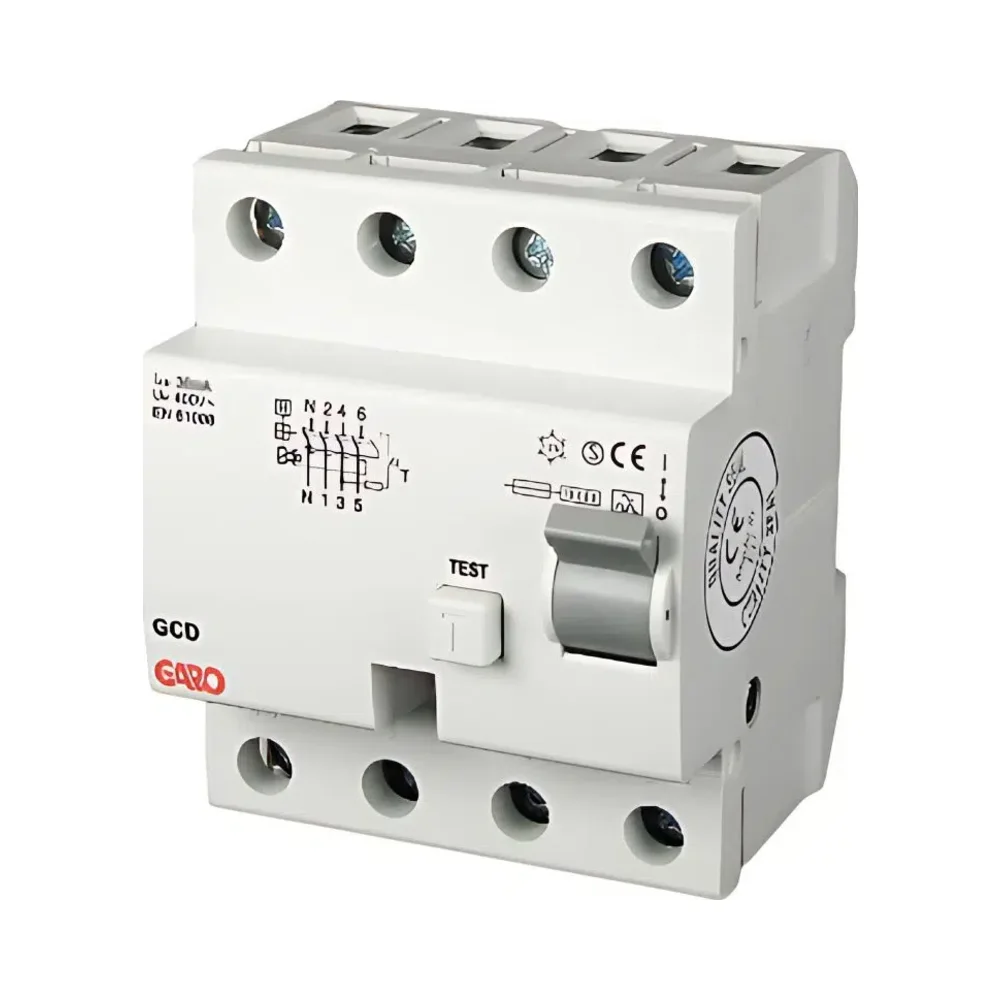

Note: The built-in device is a Type A RCCB, often called an RCD. It provides earth fault protection only and follows EN 61008.
What’s Included
- 1 × GARO 63A industrial three phase socket unit
- 1 × 4-pole Type A RCCB (30mA)
- DIN rail (5 modules)
- Mechanical interlock
- Hinged front cover
- Cable entry from top and bottom
Why Choose This Product?
This 63A industrial three phase socket with RCD is ideal for heavy loads. Use it on fixed machinery, outdoor tools, or temporary site power. It protects users from earth faults and stands up to harsh conditions.
Guarantee & Compliance
This unit is CE marked and meets:
- EN 61008 (RCCB protection)
- IEC 60309-1/2 (socket safety)
- RoHS, EMC, and Low Voltage Directive
- Internal Class B insulation
Summary
A tough and safe 63A three phase socket with built-in 4-pole RCD. IP67 rating, interlock, and 30mA protection make it ideal for powering large tools and industrial setups.
