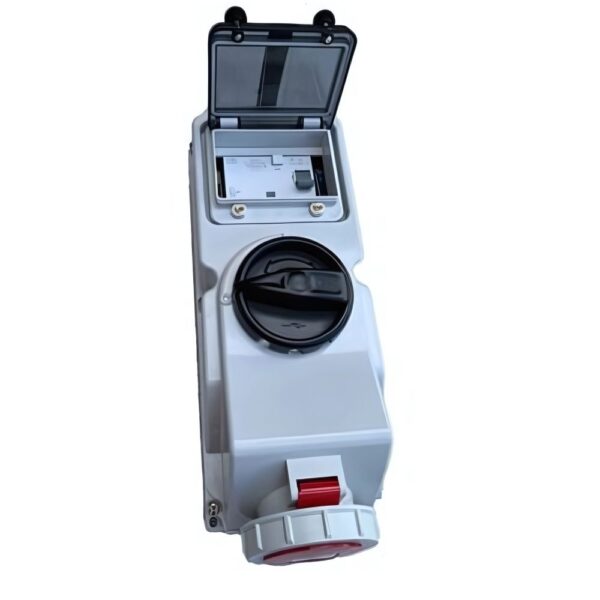

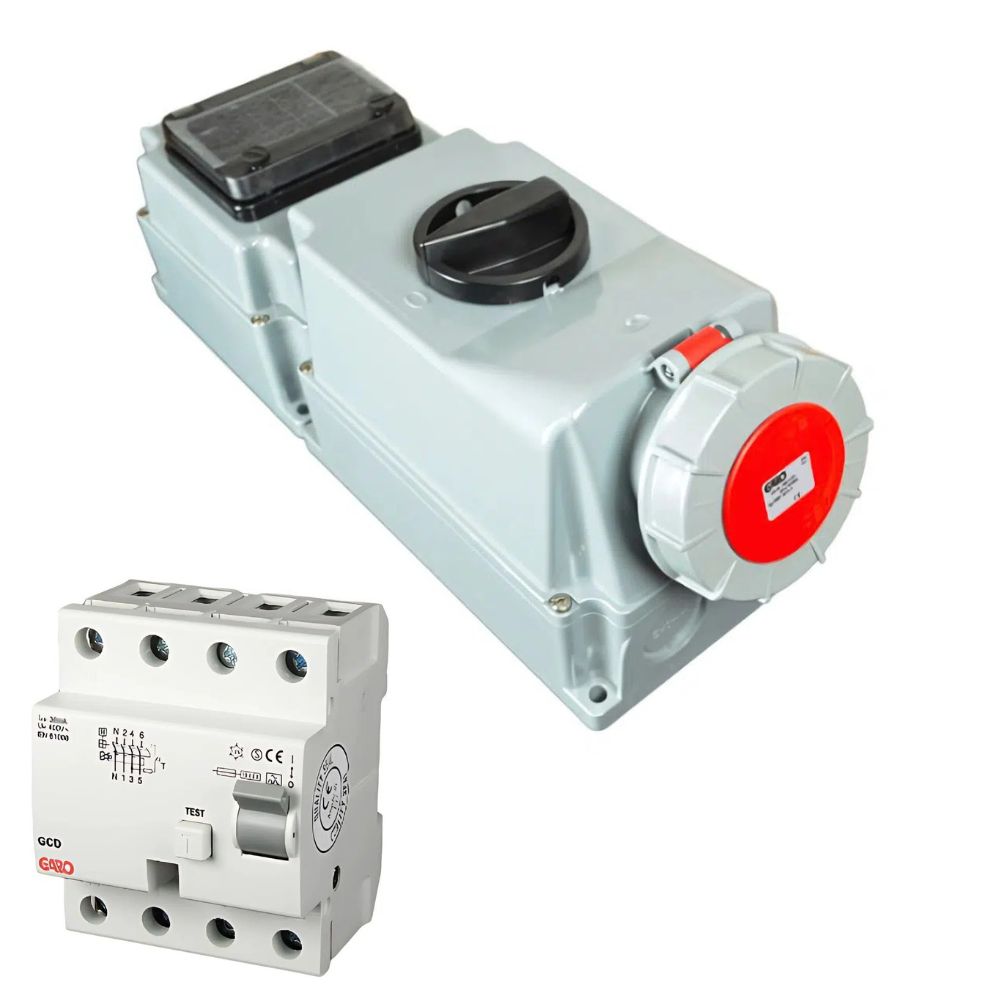

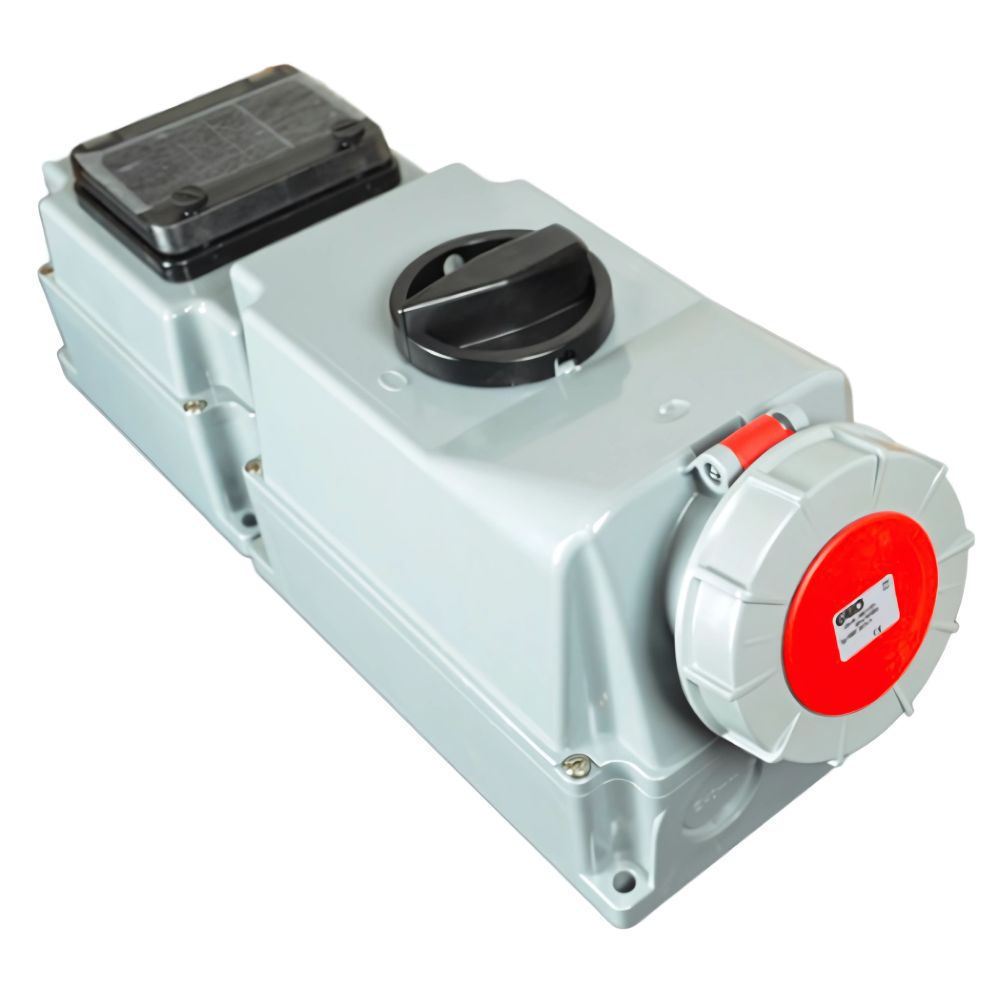

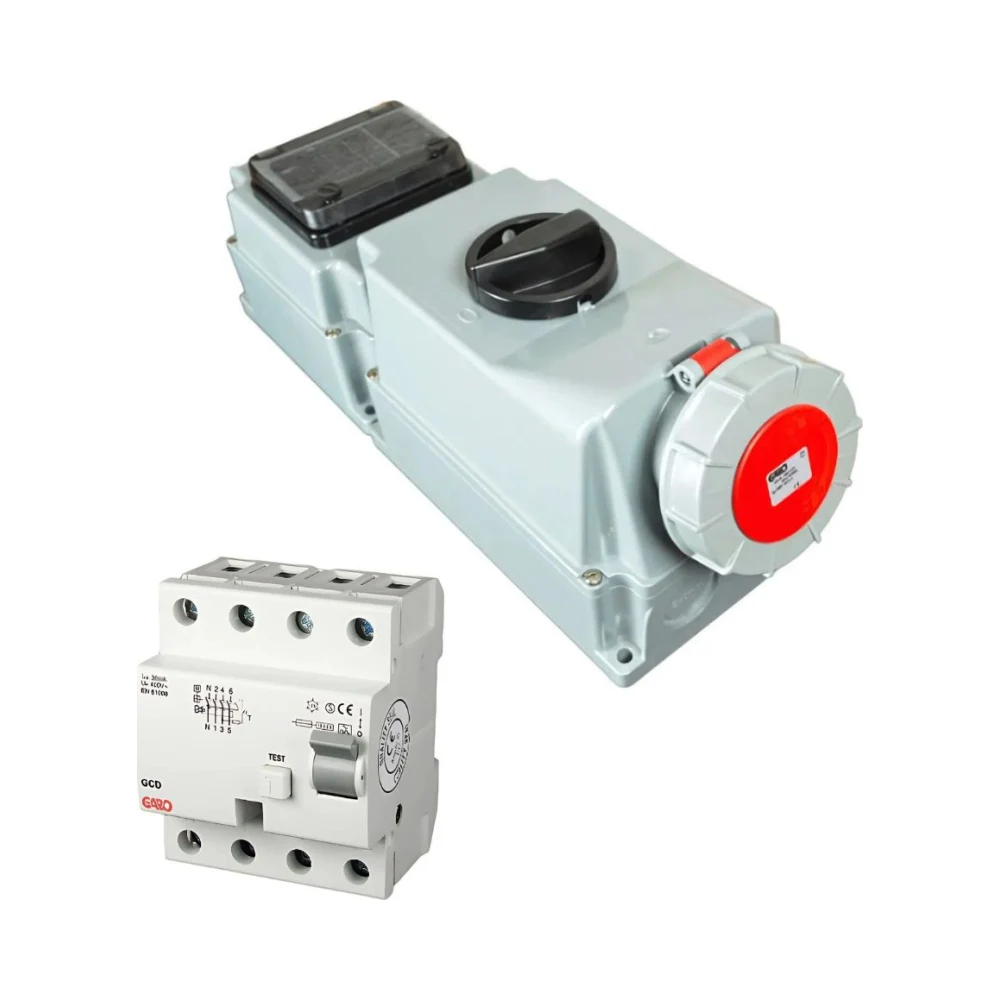

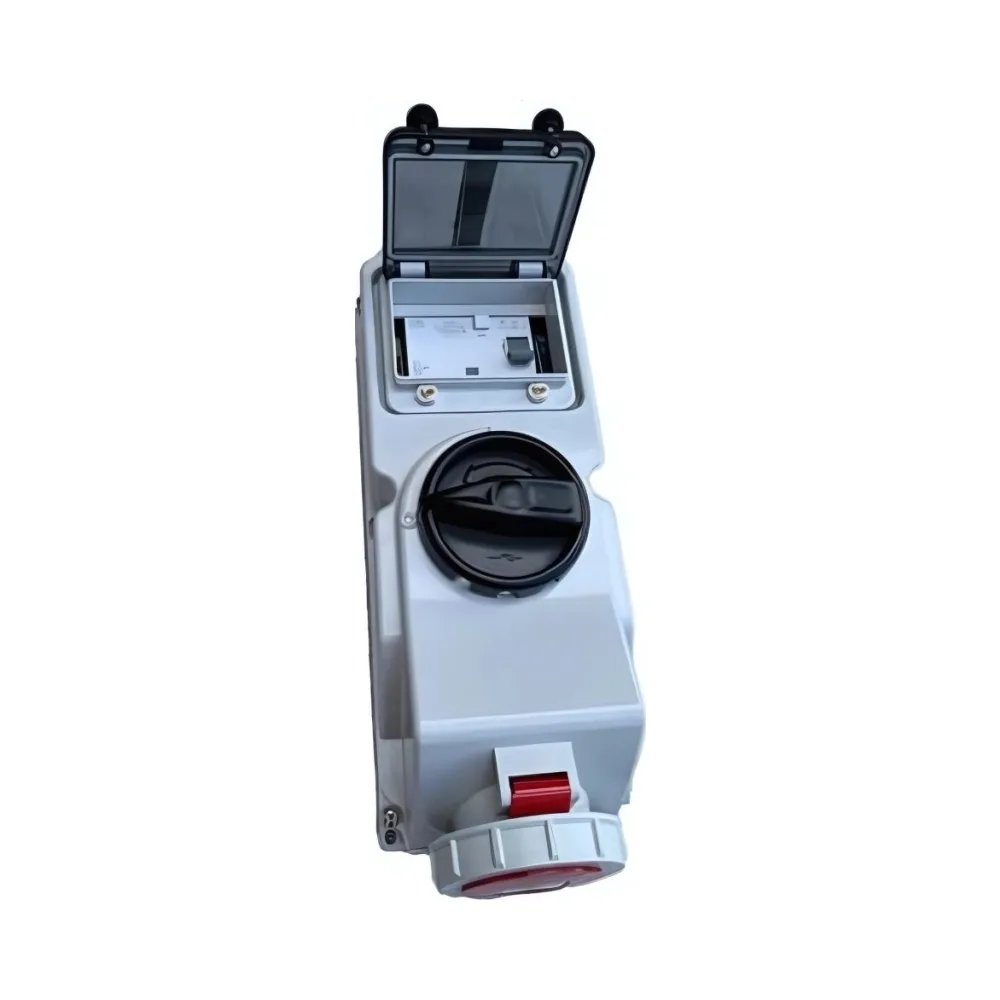

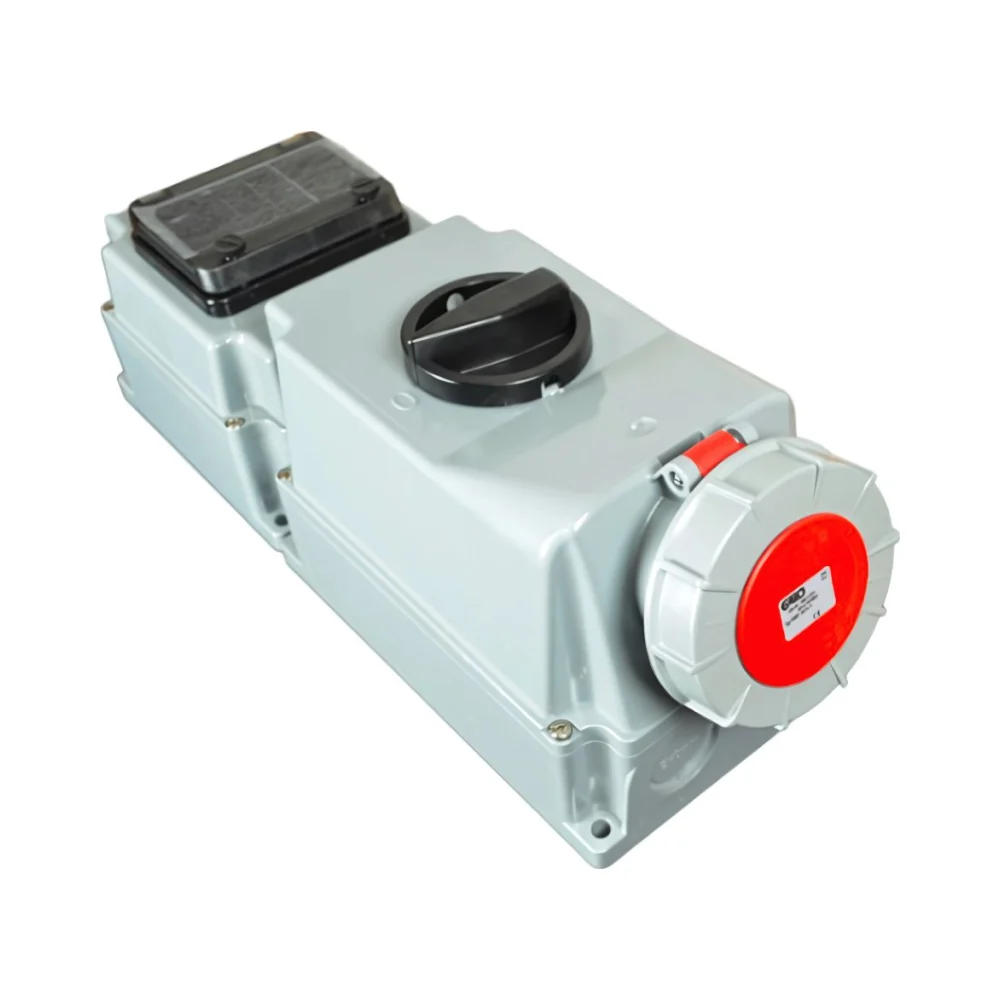

Garo URBBV432-6SCR 32A 5-Pin IP67 Industrial 400V Socket with Built-In 4 Pole RCD

Description

Weatherproof Industrial Socket with Type A RCD Protection

32A 5-Pin IP67 Industrial Socket with Built-In 4 Pole RCD – Garo URBBV432-6SCR

The GARO URBBV432-6SCR Industrial 5 Pin Socket with Built-in RCD is a tough, IP67-rated industrial socket with built-in RCD, made for safe power supply in demanding places. It comes with a 32A 5-pin socket (3P+N+E) and a 4-pole Type A RCCB (model GCD40-4-03) that offers 30mA protection against earth faults.

This unit is ideal for workshops, construction sites, or fixed machinery. It has a strong enclosure, a built-in interlock, and space for five DIN rail modules. You can run cables into it from the top or bottom.

Key Features – Industrial 5 Pin Socket with Built-in RCD

• 32A 5-pin socket (3P+N+E)
• Built-in 4-pole Type A RCD (RCCB) with 30mA sensitivity
• IP67-rated for water and dust protection
• Mechanical interlock for added safety
• Room for 5 DIN rail modules
• Hinged cover for quick access
• Cable entry from top or bottom
• Colour coded for 400V 3-phase (6h position)

Technical Overview

• Voltage: 230/400V AC
• Current: 32A
• RCD Type: Type A RCCB, 4-pole
• Sensitivity: 30mA
• Protection Rating: IP67
• Short-Circuit Capacity: 10kA
• Insulation: Class B
• Standards: EN 61008, IEC 60309-1/2, BS 4343, RoHS, LVD
• Weight: 1.6kg

This socket includes a 4-pole Type A RCCB. It meets EN 61008 for residual current protection (no overcurrent feature).

What’s Included

• 1 × GARO URBBV432-6SCR Socket Unit

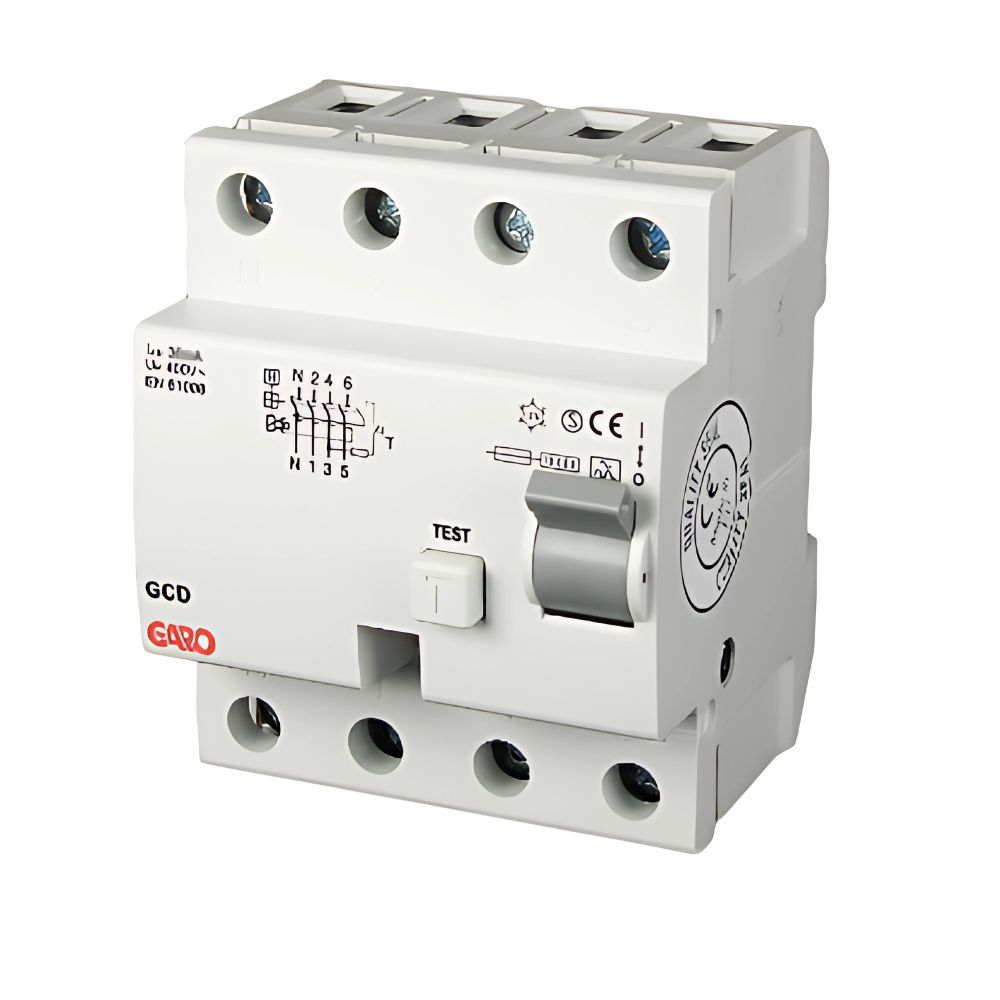

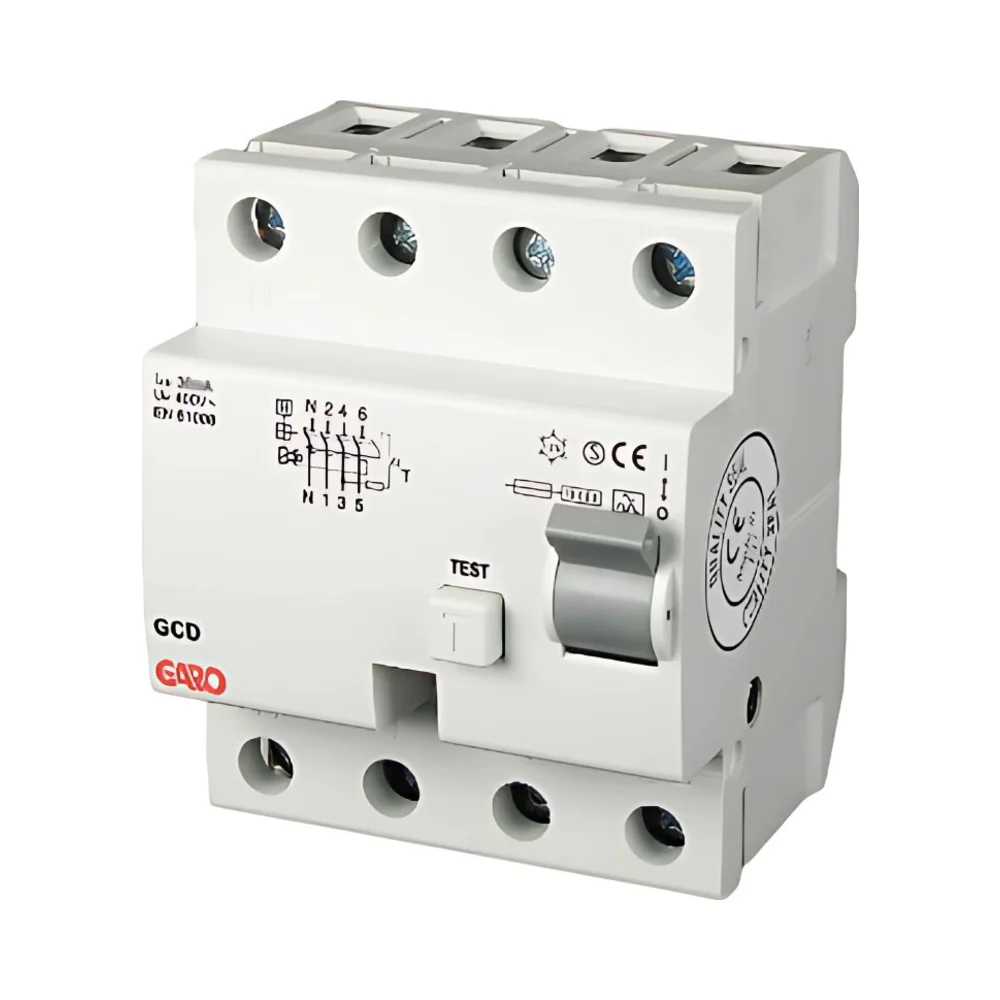

• 1 × 4-Pole Type A RCCB (GCD40-4-03, 30mA)
• Built-in DIN rail
• Interlock mechanism
• Dual cable entry options

Why Choose This Product?

This RCD-protected socket gives you safe and simple 3-phase power. It protects against earth leakage and works in wet or dusty places. Use it on-site or in permanent industrial setups.

Guarantee & Compliance

The socket is CE marked and meets all major standards:

• EN 61008 (RCCB standard)
• IEC 60309-1/2 (industrial socket standard)
• RoHS, EMC, and Low Voltage Directives
• Internal Class B insulation

Summary

The GARO URBBV432-6SCR is a waterproof 32A industrial socket with a built-in 4-pole Type A RCD. It’s safe, strong, and ready for 3-phase power setups.
