Garo URBBV416-6SCR 16A 5-Pin IP67 Industrial 400V Socket with Built-In 4 Pole RCD

Description

Industrial 16A 400V IP67 Three Phase Socket with Built-In RCD

Compact Three Phase Socket with IP67 Protection and Type A RCD

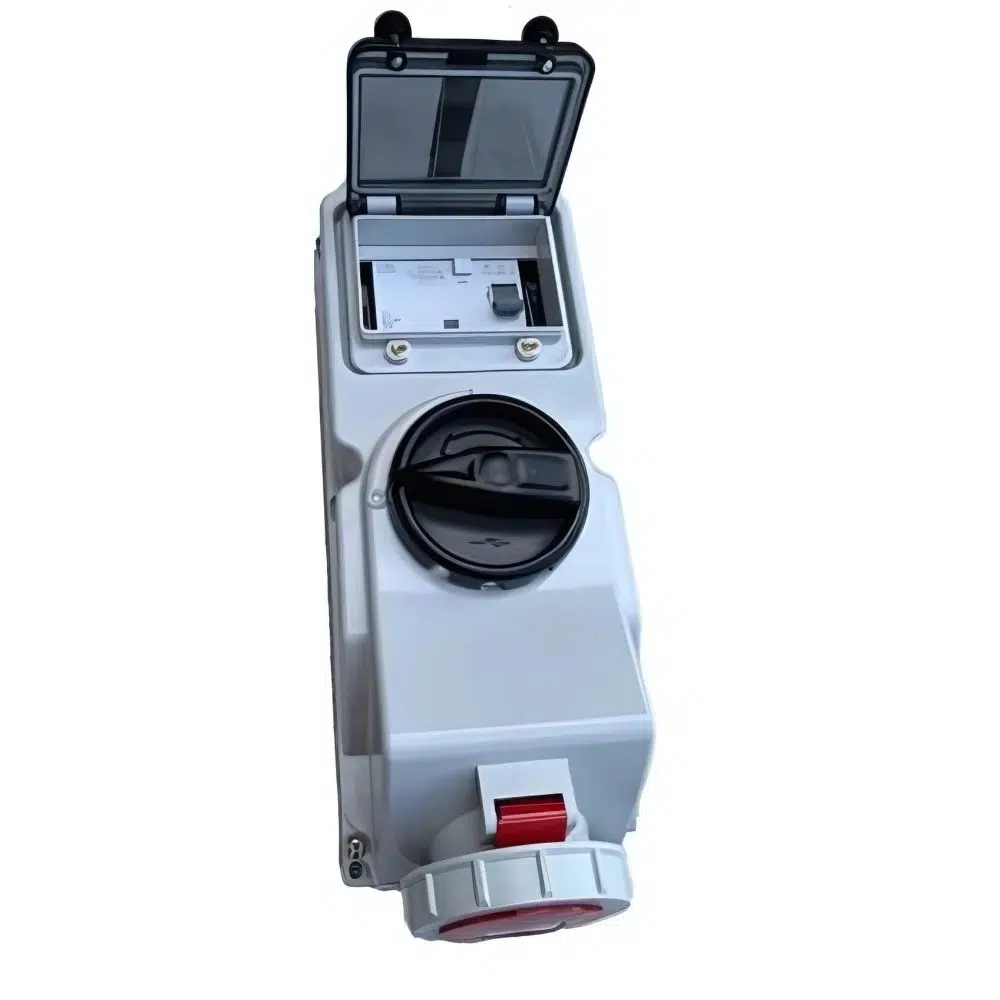

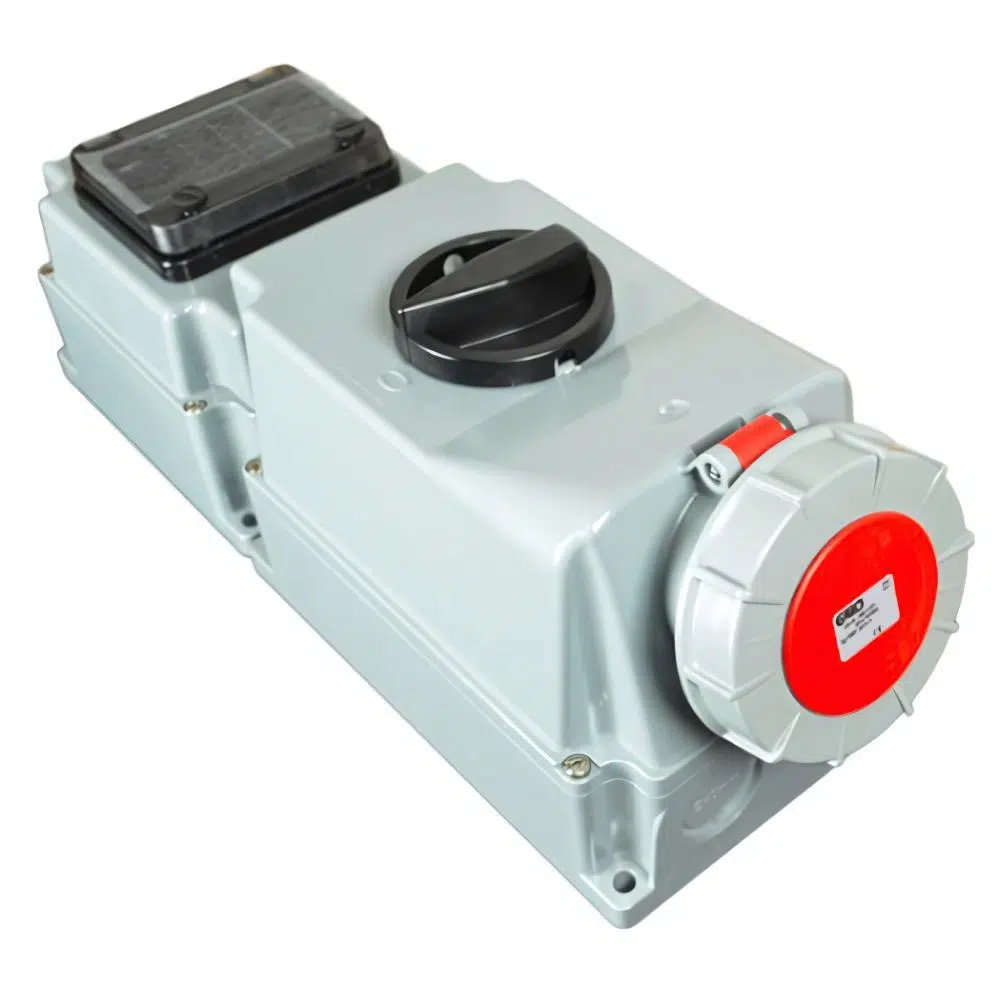

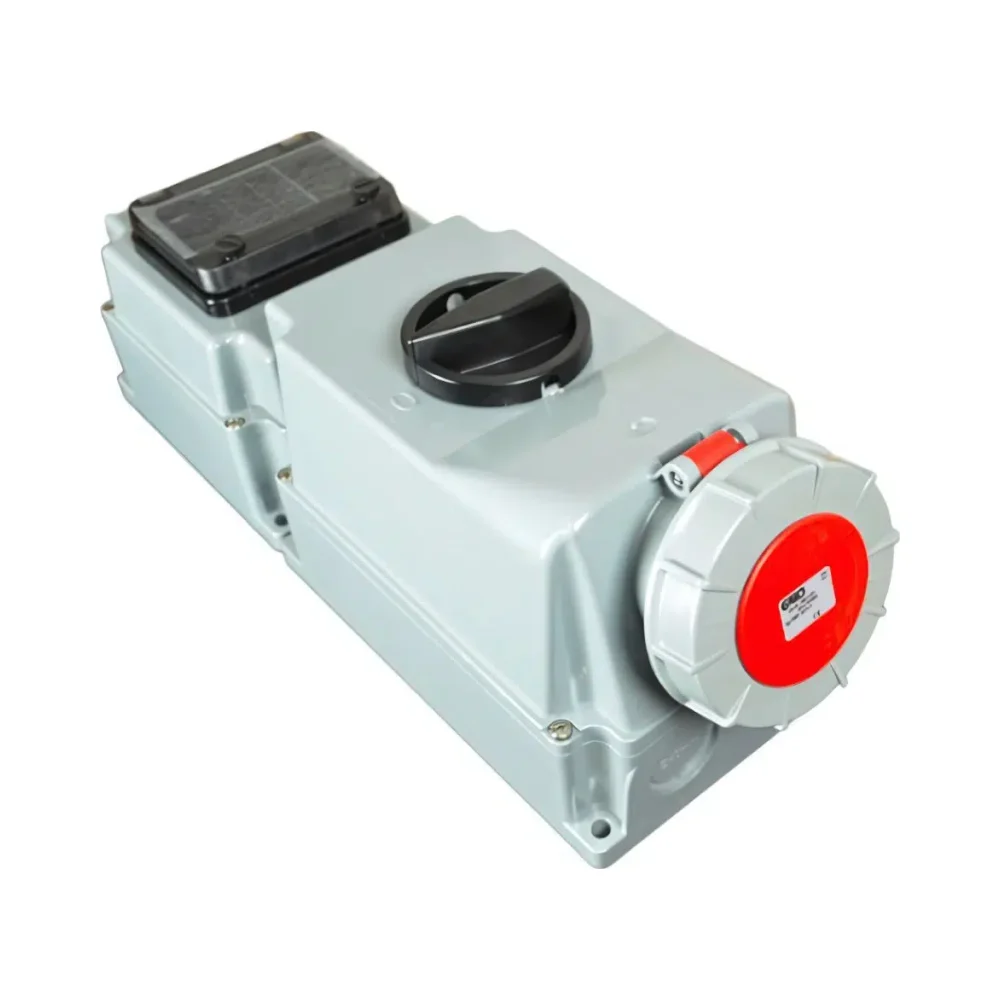

The GARO URBBV416-6SCR is a compact and reliable industrial three phase socket with built-in RCD, designed for use in wet, dusty, or demanding sites. Rated at 16A and 400V, this IP67 socket offers a safe and secure three phase power supply in a small footprint.

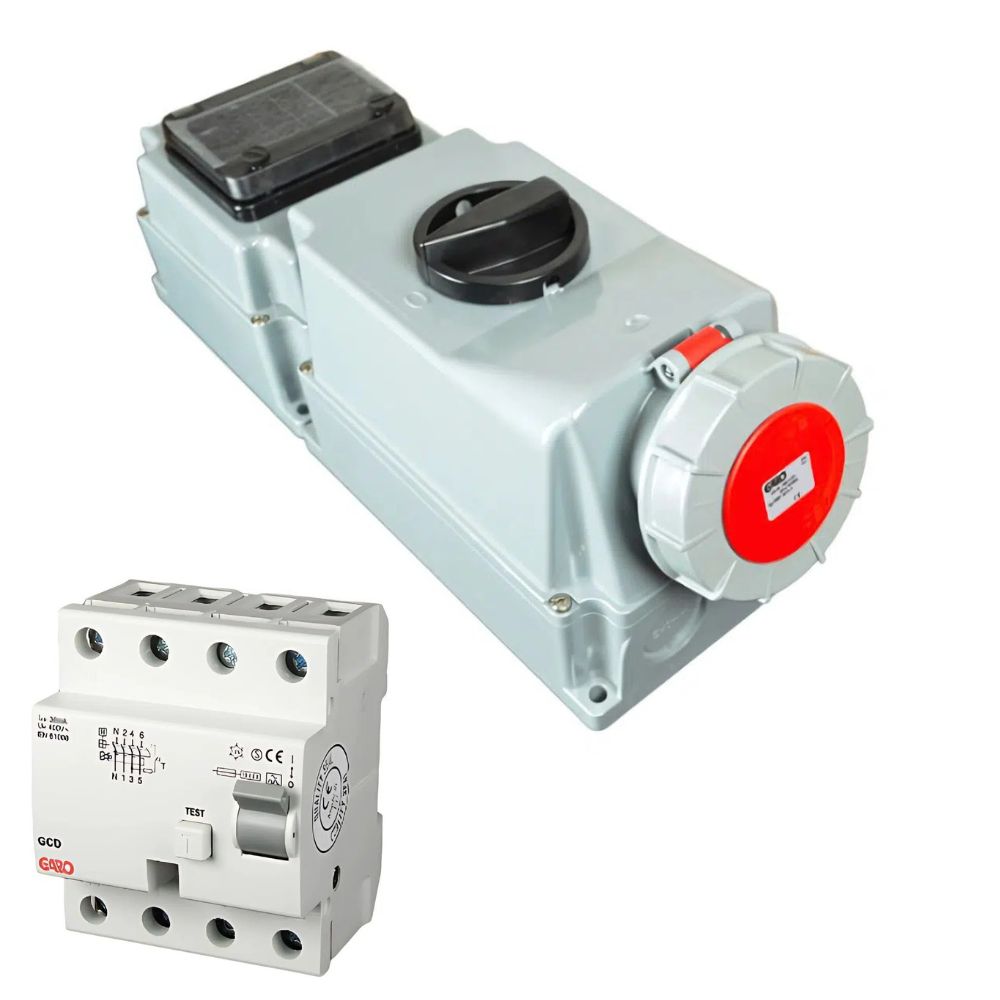

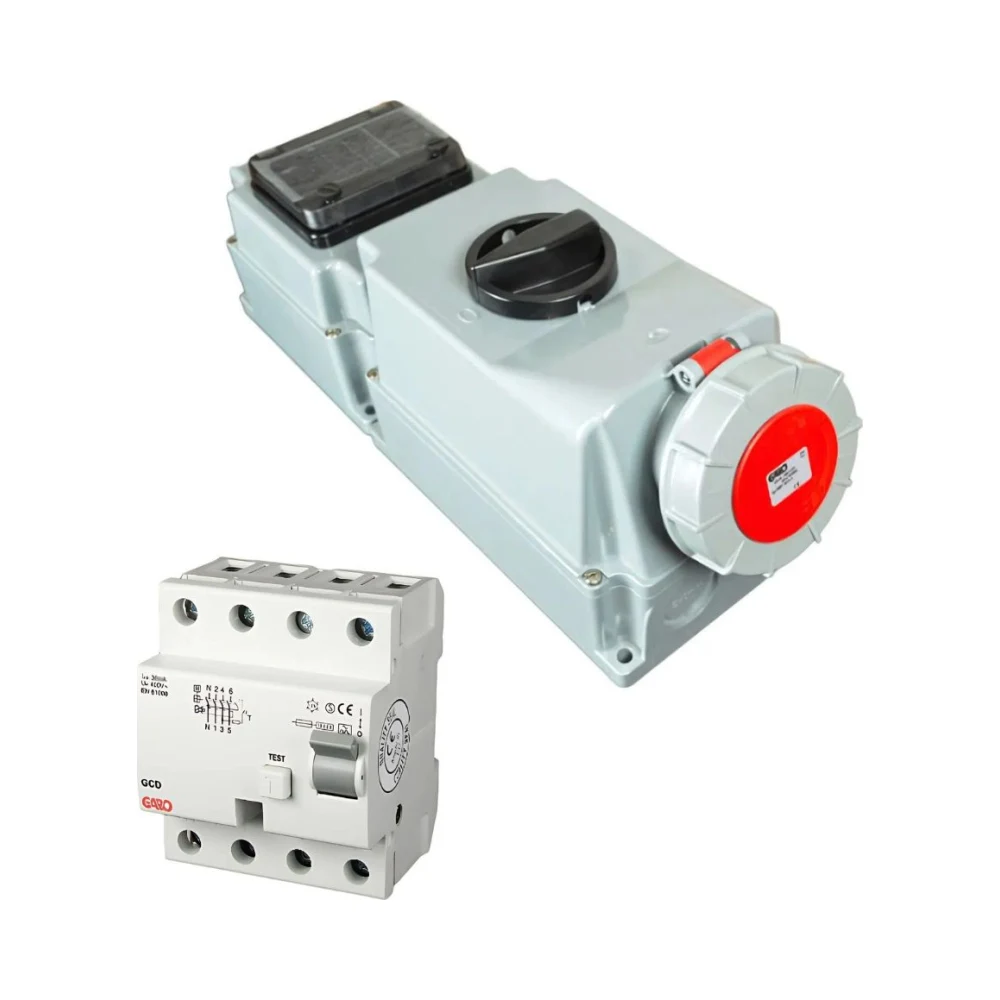

It includes a pre-installed 4-pole Type A RCCB (GCD25-4-03) that provides 30mA residual current protection. A mechanical interlock stops live disconnection. You also get a 5-module DIN rail and both top and bottom cable entry options. This socket is built to IEC 60309 and EN 61008 standards, ensuring long-term performance and safety.

Key Features – Industrial Three Phase Socket with Built-In RCD

• 16A three phase socket – 5-pin (3P+N+E)
• Built-in 4-pole Type A RCCB (commonly known as an RCD)
• 30mA residual current sensitivity
• IP67-rated for protection against water and dust
• Mechanical interlock prevents unsafe disconnection
• Hinged front window and space for 5 DIN modules
• Cable entry possible from top or bottom
• Colour coded to IEC 60309-2 (6h) for 400V systems

Technical Overview

• Rated Voltage: 230/400V AC
• Rated Current: 16A
• RCD Type: 4-pole Type A RCCB
• Residual Current Sensitivity: 30mA
• Ingress Protection: IP67
• Short-Circuit Capacity: 10kA
• Insulation Class: Class B (130°C)
• Certifications: EN 61008, IEC 60309-1/2, BS 4343, RoHS, LVD
• Weight: 1.54kg

Note: The built-in device is a Type A RCCB (Residual Current Circuit Breaker), commonly referred to as an RCD. It complies with EN 61008 and provides residual current protection only.

What’s Included

• 1 × GARO URBBV416-6SCR industrial three phase socket unit
• 1 × GCD25-4-03 4-pole Type A RCCB (30mA)
• DIN rail with 5 module spaces
• Mechanical interlock and hinged front cover
• Cable entry options (top and bottom)

Why Choose This Product?

This compact industrial three phase socket with RCD offers reliable protection in small 3-phase power setups. Its waterproof housing, built-in Type A RCCB, and mechanical interlock make it ideal for tools, machinery, and light-duty industrial use.

Guarantee & Compliance – Industrial Three Phase Socket with Built-In RCD

Fully CE marked and compliant with:

• EN 61008 – Residual current protection
• IEC 60309-1/2 – Industrial socket safety
• RoHS, EMC, and Low Voltage Directive (LVD)
• Insulation Class B for internal safety

Summary

The GARO URBBV416-6SCR is a durable industrial three phase socket with a built-in 4-pole RCD, perfect for safe 16A 3P+N+E power connections in outdoor or industrial settings.
