Description
4-Pin Interlocked Three Phase Socket with Type A RCD for Demanding Installations
Industrial 63A 400V IP67 Three Phase Socket with Built-In RCD

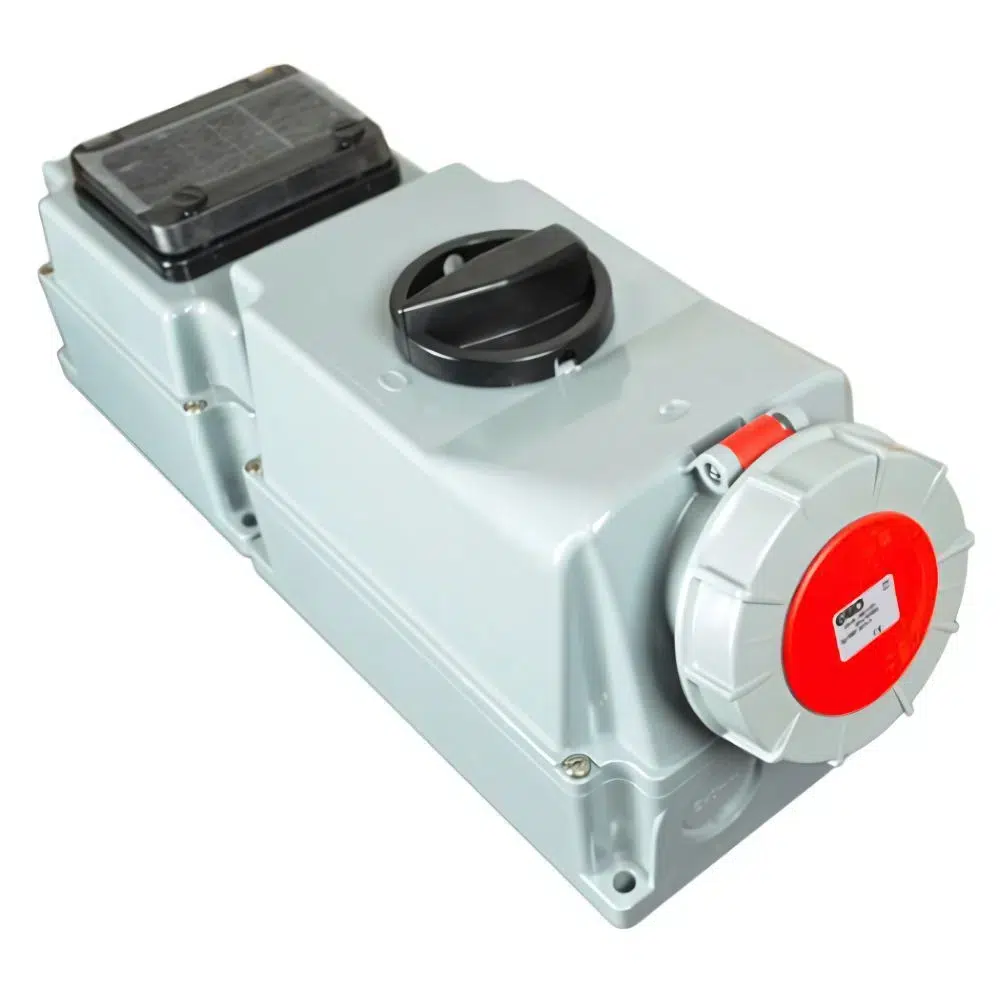

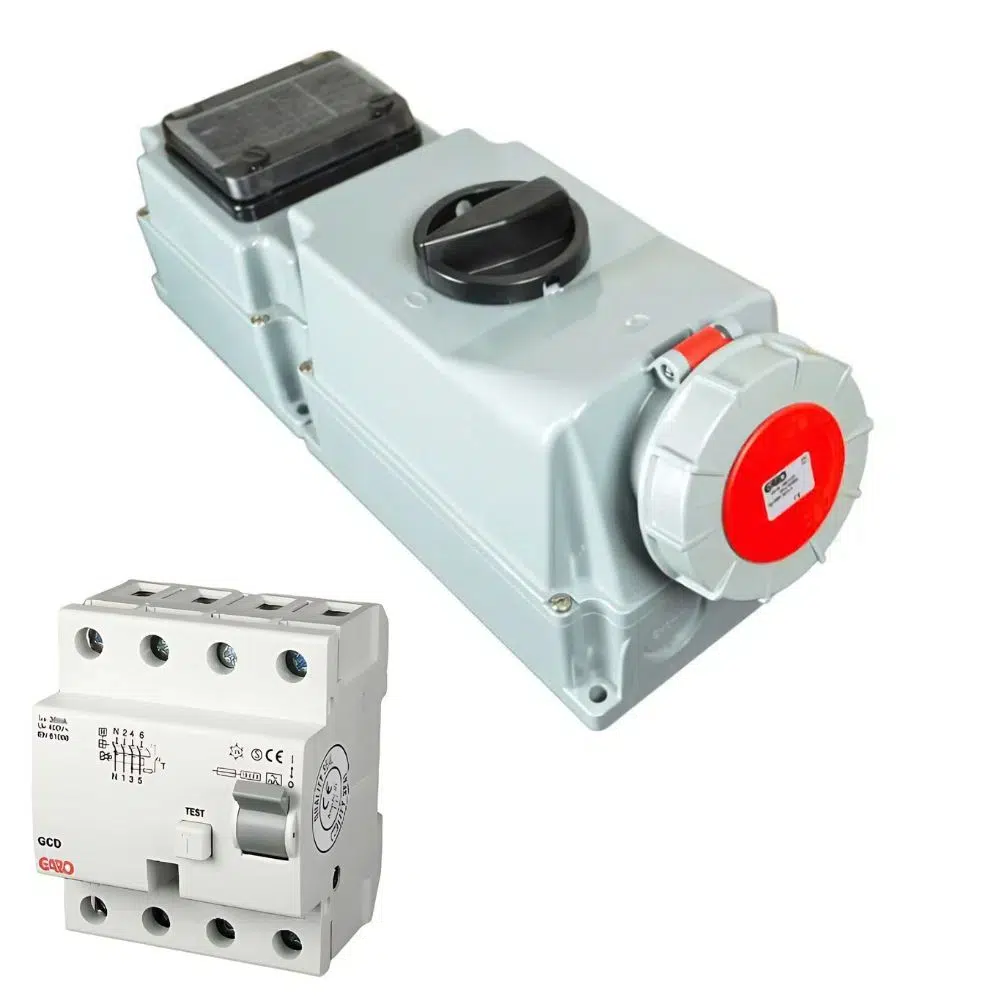

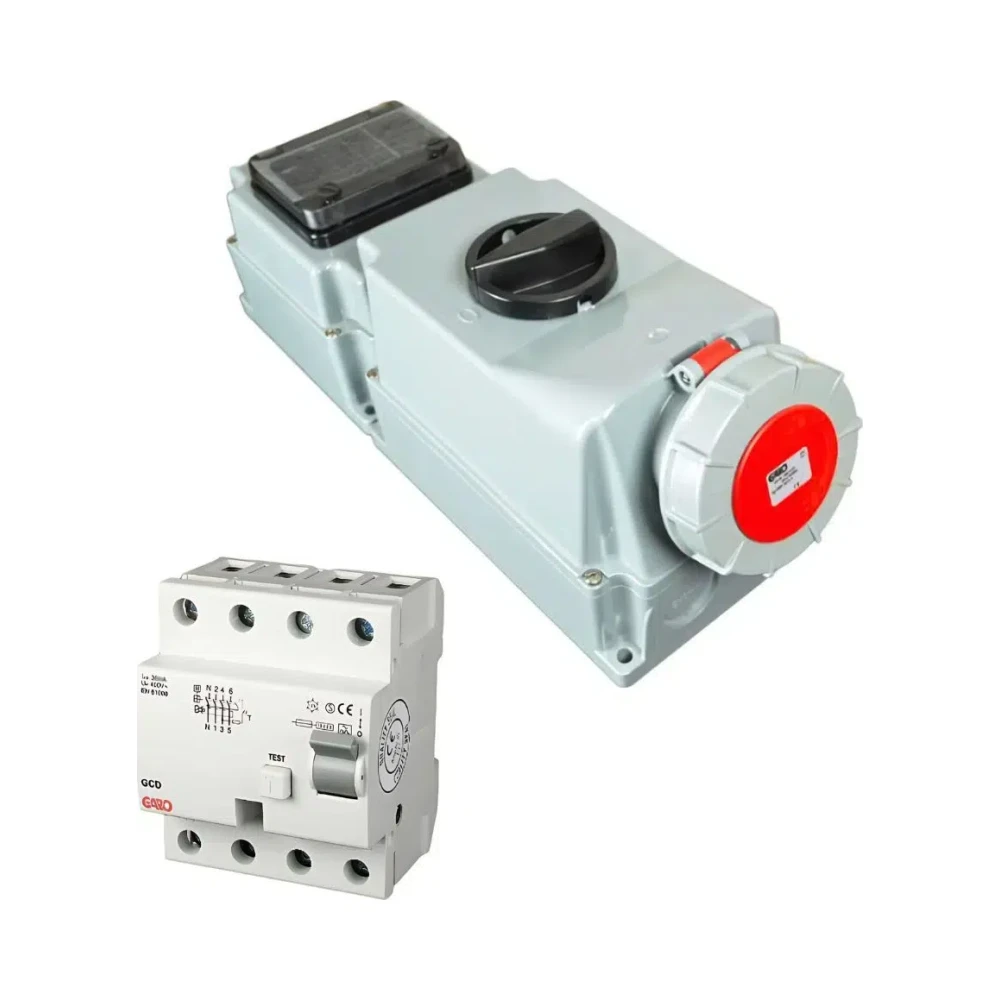

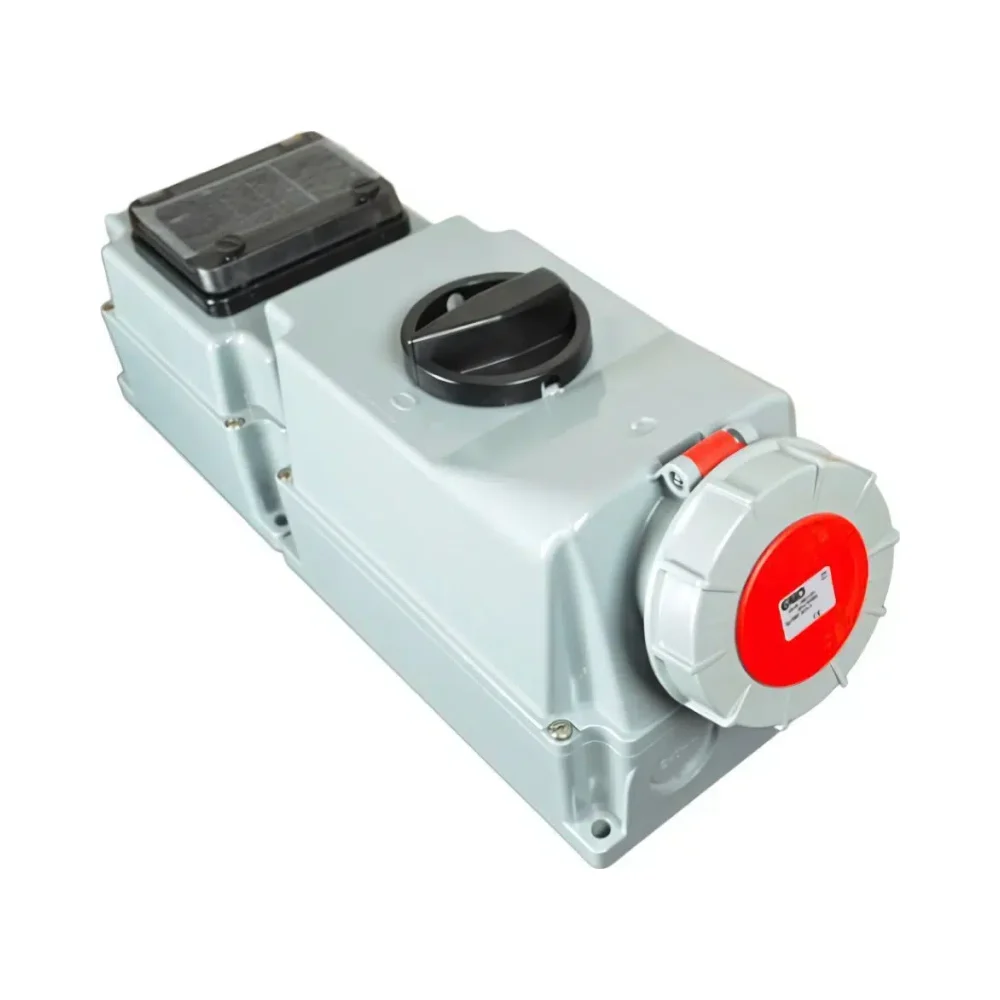

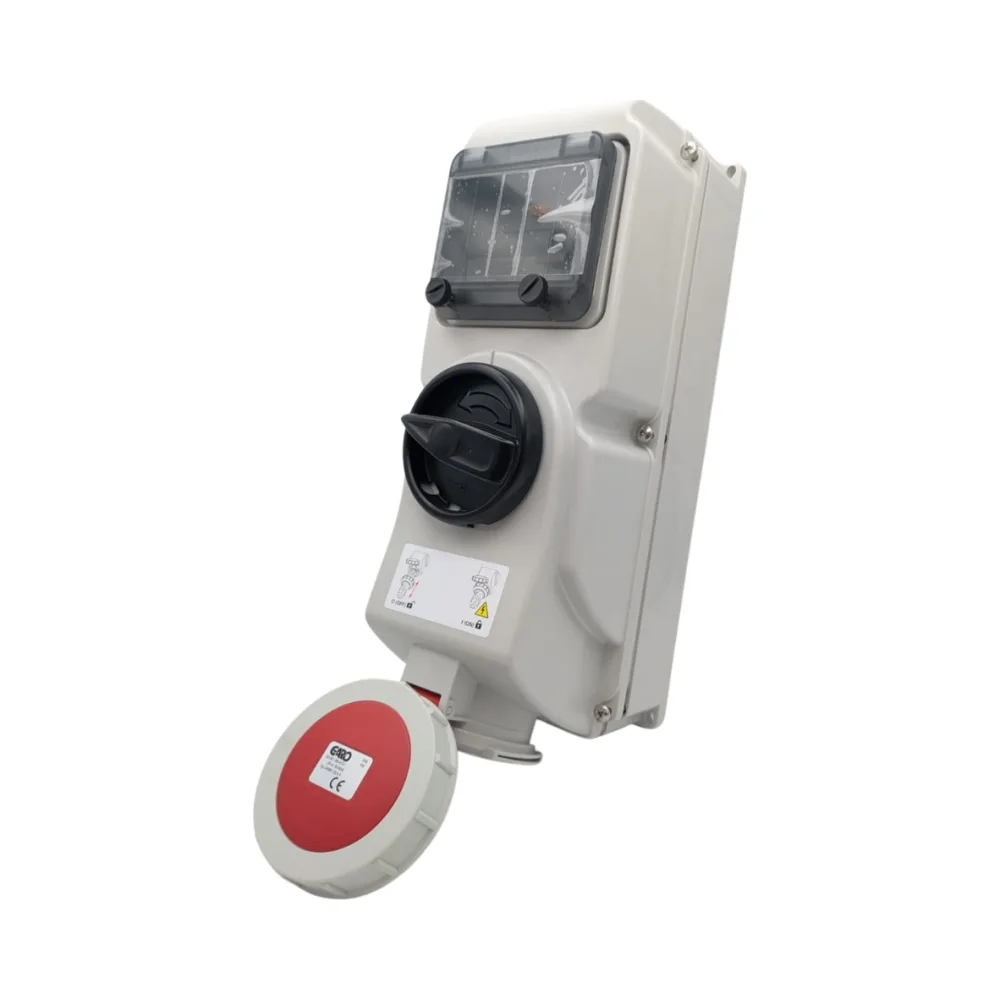

The GARO URBBV363-6SCR is a heavy-duty 63A industrial socket with a 4-pin layout (3P+E), suitable for 400V three phase equipment that does not require a neutral connection. Designed for tough outdoor and industrial settings, it features a built-in 4-pole Type A RCCB, offering 30mA residual current protection to reduce risk from earth faults.
This unit is fully protected to IP67, meaning it’s dust-tight and resistant to heavy water ingress — ideal for use on construction sites, in plant rooms, or industrial maintenance setups. A mechanical interlock enhances safety by preventing the socket from being energised without a plug in place.
Key Features – Industrial 63A 4 PIn Socket with Built-in RCD
- 63A three phase socket – 4-pin (3P+E)
- Integrated 4-pole Type A RCCB (30mA RCD)
- IP67-rated waterproof and dustproof housing
- Mechanical interlock for safe connection/disconnection

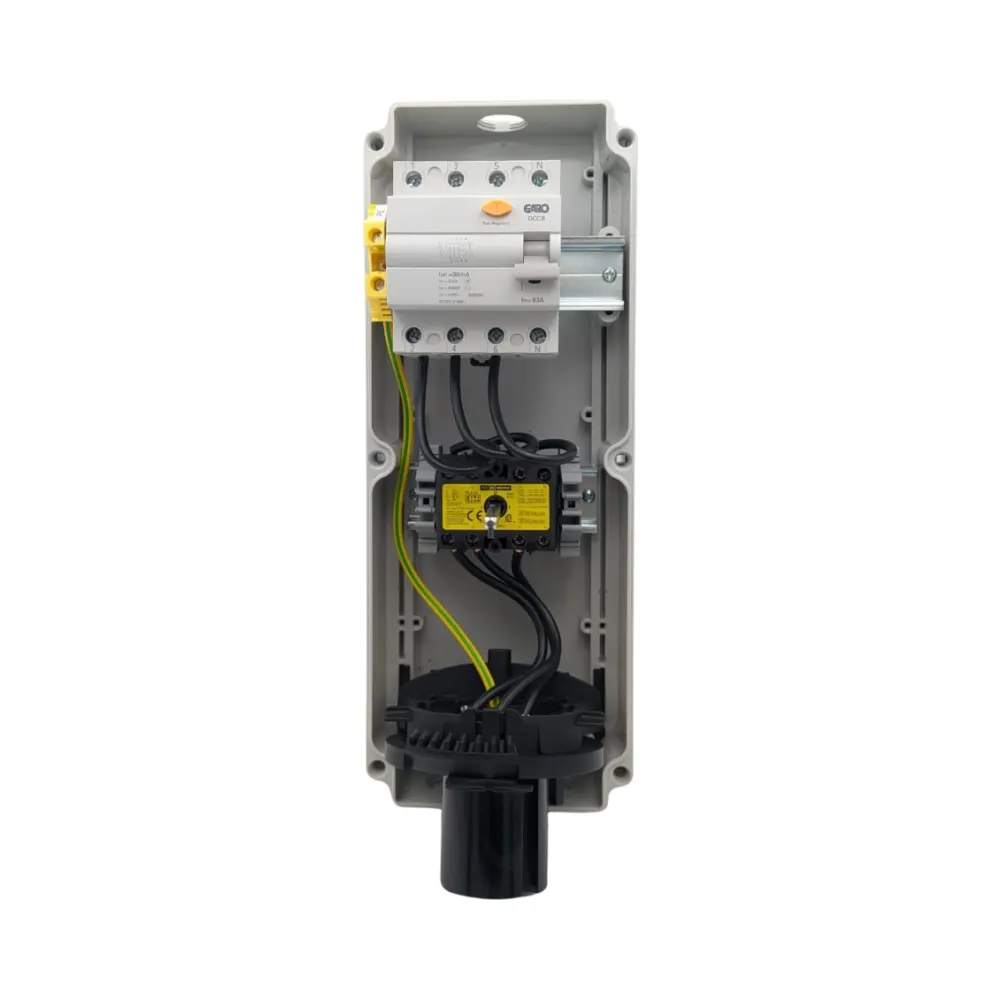

- Hinged inspection cover with access to DIN rail
- DIN rail space for 6 modules
- Colour-coded at 6h for 400V three phase
- Cable entry from both top and bottom
- Cable size support: 6–16mm² (flexible or solid)
Technical Overview
- Rated Voltage: 230/400V AC
- Rated Current: 63A
- RCD Type: Type A RCCB, 4-pole
- Trip Sensitivity: 30mA
- Protection Level: IP67 (EN 60529)
- Short-Circuit Withstand: 10kA
- Clock Position: 6h
- Insulation Class: B (rated for 130°C)
- Weight: Approx. 2.9kg
- Standards: EN 61008, IEC 60309-1/2, BS 4343, RoHS, LVD
What’s Included
- GARO URBBV363-6SCR 4-pin socket enclosure

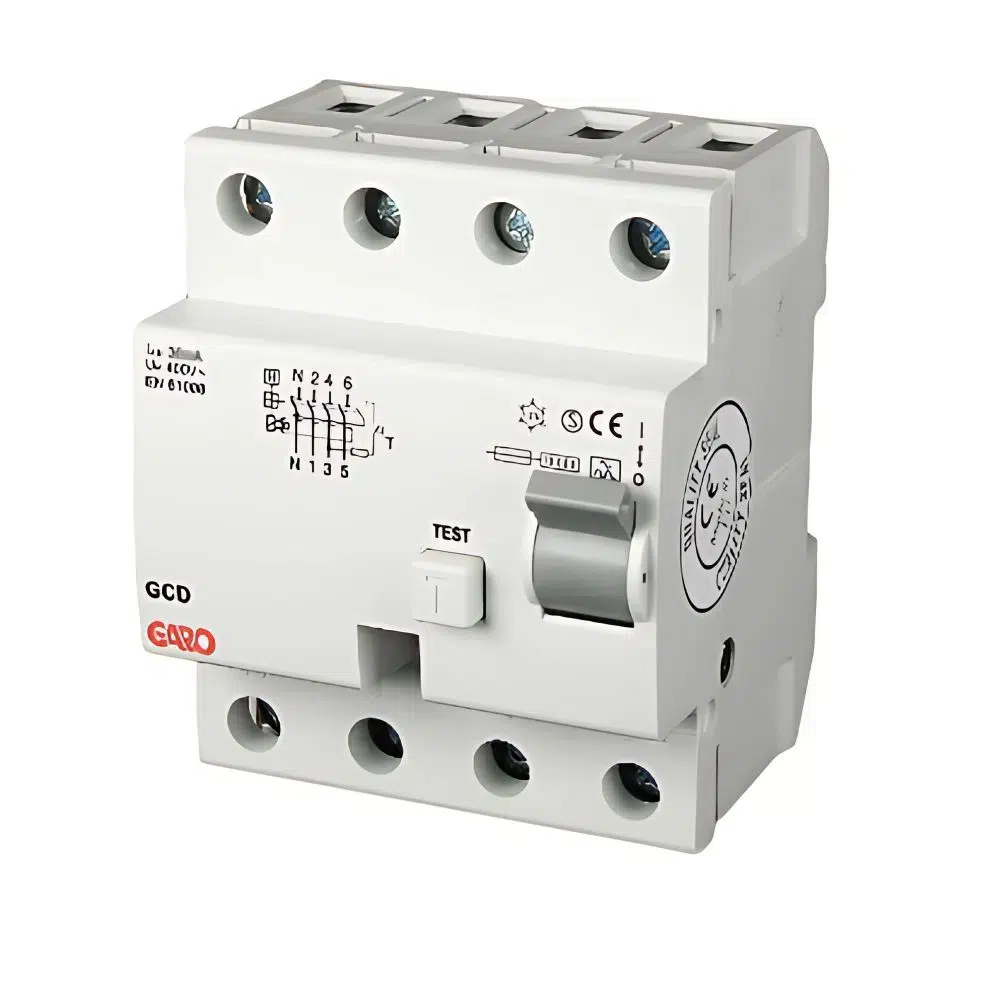

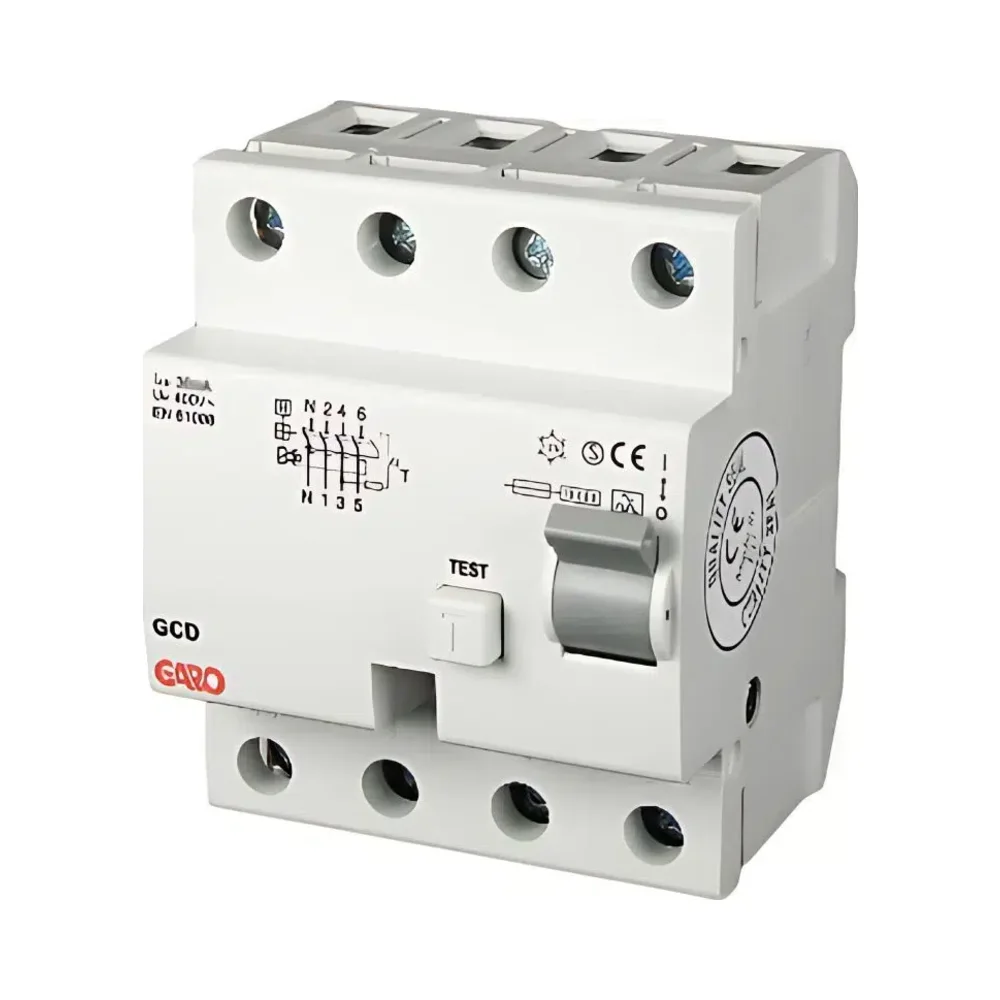

- Pre-installed GCD63-4-03 Type A RCCB (63A, 4-pole, 30mA)
- Built-in mechanical interlock
- DIN rail with 6-module capacity
- Hinged protective window
- Dual cable entry points (top and bottom)
Why Choose This Product?
This 63A three phase socket with RCD protection is designed for high-load, neutral-free three phase equipment. It’s ideal for workshops, panel builders, and on-site temporary power boards. With waterproofing, a secure locking mechanism, and factory-fitted safety features, it’s a plug-and-play solution for safe power distribution.
Guarantee & Compliance
- CE marked and RoHS compliant
- Built to EN 61008 (RCD protection)
- Socket complies with IEC 60309-1/2 (industrial sockets and plugs)
- Conforms to EMC and Low Voltage Directives
- Manufactured by GARO – trusted in industrial electrical solutions
Summary – Industrial 63A 4 PIn Socket with Built-in RCD
The GARO URBBV363-6SCR is a robust 63A industrial three phase socket with 4-pin configuration and built-in Type A RCD. It’s IP67-rated and ready for harsh industrial conditions where safety and performance are critical.
