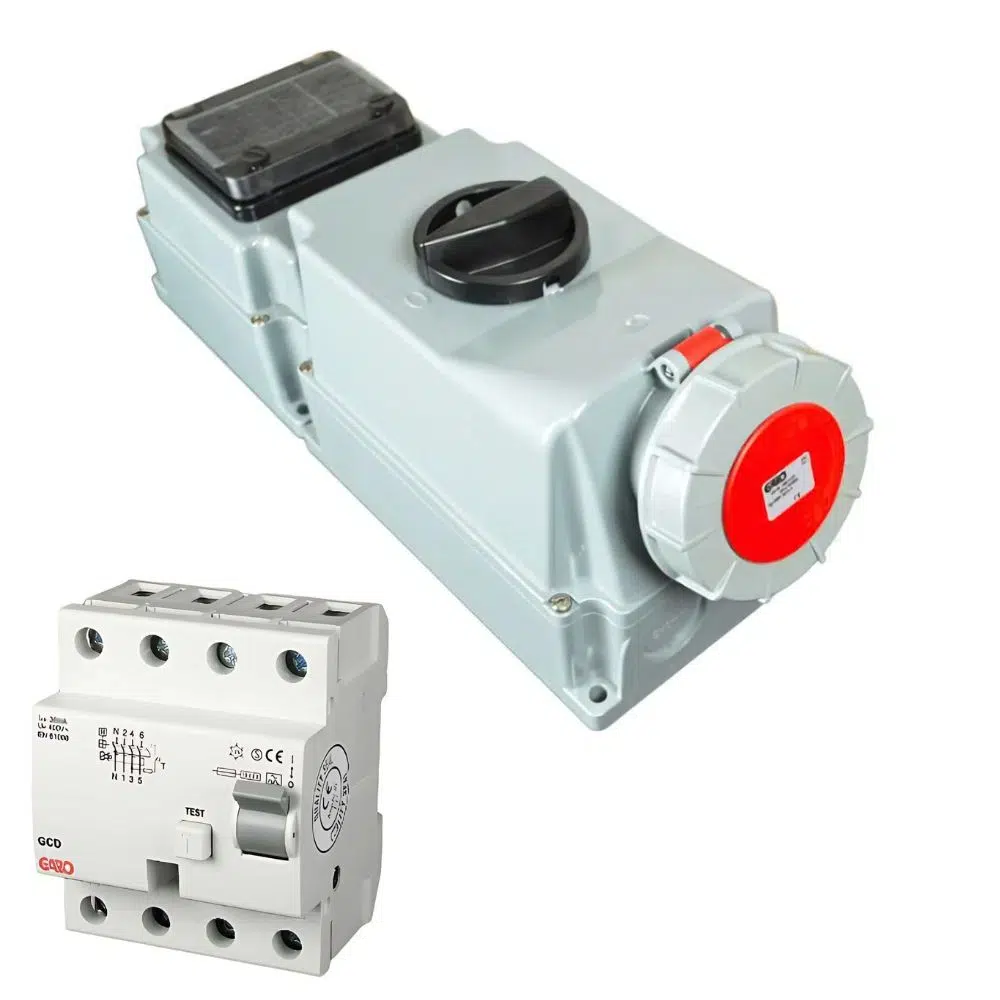

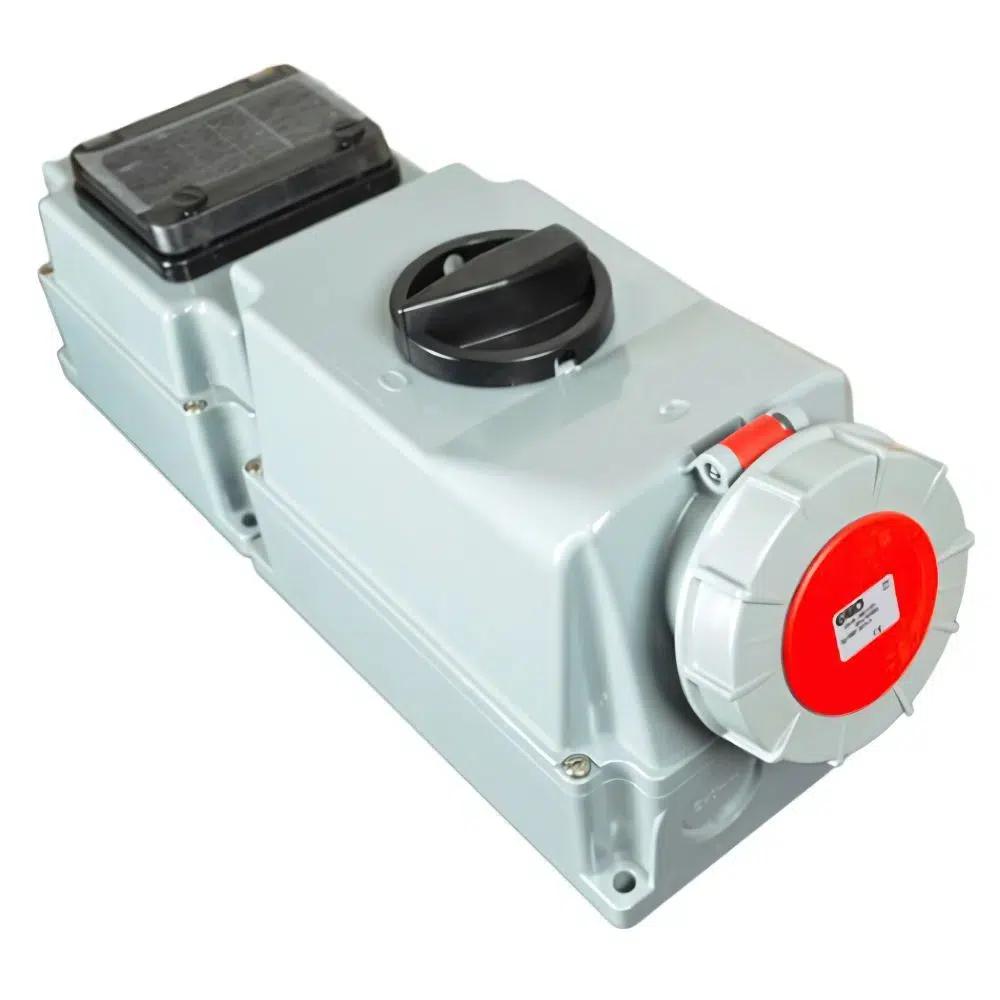

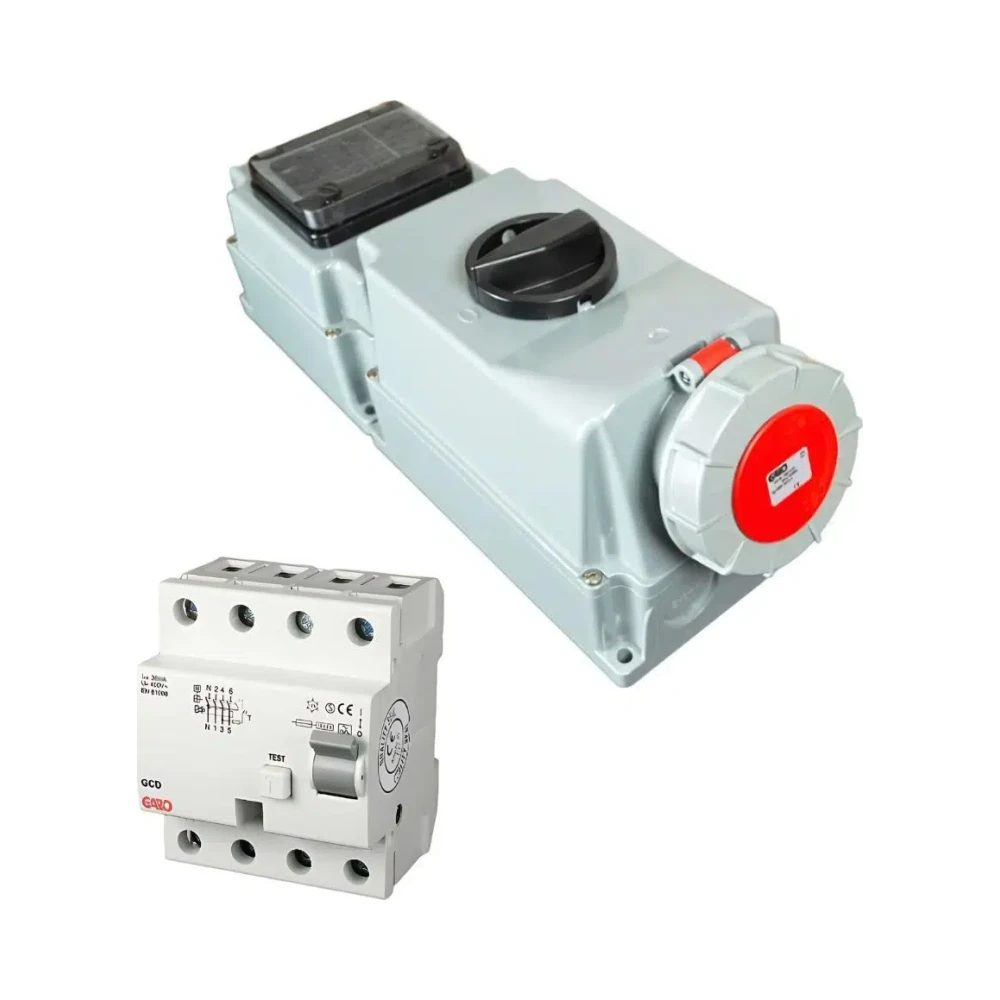

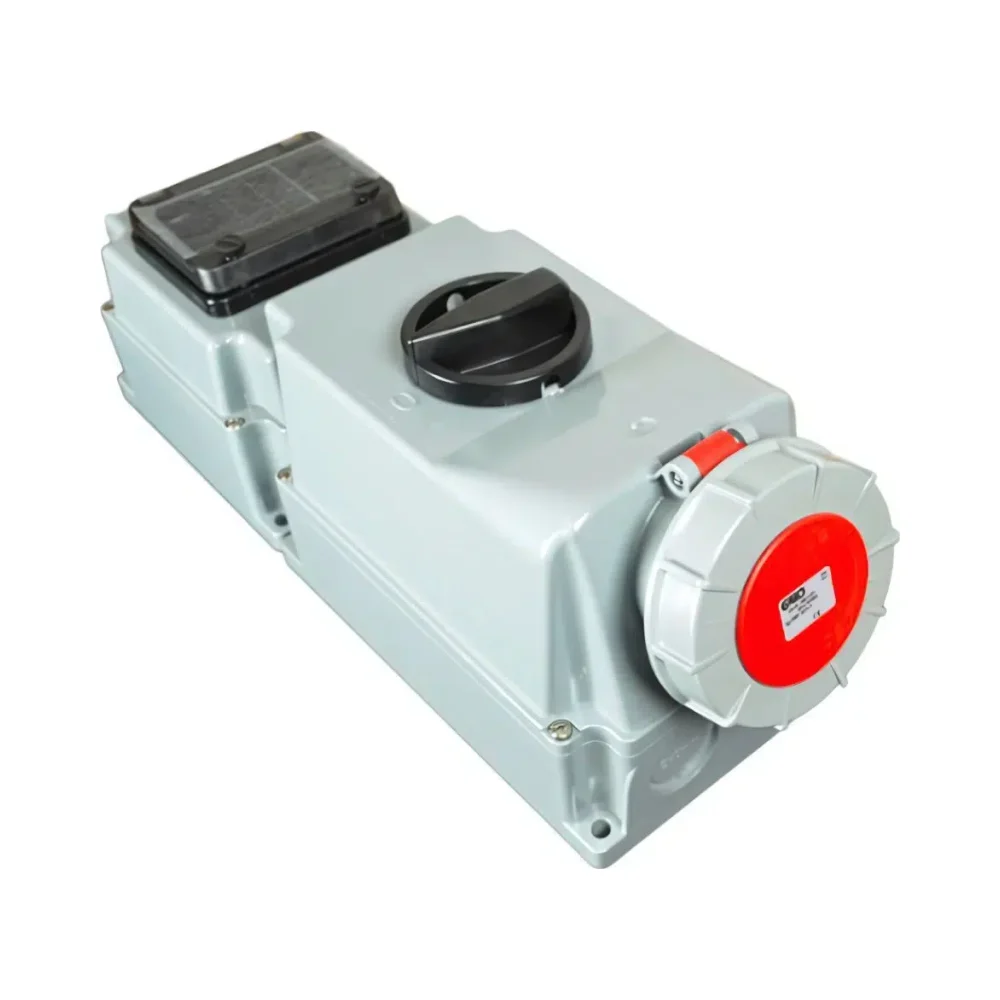

Garo URBBV332-6SCR 32A 4-Pin IP67 Industrial 400V Socket with Built-In 4 Pole RCD

Description

Compact 4-Pin Three Phase Socket with RCD and IP67 Waterproof Protection

Industrial 32A 400V IP67 Three Phase Socket with Built-In 4 Pole RCD

The GARO URBBV332-6SCR is an Industrial 32A Three Phase Socket with Built-in RCD with a 4-pin configuration (3P+E), designed for safe 400V power distribution in outdoor and industrial spaces. It includes a factory-fitted 4-pole Type A RCCB, offering 30mA residual current protection to meet modern safety standards.

This socket is ideal for equipment and installations that require a secure 3-phase + earth connection without a neutral. It includes a mechanical interlock, top and bottom cable entry, and DIN rail space for up to five modules. Its IP67 enclosure is built to handle water, dust, and impact.

Key Features – Industrial 32A Three Phase Socket with Built-in RCD

• 32A three phase socket – 4-pin (3P+E)
• Built-in 4-pole Type A RCCB (commonly called RCD)
• 30mA residual current protection
• IP67 waterproof and dustproof construction
• Mechanical interlock for added safety

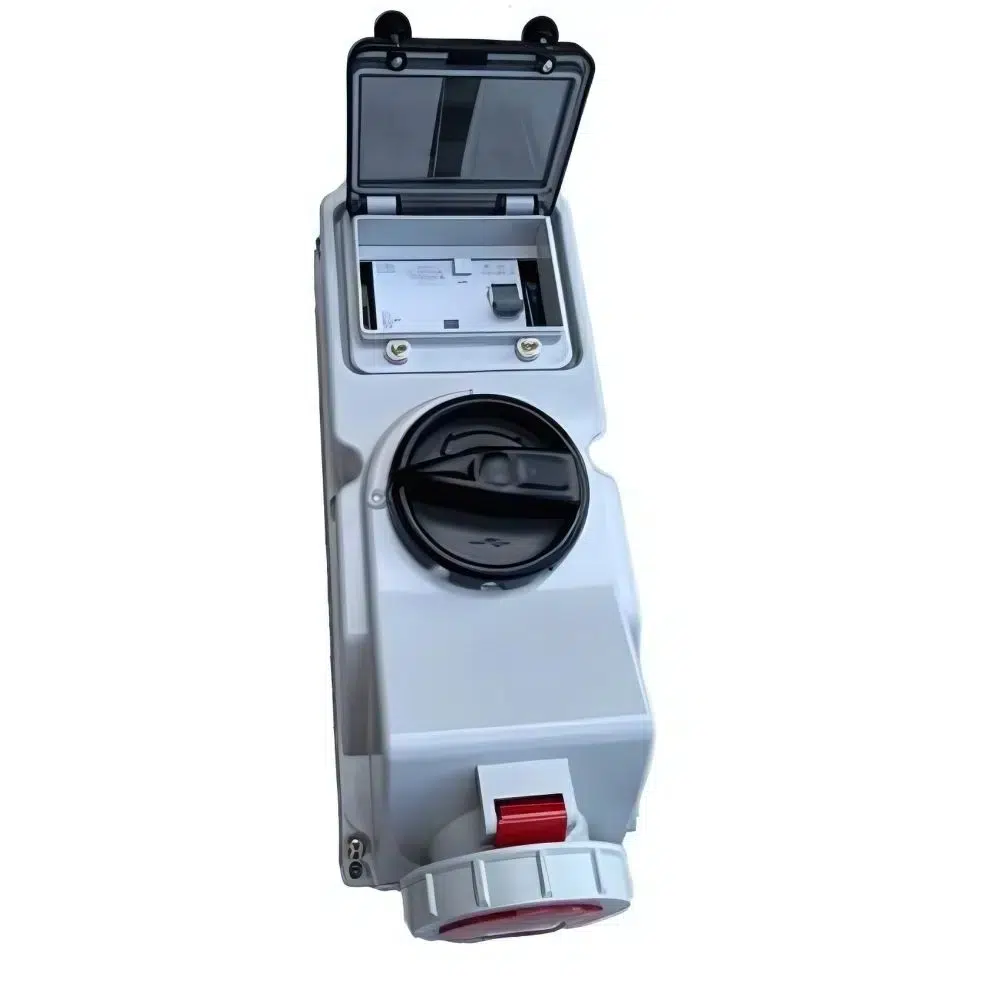

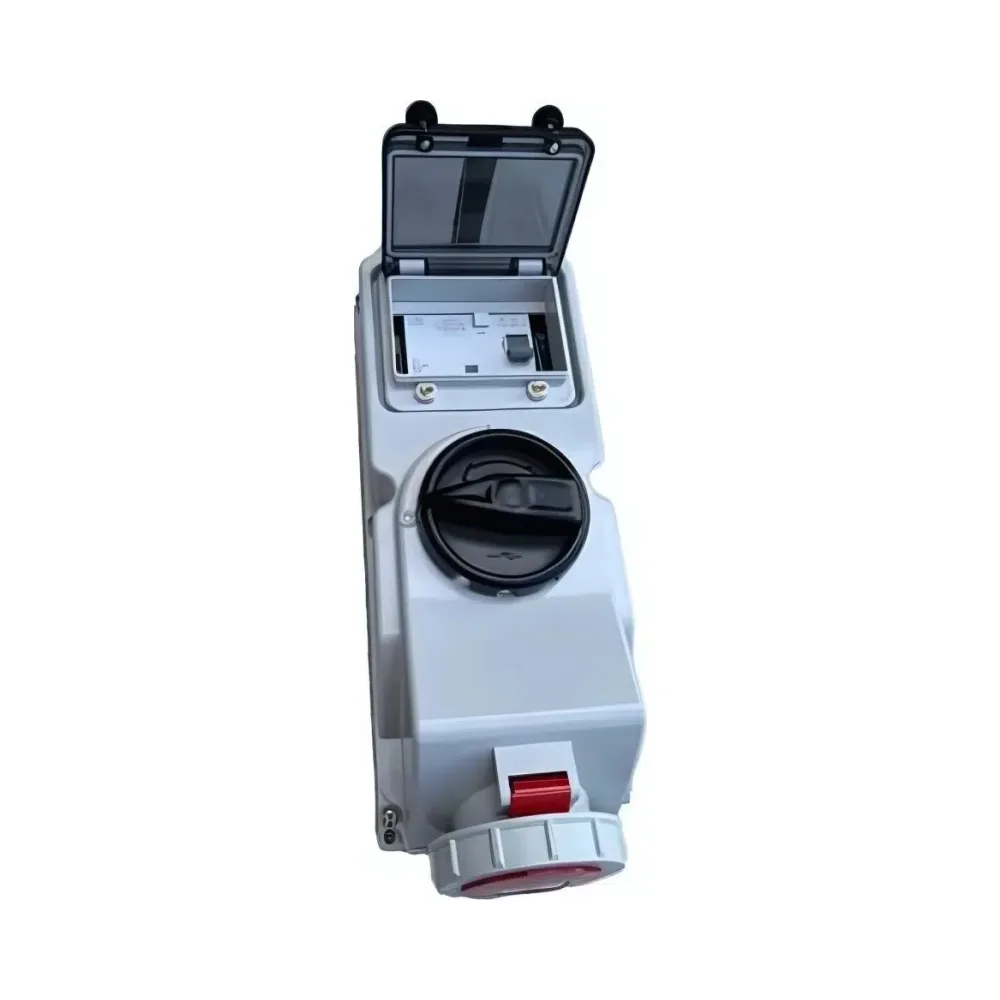

• Hinged access window and 5 DIN module slots
• Top and bottom cable entry
• IEC 60309-2 colour coded (6h) for 400V installations

Technical Overview

• Rated Voltage: 230/400V AC
• Rated Current: 32A
• RCD Type: Type A RCCB (4-pole)
• Residual Current Sensitivity: 30mA
• Ingress Protection: IP67
• Short-Circuit Capacity: 10kA
• Insulation Class: Class B (130°C)
• Standards: EN 61008, IEC 60309-1/2, RoHS, BS 4343, LVD
• Weight: 1.56kg

Note: The included RCCB meets EN 61008. It provides residual current protection only, with no overcurrent function. It is commonly referred to as an RCD.

What’s Included – Industrial 32A Three Phase Socket

• 1 × GARO URBBV332-6SCR industrial socket unit

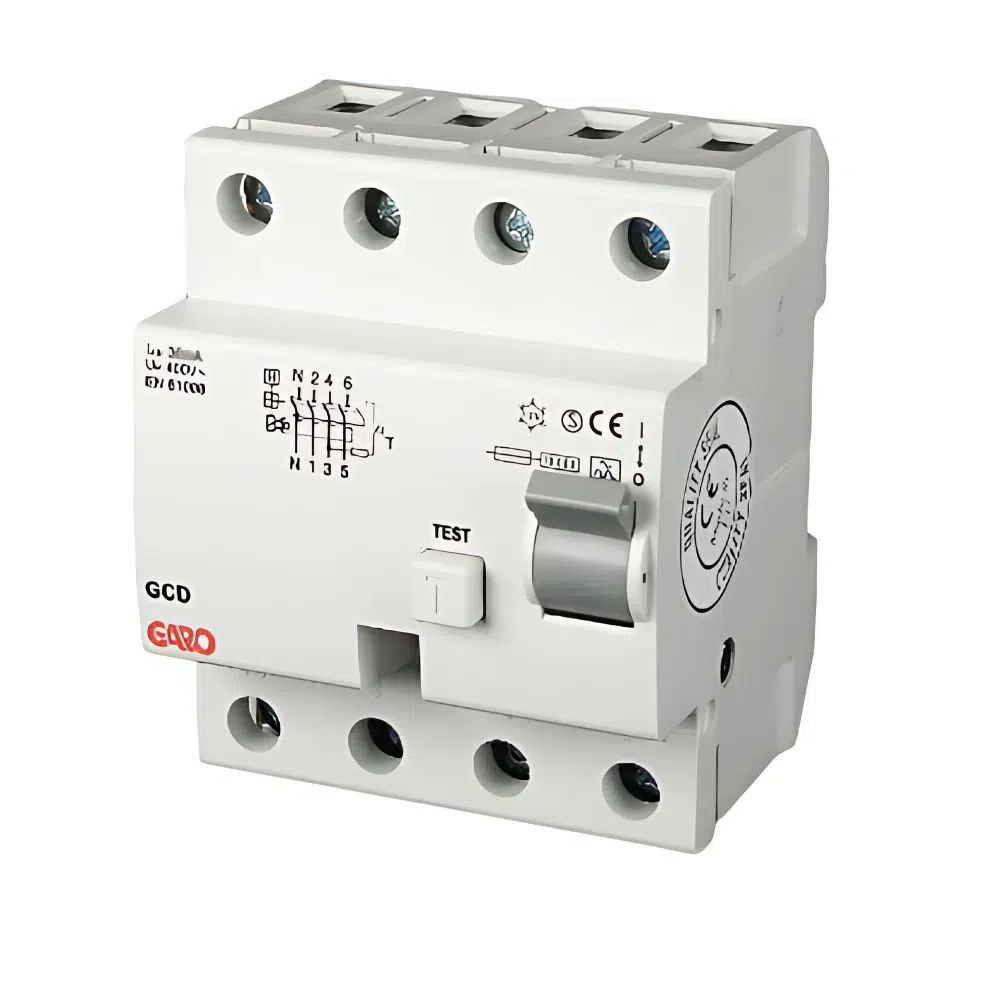

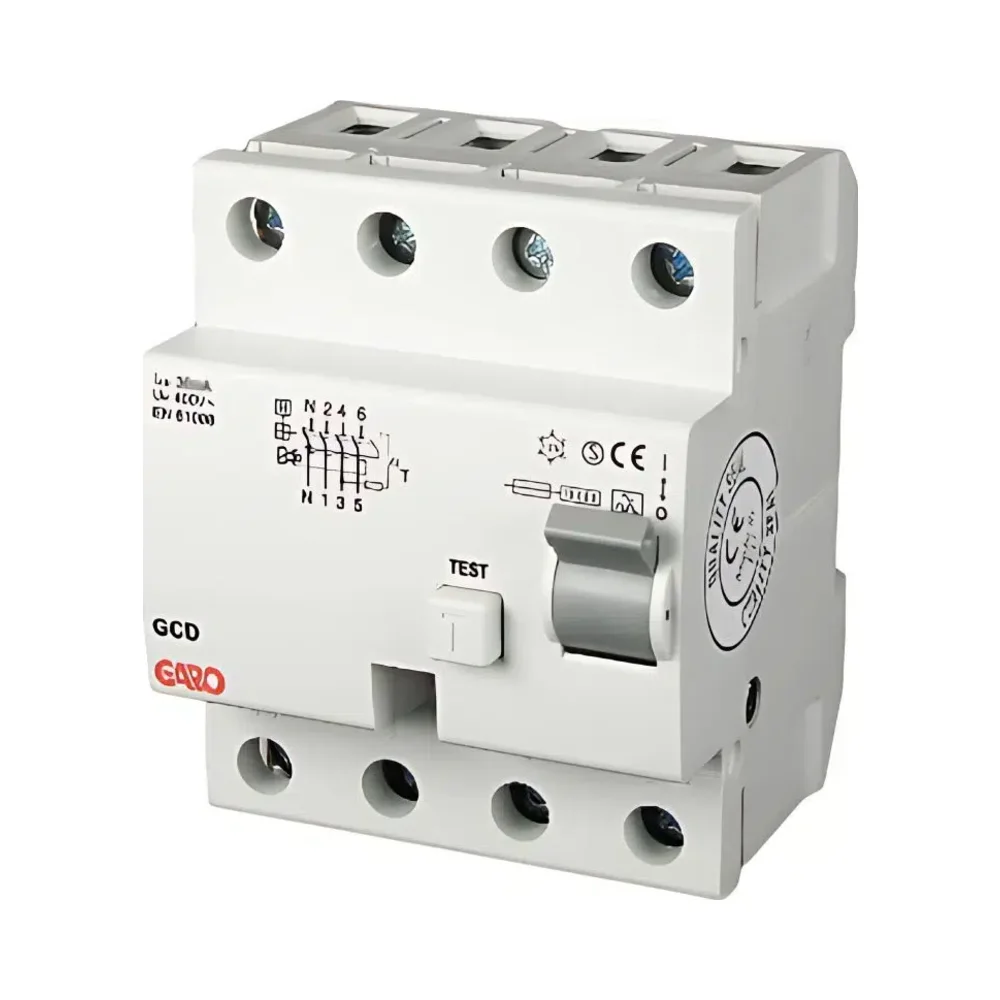

• 1 × GCD40-4-03 Type A RCCB (30mA, 4-pole)
• DIN rail with 5 module spaces
• Mechanical interlock
• Hinged front cover
• Cable entry (top and bottom)

Why Choose This Product?

This 32A three phase socket offers built-in safety and rugged performance. With Type A RCD protection, IP67 sealing, and a secure 4-pin design, it’s the perfect choice for powering machinery and fixed installations on-site or in commercial spaces.

Guarantee & Compliance

This socket unit is CE marked and complies with:

• EN 61008 (RCCB standard)
• IEC 60309-1/2 (industrial connector safety)
• RoHS, EMC, and Low Voltage Directive
• Class B internal insulation standard

Summary

The GARO URBBV332-6SCR is a compact, IP67-rated industrial 32A three phase socket with built-in 30mA Type A RCD. Its 4-pin format is ideal for 3-phase + earth applications without a neutral conductor.
