Description
Compact 4-Pin Industrial Three Phase Socket with Type A RCD Protection
Industrial 16A 400V IP67 Three Phase Socket with Built-In 4 Pole RCD

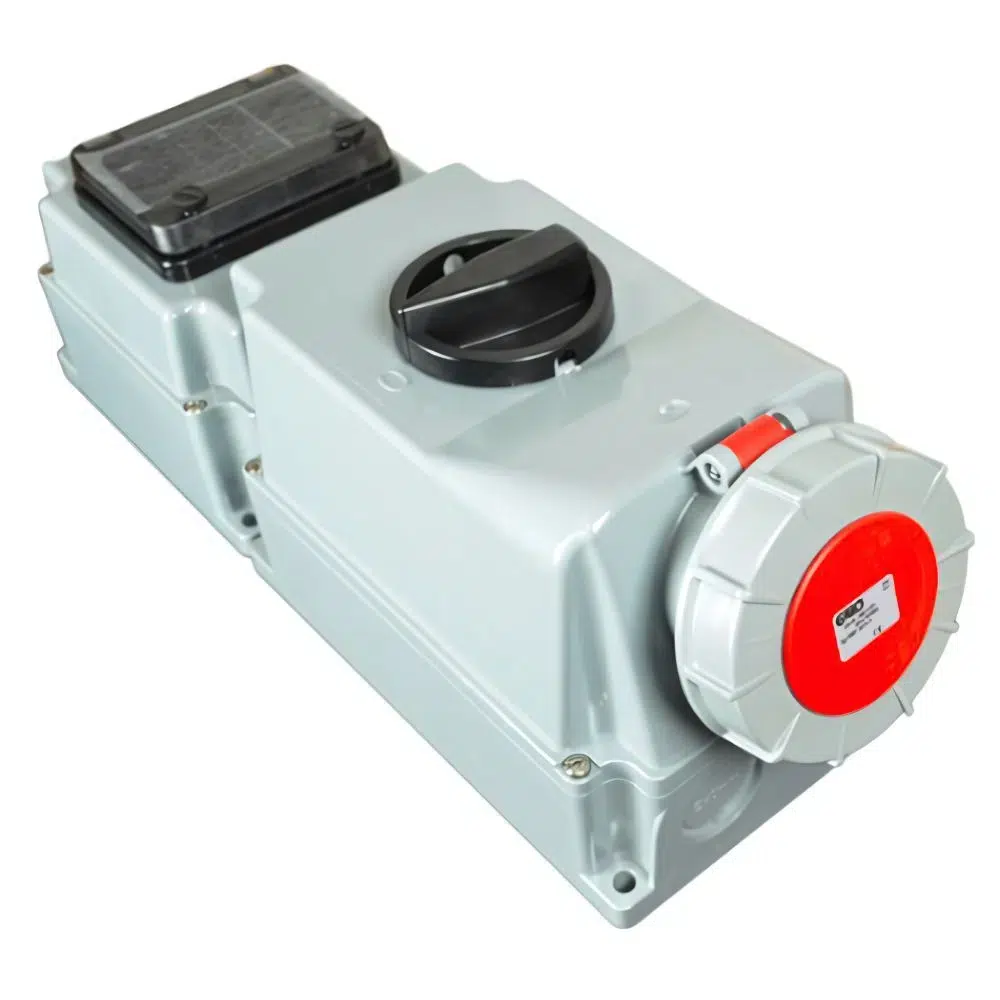

The GARO URBBV316-6SCR is a compact and durable Industrial 16A Three Phase Socket with Built-in RCD with a 4-pin (3P+E) layout, ideal for light-duty 400V power connections in outdoor or industrial environments. It includes a factory-installed 4-pole Type A RCCB, offering 30mA residual current protection to help prevent electric shock.

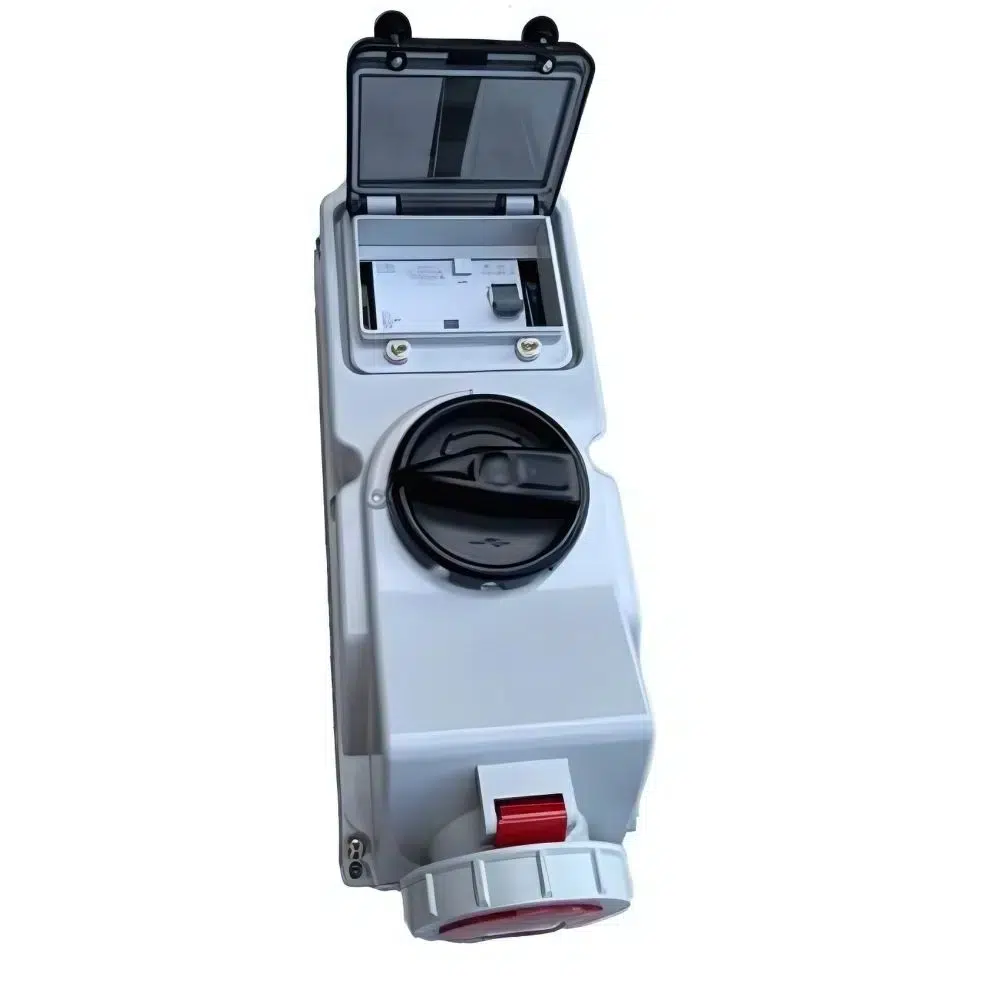

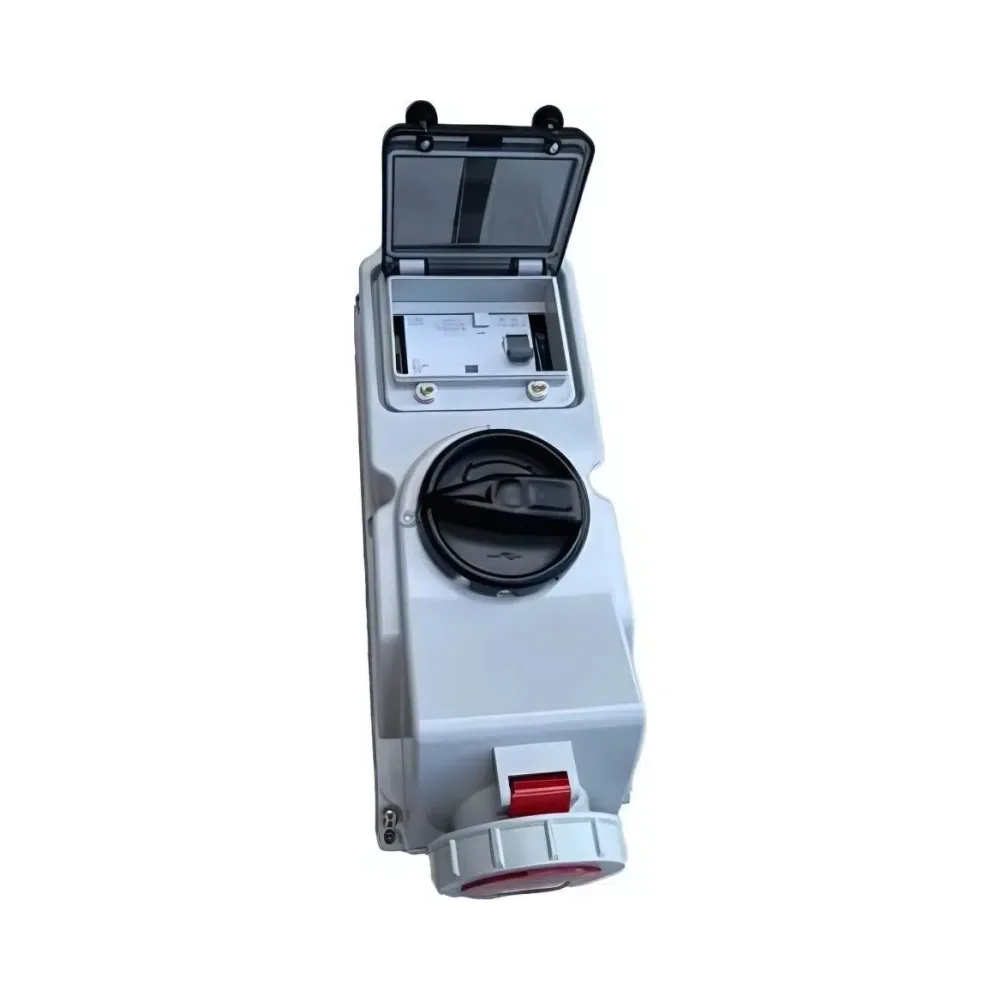

With its IP67 waterproof housing, mechanical interlock, and top/bottom cable entry, it’s built for reliable performance and safe use in demanding locations. The unit features a hinged front window and 5-module DIN rail space for additional components if required.
Key Features – Industrial 16A Three Phase Socket with Built-in RCD
- 16A three phase socket – 4-pin (3P+E)
- Built-in 4-pole Type A RCCB (RCD), 30mA sensitivity
- IP67 protection against water and dust
- Mechanical interlock for added safety
- DIN rail space for 5 modules, with hinged access window
- Top and bottom cable entry points
- Colour-coded (6h) for 400V systems to IEC 60309-2
- Cable size support: 1–2.5mm² (flexible), 1.5–4mm² (solid)
Technical Overview
- Rated Voltage: 230/400V AC
- Rated Current: 16A
- RCD Type: Type A RCCB, 4-pole
- Residual Current Sensitivity: 30mA
- Ingress Protection: IP67
- Short-Circuit Capacity: 10kA
- Insulation Class: Class B (130°C)
- Standards: EN 61008, IEC 60309-1/2, RoHS, BS 4343, LVD
- Weight: 1.49kg
Note: The RCCB (RCD) is a 4-pole Type A device conforming to EN 61008. It provides earth fault protection only (no overcurrent).
What’s Included
- 1 × GARO URBBV316-6SCR industrial socket unit

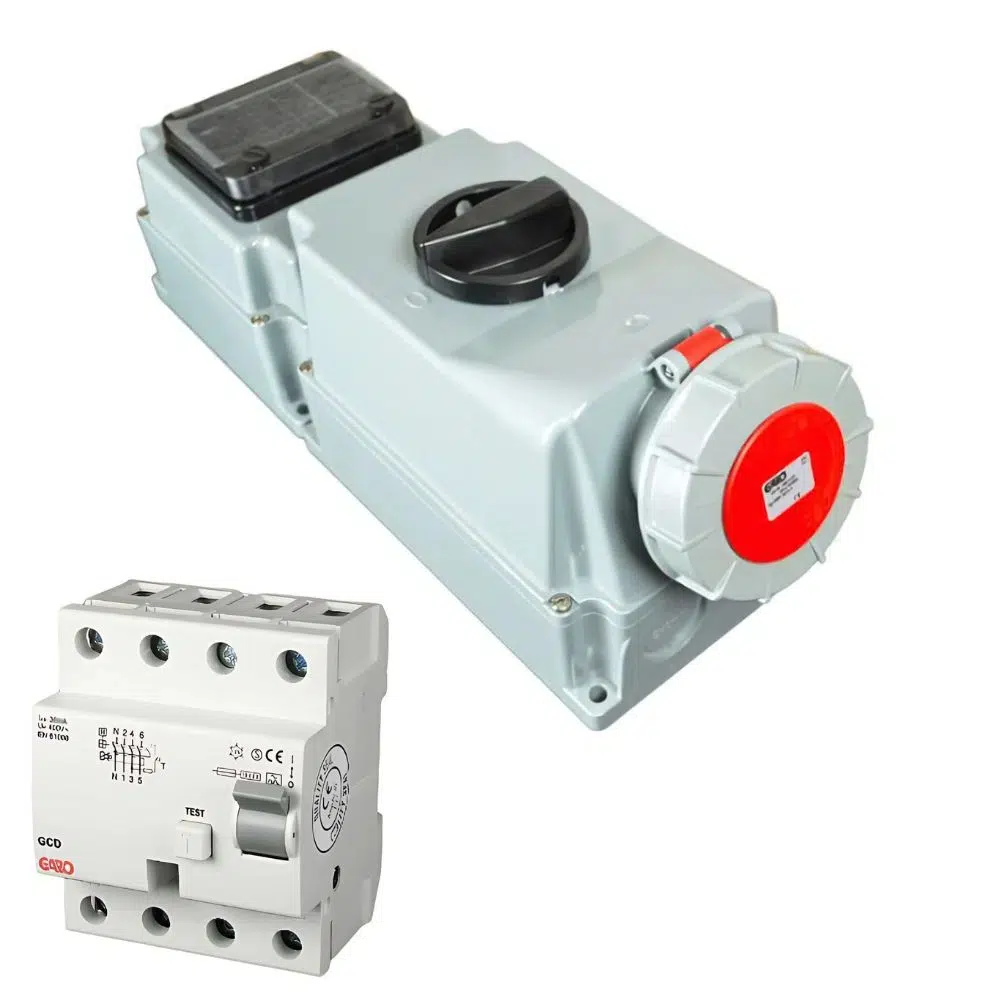

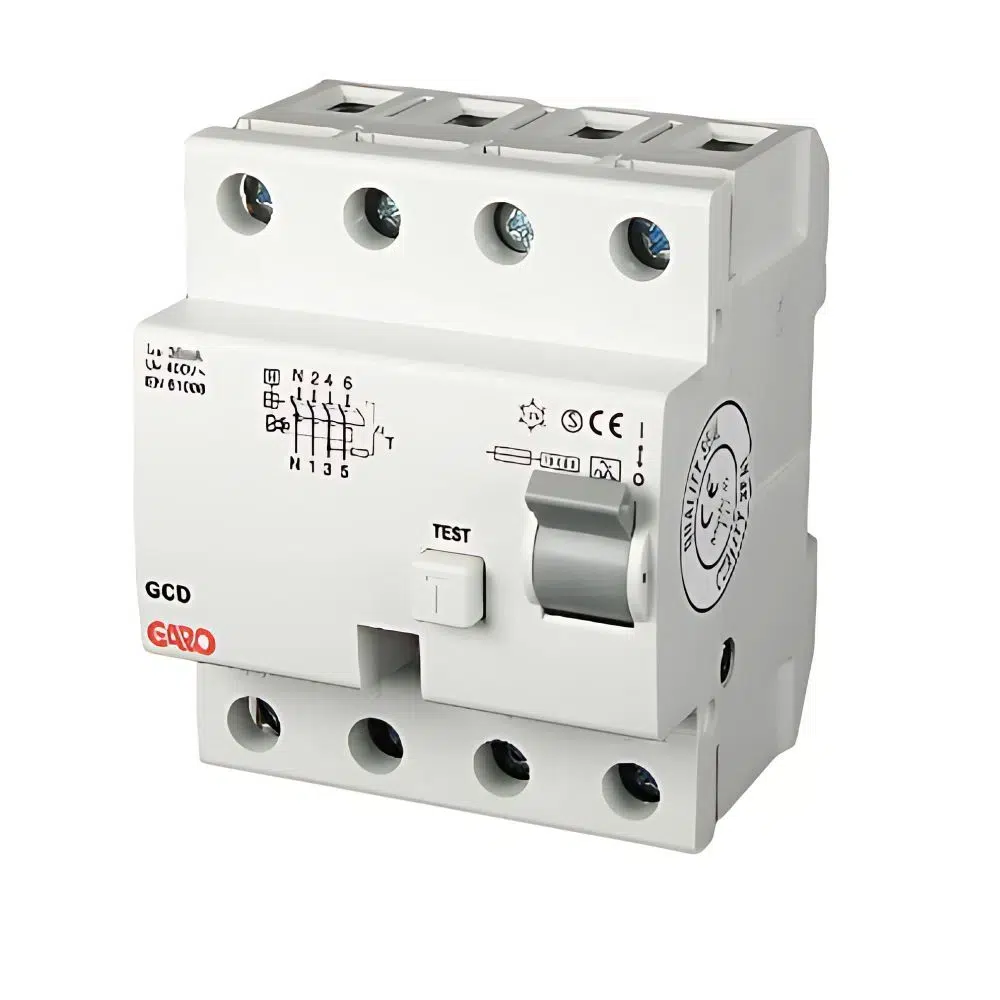

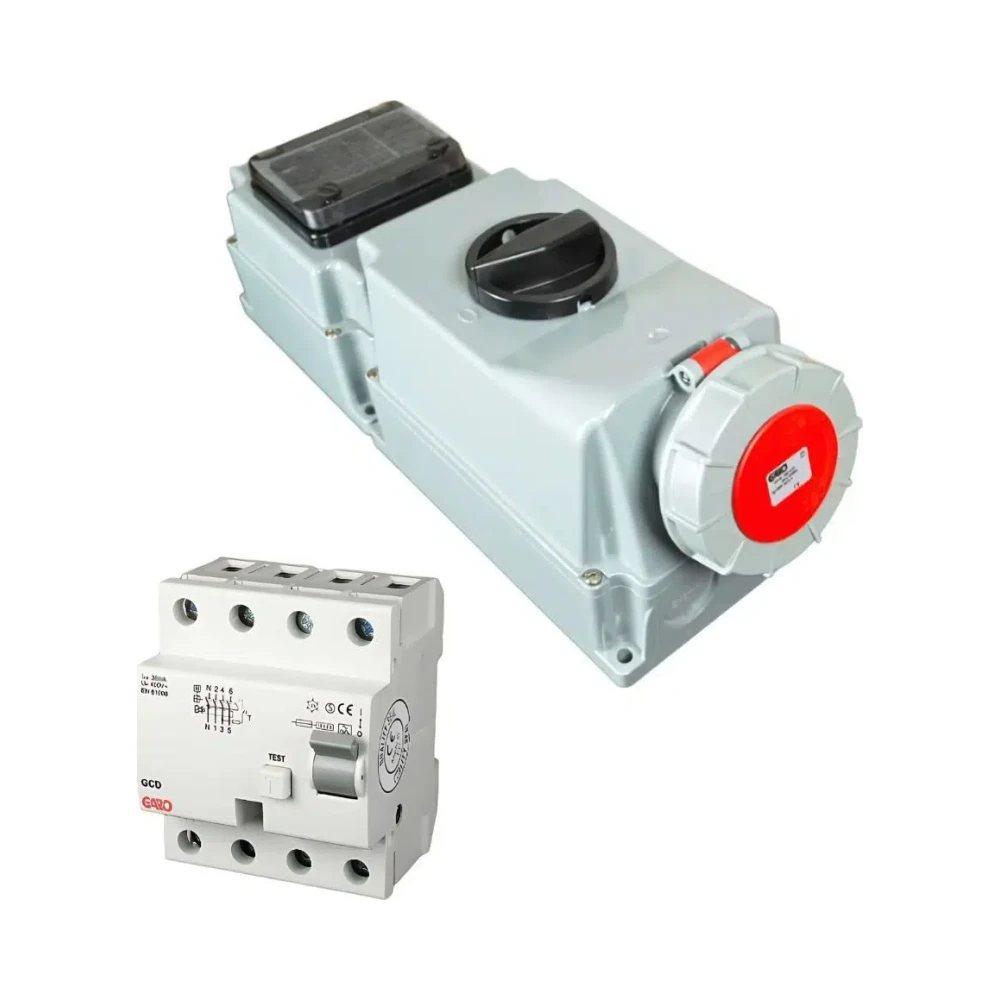

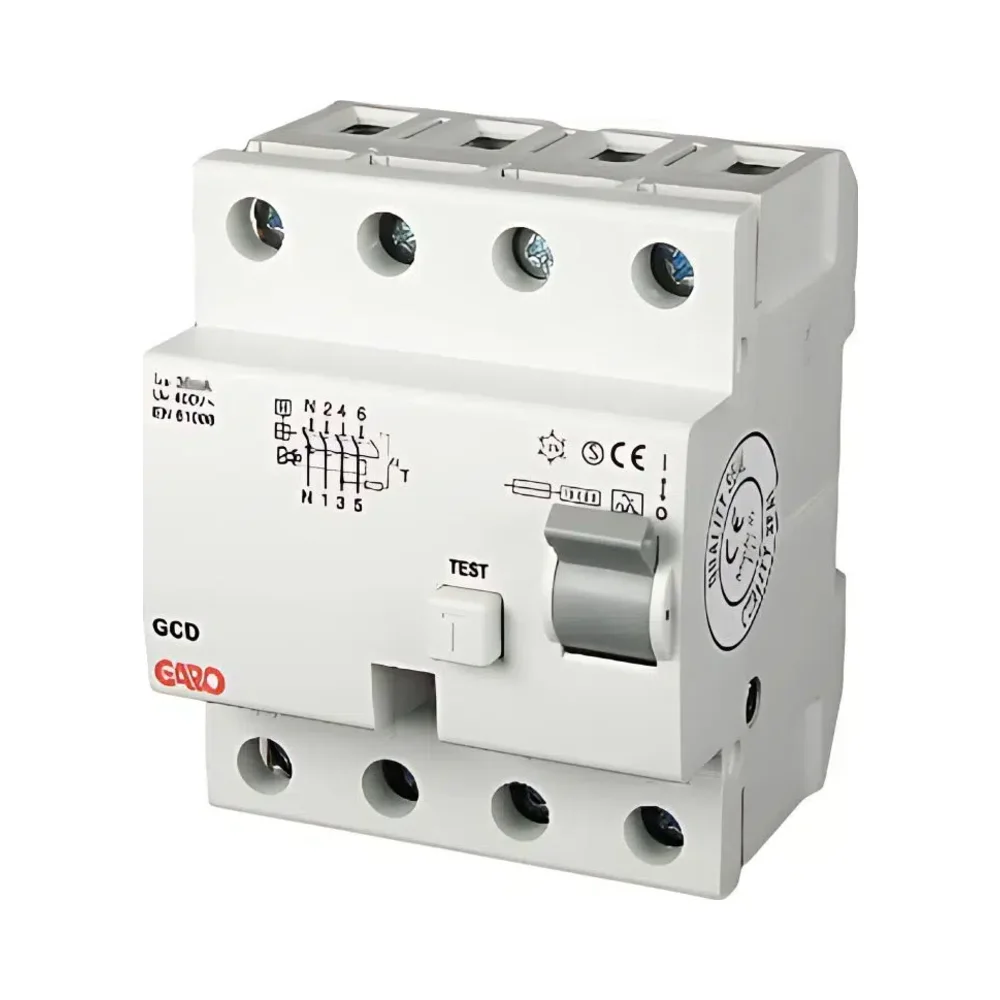

- 1 × GCD25-4-03 Type A RCCB (30mA, 4-pole)
- Built-in DIN rail with 5 module capacity
- Hinged cover and mechanical interlock
- Cable entry options (top and bottom)
Why Choose This Product?
This 16A industrial three phase socket with built-in RCD is ideal for powering small 3-phase machines, portable tools, or temporary outdoor connections. Its compact design, waterproof rating, and RCCB safety features make it a practical choice for site, workshop, or light commercial use.
Guarantee & Compliance
This socket is CE marked and fully compliant with:
- EN 61008 – Residual current protection (RCCB)
- IEC 60309-1/2 – Industrial socket safety
- RoHS, EMC, and LVD directives
- Class B insulation for internal thermal protection
Summary
The GARO URBBV316-6SCR is a safe, waterproof 16A three phase socket with a 4-pin connection and built-in RCD. It’s designed for light-duty industrial use where compact size, durability, and electrical safety matter.
