Description
RCD-Protected 63A Industrial Socket for 230V Power Connections
Industrial 63A 230V IP67 Single Phase Socket with Built-In RCD

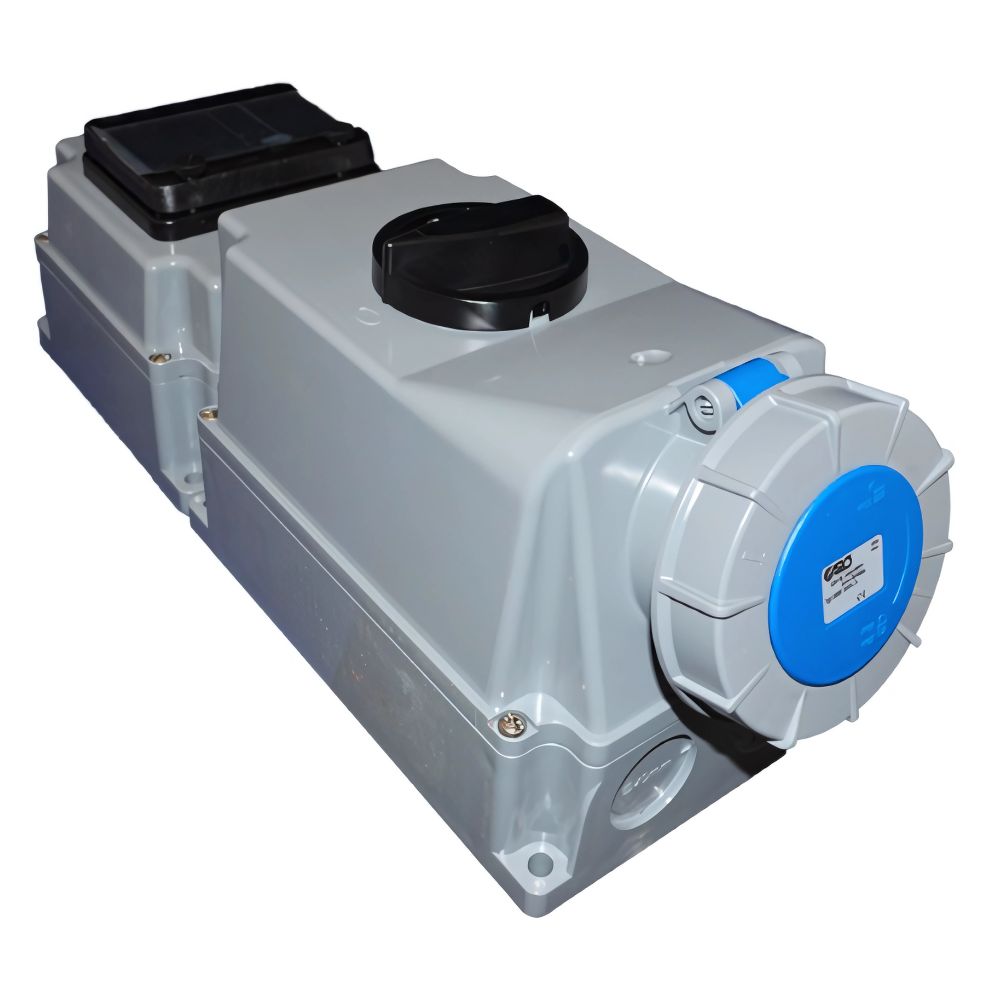

The GARO URBBV263-6SCR is a robust 63A single phase socket built for high-demand 230V applications. It features a 3-pin (2P+E) configuration and comes pre-fitted with a 2-pole Type A RCCB, offering 30mA residual current protection to help reduce the risk of electric shock.
Designed for industrial and site use, the unit is housed in an IP67-rated enclosure to keep out dust and water. A mechanical interlock ensures safe connection and disconnection. The enclosure includes a hinged access window, DIN rail space for six modules, and cable entry at the top and bottom.
Key Features – Industrial 63A Single Phase RCD Socket
- 63A single phase socket – 3-pin (2P+E)
- Built-in 2-pole Type A RCCB (RCD), 30mA sensitivity
- IP67 waterproof and dustproof housing
- Mechanical interlock prevents unsafe use
- Hinged cover with space for 6 DIN modules
- Cable entry from top and bottom
- Colour-coded 6h (230V) to IEC 60309-2
Technical Overview
- Rated Voltage: 200–250V AC
- Rated Current: 63A
- RCD Type: 2-pole Type A RCCB
- Residual Current: 30mA
- Protection Rating: IP67
- Short-Circuit Rating: 10kA
- Clock Position: 6h
- Insulation Class: B (130°C)
- Cable Capacity: 6–16mm²
- Weight: 2.9kg
- Standards: EN 61008, IEC 60309-1/2, BS 4343, RoHS
What’s Included

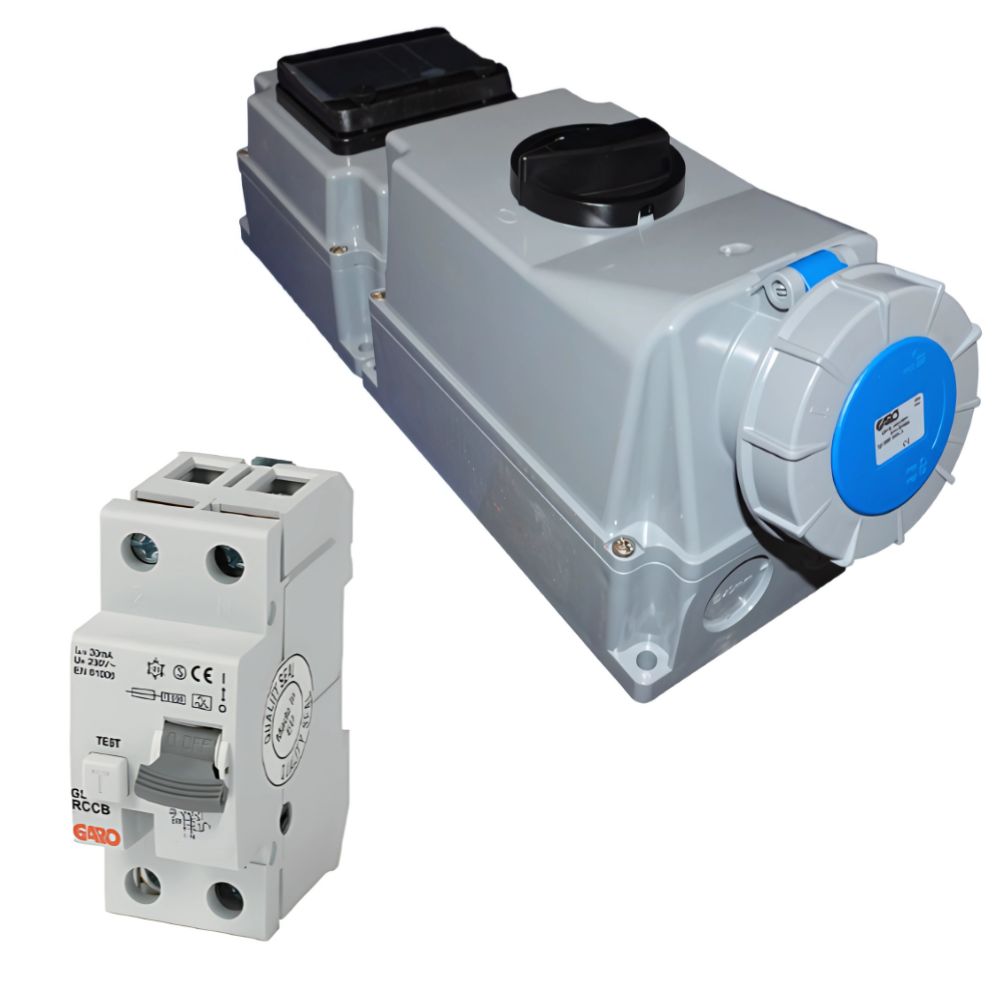

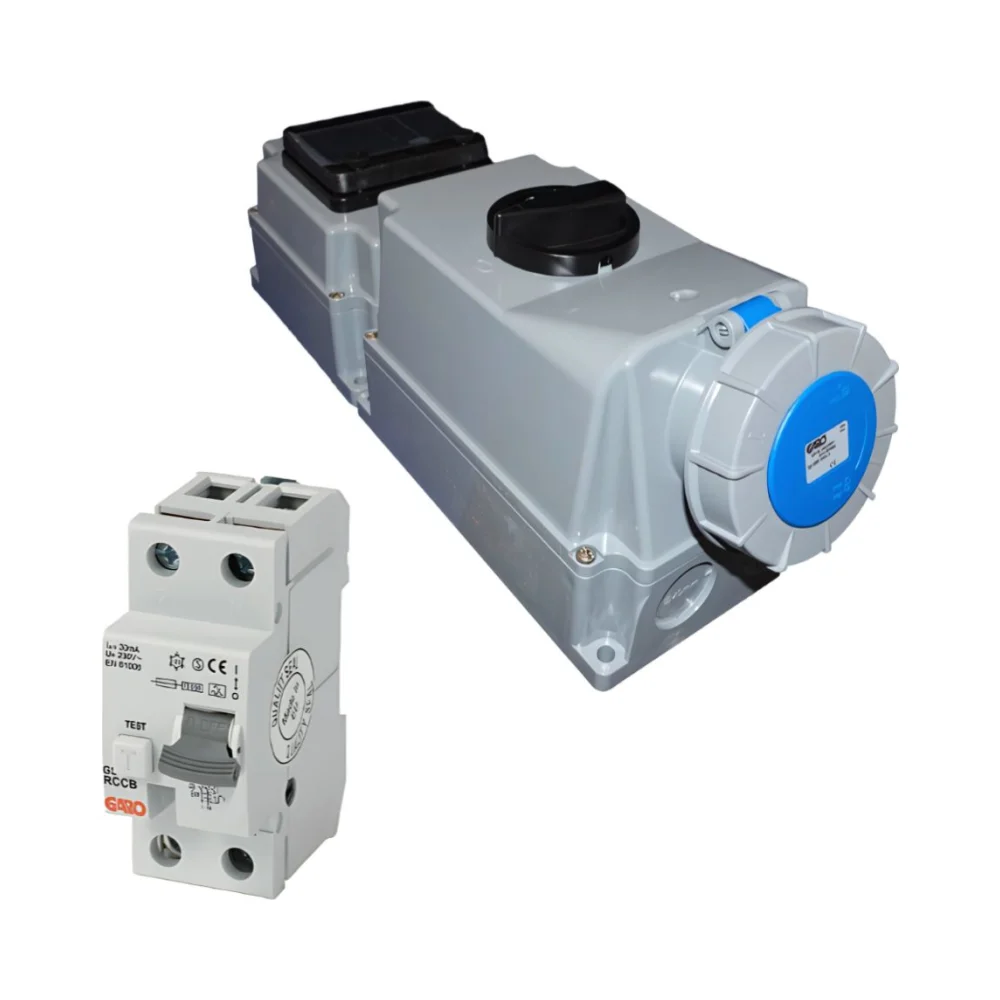

- 1 × GARO URBBV263-6SCR socket enclosure

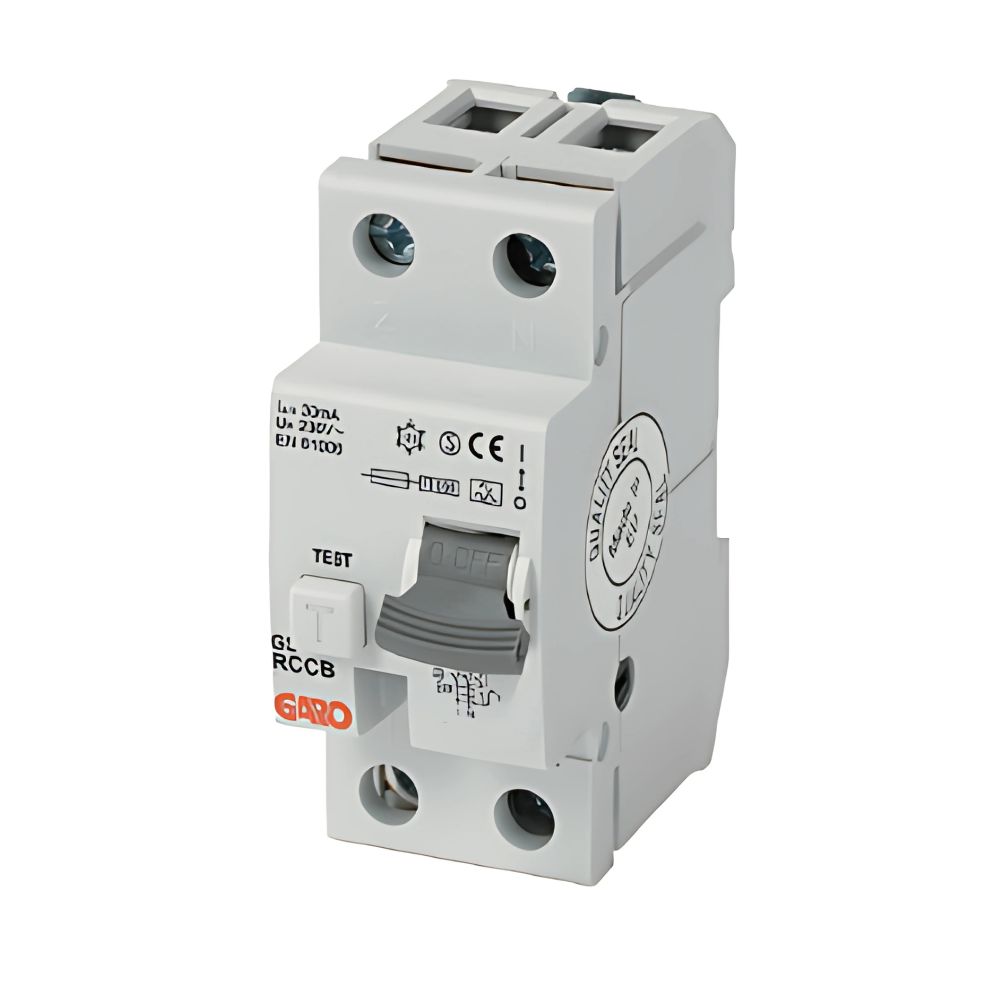

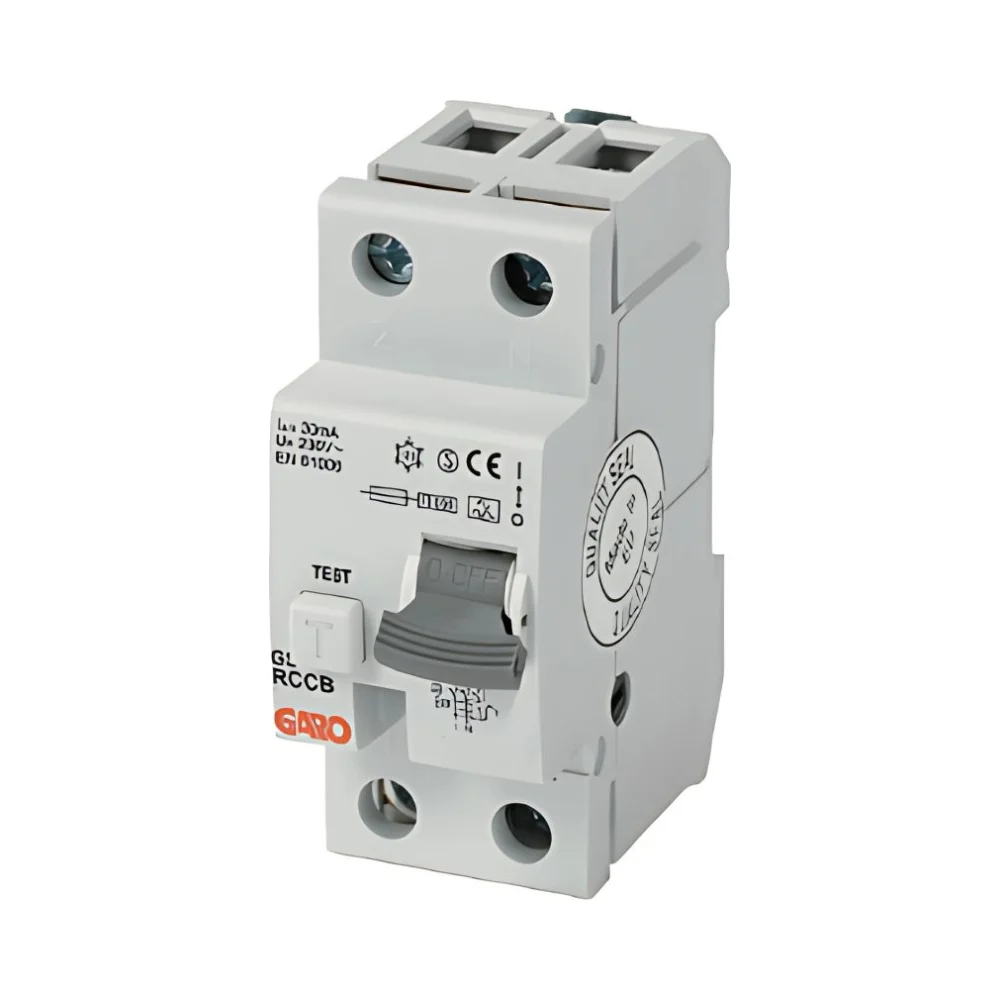

- 1 × GCD63-2-03 Type A RCCB (63A, 2-pole, 30mA)
- Built-in DIN rail (6 modules)
- Hinged access window and interlock
- Dual cable entry points
Why Choose This Product?
This 63A single phase socket with built-in RCD is designed for outdoor and industrial sites where 230V power is needed. It combines safety and strength in one unit, with built-in earth leakage protection and a durable IP67 body.
Guarantee & Compliance
- CE certified and RoHS compliant
- Built to EN 61008 and IEC 60309 safety standards
- EMC and Low Voltage Directive compliant
- Built by GARO – trusted in site power and industrial control
Summary – Industrial 63A Single Phase Socket
The GARO URBBV263-6SCR is a heavy-duty 63A single phase industrial socket with a built-in Type A RCD. It’s waterproof, secure, and ideal for high-demand 230V equipment or temporary site supplies.
