Description
Waterproof RCD Socket for 32A 230V Site and Industrial Power

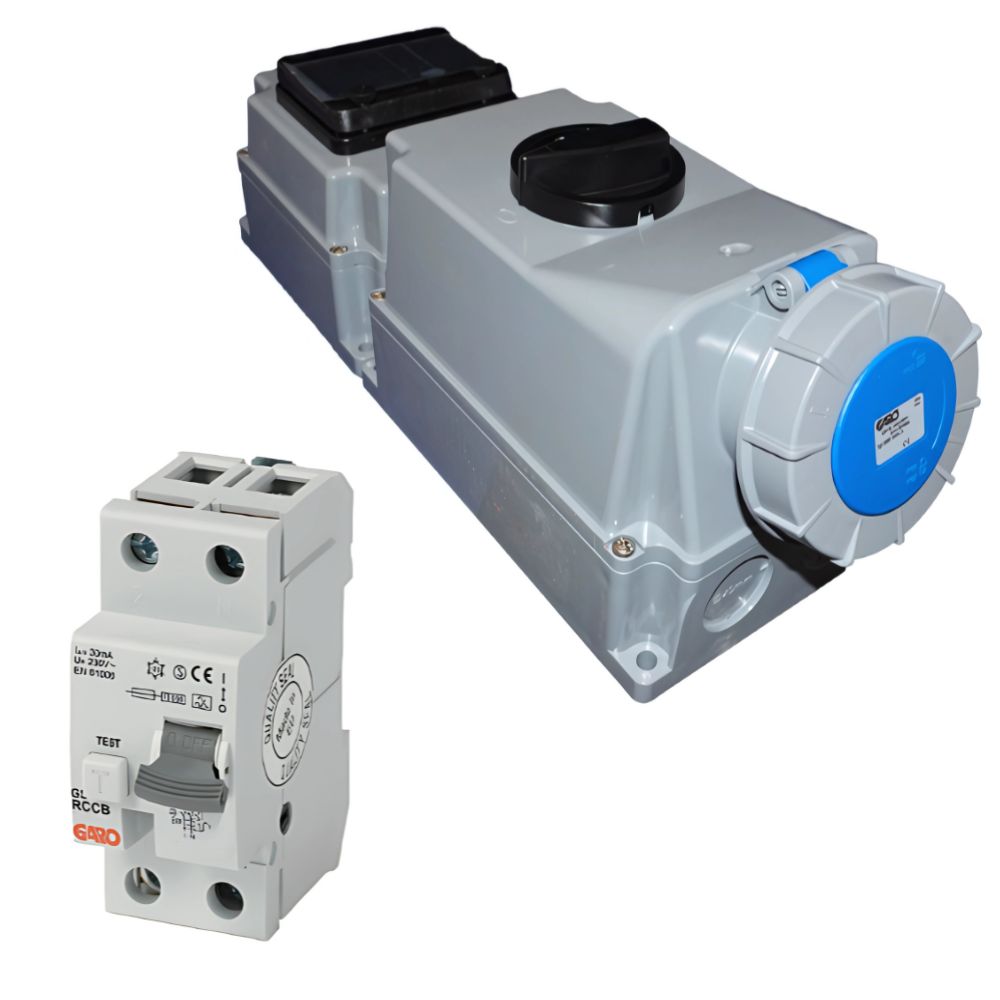

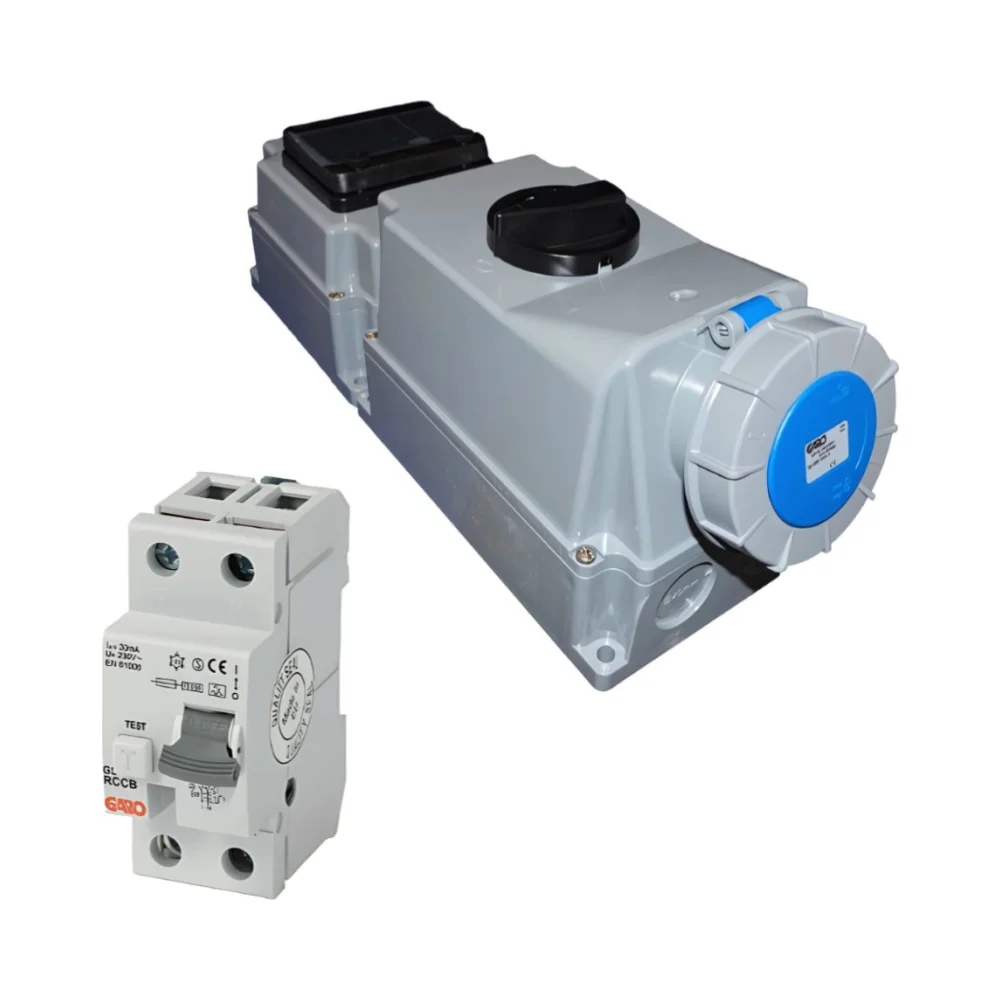

Industrial 32A 230V IP67 Single Phase Socket with Built-In RCD
The GARO URBBV232-6SCR is a compact and durable 32A single phase industrial socket with a 3-pin (2P+E) configuration. It includes a built-in 2-pole Type A RCCB, rated at 30mA, to provide essential protection from earth leakage faults.
Its tough IP67 housing resists dust, water, and physical damage. The mechanical interlock ensures the socket cannot be energised without a secure connection. It comes ready to use with a 6-module DIN rail, hinged cover, and dual cable entry points for flexible installation.
Key Features – Industrial 32A Single Phase Socket with Built-in RCD
- 32A single phase socket – 2P+E, 3-pin

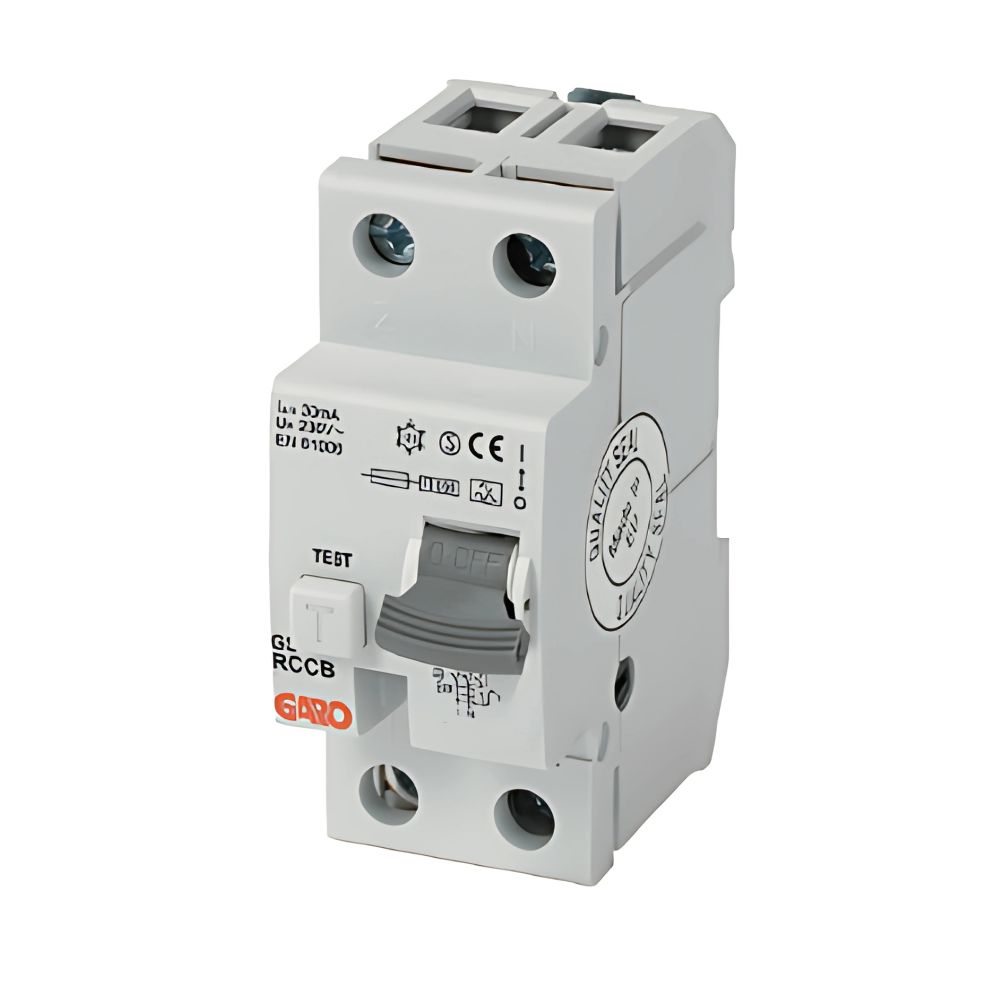

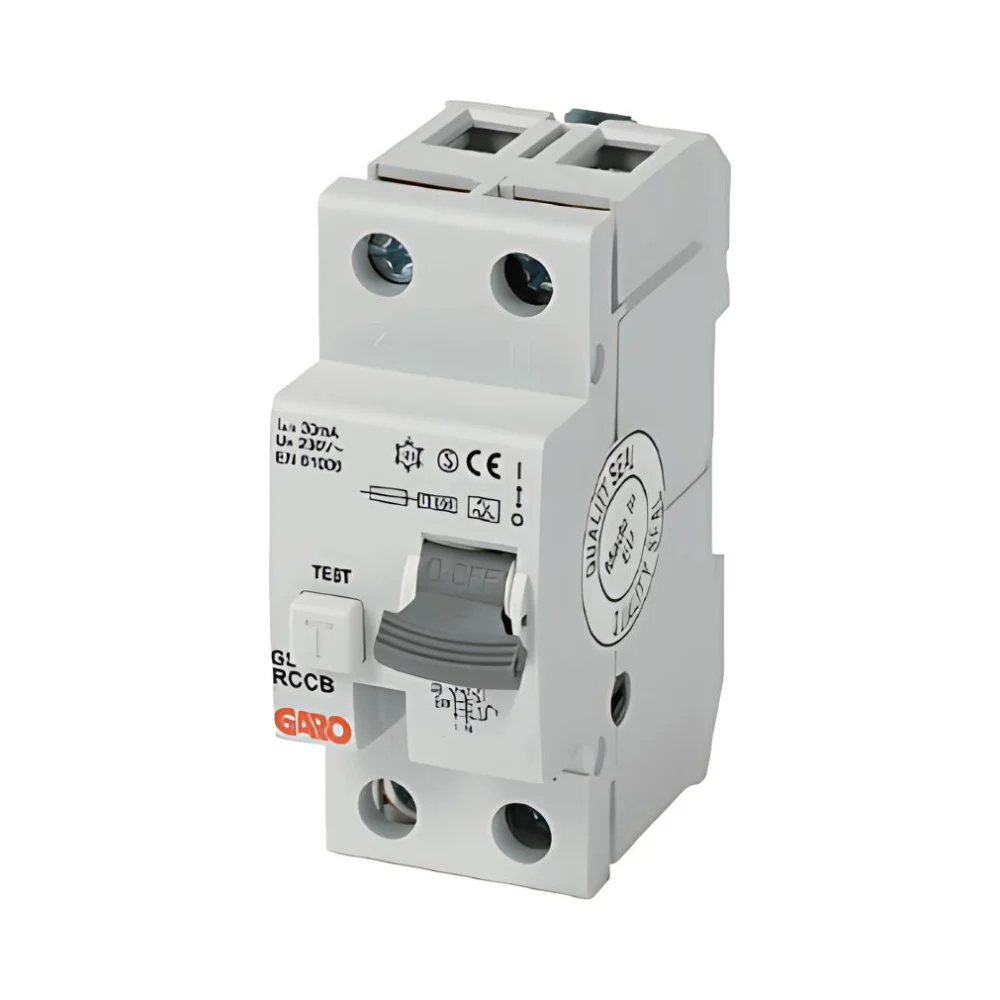

- Integrated 2-pole Type A RCCB (30mA)
- Waterproof and dustproof to IP67
- Secure mechanical interlock
- DIN rail with 6-module capacity
- Hinged protective cover
- Top and bottom cable entry
- 6h colour coding for 230V (to IEC 60309-2)
Technical Overview
- Voltage: 200–250V AC
- Rated Current: 32A
- RCD Type: Type A RCCB, 2-pole
- Residual Current: 30mA
- Protection Rating: IP67
- Clock Position: 6h
- Insulation Class: B (130°C)
- Cable Size Compatibility: 2.5–10mm²
- Weight: Approx. 2.5kg
- Standards: EN 61008, IEC 60309-1/2, BS 4343, RoHS
What’s Included
- 1 × GARO URBBV232-6SCR socket enclosure
- 1 × GCD32-2-03 Type A RCCB (32A, 2-pole, 30mA)
- Built-in DIN rail with 6-module space
- Hinged inspection window
- Secure interlock mechanism
Why Choose This Product?
This 32A single phase socket with built-in RCD is perfect for smaller machinery, temporary site setups, and commercial-grade tools. Its integrated safety features and rugged enclosure make it a smart choice for demanding environments where protection and reliability matter.
Guarantee & Compliance
- CE and RoHS compliant
- Tested to EN 61008 and IEC 60309
- Conforms to EMC and Low Voltage Directives
- Trusted GARO quality with industry-grade components
Summary
The GARO URBBV232-6SCR is a 32A IP67-rated single phase industrial socket with built-in RCD protection. Ideal for safe 230V power in industrial, site, and outdoor environments.
