Compact Waterproof RCD Socket for Light-Duty 230V Applications
Industrial 16A 230V IP67 Single Phase Socket with Built-In RCD

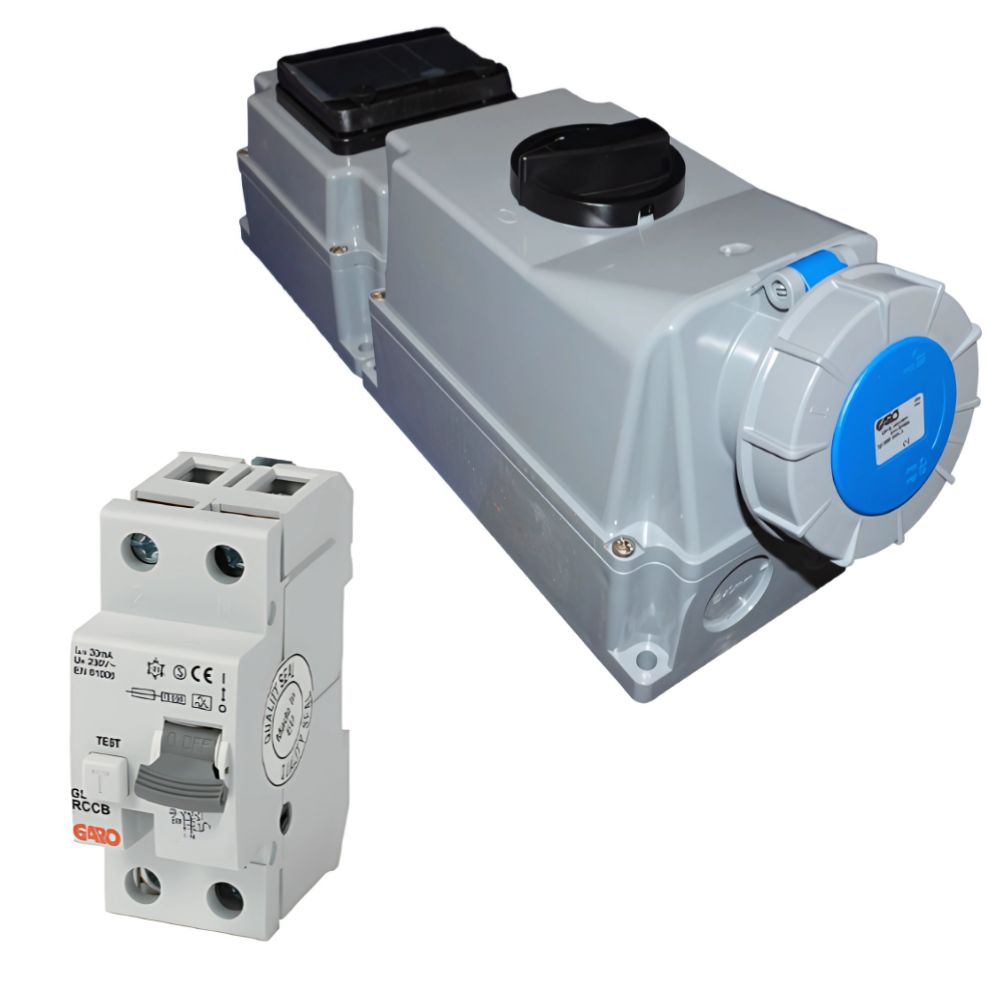

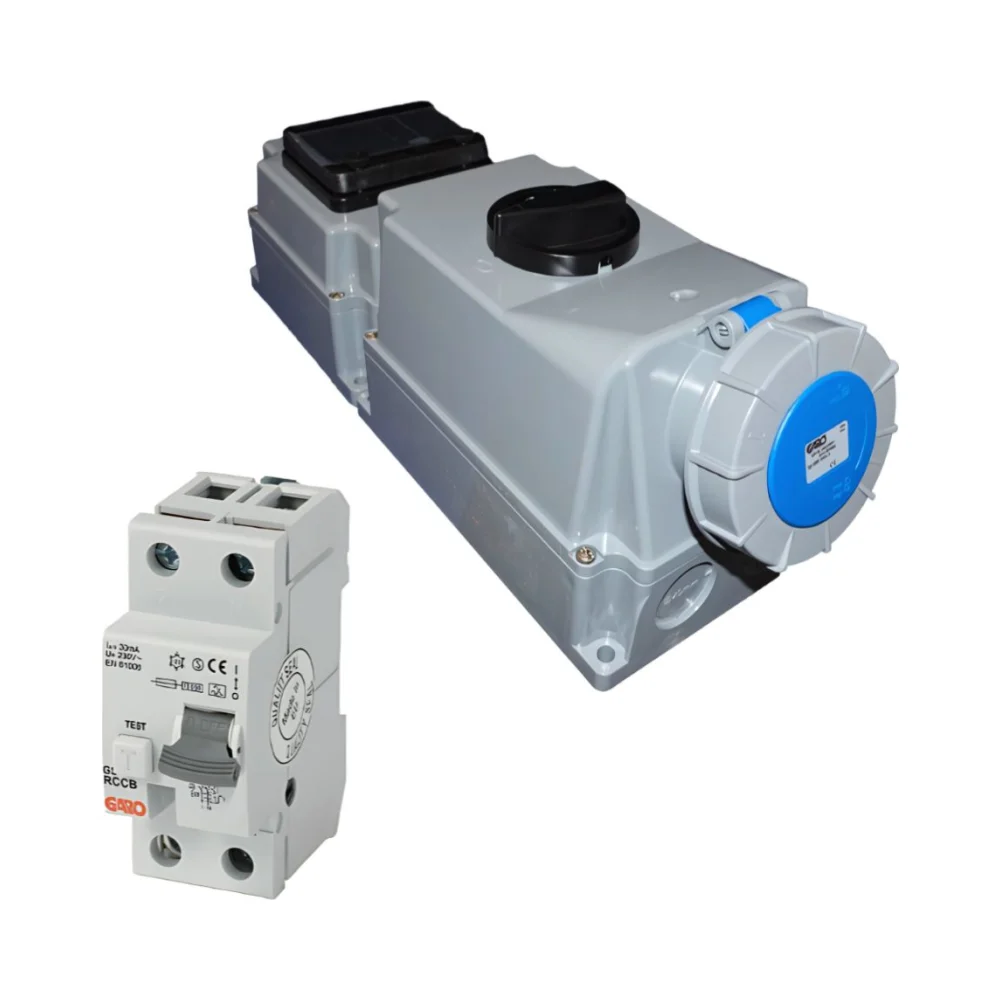

The GARO URBBV216-6SCR is a rugged Industrial 16A Single Phase Socket with Built-In RCD with 3-pin (2P+E) layout, suitable for 230V site and industrial use. It includes a built-in 2-pole Type A RCCB, offering 30mA residual current protection to reduce electrical hazard risks.
Despite its compact size, this unit features a durable IP67-rated enclosure, secure mechanical interlock, and hinged cover with DIN rail space for 5 modules. It’s perfect for powering low-current tools and outdoor equipment in a safe and professional way.
Key Features -Industrial 16A 230V IP67 Single Phase Socket with Built-In RCD
- 16A single phase socket – 2P+E
- Built-in 2-pole Type A RCD (30mA)
- IP67 dust and water protection
- Mechanical interlock enhances safety
- 5-module DIN rail with hinged window
- Colour-coded 6h clock face (230V)
- Cable entry from top or bottom
Technical Overview
- Voltage: 200–250V AC
- Rated Current: 16A
- RCD Type: Type A RCCB, 2-pole
- Residual Current: 30mA
- Protection Rating: IP67
- Clock Position: 6h
- Cable Size Compatibility: 1–2.5mm² (solid: 1.5–4mm²)
- Insulation Class: B (130°C)
- DIN Rail Space: 5 modules
- Weight: Approx. 1.5kg
- Standards: EN 61008, IEC 60309-1/2, BS 4343, RoHS
What’s Included – Industrial 16A Single Phase Socket
- 1 × GARO URBBV216-6SCR socket unit
- 1 × GCD25-2-03 Type A RCCB (25A, 2-pole, 30mA)
- DIN rail and hinged cover
- Built-in interlock and entry points
Why Choose This Product?
The URBBV216-6SCR is a reliable, compact 16A single phase industrial socket for use in outdoor and commercial setups. With a built-in RCD, this socket offers added safety for smaller tools and power supplies in site or workshop conditions.
Guarantee & Compliance
- Fully CE certified
- RoHS compliant
- Conforms to EN 61008, EN 60309
- Designed and tested by GARO – specialists in industrial site power
Summary
GARO’s URBBV216-6SCR provides safe, RCD-protected access to 230V power in a small, weatherproof format. Ideal for light industrial and outdoor setups using 16A single phase equipment.
