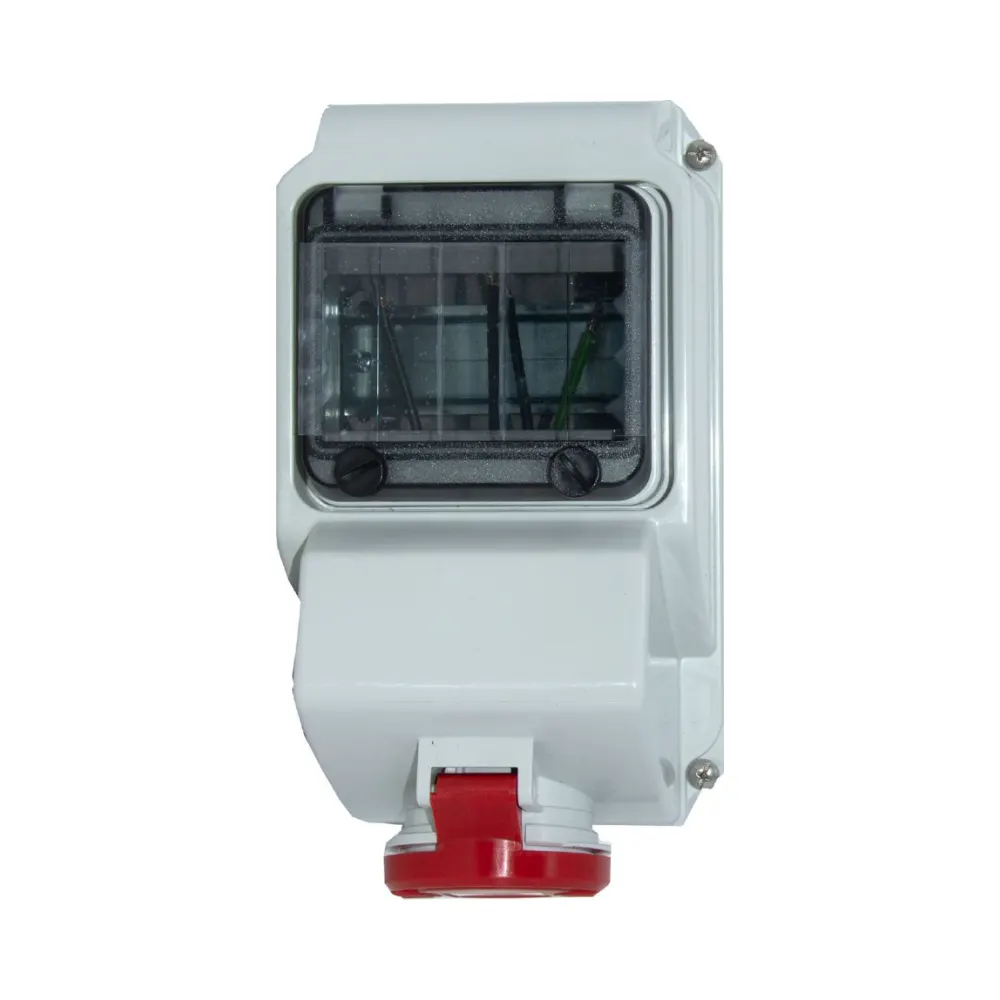

Durable 16A 400V 5 Pin Industrial Socket with RCD
Garo — URBB416-6SCR
The Garo Industrial 16A 400V 5 Pin Socket with RCD is engineered for safe and reliable three-phase + neutral connections. Built with a tough IP44 enclosure, it integrates a 4-pole Type A RCD, offering protection against electrical faults in demanding environments.
✨ Key Features – Garo Industrial 16A 400V 5 Pin Socket with RCD
- 16A, 5-pin, 400V three-phase + neutral industrial socket with built-in 4-pole Type A RCD
- Rated operating voltage: 230–400V, 50/60Hz
- IP44 protection against dust and splashes
- Generous wiring space with top, bottom, or rear cable entry
- Supplied with 3 × M25 cable glands
- Window for up to 5 modular devices
- Clock position 6, colour-coded per IEC 60309 for safe and standardised connection
Technical Overview – Garo URBB416-6SCR
- Rated current: 16A
- Operating voltage & frequency: 230–400V, 50/60Hz
- RCD (RCCB): Type A, 4-pole 40A; residual current ratings 30mA
- Rated short-circuit capacity: 10 kA
- Rated making/breaking capacity: 800 A
- Back-up fuse: 100A gG
- Terminals: 1–25 mm² (up to 35 mm² for 100A)
- Protection class: IP44
- Dimensions: approx. 249 × 141 mm
- Weight: 967 g
- Supplied with RCD module: GCD40-4-03
Included
- Garo URBB416-6SCR 16A 5-Pin 400V Industrial Socket
- Built-in 4-pole Type A RCD (GCD40-4-03)
- 3 × M25 cable glands
✅ Why Choose This Product?
The URBB416-6SCR provides a safe and convenient solution for three-phase + neutral connections with integrated RCD protection. Its robust design, IP44 sealing, and flexible wiring entry points make it ideal for industrial and site power distribution.
️ Guarantee & Compliance
Complies with EN/IEC 60309-1/-2 and EN/IEC 61008 standards, along with EU directives including the Low Voltage Directive 2014/35/EU and RoHS 2015/863/EU. Fully certified for safe industrial use.
