Description

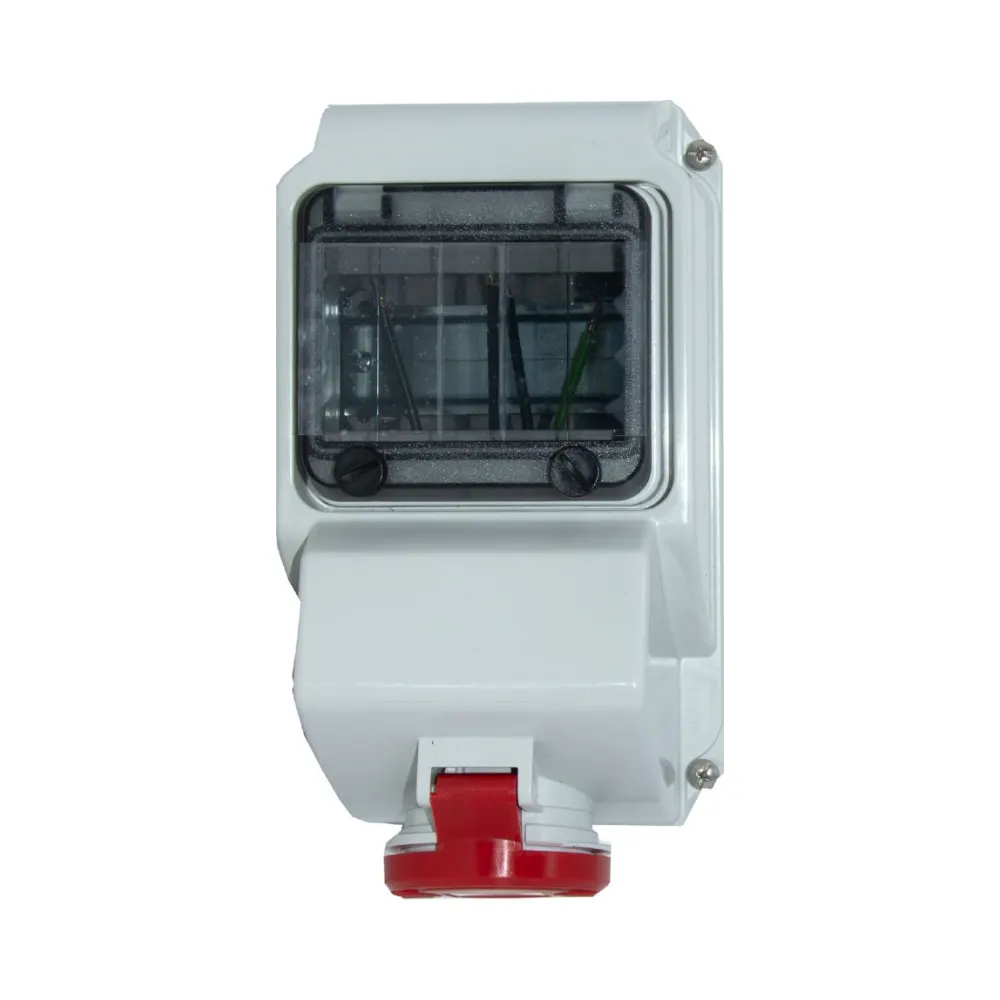

Heavy-Duty 16A 400V 4 Pin Industrial Socket with 30mA RCD
Garo — URBB316-6SCR
The Garo Industrial 16A 400V 4 Pin Socket with RCD provides reliable three-phase power with integrated earth-leakage protection. Built into a robust IP44 enclosure, it combines a 4-pin 400V socket with a built-in 4-pole Type A RCD for enhanced safety.
✨ Key Features – Garo Industrial 16A 400V 4 Pin Socket with RCD
- 16A, 4-pin, 400V three-phase industrial socket with integrated 4-pole Type A 30mA RCD
- IP44-rated protection against dust and water splashes
- Enclosure with generous wiring space for easy installation
- Top, bottom, or rear cable entry for flexible setup
- Supplied with 3 × M25 cable glands
- Window to accommodate up to 5 modular devices
- Clock position 6, colour coded per IEC 60309 for safe, standardised connections
Technical Overview – Garo URBB316-6SCR
- Rated current: 16A
- Operating voltage & frequency: 400V, 50/60Hz
- RCD (RCCB): Type A, 4-pole 40A; residual current ratings 30mA
- Rated short-circuit capacity: 10 kA
- Rated making/breaking capacity: 800 A
- Back-up fuse: 100A gG
- Terminals: 1–25 mm² (up to 35 mm² for 100A)
- Protection class: IP44
- Dimensions: approx. 249 × 141 mm
- Weight: 922 g
- Supplied with RCD module: GCD40-4-03
Included
- Garo URBB316-6SCR 16A 4-Pin 400V Industrial Socket
- Built-in 4-pole 40A Type A RCD (GCD40-4-03)
- 3 × M25 cable glands
✅ Why Choose This Product?
Choose the URBB316-6SCR for safe, RCD-protected three-phase connections in industrial and site settings. Its IP44 enclosure, flexible wiring options, and certified build quality make it a trusted solution for demanding power distribution needs.
️ Guarantee & Compliance
Complies with EN/IEC 60309-1/-2 and EN/IEC 61008 standards, as well as EU directives including Low Voltage Directive 2014/35/EU and RoHS 2015/863/EU. Certified for robust, industrial-grade performance.
