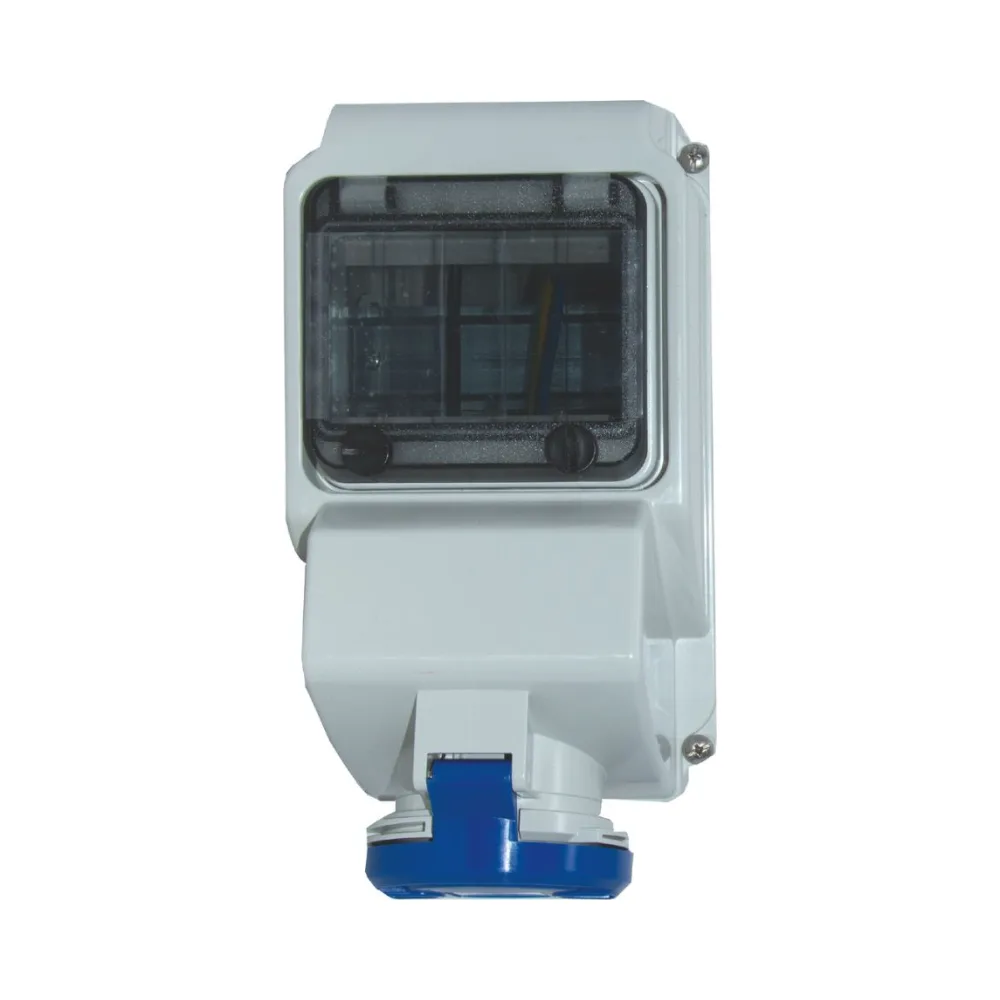

High-Performance 32A Industrial Socket with RCD Protection
Garo — URBB232-6SCR
The Garo Industrial 32A Socket with RCD is designed for safe 230V single-phase connections with integrated earth-leakage protection. This 3-pin 32A outlet, housed in a durable IP44 enclosure, comes complete with a 2-pole Type A RCD for dependable safety in industrial environments.
✨ Key Features – Garo Industrial 32A Socket with RCD
- 32A, 3-pin, 230V single-phase industrial socket with integrated 2-pole Type A RCD
- IP44 ingress protection for splash and dust resistance
- Spacious enclosure with top, bottom, or rear entry for flexible installation
- Supplied with 3 × M25 cable glands
- Window for up to 5 modular devices
- Clock position 6, colour coded per IEC 60309 standards
Technical Overview – Garo URBB232-6SCR
- Rated current: 32A
- Operating voltage & frequency: 200–250V, 50/60Hz
- RCD (RCCB): Type A, 2-pole 40A; residual current ratings 30mA
- Rated short-circuit capacity: 10 kA
- Rated making/breaking capacity: 800 A
- Back-up fuse: 100A gG
- Terminals: 2.5–6 mm² (solid up to 10 mm²)
- Protection class: IP44
- Dimensions: approx. 259 × 142 mm
- Weight: 972 g
- Supplied with RCD module: GCD40-2-03
Included
- Garo URBB232-6SCR 32A 3-Pin 230V Industrial Socket
- Built-in 2-pole Type A RCD (GCD40-2-03)
- 3 × M25 cable glands
✅ Why Choose This Product?
The URBB232-6SCR provides RCD-protected single-phase connections in heavy-duty settings. With its IP44 enclosure, flexible wiring access, and robust design, it ensures safety and reliability for demanding industrial power distribution tasks.
️ Guarantee & Compliance
Certified to EN/IEC 60309-1/-2 and EN/IEC 61008 standards. Meets EU directives including Low Voltage Directive 2014/35/EU and RoHS 2015/863/EU, ensuring safety, compliance, and long-term performance.
