Description

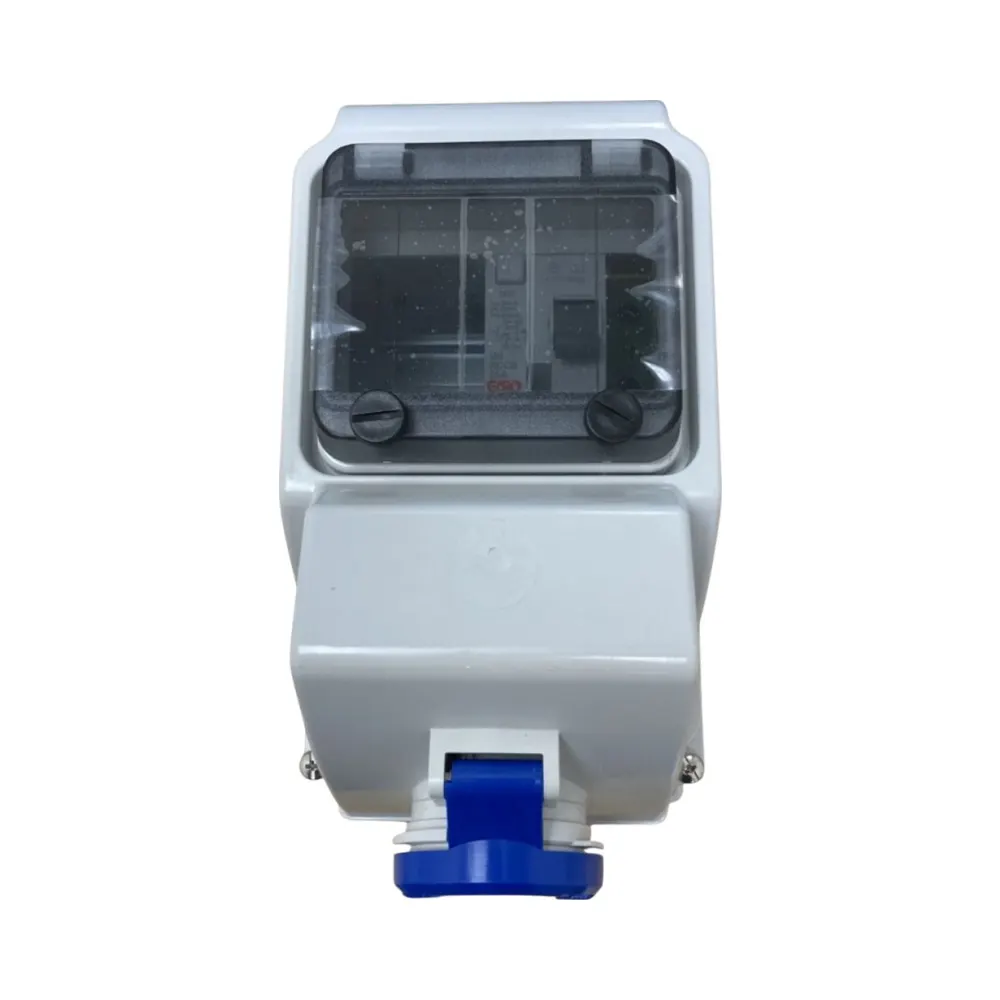

Rugged 16A Industrial Socket with Built-In RCD Protection
Garo — URBB216-6SCR
The Garo Industrial 16A Socket with RCD delivers safe 230V power distribution with integrated earth-leakage protection. This 3-pin outlet in a tough IP44 enclosure offers generous wiring space, multiple cable entry options, and certified, trade-ready performance.
✨ Key Features – Garo Industrial 16A 3 Pin Socket with 30mA RCD
- 16A, 3-pin, 230V single-phase industrial socket with integrated 2-pole Type A RCD
- IP44 ingress protection for splash and dust resistance
- Spacious enclosure with top, bottom, or rear cable entry
- Window for up to 5 modular devices
- Supplied with 3 × M25 cable glands for fast installation
- Clock position 6, voltage range 200–250V, 50/60Hz (IEC 60309 compliant)
Technical Overview – Garo URBB216-6SCR
- Rated current: 16A
- Operating voltage & frequency: 200–250V, 50/60Hz
- RCD (RCCB): Type A, 2-pole 25A; residual current ratings 30mA
- Rated short-circuit capacity: 10 kA; making/breaking capacity: 800A
- Back-up fuse: 100A gG
- Terminals: 1–25 mm² (up to 35 mm² on 100A variants)
- Protection class: IP44
- Enclosure measurements (approx.): 249 × 141 mm; weight: 922 g
- Supplied RCD module: GCD25-2-03
Included
- Garo URBB216-6SCR 16A 3-Pin 230V Industrial Socket
- Built-in 2-pole Type A 30mA RCD (GCD25-2-03)
- 3 × M25 cable glands
✅ Why Choose This Product?
Pick the URBB216-6SCR when you need dependable RCD-protected power in demanding environments. Its IP44 housing, flexible entries, and generous wiring space simplify installation and help keep people and equipment safe on sites and in workshops.
️ Guarantee & Compliance
Conforms to EN/IEC 60309-1/-2 and EN/IEC 61008, and relevant EU directives (LVD and RoHS). Designed and tested for robust, compliant industrial performance.
