IP65 Enclosed PV Safety Switch for Solar Panel Systems
Heavy-Duty DC Isolator for Solar PV Arrays – 1500V DC, Lockable, Dual String Compatible
Built for Larger PV Installations – Reliable Switching and Installer-Friendly Design

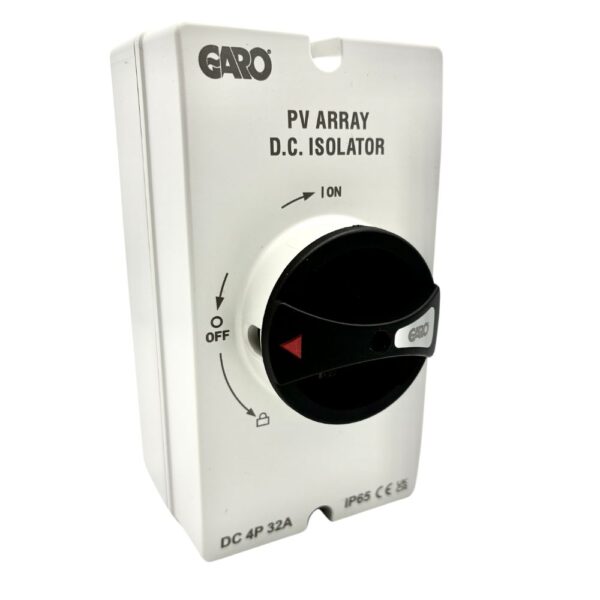

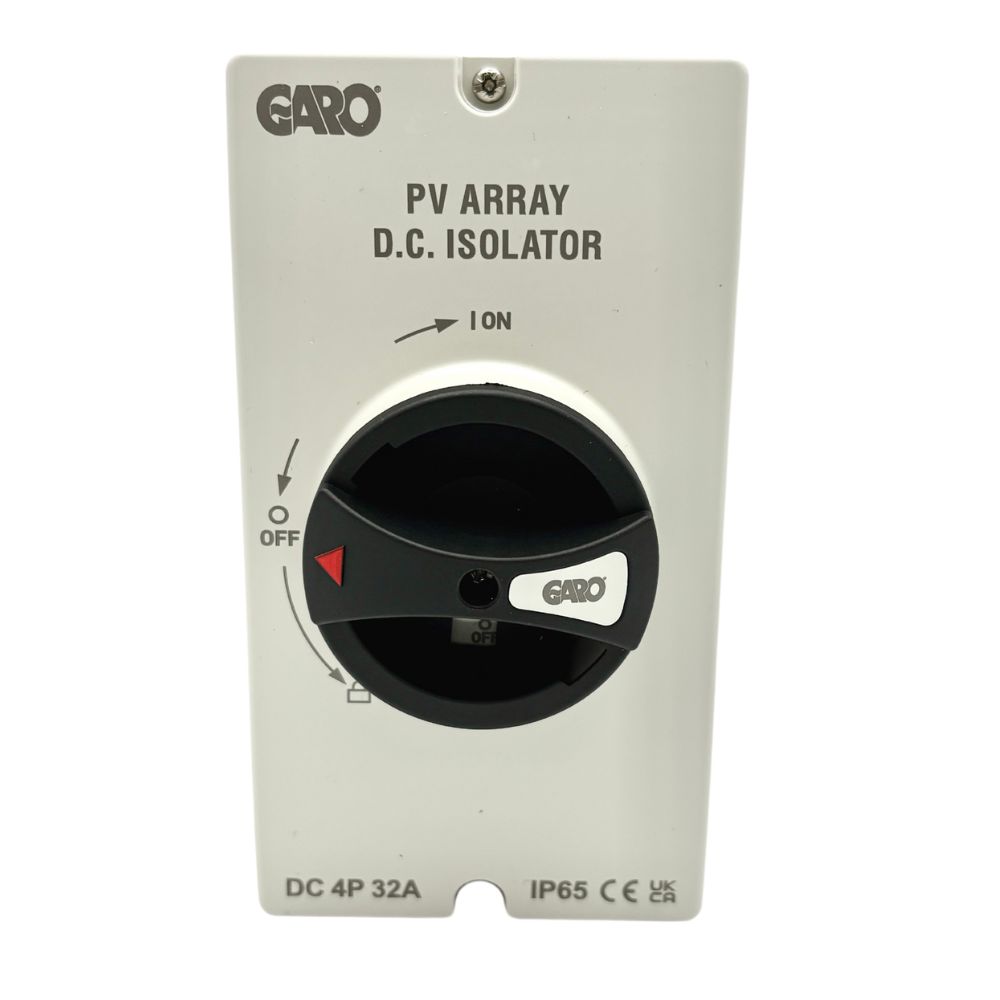

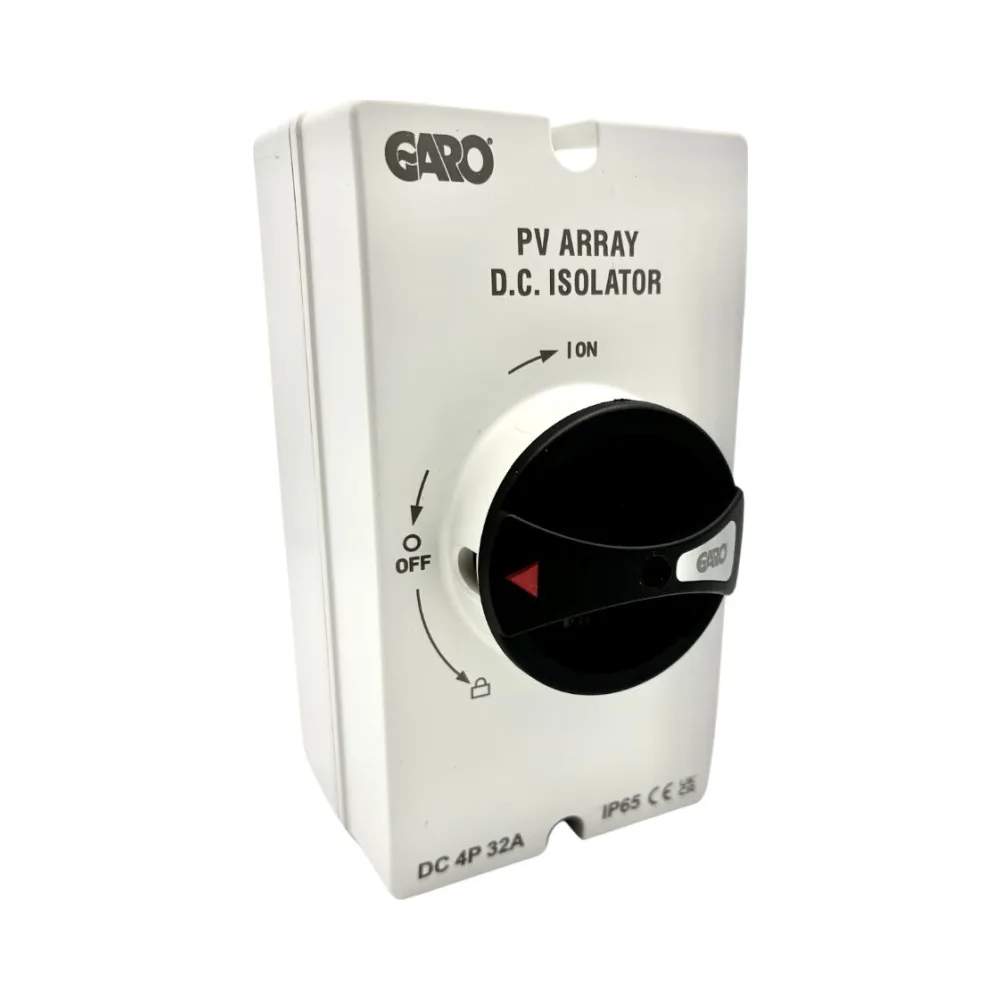

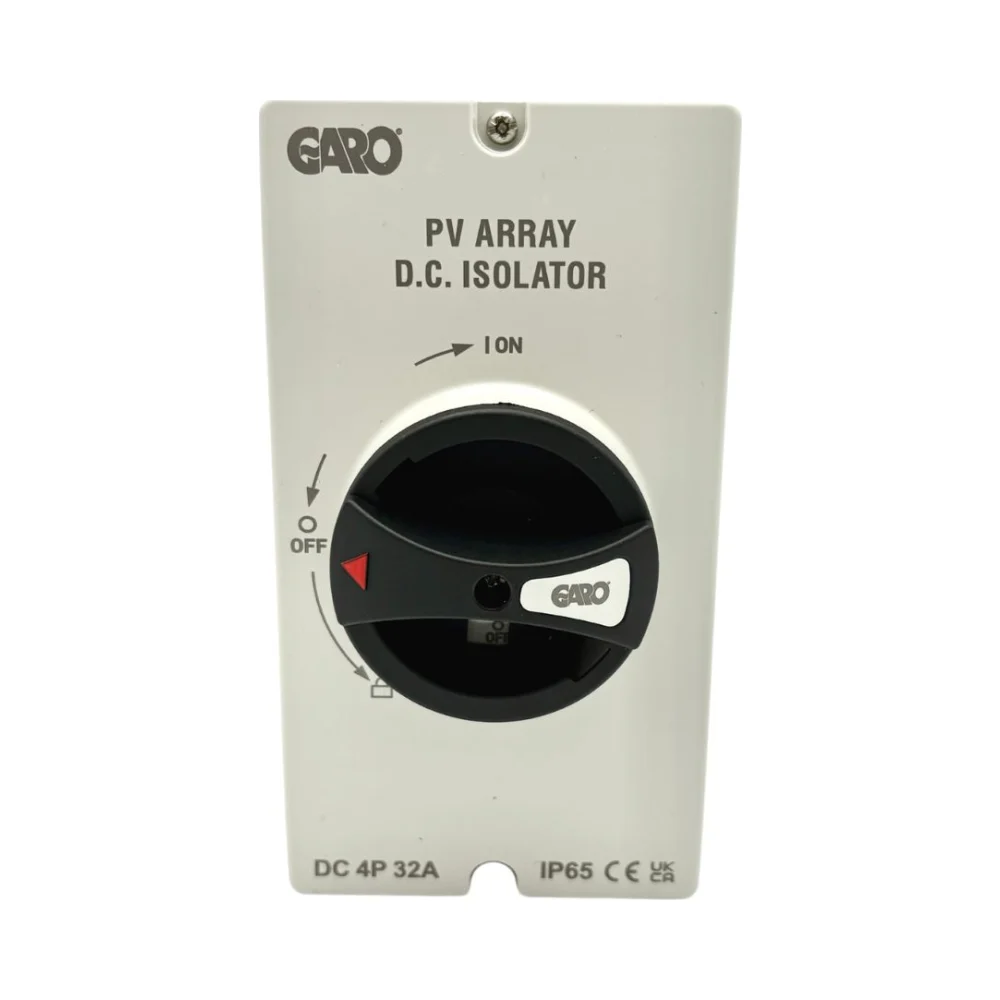

The Garo SIDC432IP65 32A DC Isolator is a high-capacity, 4-pole rotary switch designed to safely isolate DC circuits in solar PV installations. Housed in a tough IP65 polycarbonate enclosure, this isolator is ideal for use in outdoor or indoor settings, offering long-lasting protection from the elements and full compliance with PV electrical standards.
Rated for up to 1500V DC, this model is perfect for larger domestic or light commercial solar setups requiring dependable DC circuit isolation for one or two PV strings.
What’s Included
- 1 × Garo SIDC432IP65 32A 4 Pole DC Rotary Isolator
- Fully assembled IP65-rated polycarbonate enclosure
- Internal configuration links for flexible setup
- Stainless steel mounting screws
Key Product Features of the Garo SIDC432IP65 32A DC Rotary Isolator
- 4-pole DC rotary isolator rated at 32A, 1500V DC
- Weatherproof IP65 enclosure – ideal for outdoor installations
- Lockable, interlocked handle with 3-position switch (ON, OFF, OFF-locked)
- Suitable for dual or single PV string installations
- M12–M25 knockout cable entries

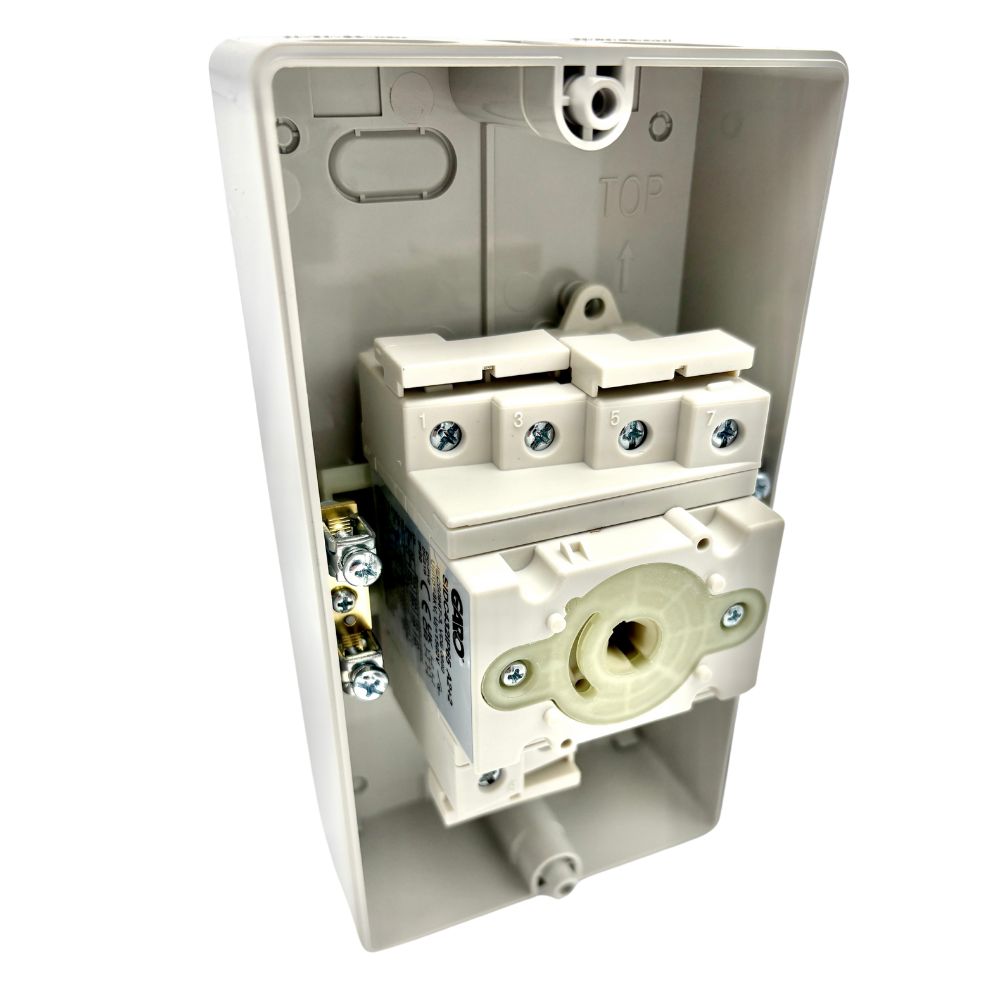

- Internal terminal guard for safe, accurate connections
- Dual earth bar for simplified wiring
Why Choose This Garo SIDC432IP65?
- Built specifically for PV solar panel systems
- Strong 32A rating suits larger residential and small commercial arrays
- Durable housing and stainless steel fittings ensure longevity
- Easy to wire and maintain – truly installer-friendly
- Lockable switch ensures safety during servicing
Technical Highlights of the Garo SIDC432IP65 32A DC Rotary Isolator
- Model: SIDC432IP65
- Rated Current: 32A
- Number of Poles: 4
- Max Voltage: 1500V DC
- Enclosure Rating: IP65
- Handle: Interlocked, lockable
- Mounting: Surface
- Dimensions: H 96mm × W 65mm × D 180mm
- Suitable For: Single or dual PV string systems
- Standards: CE compliant
️ About the Brand – Garo
- Garo designs premium isolators, enclosures, and low-voltage accessories
- Widely trusted by UK solar professionals for PV-specific safety gear
- Focused on installer ease-of-use, long-term reliability, and smart design
Summary of the Garo SIDC432IP65 DC Isolator
The Garo SIDC432IP65 is a 32A 4-pole DC rotary isolator rated to 1500V DC and housed in a sealed IP65 enclosure. Built to handle dual string PV systems, it offers robust weather protection, lockable security, and reliable performance in any solar installation.
