Description
IP65 Enclosed PV Safety Switch for Solar Panel Systems
Heavy-Duty DC Isolator for Solar PV Arrays – 1500V DC, Lockable, Dual String Compatible
Built for small to medium PV installations, the Garo SIDC416IP65 16A DC Isolator is a compact and secure 4-pole rotary switch designed to safely disconnect DC circuits in solar systems. Housed in a durable IP65-rated polycarbonate enclosure, this model provides weather-resistant protection and full compliance with modern PV safety standards.
With a 1500V DC voltage rating and dual string compatibility, it’s ideal for isolating one or two PV arrays in smaller domestic or light commercial solar setups.
What’s Included
- 1 × Garo SIDC416IP65 16A 4 Pole DC Rotary Isolator

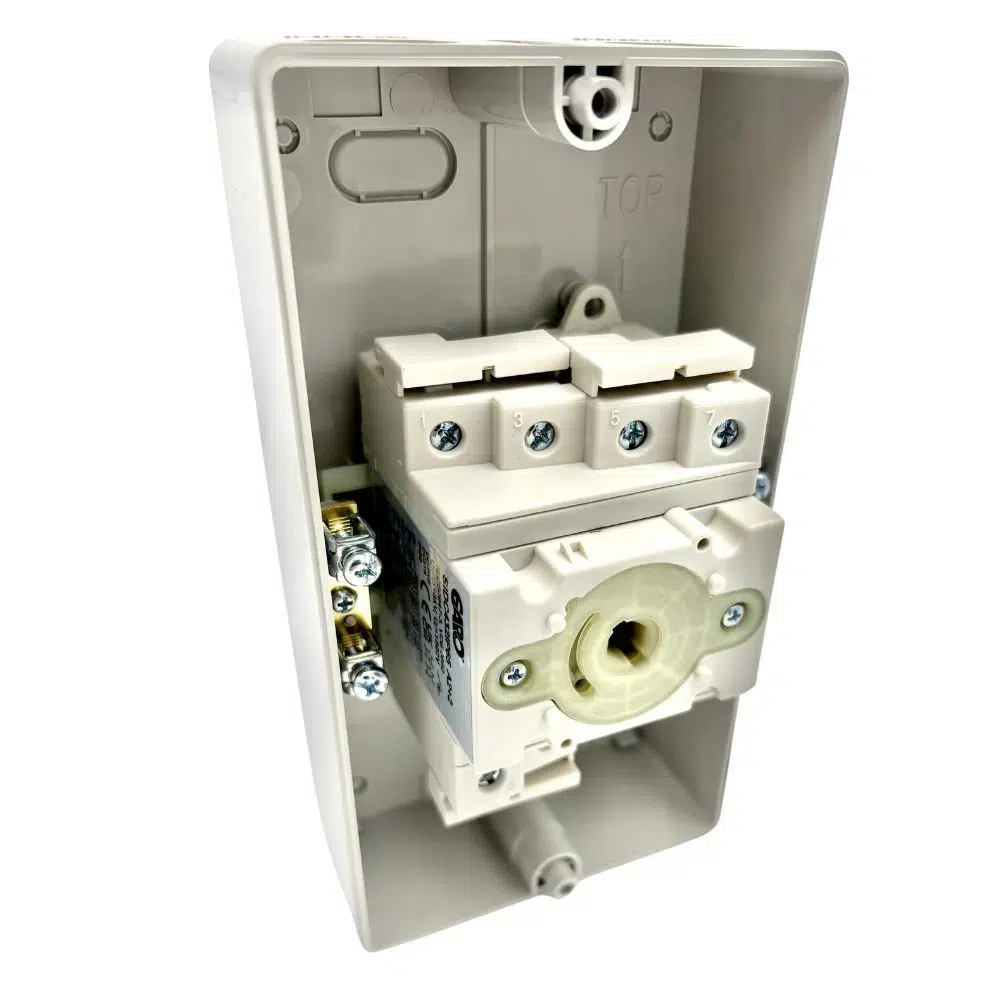

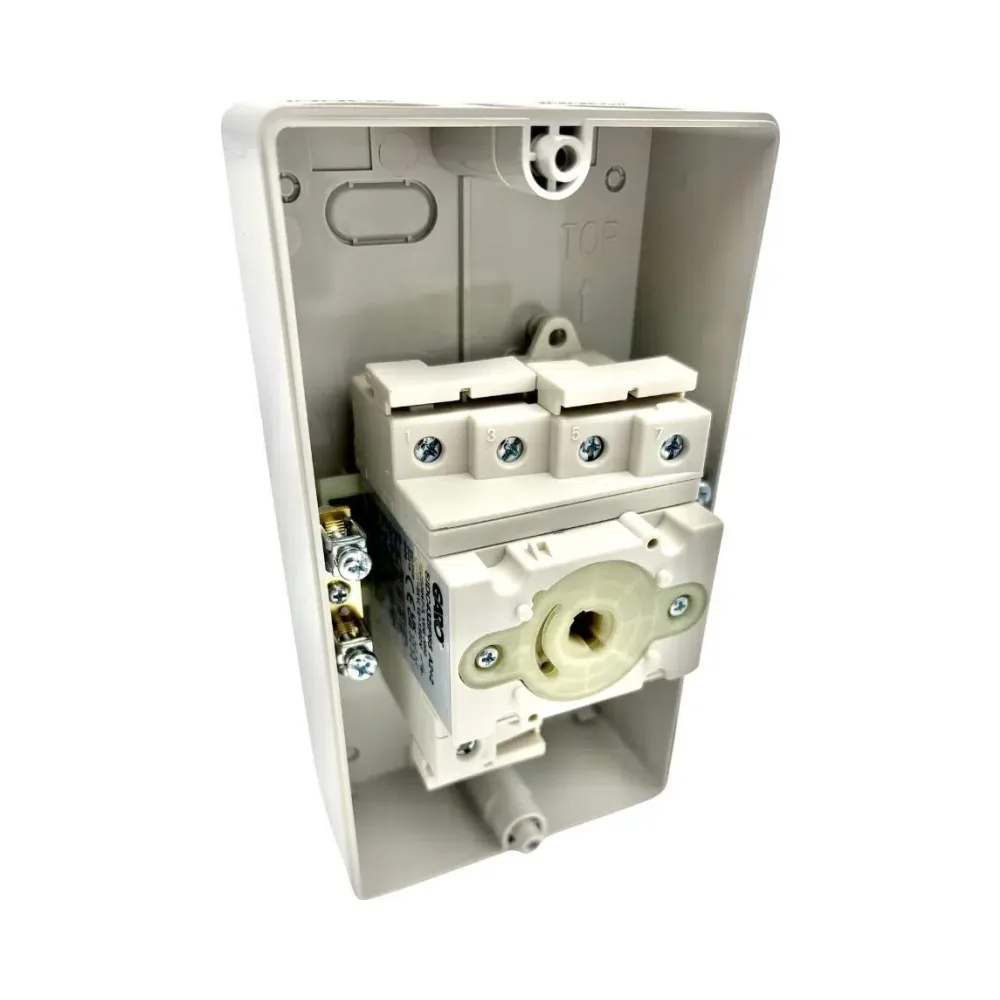

- Fully assembled IP65-rated polycarbonate enclosure
- Internal configuration links for flexible setup
- Stainless steel mounting screws
Key Product Features of the Garo SIDC416IP65 16A DC Rotary Isolator
- 4-pole DC rotary isolator rated at 16A, 1500V DC
- Tough IP65 weatherproof enclosure – perfect for outdoor installs
- Lockable handle with 3-position rotary switch (ON, OFF, OFF-locked)
- Compatible with single or dual PV string arrays
- M12–M25 knockout cable entry points for flexible cable management
- Internal terminal guard for safe, reliable connections
- Dual earth bar for clean, straightforward wiring
Why Choose This Garo SIDC416IP65?
- Engineered for modern solar PV panel installations
- 16A current rating is suitable for smaller systems and one or two strings
- Installer-friendly layout makes wiring quicker and safer
- Lockable isolator improves safety during maintenance
- Stainless steel fixings and sealed enclosure ensure long-term durability
Technical Highlights of the Garo SIDC416IP65 16A DC Rotary Isolator
- Model: SIDC416IP65
- Rated Current: 16A
- Voltage Rating: 1500V DC
- Number of Poles: 4
- Enclosure Rating: IP65
- Handle Type: Interlocked, lockable
- Mounting: Surface-mounted
- Suitable For: Single or dual PV string installations
- Standards: CE compliant
About the Brand – Garo
Garo is a trusted name in the solar industry, offering durable, high-performance isolators, enclosures, and accessories built with both installers and long-term users in mind. Known for consistent quality and installer-focused designs, Garo products are widely used across UK PV installations.
Summary of the Garo SIDC416IP65 DC Isolator
The Garo SIDC416IP65 is a compact 16A 4-pole DC rotary isolator rated for up to 1500V DC and enclosed in a weatherproof IP65-rated case. Designed for safe and efficient PV string isolation, it’s ideal for small-scale solar installations needing secure, reliable DC disconnection.
