Description
Heavy-Duty IP67 Connector for Safe Site Power

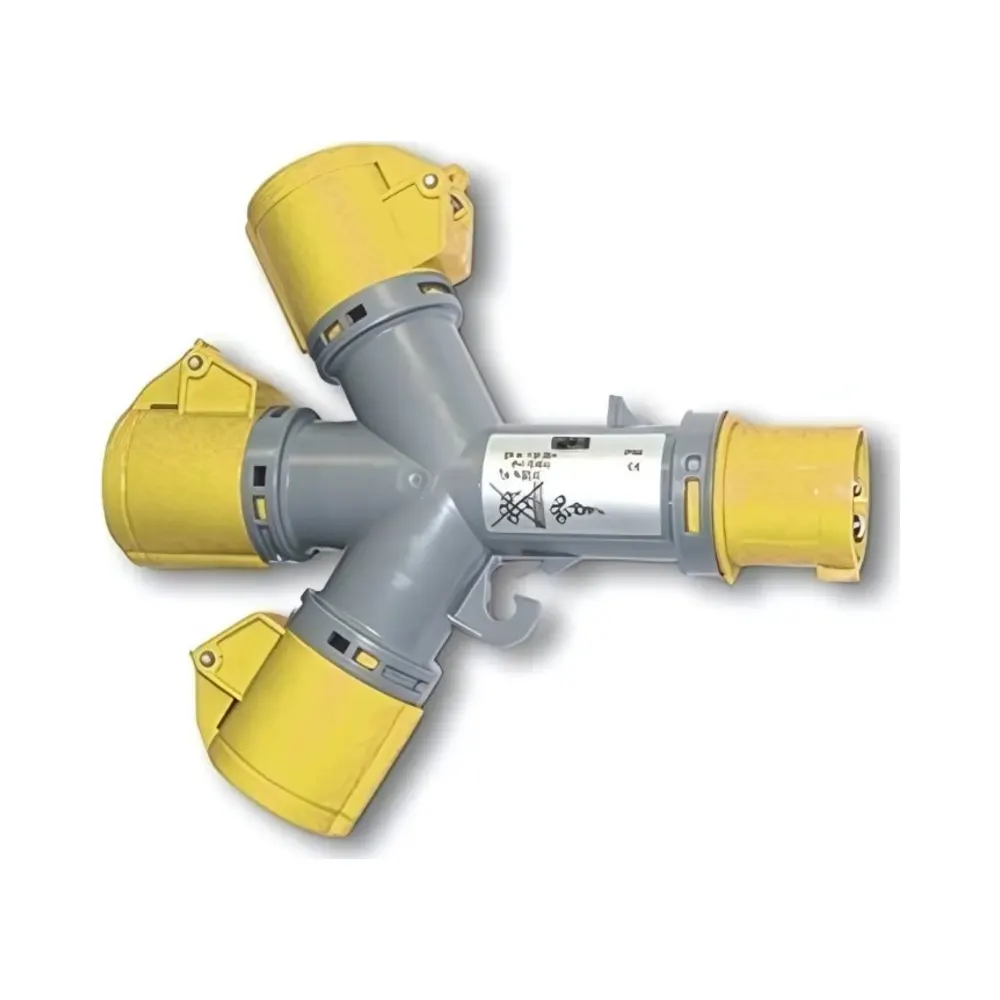

Garo – PV3S216-4S
The Garo 3 Way IP67 Connection Outlet 16A 110V-130V delivers reliable site power distribution with superior IP67 protection. Designed for tough working conditions, this 16A 3-pin connector ensures watertight performance and full compliance with international safety standards.
Equipped with one 16A socket inlet and three 16A socket outlets, it allows secure multiway power connections directly from an isolating transformer. Its IP67 rating provides dust-tight and water-immersion resistance, making it ideal for heavy-duty site and outdoor use.
✨ Key Features – Garo 3 Way IP67 Connection Outlet 16A 110V-130V
- 3 way 16A connection outlet, 110–130V, 50/60Hz
- 1 x IEC-CEE 16A socket inlet, 3 x 16A socket outlets
- Rugged IP67-rated protection (dust-tight & immersion safe)
- Cable size compatibility: 1.5–4 mm²
- Standardised earth pin clock position 4 (yellow coded)
- Certified to IEC/EN 60309-1 and IEC/EN 60309-2
Technical Overview – Garo 3 Way IP67 Connection Outlet 16A 110V-130V
- Voltage: 110–130V
- Frequency: 50/60Hz
- Rated Current: 16A
- Pin Configuration: 3-pin (earth at 4h clock position, yellow)
- Cable entry capacity: 1.5–4 mm²
- Protection class: IP67 (dust-tight, water immersion protected)
- Certification: IEC 60309, EN 60309, BS 4343, VDE 0623, SEMKO 117
- Outlets: 3 x 16A IEC-CEE standard sockets
Included
- 1 x Garo PV3S216-4S 3 way 16A IP67 connection outlet
- Documentation & conformity certification
✅ Why Choose This Product?
The Garo PV3S216-4S is built for demanding site conditions where maximum ingress protection is essential. Its IP67 watertight design, rugged housing, and certified compliance ensure safe and long-lasting power distribution in the toughest environments.
️ Guarantee & Compliance
All Garo plugs and sockets are CE-marked and comply with IEC 60309 standards. Certified under LVD 2014/35/EU and RoHS Directive 2011/65/EU for electrical safety and environmental protection.
