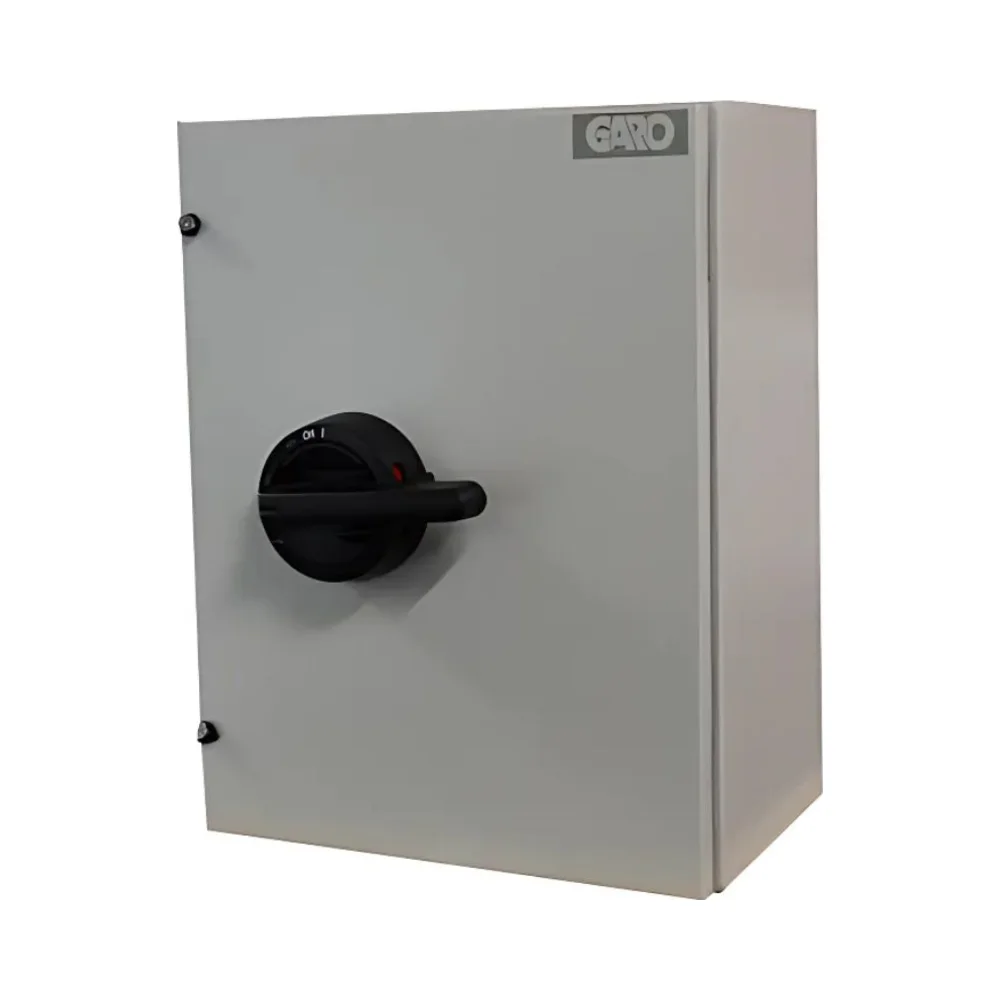

Heavy-Duty Garo 400A Metal Clad Isolator
Garo – GSW4400IP55M
The Garo 400A Metal Clad Isolator is engineered for large-scale electrical systems, providing safe and dependable circuit isolation under heavy loads. With a rugged metal enclosure and IP55 rating, it withstands dust and water ingress for reliable performance in industrial environments.
Delivering 400A operational current and up to 355 kW AC-23 at 400/415V, this isolator is built for maximum endurance, tested to 3,200 electrical and 10,000 mechanical operations. Designed to EN 60947-1 and EN 60947-3, it meets stringent safety and compliance standards.
✨ Key Features – Garo GSW4400IP55M 400A Isolator
- Metal clad 4-pole isolator with IP55 protection.
- Rated operational current: 400A.
- Operational power: 355kW (AC-23 at 400/415V).
- Impulse withstand voltage Uimp: 12kV.
- Backup protection: max fuse 400A; Ik 26kA RMS / 80kA peak.
- Short circuit making capacity Icm: 12kA.
- Terminal capacity: M10 bolts, 30–44mm²; max torque 30Nm.
- Durability: 3,200 electrical / 10,000 mechanical operations.
Technical Overview – Garo 400A Metal Clad Isolator
- Type: Enclosed 4-pole load break switch, metal clad housing.
- Rated insulation voltage Ui: 1000V.
- Utilisation categories: AC-21 / AC-22 / AC-23 at 400/415V.
- Rated operational current: 400A | Power: up to 355kW.
- Backup fuse rating: 400A.
- Standards: EN 60947-1, EN 60947-3; CE & RoHS compliant.
✅ Why Choose This Product?
The Garo GSW4400IP55M provides high-capacity isolation for large industrial installations. Its 400A rating, IP55 protection, and proven durability make it the right choice for demanding switchgear applications where reliability and compliance cannot be compromised.
️ Guarantee & Compliance
This Garo isolator complies with the Low Voltage Directive 2014/35/EU and RoHS Directive 2011/65/EU. Tested to EN 60947-1 and EN 60947-3, it ensures long-term safety and robust performance in high-current systems.
