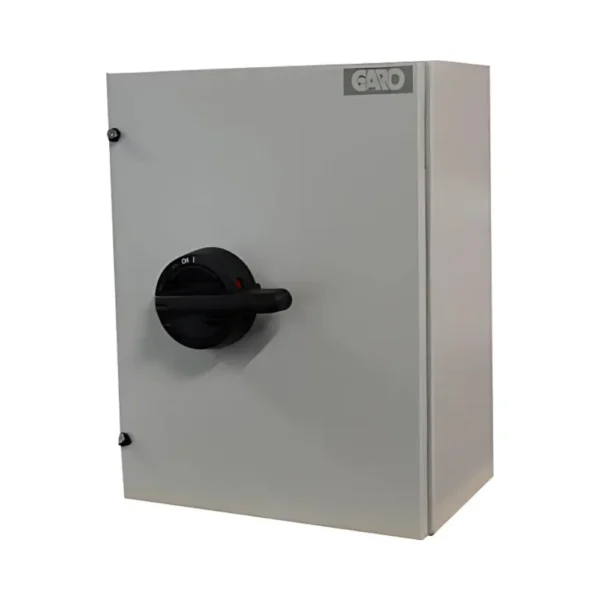

High-Capacity Garo 200A Metal Clad Isolator
Garo – GSW4200IP55M
The Garo 200A Metal Clad Isolator is built for heavy-duty circuit isolation in demanding environments. With a robust metal enclosure and IP55 protection, it safeguards high-capacity installations while ensuring long-lasting reliability in industrial and commercial applications.
Rated at 200A, this isolator delivers high operational performance, with endurance proven at 1,600 electrical operations and 2,000 mechanical operations. Designed to EN 60947-1 and EN 60947-3, it provides maximum safety, durability, and compliance.
✨ Key Features – Garo GSW4200IP55M 200A Isolator
- Heavy-duty 4-pole metal clad isolator with IP55 protection.
- Rated operational current: 200A.
- Rated operational power: 110kW (AC-23 at 400/415V).
- Impulse withstand voltage Uimp: 8kV.
- Short-circuit protection: max backup fuse 250A; Ik 22kA peak.
- Terminal capacity: M8 bolts, 15–22mm² conductors; max torque 30Nm.
- Durability: 1,600 electrical / 2,000 mechanical operations.
Technical Overview – Garo 200A Metal Clad Isolator
- Type: Enclosed 4-pole load break switch, metal clad housing.
- Rated insulation voltage Ui: 1000V.
- Operational categories: AC-21 / AC-22 / AC-23 at 400/415V.
- Operational power: 110kW at AC-23 400/415V.
- Backup protection: 250A fuse; R.M.S. Ik 22kA peak.
- Endurance: Electrical 1,600 ops; Mechanical 2,000 ops.
- Standards: EN 60947-1, EN 60947-3; CE & RoHS compliant.
✅ Why Choose This Product?
The Garo GSW4200IP55M offers unmatched isolation capacity with its 200A rating and rugged IP55 build. Perfect for large industrial systems, it ensures safety, compliance, and durability in heavy-load environments.
️ Guarantee & Compliance
Conforms to the Low Voltage Directive 2014/35/EU and RoHS 2011/65/EU. Fully compliant with EN 60947-1 and EN 60947-3 standards, ensuring robust safety and performance for high-current switchgear.
