Enhanced Meter Isolation with Built-In Surge Protection

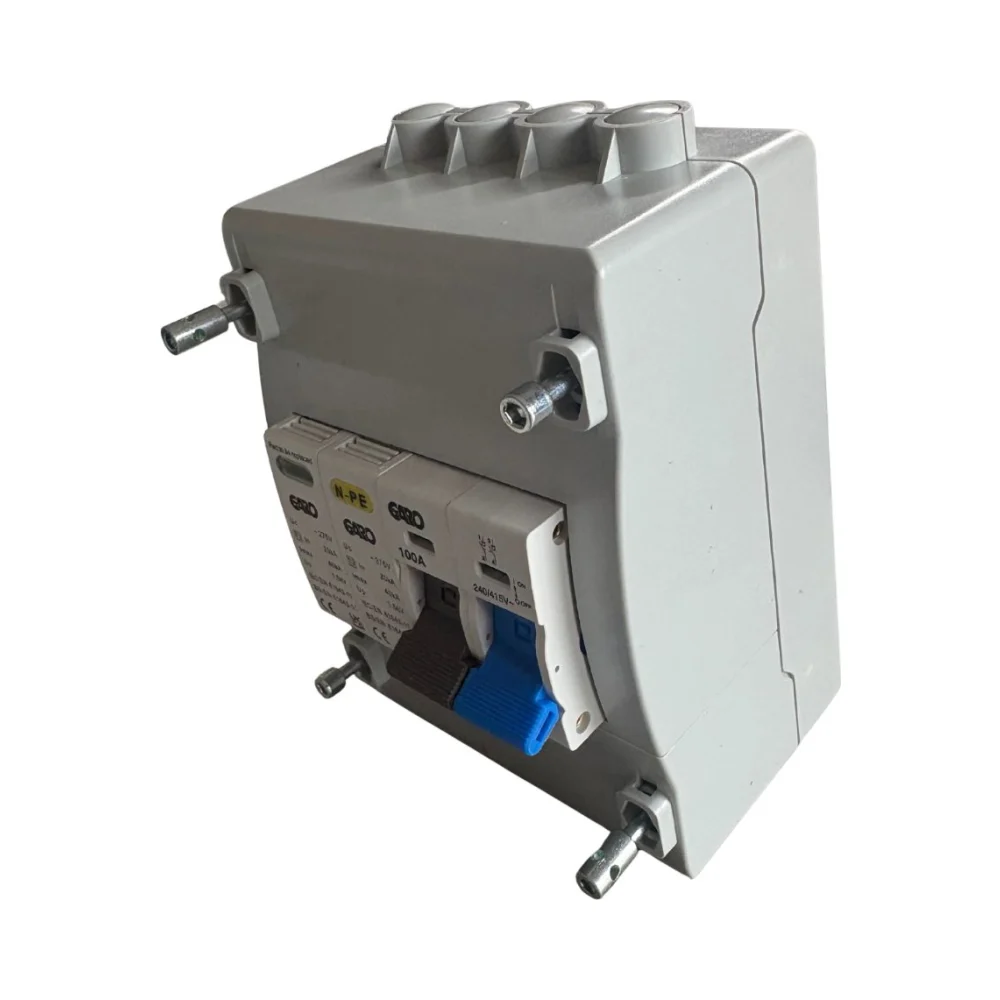

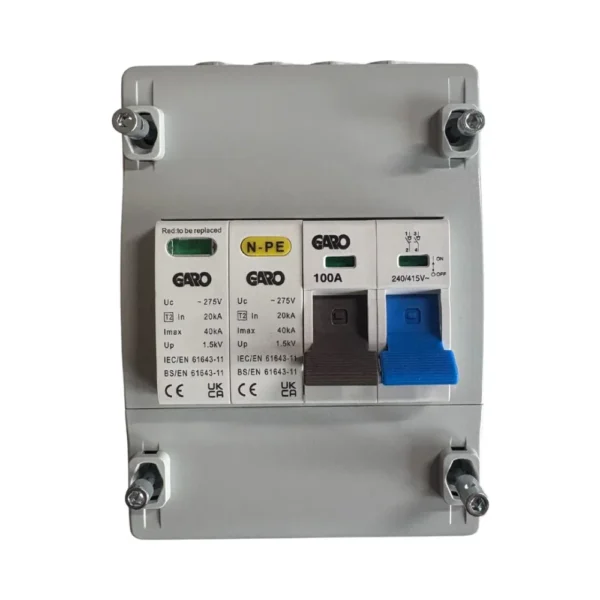

Garo GPS2100M – Meter Supply Isolator with Surge Protection
The Garo Meter Supply Isolator with Surge Protection combines safe disconnection with integrated surge defence. Rated at 100A, this 2-pole modular device provides both isolation and reliable protection against transient overvoltages.
Designed for professional meter installations, the GPS2100M features a robust enclosure, IP40 protection, and compliance with IEC/EN 60947-3 and IEC 61643-11. With its compact DIN rail mounting and clear red/green contact indicator, it ensures efficiency and safety in residential and commercial setups.
Key Features – Garo Meter Supply Isolator with Surge Protection
- 2 Pole 100A meter supply isolator with built-in surge protection
- Integrated Type 2 surge protective device (40kA)
- IEC/EN 60947-3 and IEC 61643-11 compliant
- Compact DIN rail design with IP40 enclosure
- Clear mechanical red/green contact position indicator
- Top or bottom supply connection for flexible installation
Note: Although the internal busbar is rated at 63 A, it does not carry continuous current. It is used only for the SPD and conducts surge current momentarily during transient overvoltage events. This does not affect the overall 100 A rating of the meter isolator main switch.
Technical Overview – Garo Meter Supply Isolator with Surge Protection
- Rated current (In): 100A
- Rated operational voltage (Ue): 230/400V AC
- Rated insulation voltage (Ui): 1000V
- Rated impulse withstand voltage (Uimp): 4kV
- Utilisation category: AC-22A
- Short-time withstand current: 16kA
- Surge protection: Type 2, 40kA
- Poles: 2
- Frequency: 50/60Hz
- Device height: 68mm (DIN rail EN60715)
- Device width: 36mm (2 x 18mm modules)
- Terminal capacity: 1–50mm²
- Terminal screw: M6 (Pozidrive PZ2)
- Terminal torque: max 3Nm
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
✅ Why Choose This Product?
The Garo GPS2100M provides two-in-one protection by combining a 100A isolator with integrated surge defence. Its compact design, compliance with international standards, and installer-friendly layout make it the perfect solution for modern meter installations.
️ Guarantee & Compliance
This product meets the Low Voltage Directive (2014/35/EU) and RoHS Directive (2011/65/EU). Built to IEC/EN 60947-3 and IEC 61643-11 standards, it ensures both safety and reliability for demanding installations.
