Description

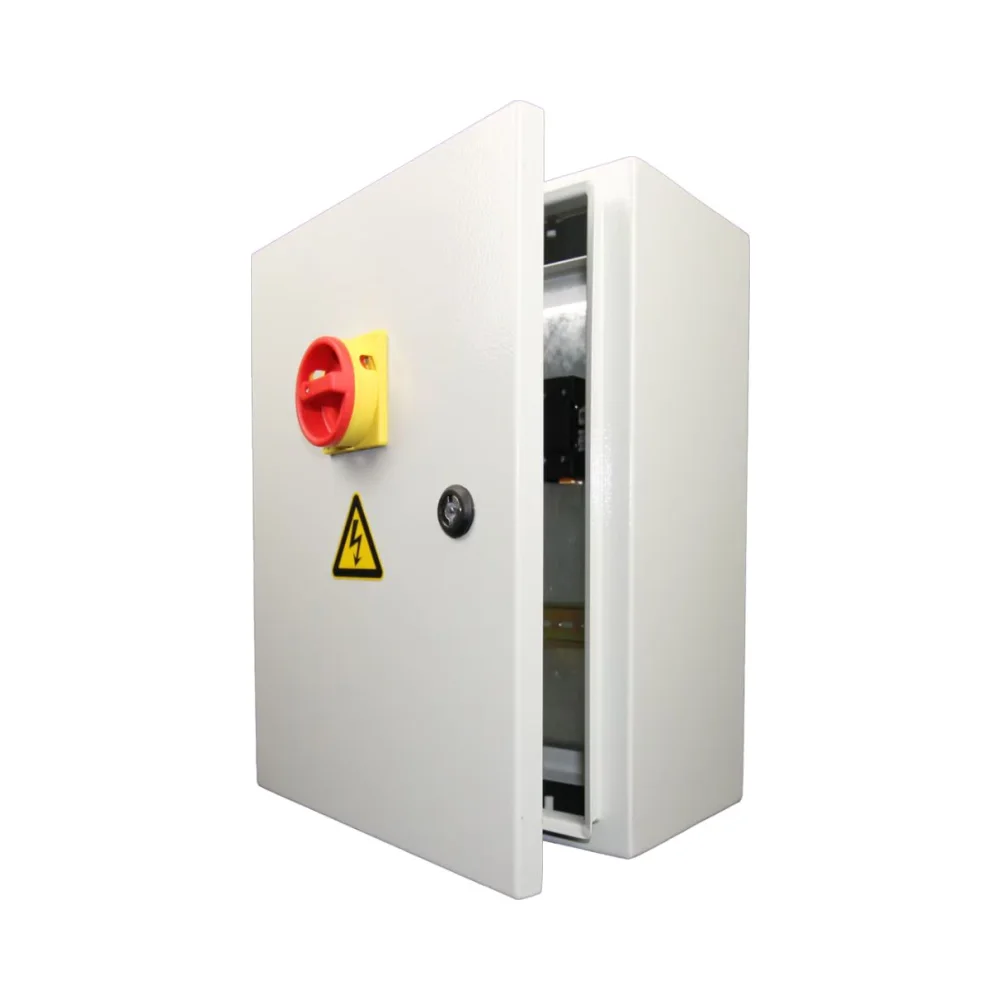

Heavy-Duty Garo 63A Metal Clad Isolator (IP65, 4-Pole)
Garo – GSI463
The Garo 63A Metal Clad Isolator (GSI463) ensures safe, reliable circuit disconnection in demanding environments. Its rugged metal-clad housing and IP65 sealing protect against dust and water, making it ideal for industrial and commercial installations.
Tested to EN 60947-1 and EN 60947-3, this isolator delivers 63A operational current and 22 kW AC-23 at 400/415V. With 2,000 electrical and 20,000 mechanical operations, it offers exceptional endurance and consistent safety performance.
✨ Key Features – Garo GSI463 IP65 Isolator
- Metal-clad 4-pole enclosed switch (isolator) with IP65 protection.
- Rated operational current: 63A; 22kW at AC-23 400/415V.
- High durability: 2,000 electrical / 20,000 mechanical operations.
- Impulse withstand voltage Uimp: 8kV.
- Short-circuit back-up: max 50A fuse; prospective Ik: 8kA.
- Terminal capacity: 6–16mm² copper; max terminal torque: 2.2Nm.
Technical Overview – Garo 63A Metal Clad Isolator
- Type: Enclosed switch/isolator, 4-pole, metal enclosure.
- Rated insulation voltage Ui: 1000V; Ith: 63A.
- Utilisation categories: AC-21 / AC-22 / AC-23 at 400/415V.
- Rated operational power: 22kW (AC-23, 400/415V).
- Backup protection: Max fuse 50A; R.M.S. Ik 8kA.
- Endurance: Electrical 2,000 ops; Mechanical 20,000 ops.
- Standards: EN 60947-1, EN 60947-3; CE & RoHS compliant.
✅ Why Choose This Product?
The Garo GSI463 offers superior isolation capacity with a 63A rating, strong metal-clad build, and IP65 sealing. Ideal for heavy-duty circuits, it delivers reliable operation and compliance with international standards.
️ Guarantee & Compliance
Conforms to the Low Voltage Directive 2014/35/EU and RoHS 2011/65/EU. Fully compliant with EN 60947-1 and EN 60947-3 standards for enclosed switchgear safety and performance.
