Description

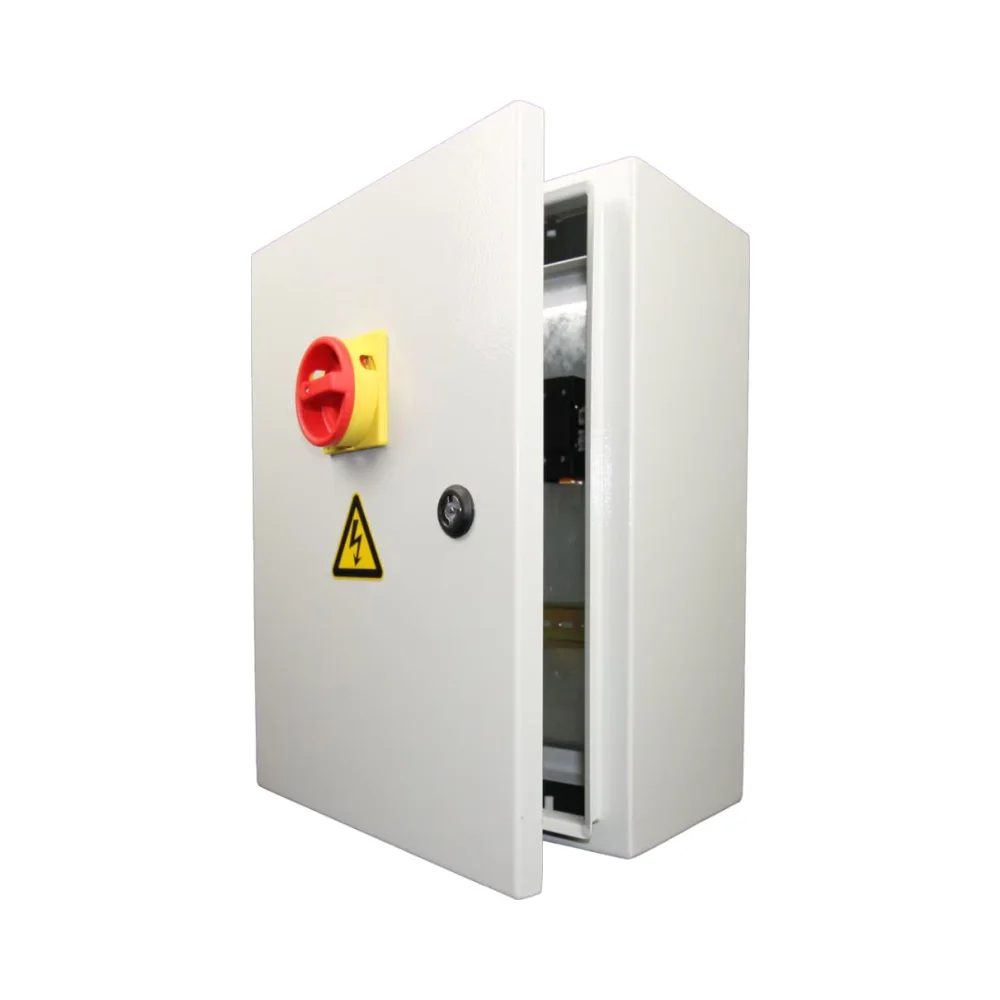

Heavy-Duty Garo 32A Metal Clad Isolator (IP65, 4-Pole)
Garo – GSI432
The Garo 32A Metal Clad Isolator (GSI432) provides secure, visible circuit disconnection for demanding sites. Its metal enclosure and IP65 sealing deliver dependable performance against dust and water, ideal for industrial and commercial installations.
Designed to EN 60947-1 and EN 60947-3, it offers 32A operational current and 11 kW AC-23 at 400/415 V, with long service life proven by 2,000 electrical and 20,000 mechanical operations.
✨ Key Features – Garo GSI432 IP65 Isolator
- Metal-clad 4-pole enclosed switch (isolator), IP65 ingress protection.
- Rated operational current: 32 A; 11 kW at AC-23 400/415 V.
- High durability: 2,000 electrical / 20,000 mechanical operations.
- Impulse withstand voltage Uimp: 8 kV.
- Short-circuit back-up: max 50 A fuse; prospective Ik: 8 kA.
- Terminal capacity: 6–16 mm² copper; max terminal torque: 2.2 Nm.
Technical Overview – Garo 32A Metal Clad Isolator
- Type: Enclosed switch/isolator, 4-pole, metal enclosure.
- Rated insulation voltage Ui: 1000 V; Ith: 32 A.
- Utilisation categories: AC-21 / AC-22 / AC-23 at 400/415 V.
- Rated operational power: 11 kW (AC-23, 400/415 V).
- Backup protection: Max fuse 50 A; R.M.S. Ik 8 kA.
- Endurance: Electrical 2,000 ops; Mechanical 20,000 ops.
- Standards: EN 60947-1, EN 60947-3; CE & RoHS compliant.
✅ Why Choose This Product?
Pick the GSI432 when you need a tough, IP65-sealed Garo 32A Metal Clad Isolator that sustains frequent operations, withstands harsh environments, and meets recognised switchgear standards for safe isolation.
️ Guarantee & Compliance
Conforms to the Low Voltage Directive 2014/35/EU and RoHS 2011/65/EU. Designed and assessed to EN 60947-1 and EN 60947-3 for enclosed switchgear safety and performance.
