Description

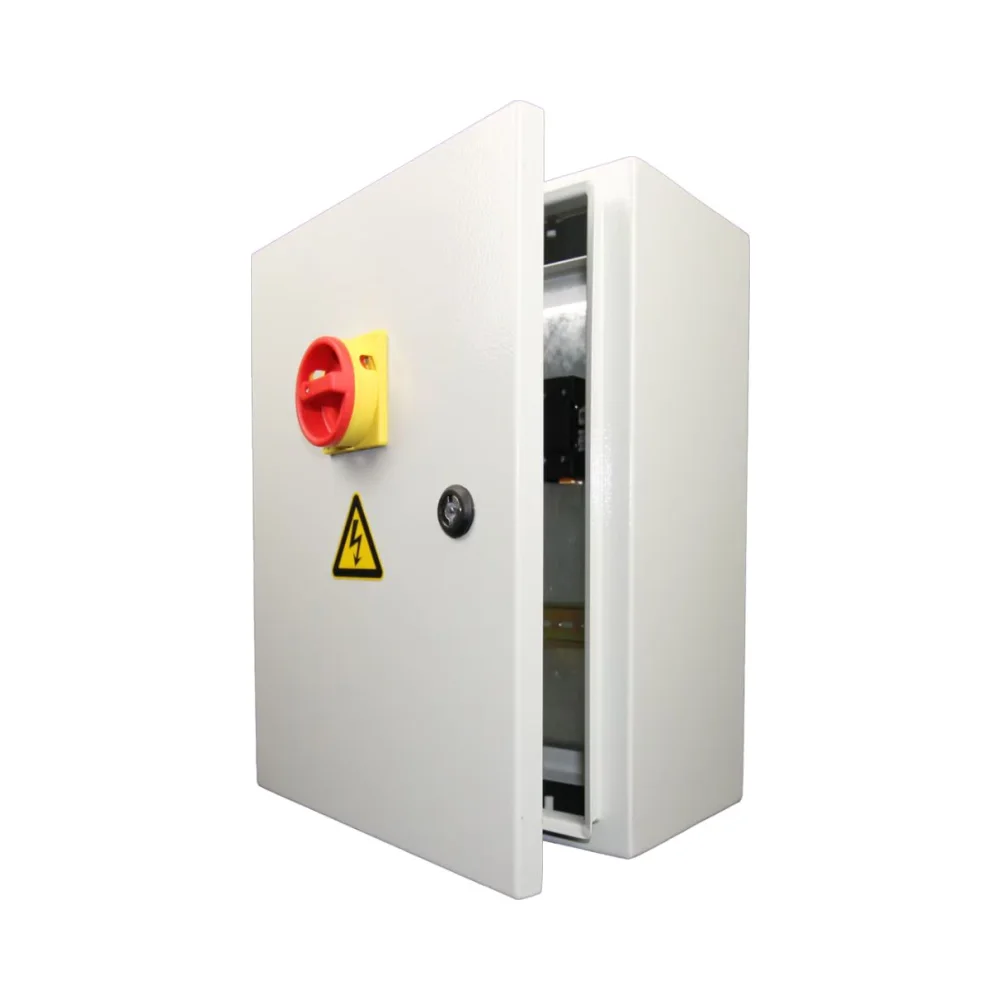

Robust Garo 100A Metal Clad Isolator (IP65, 4-Pole)
Garo – GSI4100
The Garo 100A Metal Clad Isolator (GSI4100) provides safe and dependable isolation for high-capacity circuits. Built with a heavy-duty metal enclosure and IP65 sealing, it withstands harsh environments, offering secure operation for industrial and commercial use.
Compliant with EN 60947-1 and EN 60947-3, the GSI4100 delivers a rated current of 100A and 30 kW operational power at AC-23 400/415V. With tested endurance of 2,000 electrical and 20,000 mechanical operations, it ensures reliable long-term service.
✨ Key Features – Garo GSI4100 IP65 Isolator
- IP65-rated, 4-pole metal clad isolator.
- Rated operational current: 100A; 30kW at AC-23 400/415V.
- Impulse withstand voltage Uimp: 8kV.
- Short-circuit back-up: max 50A fuse; prospective Ik: 8kA.
- Durability: 2,000 electrical / 20,000 mechanical operations.
- Terminal capacity: 10–35mm² copper; max torque: 2.2Nm.
Technical Overview – Garo 100A Metal Clad Isolator
- Type: Enclosed 4-pole switch/isolator, metal clad housing.
- Rated insulation voltage Ui: 1000V; Ith: 100A.
- Utilisation categories: AC-21 / AC-22 / AC-23 at 400/415V.
- Rated operational power: 30kW (AC-23, 400/415V).
- Backup protection: Max fuse 50A; R.M.S. Ik 8kA.
- Standards: EN 60947-1, EN 60947-3; CE & RoHS compliant.
✅ Why Choose This Product?
Choose the Garo GSI4100 when high-current isolation is essential. Its 100A capacity, IP65 protection, and heavy-duty build make it a reliable option for large industrial systems and demanding installations.
️ Guarantee & Compliance
This Garo isolator complies with the Low Voltage Directive 2014/35/EU and RoHS Directive 2011/65/EU. Fully tested to EN 60947-1 and EN 60947-3 standards, it ensures safe and consistent isolation performance.
