Description
Reliable Meter Isolation with Garo

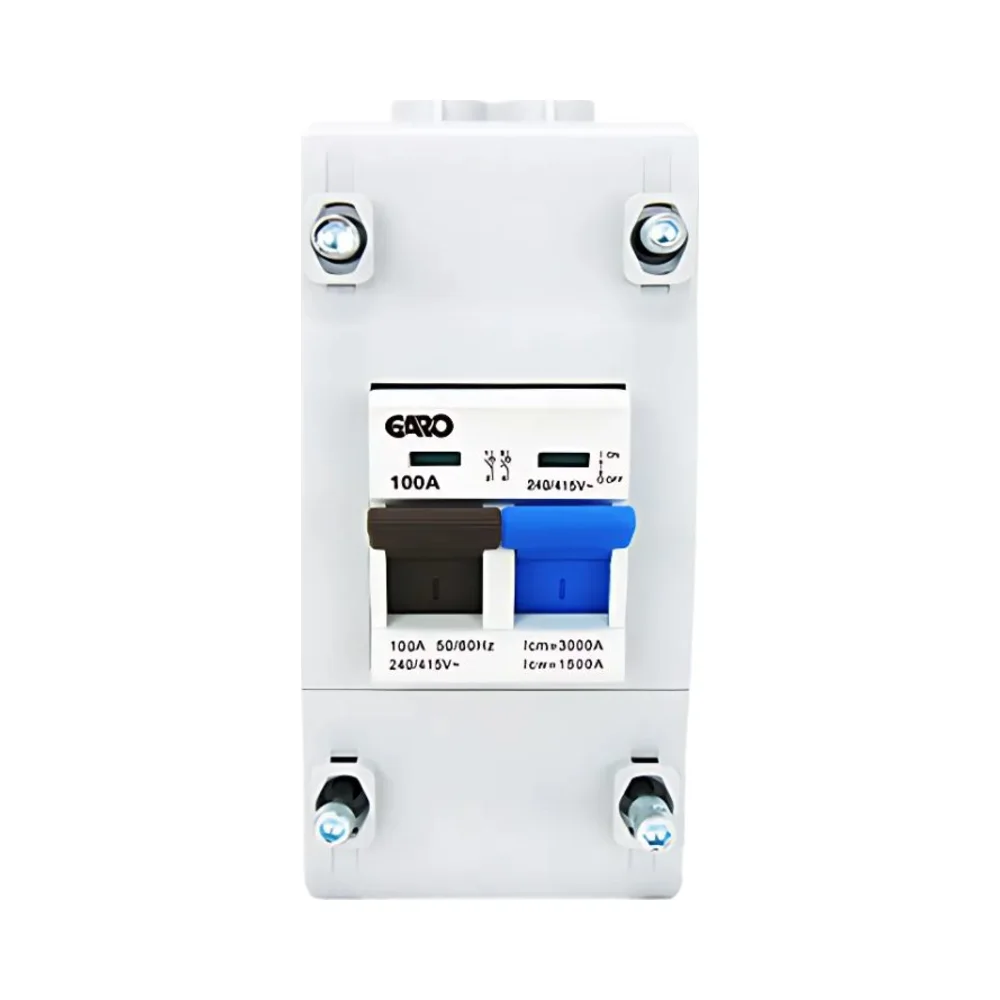

Garo GP2100M – 2 Way 100A Enclosure Meter Isolation Switch
The Garo GP2100M 2 Way 100A Enclosure Meter Isolation Switch ensures safe and efficient disconnection of electrical circuits. Built with a durable modular enclosure, it provides secure isolation for residential and commercial meter installations.
Engineered to IEC/EN 60947-3 standards, the GP2100M combines reliability and compliance. With IP40 protection, a compact DIN rail design, and a clear red/green contact indicator, it offers both safety and ease of use for professional installers.
Key Features – Garo GP2100M
- 2 Pole meter isolation switch rated at 100A
- Compact modular enclosure with IP40 protection
- Built-in switch-disconnector to IEC/EN 60947-3
- Clear red/green mechanical contact position indicator
- Top or bottom supply connection for installation flexibility
Technical Overview – Garo GP2100M
- Rated current (In): 100A
- Rated operational voltage (Ue): 230/400V AC
- Rated insulation voltage (Ui): 1000V
- Rated impulse withstand voltage (Uimp): 4kV
- Utilisation category: AC-22A
- Short-time withstand current: 16kA
- Poles: 2
- Frequency: 50/60Hz
- Device height: 68mm (DIN rail to EN60715)
- Device width: 36mm (2 x 18mm modules)
- Terminal capacity: 1–50mm²
- Terminal screw: M6 (Pozidrive PZ2)
- Terminal torque: max 3Nm
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
✅ Why Choose This Product?
The Garo GP2100M is the installer’s choice for safe and compliant meter isolation. Its 100A capacity, compact design, and straightforward installation make it ideal for both new projects and retrofits.
️ Guarantee & Compliance
This product complies with the Low Voltage Directive (2014/35/EU) and RoHS Directive (2011/65/EU). Designed and manufactured in accordance with IEC/EN 60947-3 standards, it meets EU safety and reliability requirements.
