Description
Maximum Protection for High-Power Circuits

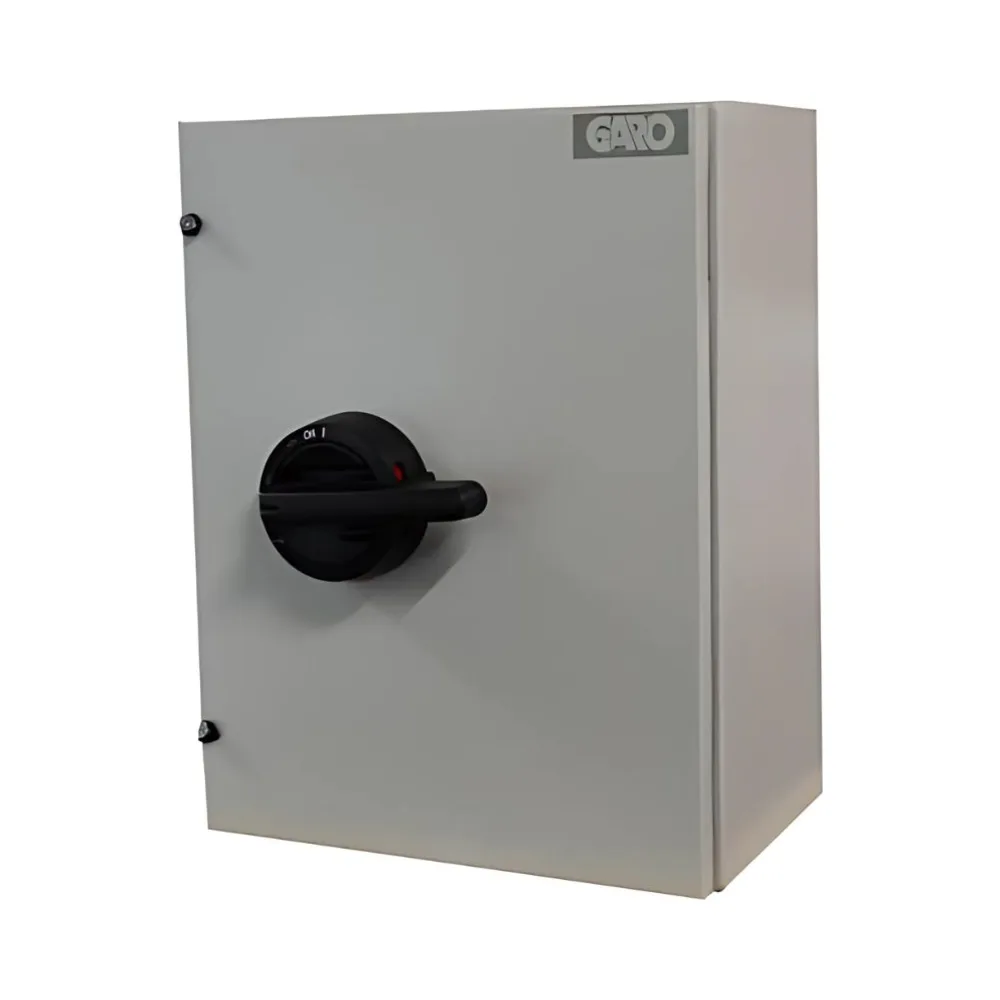

Garo GFS3400IP55MBS – 400A 3 Pole IP55 Metalclad Switch Fuse
The Garo 400A 3P Metalclad Switch Fuse is built for large-scale power distribution and protection. With its rugged IP55-rated metal enclosure, it provides outstanding resistance to dust and water, making it suitable for the toughest industrial and commercial installations.
Rated at 400A, the GFS3400IP55MBS supports heavy-duty performance up to 355kW at 690V under AC-23 conditions. Its design includes DIN and BS88 fuse compatibility, M10 bolted terminals, and exceptional durability with 3,200 electrical and 10,000 mechanical operations, making it a reliable choice for high-capacity systems.
✨ Key Features – Garo 400A 3P Metalclad Switch Fuse
- 400A 3 pole enclosed switch fuse
- IP55-rated metalclad housing for industrial resilience
- Rated operational motor power: up to 355kW at 690V (AC-23)
- Electrical endurance: 3,200 operations | Mechanical endurance: 10,000 operations
- DIN and BS88 fuse compatibility (B1–B4)
- M10 terminals with 30–44mm² capacity
- High short-circuit rating: 80kA RMS | Peak withstand 200kA
- Conforms to EN 60947-1 and EN 60947-3 standards
- Fuses included
Technical Overview – Garo 400A 3P Metalclad Switch Fuse
- Rated insulation voltage: 1000V
- Rated current: 400A
- Operational currents: AC-21, AC-22, AC-23 (400/415V, 500V, 690V)
- Rated operational power: 200–355kW (AC-23, up to 690V)
- Short-circuit rating: 80kA RMS | Peak withstand 200kA
- Impulse withstand voltage: 26kV
- Short-time withstand current (1s): 12kA
- Terminal torque: 30Nm
- Fuse type: DIN / BS88 (B1–B4)
- Ingress protection: IP55
- Complies with LVD 2014/35/EU and RoHS 2011/65/EU
✅ Why Choose This Product?
The Garo 400A 3P Metalclad Switch Fuse is designed for maximum load protection in high-power applications. With 400A capacity, industrial-strength enclosure, and exceptional durability, it’s trusted for large electrical infrastructures requiring reliability and compliance.
About Garo
Garo is a trusted European brand delivering advanced electrical distribution and protection products. Their switch fuses are built to meet the highest standards of safety, durability, and professional performance in the most demanding applications.
️ Guarantee & Compliance
All Garo switch fuses are manufactured in accordance with EN 60947 standards, the Low Voltage Directive (2014/35/EU), and RoHS Directive (2011/65/EU). Certification details are available via the Garo website.
