Industrial-Strength Protection with High Power Capacity

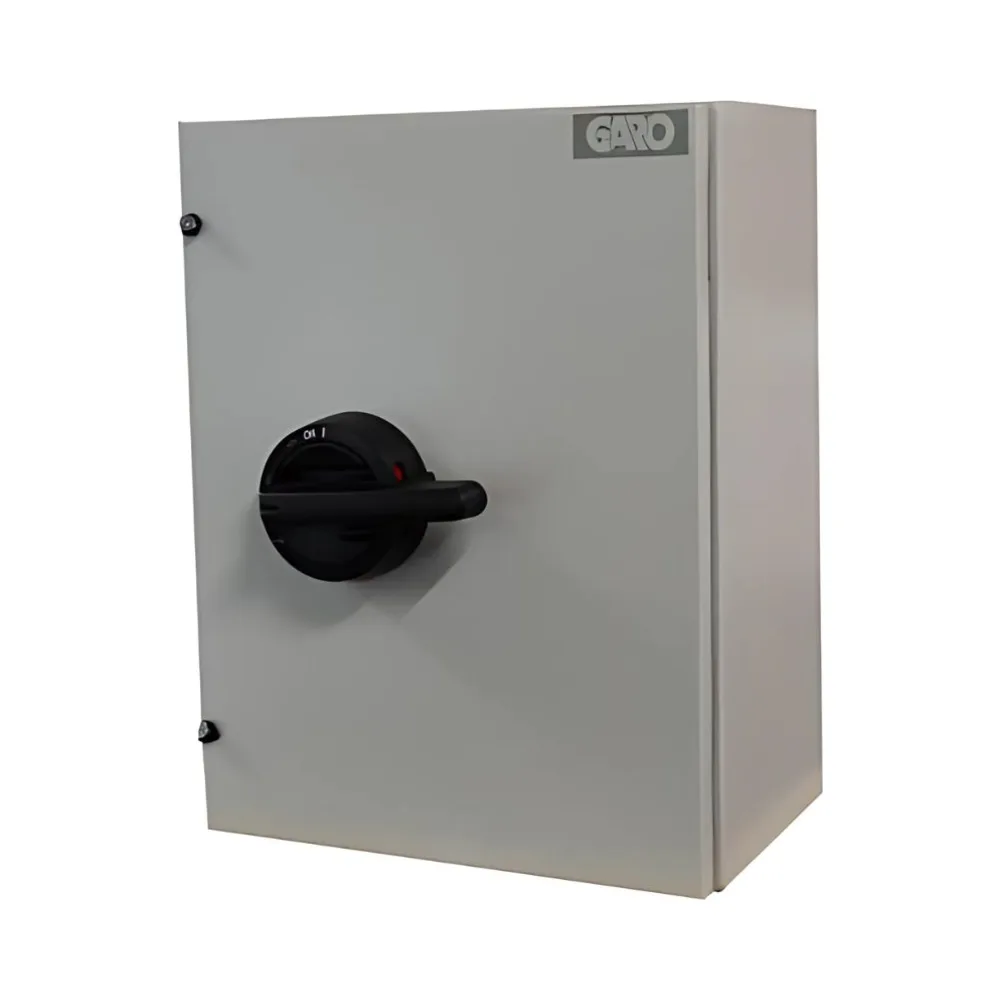

Garo GFS3200IP55MBS – 200A 3 Pole IP55 Metalclad Switch Fuse
The Garo 200A 3P Metalclad Switch Fuse provides exceptional circuit protection for high-power applications. Enclosed in an IP55-rated metal housing, it safeguards against dust and water ingress, ensuring long-term reliability in demanding commercial and industrial environments.
Rated at 200A, the GFS3200IP55MBS supports heavy-duty loads with operational capacity across AC-21, AC-22, and AC-23 duty ratings up to 690V. With 30–44mm² terminal range, DIN and BS88 fuse compatibility, and endurance of 1,600 electrical and 16,000 mechanical operations, it is engineered for durability and safety in large-scale installations.
✨ Key Features – Garo 200A 3P Metalclad Switch Fuse
- 200A 3 pole enclosed switch fuse
- Durable IP55 metalclad housing for tough environments
- High operational power handling up to 160kW at 690V (AC-23)
- Electrical endurance: 1,600 operations | Mechanical endurance: 16,000 operations
- Compatible with DIN and BS88 fuse systems
- Robust M10 terminals with 30–44mm² capacity
- Conforms to EN 60947-1 and EN 60947-3 standards
- Fuses included
Technical Overview – Garo 200A 3P Metalclad Switch Fuse
- Rated insulation voltage: 1000V
- Rated current: 200A
- Operational currents: AC-21, AC-22, AC-23 (400/415V, 500V, 690V)
- Rated operational motor power: 110–160kW (AC-23, up to 690V)
- Short-circuit rating: 80kA | Peak withstand: 200kA
- Impulse withstand voltage: 18kV
- Terminal torque: 30Nm
- Fuse type: DIN / BS88, size B1–B2
- Ingress protection: IP55
- Complies with LVD 2014/35/EU and RoHS 2011/65/EU
✅ Why Choose This Product?
The Garo 200A 3P Metalclad Switch Fuse is the installer’s choice for high-capacity power distribution. With rugged IP55 protection, DIN/BS88 fuse compatibility, and exceptional endurance, it is trusted for large commercial and industrial systems where reliability is critical.
About Garo
Garo is a leading European manufacturer of electrical distribution and protection solutions. Their switch fuses are engineered to meet strict safety standards while delivering dependable performance in the toughest environments.
️ Guarantee & Compliance
All Garo switch fuses are manufactured to comply with EN 60947 standards, the Low Voltage Directive (2014/35/EU), and RoHS Directive (2011/65/EU). For full certification details, visit the Garo website.
