Description
Strong and Spacious Garo Plastic Enclosure

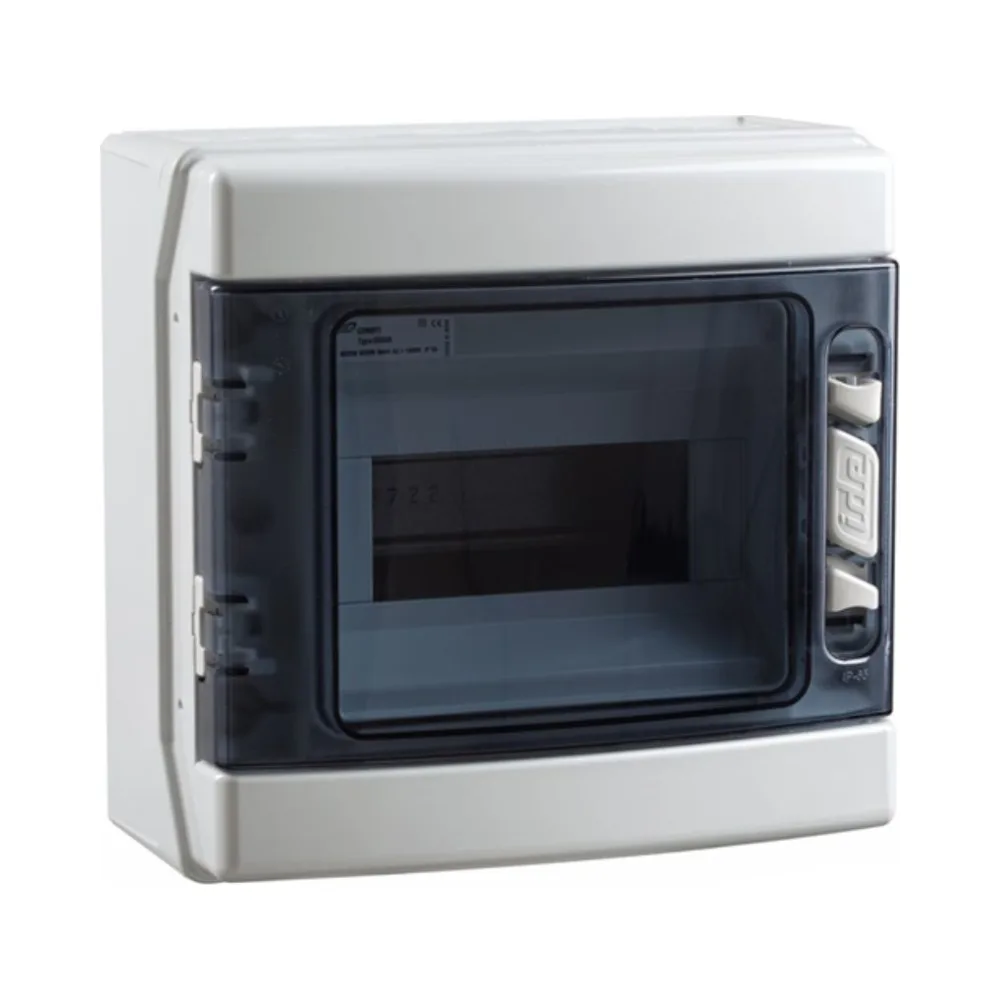

Garo GCUT8
The Garo GCUT8 8 Module IP65 Plastic Enclosure provides a reliable and secure solution for housing DIN rail-mounted devices. Constructed from halogen-free ABS and polycarbonate, it features a UV-protected transparent hinged door, spacious wiring room, and a robust IP65 seal. Designed with adjustable DIN rail positions and multiple cable entries, it ensures flexibility for a wide range of applications.
Key Features – Garo GCUT8 8 Module IP65 Plastic Enclosure
- 8 module DIN rail enclosure with innovative design
- Halogen-free ABS and polycarbonate body
- Transparent UV-protected hinged door, 180° opening
- IP65 sealing for water and dust protection
- IK08 impact resistance for added durability
- Flexible wiring space with adjustable DIN rail positions
- Prepared for double-height earth and neutral bars (up to 125A)
- Cable entries: 4xM25 + 1xM40
Technical Overview – Garo GCUT8 Enclosure
- Type: 1×8 DIN rail modules
- Degree of protection: IP65
- Impact resistance: IK08
- Auto-extinguishing: HB (UL94)
- Glow wire tested: 650°C
- Ball pressure test: 70°C
- Temperature range: -25°C to +40°C
- Material: Halogen-free ABS and polycarbonate
- Cable entries: 4xM25 + 1xM40
✅ Why Choose This Product?
The Garo GCUT8 8 Module IP65 Plastic Enclosure combines strength, UV protection, and adaptable design. Its generous wiring space, reliable sealing, and impact resistance make it a practical choice for residential, commercial, and industrial installations.
️ Guarantee & Compliance
The Garo GCUT8 complies with EN 61439-3 and meets the requirements of the Low Voltage Directive (2014/35/EU) and RoHS Directive (2011/65/EU). Certified for long-lasting performance and safe operation.
