Description

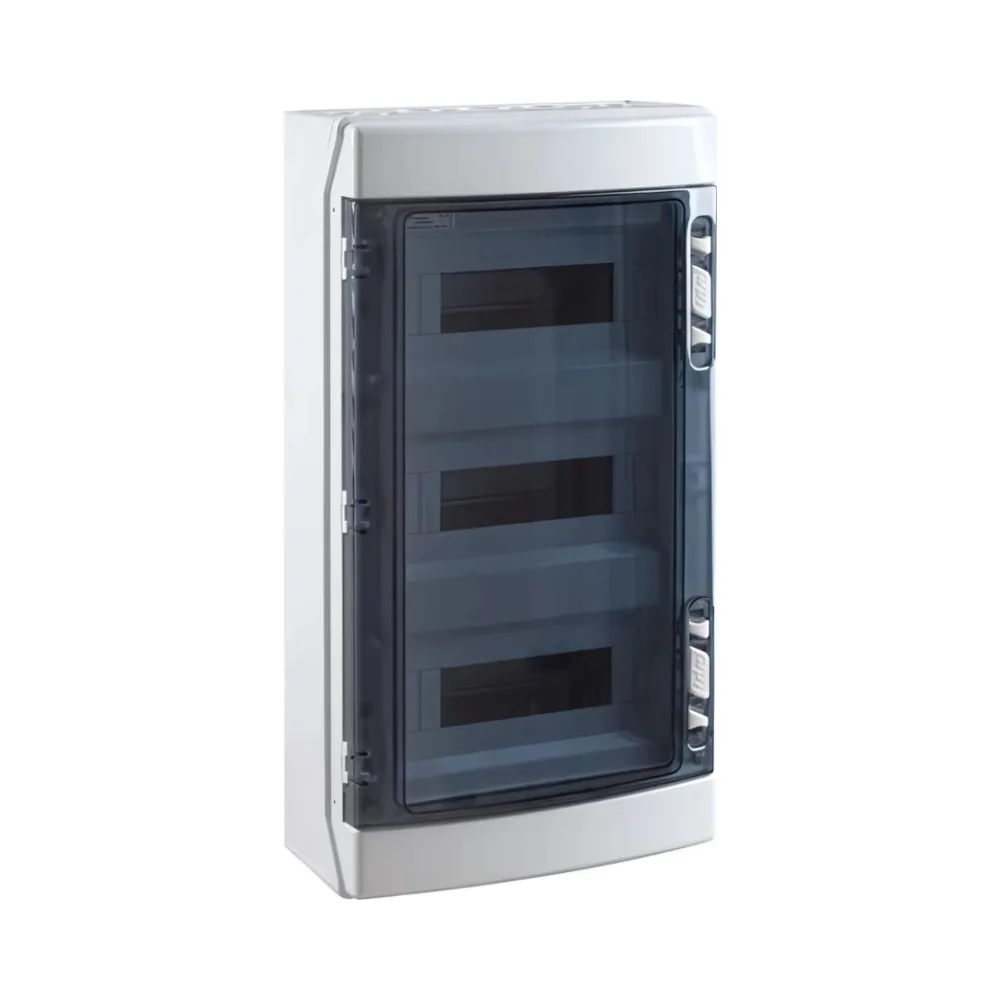

Heavy-Duty 36 Module IP65 Triple Row Plastic Enclosure
Garo GCUT336
The Garo GCUT336 36 Module IP65 Triple Row Plastic Enclosure is engineered for complex and high-capacity distribution systems. Constructed from halogen-free ABS and polycarbonate, it features a UV-protected transparent hinged door, triple-row DIN rail layout, and IP65-rated sealing. With ample wiring space, IK08 impact resistance, and versatile cable entries, it ensures reliable performance for demanding residential, commercial, and industrial projects.
Key Features – 36 Module IP65 Triple Row Plastic Enclosure
- Triple row design with 36-module capacity (3×12 modules)
- Halogen-free ABS and polycarbonate construction
- Transparent UV-protected hinged door, 180° opening
- IP65-rated sealing against dust and water ingress
- IK08 impact resistance for durability
- Generous wiring area with adjustable DIN rail positions
- Supports double-height earth and neutral bars up to 125A
- Cable entries: 7xM20 + 2xM25 + 2xM32 + 1xM40
Technical Overview – Garo GCUT336 Enclosure
- Type: 3×12 (36) DIN rail modules
- Degree of protection: IP65
- Impact resistance: IK08
- Auto-extinguishing: HB (UL94)
- Glow wire tested: 650°C
- Ball pressure test: 70°C
- Temperature range: -25°C to +40°C
- Material: Halogen-free ABS and polycarbonate
- Cable entries: 7xM20 + 2xM25 + 2xM32 + 1xM40
✅ Why Choose This Product?
The Garo GCUT336 offers exceptional capacity with strong protection. Ideal for larger installations, its triple-row design, UV protection, and reliable sealing make it a dependable choice for professional electrical distribution.
️ Guarantee & Compliance
The Garo GCUT336 complies with EN 61439-3 and meets the requirements of the Low Voltage Directive (2014/35/EU) and RoHS Directive (2011/65/EU). Certified for safety, quality, and long-term performance.
