Description

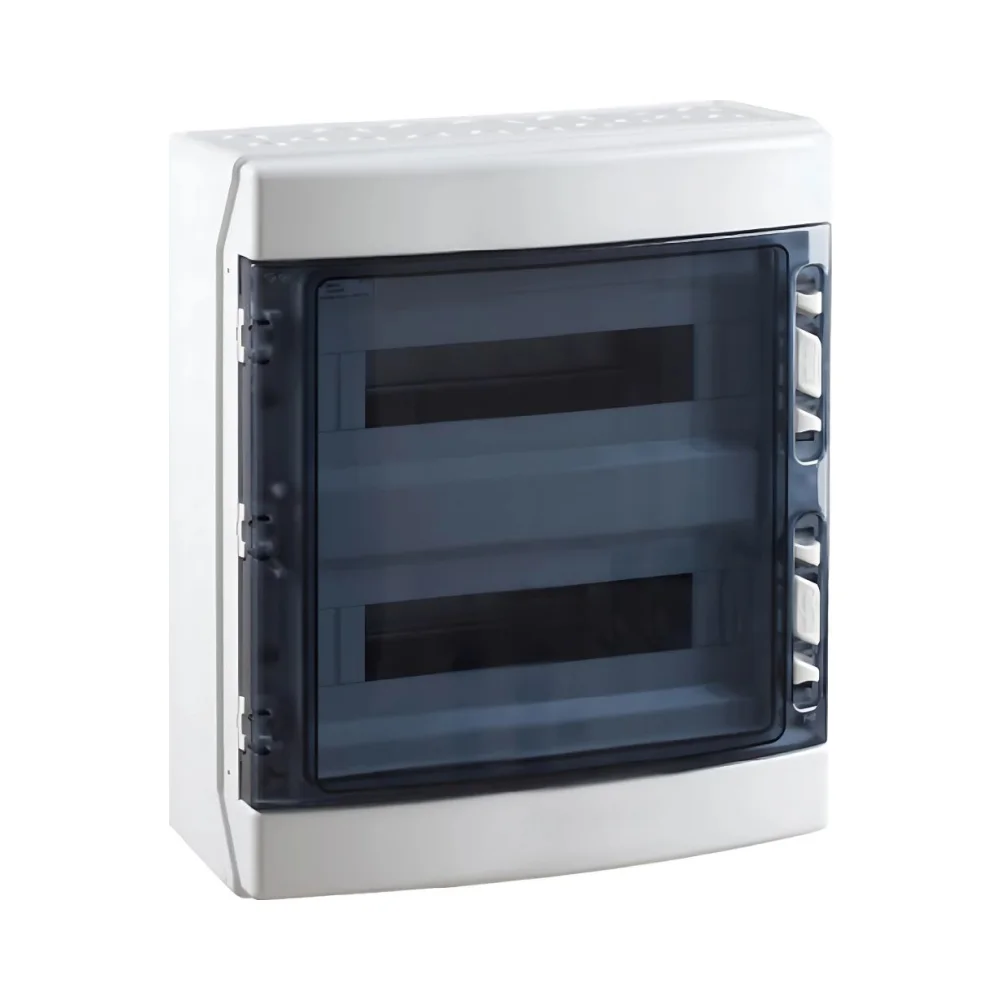

Robust 36 Module IP65 Dual Row Plastic Enclosure
Garo GCUT236
The Garo GCUT236 36 Module IP65 Dual Row Plastic Enclosure provides durable and spacious protection for large-scale distribution systems. Built from halogen-free ABS and polycarbonate, it features a UV-protected transparent hinged door, strong IP65 sealing, and two DIN rail rows for up to 36 modules. With generous wiring space, impact resistance, and adaptability, it’s an ideal solution for commercial, residential, and light industrial installations.
Key Features – 36 Module IP65 Dual Row Plastic Enclosure
- Dual row enclosure with 36-module capacity (2×18 modules)
- Halogen-free ABS and polycarbonate construction
- Transparent UV-protected hinged door with 180° opening
- IP65 protection against dust and water
- IK08 impact resistance for demanding environments
- Spacious wiring area with adjustable DIN rail height
- Supports double-height earth and neutral bars up to 125A
- Cable entries: 12xM20 + 6xM25 + 2xM32 + 1xM40
Technical Overview – Garo GCUT236 Enclosure
- Type: 2×18 (36) DIN rail modules
- Degree of protection: IP65
- Impact resistance: IK08
- Auto-extinguishing: HB (UL94)
- Glow wire tested: 650°C
- Ball pressure test: 70°C
- Temperature range: -25°C to +40°C
- Material: Halogen-free ABS and polycarbonate
- Cable entries: 12xM20 + 6xM25 + 2xM32 + 1xM40
✅ Why Choose This Product?
The Garo GCUT236 is the perfect choice for installers needing reliable, large-capacity housing. With robust sealing, UV protection, and ample wiring space, it ensures safe, professional-grade distribution in all conditions.
️ Guarantee & Compliance
The Garo GCUT236 complies with EN 61439-3 and meets the requirements of the Low Voltage Directive (2014/35/EU) and RoHS Directive (2011/65/EU). Certified for long-term safety, durability, and performance.
