Description
Reliable 24 Module IP65 Dual Row Plastic Enclosure

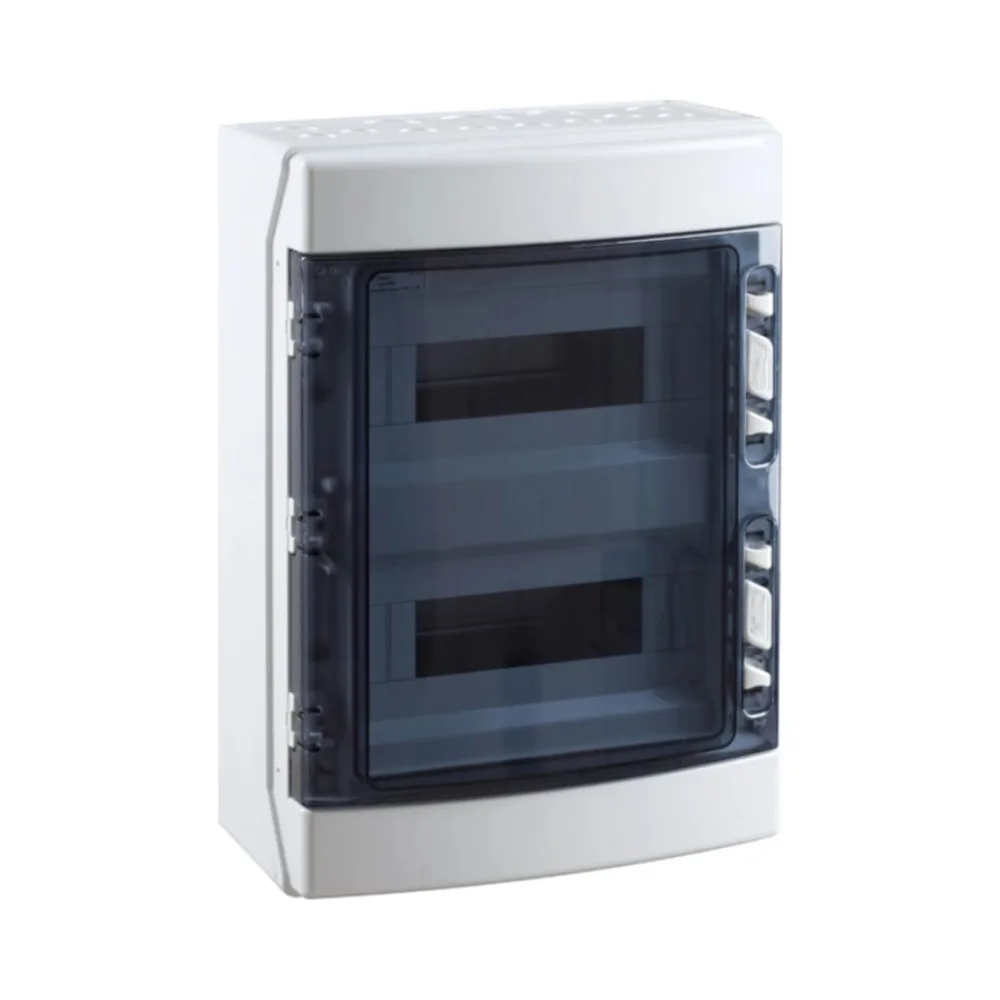

Garo GCUT224
The Garo GCUT224 24 Module IP65 Dual Row Plastic Enclosure is engineered for larger-scale distribution systems. Constructed from halogen-free ABS and polycarbonate, it offers two DIN rail rows with a 24-module capacity. A transparent UV-protected hinged door, IP65-rated sealing, and generous wiring space ensure both safety and ease of installation. Its robust design with IK08 impact resistance makes it suitable for demanding residential, commercial, and industrial applications.
Key Features – 24 Module IP65 Dual Row Plastic Enclosure
- Dual row enclosure with 24-module capacity (2×12 modules)
- Halogen-free ABS and polycarbonate construction
- Transparent UV-protected hinged door, 180° opening
- IP65 sealing for dust and water protection
- IK08 impact resistance for durability
- Ample wiring room with adjustable DIN rail height
- Supports double-height earth and neutral bars up to 125A
- Cable entries: 7xM20 + 2xM25 + 2xM32 + 1xM40
Technical Overview – Garo GCUT224 Enclosure
- Type: 2×12 (24) DIN rail modules
- Degree of protection: IP65
- Impact resistance: IK08
- Auto-extinguishing: HB (UL94)
- Glow wire tested: 650°C
- Ball pressure test: 70°C
- Temperature range: -25°C to +40°C
- Material: Halogen-free ABS and polycarbonate
- Cable entries: 7xM20 + 2xM25 + 2xM32 + 1xM40
✅ Why Choose This Product?
The Garo GCUT224 Enclosure provides professional-grade protection with dual row capacity, UV protection, and robust sealing. Its spacious layout ensures reliable performance for complex wiring setups in varied environments.
️ Guarantee & Compliance
The Garo GCUT224 complies with EN 61439-3 and meets the requirements of the Low Voltage Directive (2014/35/EU) and RoHS Directive (2011/65/EU). Certified for safety, quality, and long-term performance.
