Description
Maximum Power Switching with Garo 400A
Garo – GCO4400IP55M

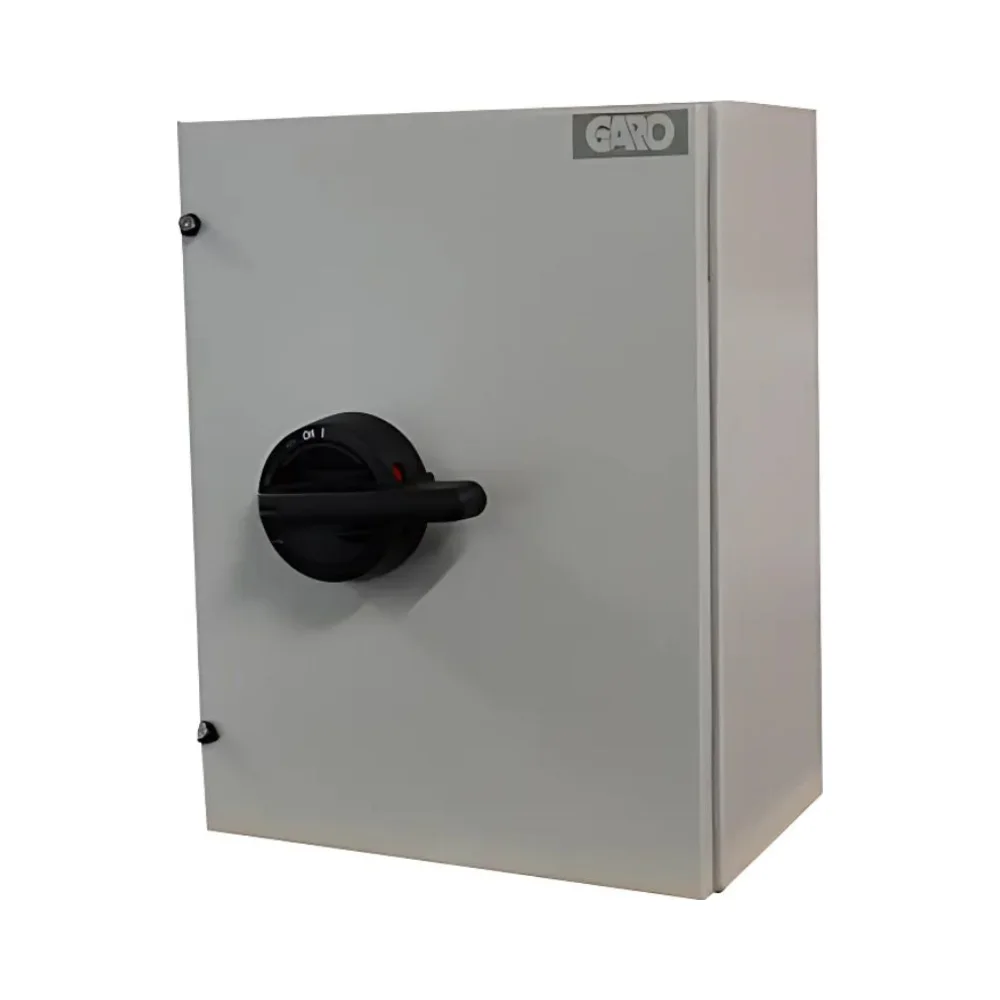

The Garo 400A 4 Pole Changeover Switch offers top-level switching capacity with IP55 protection. Featuring a robust metalclad enclosure, it is built for large-scale commercial and industrial applications where maximum reliability is essential.
✨ Key Features – Garo 400A 4 Pole Changeover Switch
- 400A, 4-pole changeover switch in IP55 enclosure
- Rated insulation voltage: 1000V | Impulse withstand: 12kV
- Utilisation categories: AC-20 to AC-23 / DC-20 to DC-23
- Short-time withstand current: 25kA (0.3s) / 13kA (1s)
- Short-circuit making capacity: 26kA peak
- Max cable cross-section: 240mm² | Busbar width: 40mm
- Tightening torque: up to 20Nm
- Complies with EN 60947-1 and EN 60947-3
Technical Overview – GCO4400IP55M
- Model: GCO4400IP55M
- Rated thermal current: 400A @ 40°C
- Operational voltage: 415VAC | 220–500VDC
- Prospective short-circuit current: 100kA rms
- Fuse rating: 400A
- Ingress protection: IP55
Included
- 1 × Garo GCO4400IP55M 400A
- Installation guide
✅ Why Choose This Product?
Built for maximum reliability and capacity, this 400A switch provides heavy-duty power transfer with EN 60947 compliance, ensuring professional-grade safety and performance.
️ Guarantee & Compliance
Complies with EU Low Voltage Directive (2014/35/EU) and RoHS (2011/65/EU). Designed and tested to EN 60947-1 and EN 60947-3 standards for enclosed switchgear.
