Heavy-Duty Source Switching with Garo 250A

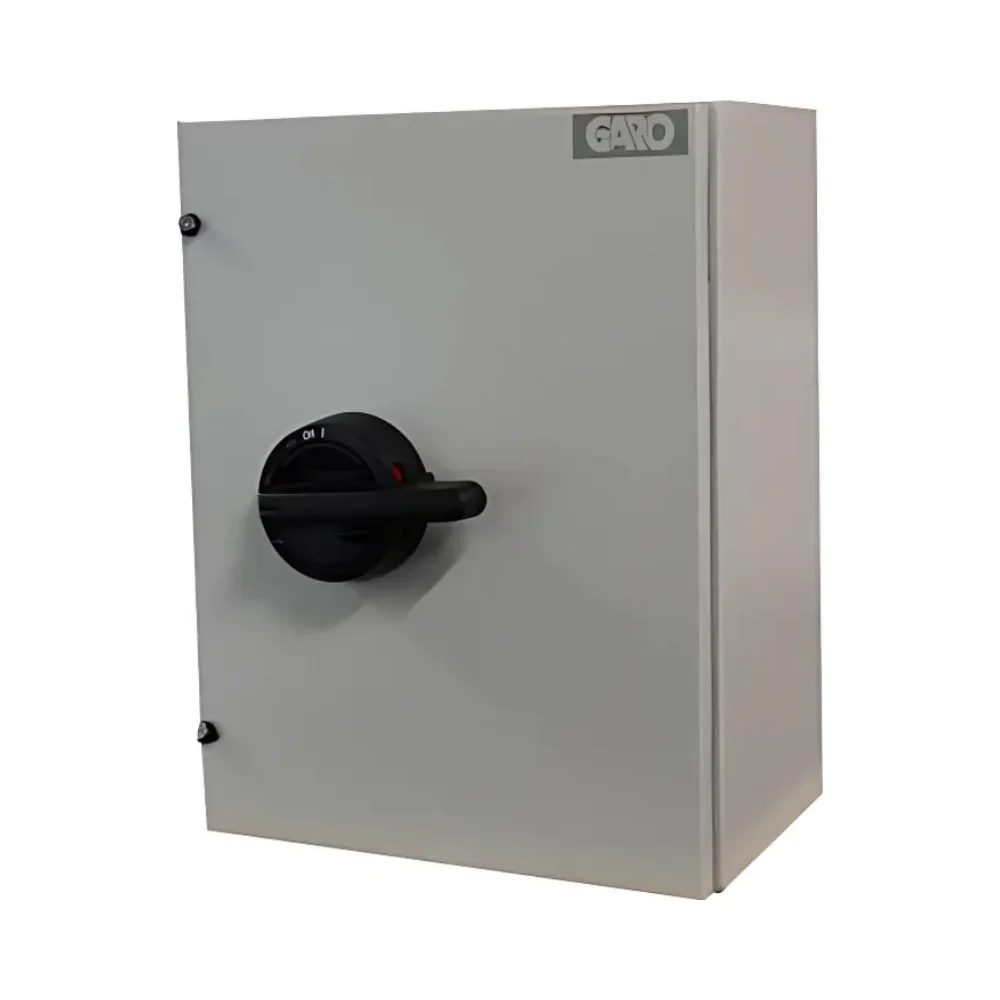

Garo – GCO4250IP55M
The Garo 250A 4 Pole Changeover Switch is built for robust, heavy-duty switching applications. Featuring an IP55-rated metalclad enclosure, it offers superior protection and dependable performance in demanding commercial and industrial environments.
✨ Key Features – Garo 250A 4 Pole Changeover Switch
- 250A, 4-pole design with IP55 metalclad protection
- Rated insulation voltage: 800V | Impulse withstand: 8kV
- Utilisation categories: AC-20 to AC-23 / DC-20 to DC-23
- Short-time withstand current: 17kA (0.3s) / 9kA (1s)
- Short-circuit making capacity: 15.3kA peak
- Max cable cross-section: 150mm² | Busbar width: 32mm
- Tightening torque: up to 20Nm
- Complies with EN 60947-1 and EN 60947-3
Technical Overview – GCO4250IP55M
- Model: GCO4250IP55M
- Rated thermal current: 250A @ 40°C
- Operational voltage: 415VAC | 220–500VDC
- Prospective short-circuit current: 50kA rms
- Fuse rating: 250A
- Ingress protection: IP55
Included
- 1 × Garo GCO4250IP55M
- Installation guide
✅ Why Choose This Product?
This 250A Garo changeover switch is designed for safety and durability, ensuring consistent operation under high loads with IP55 environmental protection.
️ Guarantee & Compliance
Complies with EU Low Voltage Directive (2014/35/EU) and RoHS (2011/65/EU). Designed to EN 60947-1 and EN 60947-3 standards for enclosed switchgear.
