Description
Reliable Source Transfer with Garo 160A Changeover

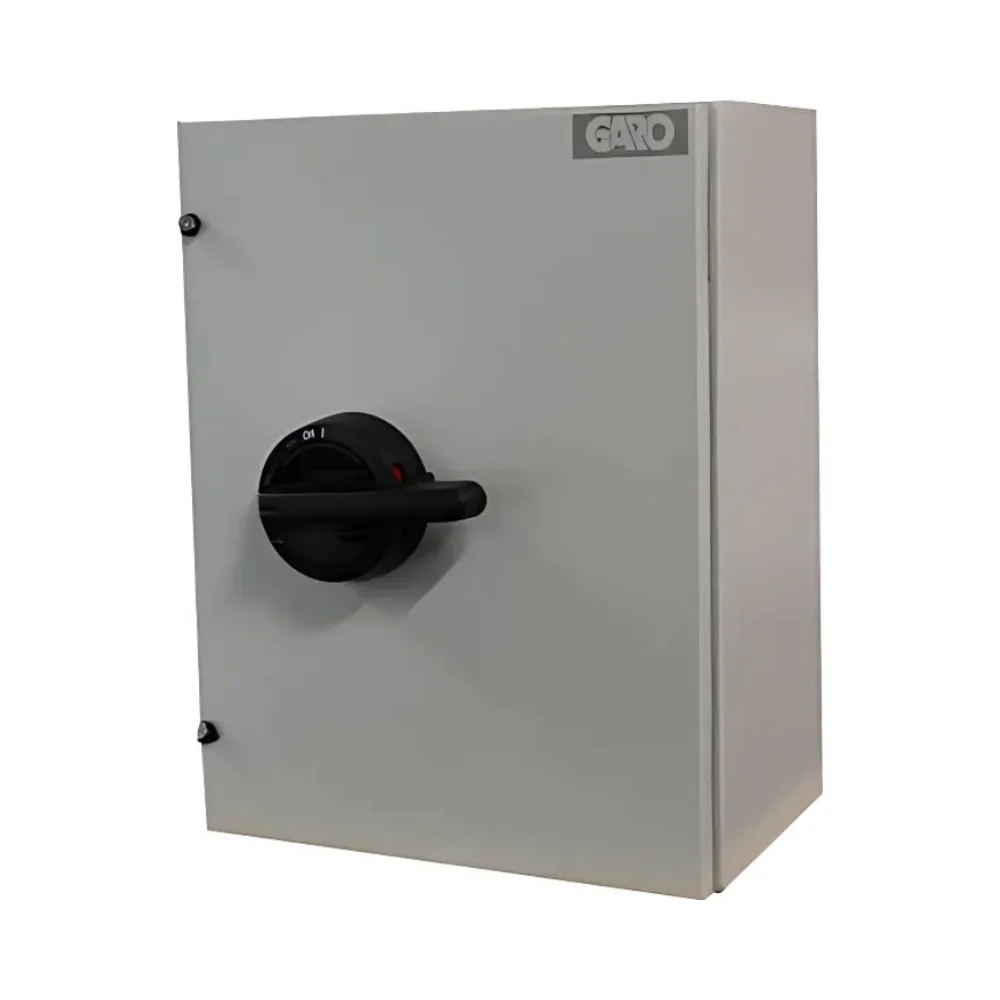

Garo – GCO4160IP55M
The Garo 160A 4 Pole Changeover Switch in an IP55 metalclad enclosure ensures dependable power switching between two sources. Built for safety, it is well-suited for commercial and light industrial environments requiring reliable transfer under load.
✨ Key Features – Garo 160A 4 Pole Changeover Switch
- 160A, 4-pole switch in IP55 metalclad enclosure
- Rated insulation voltage: 800V | Impulse withstand: 8kV
- Operational categories: AC-20 to AC-23 / DC-20 to DC-23
- Short-time withstand current: 15kA (0.3s) / 7kA (1s)
- Short-circuit making capacity: 11.9kA peak
- Max cable cross-section: 95mm² | Busbar width: 25mm
- Tightening torque: up to 9Nm
- Conforms to EN 60947-1 and EN 60947-3
Technical Overview – GCO4160IP55M
- Model: GCO4160IP55M
- Rated thermal current: 160A @ 40°C
- Operational voltage: 415VAC | 220–500VDC
- Prospective short-circuit current: 100kA rms
- Fuse rating: 160A
- Ingress protection: IP55
Included
- 1 × Garo GCO4160IP55M
- Installation guide
✅ Why Choose This Product?
Built tough for demanding environments, this 160A changeover switch combines safety, performance, and IP55 protection, making it the professional’s choice for secure power switching.
️ Guarantee & Compliance
Complies with EU Low Voltage Directive (2014/35/EU) and RoHS (2011/65/EU). Designed to EN 60947-1 and EN 60947-3 standards for enclosed switchgear.
