Description
Reliable Source Transfer in Harsh Environments

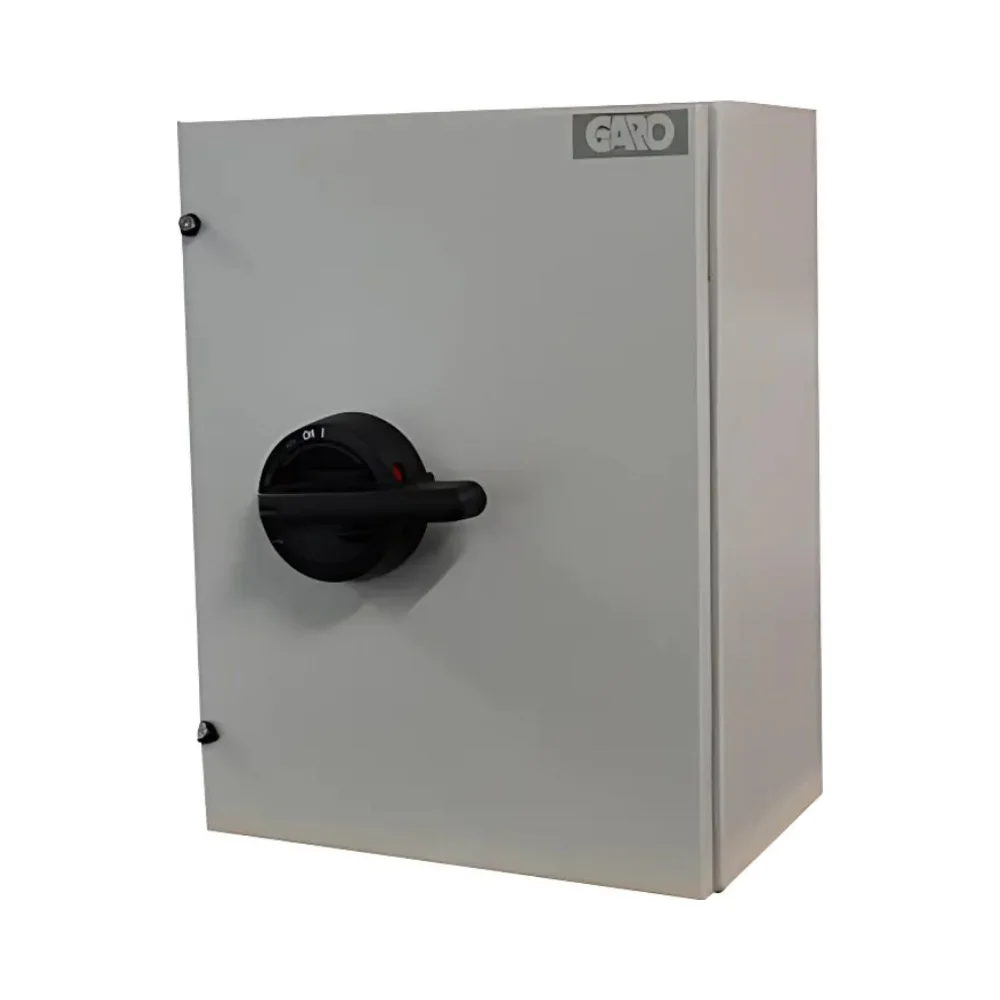

Garo – GCO4125IP55M
The Garo 125A 4 Pole Changeover Switch (IP55 rated) provides robust, secure switching between two power sources. Built with a metalclad enclosure, it ensures reliable performance in demanding environments, offering protection against dust and water ingress while maintaining safety in residential, commercial, and light industrial installations.
✨ Key Features – Garo 125A 4 Pole Changeover Switch
- 125A, 4-pole changeover in metalclad enclosure (IP55)
- Rated insulation voltage: 800V | Impulse withstand: 8kV
- Operational category: AC-20 to AC-23, DC-20 to DC-23
- Short-time withstand current: 15kA (0.3s) / 7kA (1s)
- Prospective short-circuit current: 100kA rms
- Max cable cross-section: 50mm² | Max busbar width: 25mm
- Tightening torque: 9Nm max
- Complies with EN 60947-1 and EN 60947-3
Technical Overview – Garo 125A 4 Pole Changeover Switch
- Model: GCO4125IP55M
- Rated current (Ith): 125A
- Rated insulation voltage (Ui): 800V
- Rated operational voltage (Ue): 415VAC | 220–500VDC
- Utilisation categories: AC-20, AC-21, AC-22, AC-23 | DC-20 to DC-23
- Short-circuit making capacity (Icm): 11.9kA peak
- Ingress protection: IP55
Included
- 1 × Garo GCO4125IP55M
- Installation documentation
✅ Why Choose This Product?
The Garo GCO4125IP55M delivers dependable, high-capacity source switching with IP55 protection. Designed for safety, durability, and compliance with EU directives, it is the professional choice for reliable power transfer in residential, commercial, and light industrial applications.
️ Guarantee & Compliance
Conforms to the Low Voltage Directive (2014/35/EU) and RoHS (2011/65/EU). Designed and tested in line with EN 60947-1 and EN 60947-3 for enclosed switchgear performance and safety.
